Bad Boy Tractors 5045 Cab vs Mahindra 5155 Shuttle

Across 9 measurable specs, the Mahindra 5155 Shuttle leads 7 categories to 2. Machine pages: Bad Boy Tractors 5045 Cab and Mahindra 5155 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

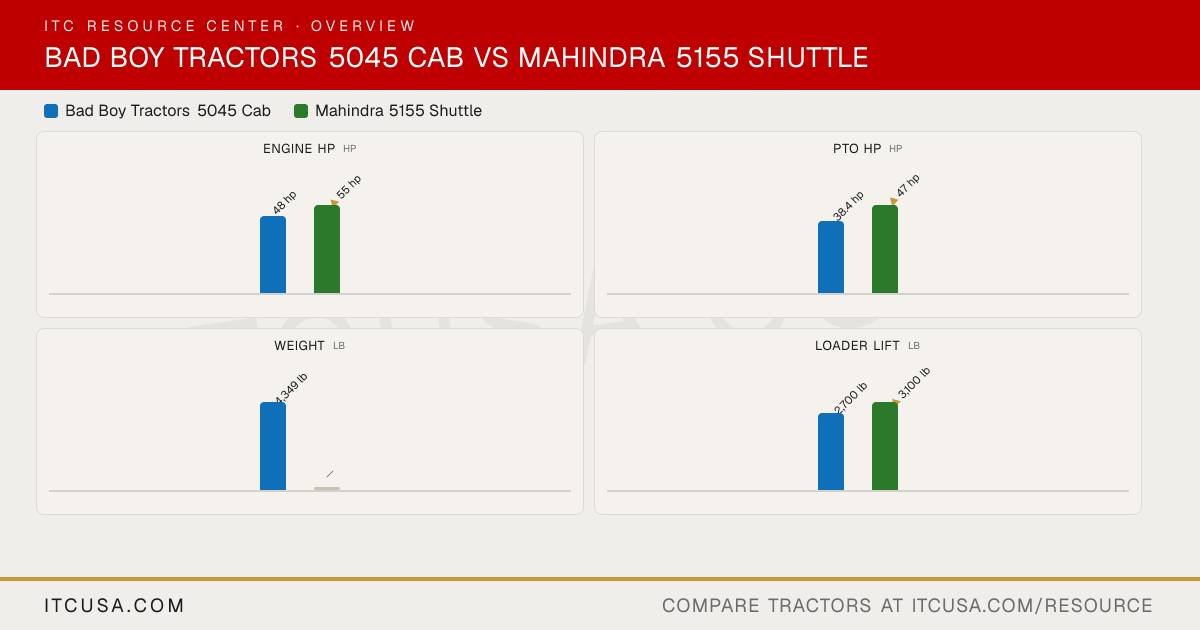

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5045 Cab	Mahindra5155 Shuttle

▶Engine
Engine Manufacturer	TYM	Mahindra
Engine Model	A2300N3	DH55
Engine Type	4 cylinder water-cooled diesel, naturally aspirated	Four-stroke, turbocharged, direct injection, water-cooled diesel
No. of Cylinders	4	4
Displacement	139.5 in³	166.2 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	48 hp	55 hp
PTO Power	38.4 hp	47 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Not Published	Direct injection
Alternator	70 A, 12 V	55 A
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	10.7 gpm	8.71 gpm
Steering Flow	5 gpm	4.62 gpm
Total Hydraulic Flow	15.7 gpm	13.3 gpm
Overall Hydraulic Pump Flow	15.7 gpm	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	4 ports	One
No. of Optional Remote Valves	Not Published	One (optional second rear valve)
▶Fluid Capacity
Fuel Tank Capacity	11.8 gal	17.1 gal
Coolant Capacity	1.56 gal	Not Published
Crankcase Capacity	1.20 gal	Not Published
Transmission / Hydraulic System Capacity	10.04 gal	Not Published
Front Axle Fluid Capacity	1.90 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 / 540E rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	3,306 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	3,748 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 4-range	Full synchromesh with forward/reverse synchro shuttle and constant-mesh range
No. of Speeds	4 range (HST)	12F / 12R
Max Travel Speed (Forward)	19.5 mph	17.9 mph
Max Travel Speed (Reverse)	19.5 mph	Not Published
Clutch	None (HST)	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Rear differential lock (standard)	Not Published
▶Chassis, Steering & Controls
Frame Type	Compact utility tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Power steering with tilt steering wheel
Brakes	Wet, multi-disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	64.9 in	74.8 in
Wheelbase	71.1 in	77.9 in
Ground Clearance	15.5 in	16.4 in
Min. Turn Radius without Brakes	9.18 ft (with brake applied)	10.8 ft (3.29 m)
Height to Top of ROPS	Not Published	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	97.0 in	Not Published
Overall Length	127.4 in (with 3-point hitch)	136.6 in
▶Weight
Tractor Weight (Base)	4,349 lb	5,390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	9.5-16 front / 13.6-26 rear (ag)	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	9.5-16	9.5 x 20
R1 Agricultural - Rear	13.6-26	14.9 x 28
R3 Turf - Front	Not Published	Not Published
R3 Turf - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	10.5/80 x 18
R4 Industrial - Rear	Not Published	16.9 x 24
▶Loader & Attachments
Quick Attach Loader System	SSQA	Skid-steer style quick-attach coupler
Loader Model	BBL500	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	106.6 in	122 in
Loader Lift Capacity (Full Height)	2,700 lb (at pivot pin)	3,100 lb
Loader Breakout Force	3,660 lb	5,200 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	5-year limited powertrain warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Mahindra dealer near you→

Bad Boy Tractors 5045 Cab vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Bad Boy Tractors 5045 Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on engine hp at 55 hp hp, compared to 48 hp hp for the Bad Boy Tractors 5045 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 5045 Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 38.4 hp hp for the Bad Boy Tractors 5045 Cab.

Which is heavier, the Bad Boy Tractors 5045 Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 4,349 lb lb for the Bad Boy Tractors 5045 Cab.

Which has more loader lift capacity, the Bad Boy Tractors 5045 Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,700 lb lb for the Bad Boy Tractors 5045 Cab.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 5045 Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 5045 Cab.
