Across 9 measurable specs, the Bobcat CT4545 leads 4 categories to 3 (2 tied). Machine pages: Bobcat CT4545 and Kioti DK4520.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bobcat CT4545 | Kioti DK4520 |
|---|
| Engine HP (hp) | 44.9 hp | 44.9 hp |
| PTO HP (hp) | 32.8 hp | ▲ 38.9 hp |
| Weight (lb) | ▲ 4,300 lb | 3,373 lb |
| Loader Lift (lb) | 1,795 lb | ▲ 2,474 lb |
| 3-Pt Lift (24 in) (lb) | 2,716 lb | 2,716 lb |
| Lift Height (in) | 103.2 in | ▲ 107.7 in |
| Breakout Force (lbf) | ▲ 4,136 lbf | 3,895 lbf |
| Hydraulic Flow (gpm) | ▲ 16.5 gpm | 14.6 gpm |
| Travel Speed (mph) | ▲ 18 mph | 16.7 mph |

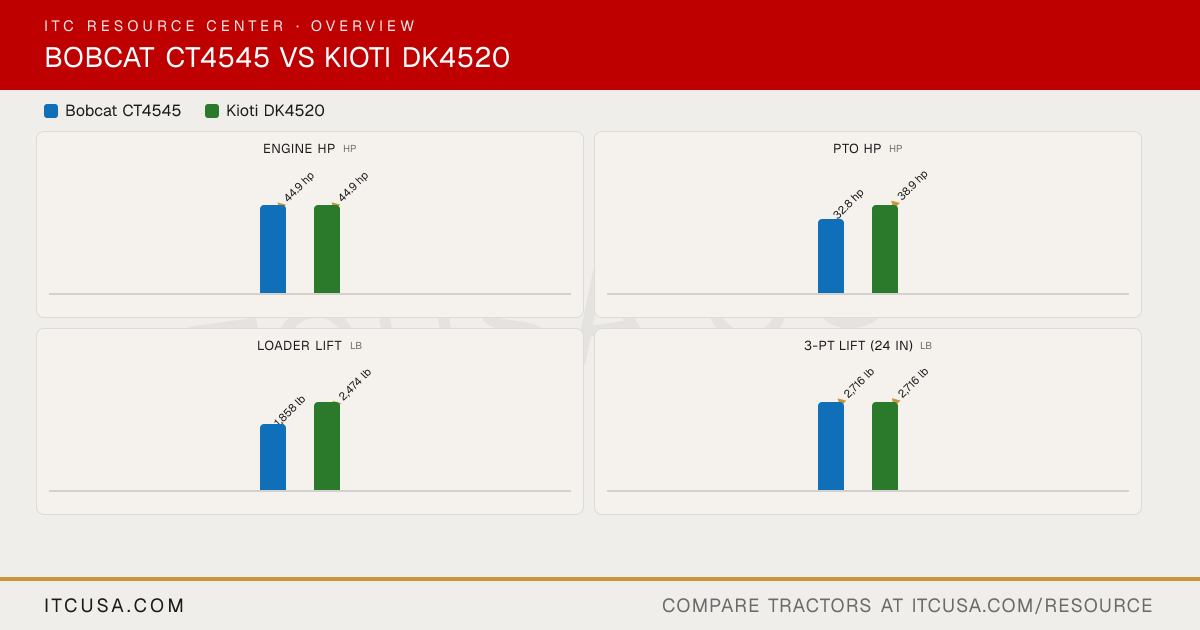

The headline numbers at a glance.
Bobcat CT4545Kioti DK4520
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | BobcatCT4545 | KiotiDK4520 |
|---|
|
|---|
| Engine Manufacturer | Daedong | KIOTI (Daedong) |
|---|
| Engine Model | 3HT-TM4B | 3HT-TM4B |
|---|
| Engine Type | Turbocharged diesel | 3-cylinder, liquid-cooled diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 111.4 in³ | 111.4 in³ |
|---|
| Rated Engine Speed | 2750 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 44.9 hp | 44.9 hp |
|---|
| PTO Power | 32.8 hp | 38.9 hp |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Not Published | Gear |
|---|
| Implement Flow | 9.6 gpm | 9.62 gpm |
|---|
| Steering Flow | 6.9 gpm | 4.94 gpm |
|---|
| Total Hydraulic Flow | 16.5 gpm | 14.56 gpm |
|---|
| Overall Hydraulic Pump Flow | 16.5 gpm | 14.56 gpm |
|---|
| Hydraulic System Type | Open center | Not Published |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 1 pair | 0 (2 optional) |
|---|
| No. of Optional Remote Valves | 1 pair (2nd pair optional) | 2 |
|---|
|
|---|
| Fuel Tank Capacity | 11.9 gal | 11.9 gal |
|---|
| Coolant Capacity | Not Published | 0.89 gal |
|---|
| Crankcase Capacity | Not Published | 1.95 gal |
|---|
| Transmission / Hydraulic System Capacity | Not Published | 11.4 gal |
|---|
| Front Axle Fluid Capacity | Not Published | 1.48 gal |
|---|
|
|---|
| PTO Type | Independent | Independent |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Optional: 2119 rpm | No mid PTO (N/A) |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 2716 lb | 2,998 lb |
|---|
| Hitch Lift Capacity (at 24”) | 2716 lb | 2,716 lb |
|---|
| Lift Control Type | Hydraulic Position Control System | Position |
|---|
|
|---|
| Transmission Type | 3-Range HST | Synchronized shuttle |
|---|
| No. of Speeds | Infinite forward and reverse (3-range) | 8F/8R |
|---|
| Max Travel Speed (Forward) | 18.0 mph | 16.71 mph |
|---|
| Max Travel Speed (Reverse) | 12.6 mph | 16.28 mph |
|---|
| Clutch | Not Published | Dry single stage |
|---|
| Differential Lock & Limited Slip Options | Rear differential lock (standard) | Rear differential lock (standard) |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Hydrostatic power steering | Hydrostatic power steering |
|---|
| Brakes | Wet multi-disc | Wet multi-disc |
|---|
| Seat Suspension & Adjustability | Adjustable seat (standard) | Deluxe suspension seat |
|---|
| Front Axle Type | Four-wheel drive (standard) | Mechanical 4WD |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 1,655 lb (max. drawbar vertical load) |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 125.5 in | 124.3 in |
|---|
| Overall Width | 70.3 in | 62.8 in |
|---|
| Wheelbase | 71.2 in | 71.3 in |
|---|
| Ground Clearance | 15.3 in | 14.5 in |
|---|
| Min. Turn Radius without Brakes | 116.1 in (with brake applied) | 102.8 in (with brake applied) |
|---|
| Height to Top of ROPS | Not Published | 96.8 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | 94.3 in | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 4300 lb | 3,373 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | Not Published | R1 Agricultural, R3 Turf, R4 Industrial, R14 |
|---|
| R1 Agricultural - Front | 8-16 | 8-16 |
|---|
| R1 Agricultural - Rear | 13.6-24 | 13.6-24 |
|---|
| R3 Turf - Front | Not Published | 29-12.5-15 |
|---|
| R3 Turf - Rear | Not Published | 21.5L-16.1 |
|---|
| R4 Industrial - Front | Not Published | 10-16.5 |
|---|
| R4 Industrial - Rear | Not Published | 14.9-24 |
|---|
|
|---|
| Quick Attach Loader System | Front-end loader with standard quick attach mounting system | Quick attach (QA) bucket, 66 in or 72 in |
|---|
| Loader Model | FL9 | KL5520 |
|---|
| Loader Lift Height | 103.2 in | KL5520: 107.7 in |
|---|
| Loader Lift Capacity (Full Height) | 1795 lb | KL5520: 2,474 lb |
|---|
| Loader Breakout Force | FL9: 4,136 lb | KL5520: 3,895 lb |
|---|
|
|---|
| Warranty Length & Coverage | 24 months or 1500 hours (whichever occurs first); powertrain 48 months (consumer use) or 36 months / 2000 hours (business use) | Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours |
|---|
|
|---|
| Accessories that fit | | |
|---|
Bobcat CT4545 vs Kioti DK4520: Quick Answers
- Which has more horsepower, the Bobcat CT4545 or the Kioti DK4520?
- They are effectively tied: both machines are rated at 44.9 hp hp for engine hp.
- Which has more PTO horsepower, the Bobcat CT4545 or the Kioti DK4520?
- The Kioti DK4520 leads on pto hp at 38.9 hp hp, compared to 32.8 hp hp for the Bobcat CT4545.
- Which is heavier, the Bobcat CT4545 or the Kioti DK4520?
- The Bobcat CT4545 leads on weight at 4,300 lb lb, compared to 3,373 lb lb for the Kioti DK4520.
- Which has more loader lift capacity, the Bobcat CT4545 or the Kioti DK4520?
- The Kioti DK4520 leads on loader lift at 2,474 lb lb, compared to 1,795 lb lb for the Bobcat CT4545.
- Which has more three-point hitch lift capacity, the Bobcat CT4545 or the Kioti DK4520?
- They are effectively tied: both machines are rated at 2,716 lb lb for 3-pt lift (24 in).
