Case IH Farmall 25A vs LS Tractor MT125

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 6 categories to 2. Machine pages: Case IH Farmall 25A and LS Tractor MT125.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT125
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	1,926 lbf	▲ 2,083 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	8.7 mph

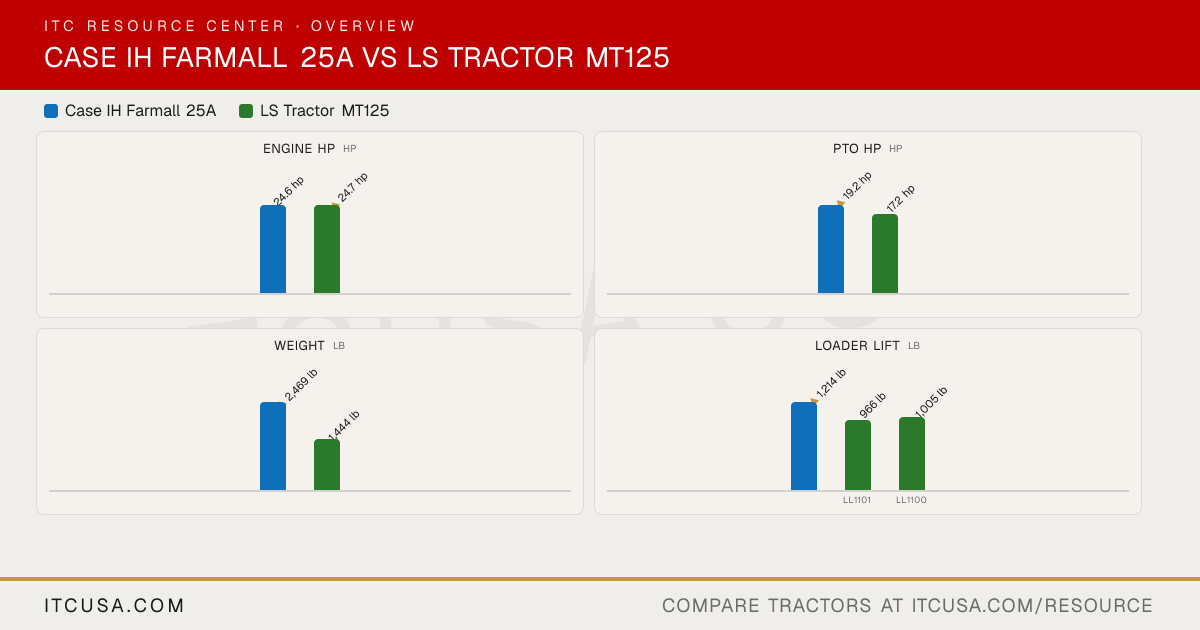

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT125

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

966 lb

1,005 lb

LL1101LL1100

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT125


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV80F
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection (swirl chamber), water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear pump, transmission driven
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1 pair (2 quick couplers)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	970 lb
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Position control

Transmission Type	hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	infinite	2 ranges
Max Travel Speed (Forward)	Not Published	8.70 mph
Max Travel Speed (Reverse)	Not Published	5.22 mph
Clutch	Dry clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Forward/backward adjustable via seat F/R adjustment lever; reversible seat optional
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal

Overall Length with 3-Point Hitch	117.2 in	97 in
Overall Width	Not Published	47 in
Wheelbase	65.9 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	88.2 in	87 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12.0-12
R4 Industrial - Front	Not Published	18x8.50-10
R4 Industrial - Rear	Not Published	26x12.0-12

Quick Attach Loader System	Not Published	LL1101 Quick-Attach Front Loader
Loader Model	L330	LL1101; LL1100
Loader Lift Height	94.3 in	LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin)
Loader Lift Capacity (Full Height)	1214 lb	LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height)
Loader Breakout Force	1926 lb	LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin)

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT125: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT125?: The LS Tractor MT125 leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A.
Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT125?: The Case IH Farmall 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the LS Tractor MT125.
Which is heavier, the Case IH Farmall 25A or the LS Tractor MT125?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the LS Tractor MT125.
Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT125?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,005 lb lb for the LS Tractor MT125.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT125?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the LS Tractor MT125.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	LS Tractor MT125
Engine HP (hp)	24.6 hp	▲ 24.7 hp
PTO HP (hp)	▲ 19.2 hp	17.2 hp
Weight (lb)	▲ 2,469 lb	1,444 lb
Loader Lift (lb)	▲ 1,214 lb	1,005 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	728 lb
Lift Height (in)	▲ 94.3 in	72 in
Breakout Force (lbf)	1,926 lbf	▲ 2,083 lbf
Hydraulic Flow (gpm)	▲ 7.9 gpm	6.7 gpm
Travel Speed (mph)	n/a	8.7 mph

The headline numbers at a glance.

Case IH Farmall 25ALS Tractor MT125

Engine HPhp

24.6 hp

▲24.7 hp

PTO HPhp

▲19.2 hp

17.2 hp

Weightlb

▲2,469 lb

1,444 lb

Loader Liftlb

▲1,214 lb

966 lb

1,005 lb

LL1101LL1100

3-Pt Lift (24 in)lb

▲1,433 lb

728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	LS TractorMT125


Engine Manufacturer	Mitsubishi	Yanmar
Engine Model	Not Published	3TNV80F
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder, indirect injection (swirl chamber), water-cooled
No. of Cylinders	3	3
Displacement	80.4 in³	77.3 in³
Rated Engine Speed	2500 rpm	3000 rpm
Engine Power (Gross)	24.6 hp	24.7 hp
PTO Power	19.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear pump, transmission driven
Implement Flow	7.9 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	0
No. of Optional Remote Valves	1	1 pair (2 quick couplers)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Optional, 2,000 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	Not Published	970 lb
Hitch Lift Capacity (at 24”)	1,433 lb	728 lb
Lift Control Type	Not Published	Position control

Transmission Type	hydrostatic (optional)	Hydrostatic Drive
No. of Speeds	infinite	2 ranges
Max Travel Speed (Forward)	Not Published	8.70 mph
Max Travel Speed (Reverse)	Not Published	5.22 mph
Clutch	Dry clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Forward/backward adjustable via seat F/R adjustment lever; reversible seat optional
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal

Overall Length with 3-Point Hitch	117.2 in	97 in
Overall Width	Not Published	47 in
Wheelbase	65.9 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	88.2 in	87 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2,469 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12.0-12
R4 Industrial - Front	Not Published	18x8.50-10
R4 Industrial - Rear	Not Published	26x12.0-12

Quick Attach Loader System	Not Published	LL1101 Quick-Attach Front Loader
Loader Model	L330	LL1101; LL1100
Loader Lift Height	94.3 in	LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin)
Loader Lift Capacity (Full Height)	1214 lb	LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height)
Loader Breakout Force	1926 lb	LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin)

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25A vs LS Tractor MT125: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the LS Tractor MT125?

The LS Tractor MT125 leads on engine hp at 24.7 hp hp, compared to 24.6 hp hp for the Case IH Farmall 25A.

Which has more PTO horsepower, the Case IH Farmall 25A or the LS Tractor MT125?

The Case IH Farmall 25A leads on pto hp at 19.2 hp hp, compared to 17.2 hp hp for the LS Tractor MT125.

Which is heavier, the Case IH Farmall 25A or the LS Tractor MT125?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,444 lb lb for the LS Tractor MT125.

Which has more loader lift capacity, the Case IH Farmall 25A or the LS Tractor MT125?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,005 lb lb for the LS Tractor MT125.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the LS Tractor MT125?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 728 lb lb for the LS Tractor MT125.
