Bad Boy Tractors 4025 vs LS Tractor MT125

Across 8 measurable specs, the Bad Boy Tractors 4025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 4025 and LS Tractor MT125.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

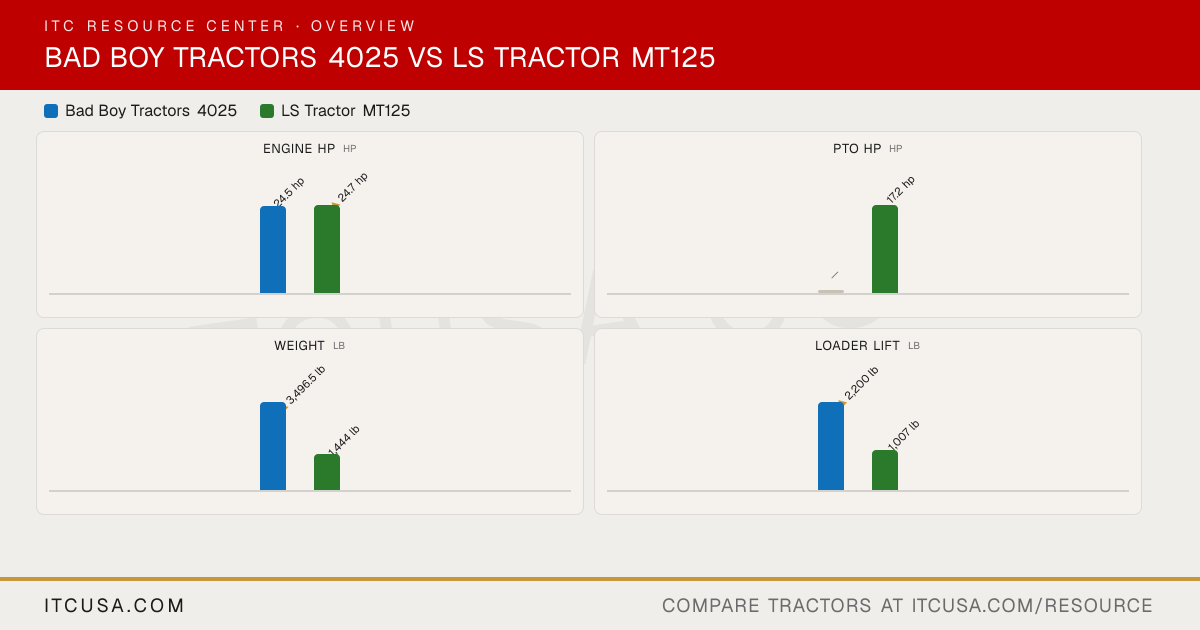

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4025	LS TractorMT125

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1700N6-BUTR_3	3TNV80F
Engine Type	Vertical, 4-stroke, water-cooled diesel	3-cylinder, indirect injection (swirl chamber), water-cooled
No. of Cylinders	3	3
Displacement	104.5 in³	77.3 in³
Rated Engine Speed	2100 rpm	3000 rpm
Engine Power (Gross)	25 hp	24.7 hp
PTO Power	19.1 hp	17.2 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Dry	Dry
Fuel System	Not Published	In-line injection pump
Alternator	50 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)	Gear pump, transmission driven
Implement Flow	7.5 gpm	4.6 gpm
Steering Flow	4 gpm	2.1 gpm
Total Hydraulic Flow	11.5 gpm	6.7 gpm
Overall Hydraulic Pump Flow	11.5 gpm	6.7 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None
No. of Optional Remote Valves	Up to 2	1 set (2 quick couplers, optional)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	6.6 gal
Coolant Capacity	1.32 gal	0.9 gal
Crankcase Capacity	1.14 gal	0.8 gal
Transmission / Hydraulic System Capacity	9.77 gal	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)
Front Axle Fluid Capacity	Not Published	0.5 gal
▶PTO & Hitch
PTO Type	Independent	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Not Published	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	992 lb
Hitch Lift Capacity (at 24”)	2,425 lb	728 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic Drive
No. of Speeds	3 range (A/B/C)	2 ranges
Max Travel Speed (Forward)	Not Published	8.70 mph
Max Travel Speed (Reverse)	Not Published	5.22 mph
Clutch	None (HST)	N/A
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical pedal type
▶Chassis, Steering & Controls
Frame Type	Heavy-duty steel frame with cast iron axles	Not Published
Steering	Fully hydraulic power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable forward and backward via seat lever; reversible seat optional
Front Axle Type	Selectable 4WD	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal
▶Dimensions & Maneuverability
Overall Width	56.7 in	47 in
Wheelbase	65.7 in	56 in
Ground Clearance	13.1 in	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	104.06 in	87 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	134.88 in	97 in (bumper to link)
▶Weight
Tractor Weight (Base)	2,970 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R4 Industrial (25x8.50-14 / 15-19.5)	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf
R1 Agricultural - Front	8.0-16	Not Published
R1 Agricultural - Rear	12.4-24	Not Published
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12.0-12
R4 Industrial - Front	25x8.50-14	18x8.50-10
R4 Industrial - Rear	15-19.5	26x12.0-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL400	LL1102; LL1700; LL1001
Loader Lift Height	104 in	LL1001: 72.6 in (at pivot pin)
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	LL1001: 902 lb (at pivot pin, maximum height)
Loader Breakout Force	3,660 lbf	LL1001: 1,836 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	6-year limited warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4025 vs LS Tractor MT125: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT125?

The Bad Boy Tractors 4025 leads on engine hp at 25 hp hp, compared to 24.7 hp hp for the LS Tractor MT125.

Which has more PTO horsepower, the Bad Boy Tractors 4025 or the LS Tractor MT125?

The Bad Boy Tractors 4025 leads on pto hp at 19.1 hp hp, compared to 17.2 hp hp for the LS Tractor MT125.

Which is heavier, the Bad Boy Tractors 4025 or the LS Tractor MT125?

The Bad Boy Tractors 4025 leads on weight at 2,970 lb lb, compared to 1,444 lb lb for the LS Tractor MT125.

Which has more loader lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT125?

The Bad Boy Tractors 4025 leads on loader lift at 2,200 lb lb, compared to 902 lb lb for the LS Tractor MT125.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4025 or the LS Tractor MT125?

The Bad Boy Tractors 4025 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 728 lb lb for the LS Tractor MT125.
