Case IH Farmall 25A vs New Holland Boomer 24

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the Case IH Farmall 25A leads 5 categories to 2 (1 tied). Machine pages: Case IH Farmall 25A and New Holland Boomer 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25A	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 18.5 hp
Weight (lb)	▲ 2,469 lb	1,708 lb
Loader Lift (lb)	▲ 1,214 lb	1,034 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 94.3 in	80.7 in
Breakout Force (lbf)	▲ 1,926 lbf	1,672 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.6 gpm
Travel Speed (mph)	n/a	11.3 mph

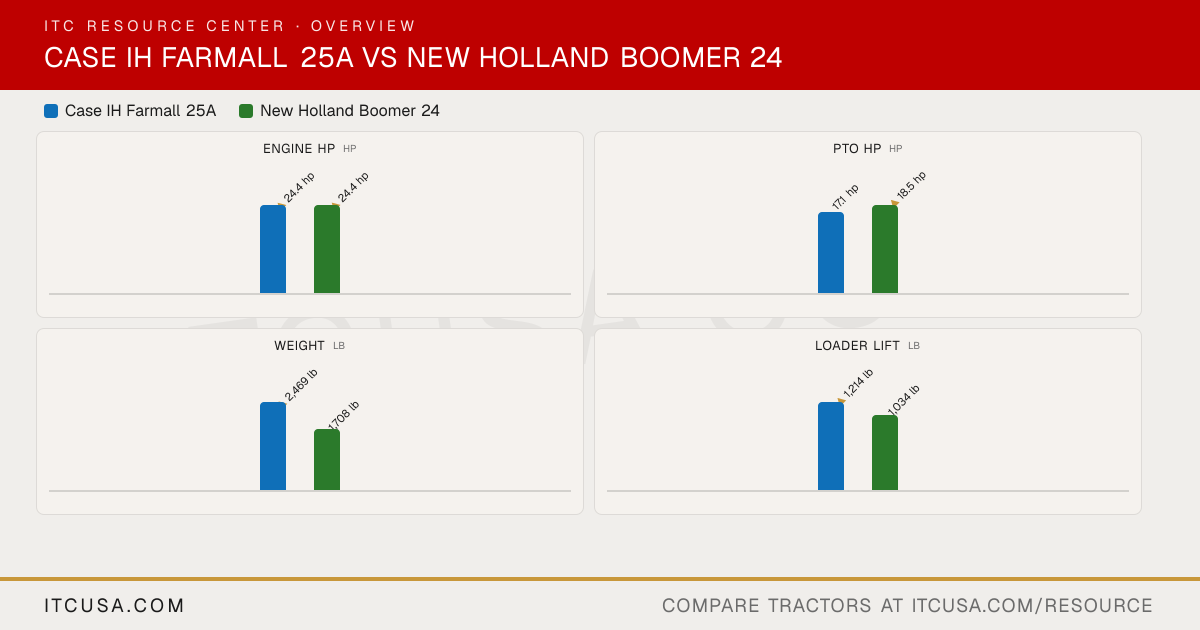

The headline numbers at a glance.

Case IH Farmall 25ANew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲18.5 hp

Weightlb

▲2,469 lb

1,708 lb

Loader Liftlb

▲1,214 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	New HollandBoomer 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Single replaceable dry element
Fuel System	Not Published	Not Published
Alternator	Not Published	50 A

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	6.7 gpm
Steering Flow	Not Published	2.9 gpm
Total Hydraulic Flow	Not Published	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	Not Published	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	One (DIA, optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Not Published	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic (optional)	2-range hydrostatic (HST), dual pedal
No. of Speeds	Infinite (hydrostatic)	HST, 2 ranges
Max Travel Speed (Forward)	Not Published	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock (foot pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Not Published	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	49.1 in (with R4 tires)
Wheelbase	65.9 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	85.5 in (with R4 tires)
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	103.6 in (with R4 tires)

Tractor Weight (Base)	2,469 lb	1,708 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12-16.5
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	235TL
Loader Lift Height	94.3 in	235TL: 80.7 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,214 lb	235TL: 1,034 lb
Loader Breakout Force	1,926 lb	235TL: 1,672 lb

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 2 years; powertrain 3 years (5 years total)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 25A vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the New Holland Boomer 24?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25A or the New Holland Boomer 24?: The New Holland Boomer 24 leads on pto hp at 18.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.
Which is heavier, the Case IH Farmall 25A or the New Holland Boomer 24?: The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,708 lb lb for the New Holland Boomer 24.
Which has more loader lift capacity, the Case IH Farmall 25A or the New Holland Boomer 24?: The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.
Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the New Holland Boomer 24?: The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the New Holland Boomer 24.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25A	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.1 hp	▲ 18.5 hp
Weight (lb)	▲ 2,469 lb	1,708 lb
Loader Lift (lb)	▲ 1,214 lb	1,034 lb
3-Pt Lift (24 in) (lb)	▲ 1,433 lb	1,058 lb
Lift Height (in)	▲ 94.3 in	80.7 in
Breakout Force (lbf)	▲ 1,926 lbf	1,672 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 9.6 gpm
Travel Speed (mph)	n/a	11.3 mph

The headline numbers at a glance.

Case IH Farmall 25ANew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.1 hp

▲18.5 hp

Weightlb

▲2,469 lb

1,708 lb

Loader Liftlb

▲1,214 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,433 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25A	New HollandBoomer 24


Engine Manufacturer	Mitsubishi	Mitsubishi
Engine Model	Not Published	S3L2
Engine Type	3-cylinder, turbocharged & aftercooled, Tier 4 B/Final	3-cylinder diesel
No. of Cylinders	3	3
Displacement	80.4 in³	80.4 in³
Rated Engine Speed	2500 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.1 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Single replaceable dry element
Fuel System	Not Published	Not Published
Alternator	Not Published	50 A

Pump Type	Not Published	Not Published
Implement Flow	7.9 gpm	6.7 gpm
Steering Flow	Not Published	2.9 gpm
Total Hydraulic Flow	Not Published	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	Not Published	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	One (DIA, optional)

Fuel Tank Capacity	7.4 gal	6.6 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1,433 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,058 lb
Lift Control Type	Not Published	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic (optional)	2-range hydrostatic (HST), dual pedal
No. of Speeds	Infinite (hydrostatic)	HST, 2 ranges
Max Travel Speed (Forward)	Not Published	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical rear differential lock (foot pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic
Brakes	Not Published	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	49.1 in (with R4 tires)
Wheelbase	65.9 in	59 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	88.2 in	85.5 in (with R4 tires)
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	117.2 in	103.6 in (with R4 tires)

Tractor Weight (Base)	2,469 lb	1,708 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Not Published	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12-16.5
R4 Industrial - Front	Not Published	23x8.50-12
R4 Industrial - Rear	Not Published	12-16.5

Quick Attach Loader System	Not Published	Not Published
Loader Model	L330	235TL
Loader Lift Height	94.3 in	235TL: 80.7 in (at pivot pin)
Loader Lift Capacity (Full Height)	1,214 lb	235TL: 1,034 lb
Loader Breakout Force	1,926 lb	235TL: 1,672 lb

Warranty Length & Coverage	Basic 2 years; powertrain 4 additional years (6-year total)	Basic 2 years; powertrain 3 years (5 years total)

Find a Case IH dealer near you Find a New Holland dealer near you

Case IH Farmall 25A vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the Case IH Farmall 25A or the New Holland Boomer 24?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25A or the New Holland Boomer 24?

The New Holland Boomer 24 leads on pto hp at 18.5 hp hp, compared to 17.1 hp hp for the Case IH Farmall 25A.

Which is heavier, the Case IH Farmall 25A or the New Holland Boomer 24?

The Case IH Farmall 25A leads on weight at 2,469 lb lb, compared to 1,708 lb lb for the New Holland Boomer 24.

Which has more loader lift capacity, the Case IH Farmall 25A or the New Holland Boomer 24?

The Case IH Farmall 25A leads on loader lift at 1,214 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.

Which has more three-point hitch lift capacity, the Case IH Farmall 25A or the New Holland Boomer 24?

The Case IH Farmall 25A leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,058 lb lb for the New Holland Boomer 24.
