Bad Boy Tractors 3026 vs New Holland Boomer 24

Across 9 measurable specs, the Bad Boy Tractors 3026 leads 5 categories to 4. Machine pages: Bad Boy Tractors 3026 and New Holland Boomer 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

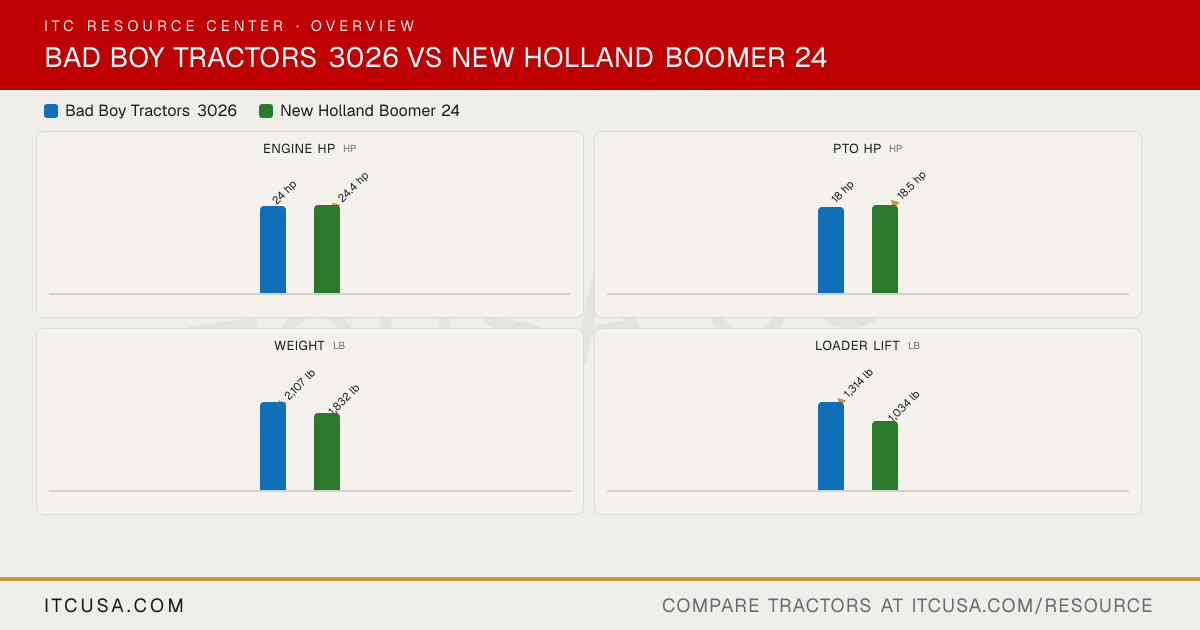

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	New HollandBoomer 24

▶Engine
Engine Manufacturer	TYM	Mitsubishi
Engine Model	A1100N2	S3L2
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	3-cylinder diesel
No. of Cylinders	3	3
Displacement	70.7 in³	80.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	24 hp	24.4 hp
PTO Power	18 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Single replaceable dry element
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	50 A
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	6.7 gpm
Steering Flow	3.1 gpm	2.9 gpm
Total Hydraulic Flow	7.4 gpm	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	7.7 gpm	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	1 (DIA, optional)
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	6.6 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Independent, electro-hydraulic engagement
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,433 lb	1,433 lb
Hitch Lift Capacity (at 24”)	974 lb	1,058 lb
Lift Control Type	Position control	Chain-type stabilizers, fixed link ends
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	2-range hydrostatic (HST), dual pedal
No. of Speeds	3 range (L/M/H)	HST, 2 ranges
Max Travel Speed (Forward)	14.8 mph	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical rear differential lock (foot pedal)
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Mechanical wet multi-disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	103.6 in
Overall Width	53.9 in	49.1 in
Wheelbase	65.7 in	59 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1,832 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	23x8.50-12
R3 Turf - Rear	Not Published	33x12-16.5
R4 Industrial - Front	25x8.50-14	23x8.50-12
R4 Industrial - Rear	14-17.5	12-16.5
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL300	235TL
Loader Lift Height	87.5 in	235TL: 80.7 in
Loader Lift Capacity (Full Height)	1,314 lb	235TL: 1,034 lb
Loader Breakout Force	1,960 lbf	235TL: 1,672 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain)
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a New Holland dealer near you→

Bad Boy Tractors 3026 vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the New Holland Boomer 24?

The New Holland Boomer 24 leads on engine hp at 24.4 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the New Holland Boomer 24?

The New Holland Boomer 24 leads on pto hp at 18.5 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.

Which is heavier, the Bad Boy Tractors 3026 or the New Holland Boomer 24?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,832 lb lb for the New Holland Boomer 24.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the New Holland Boomer 24?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the New Holland Boomer 24?

The New Holland Boomer 24 leads on 3-pt lift (24 in) at 1,058 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026.
