Case IH Farmall 25SC vs Case IH Farmall Compact 35A

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall Compact 35A leads 7 categories to 0. Machine pages: Case IH Farmall 25SC and Case IH Farmall Compact 35A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	Case IH Farmall Compact 35A
Engine HP (hp)	24.7 hp	▲ 35 hp
PTO HP (hp)	17.2 hp	▲ 29.7 hp
Loader Lift (lb)	693 lb	▲ 890 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,808 lb
Lift Height (in)	72 in	▲ 98 in
Breakout Force (lbf)	1,426 lbf	▲ 1,900 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 8.2 gpm

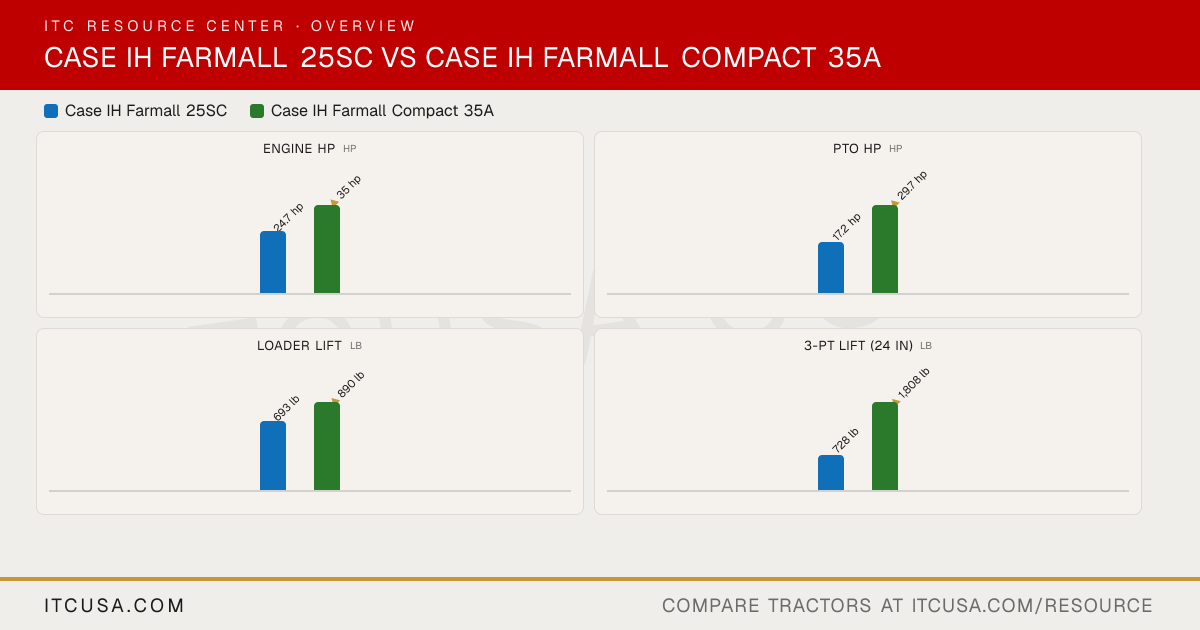

The headline numbers at a glance.

Case IH Farmall 25SCCase IH Farmall Compact 35A

Engine HPhp

24.7 hp

▲35 hp

PTO HPhp

17.2 hp

▲29.7 hp

Weightlb

n/a

Loader Liftlb

693 lb

▲890 lb

3-Pt Lift (24 in)lb

728 lb

▲1,808 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	Case IHFarmall Compact 35A


PTO Power	17.2 hp	29.7 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged
Fuel System	Indirect injection	Not Published
Displacement	76.9 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	24.7 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”)

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	4.6 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent electro-hydraulic engagement; Mid-PTO: standard (2,500 rpm)	Rear independent 540 rpm PTO with electro-hydraulic engagement (standard)
Lift Control Type	Not Published	Mechanical Draft Control (MDC)
Hitch Lift Capacity	992 lb	1,808 lb @ 24 in behind pin
Mid-PTO Availability	Standard	Optional mid-PTO (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	728 lb @ 24 in behind ball ends	1,808 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Up to 72 in	98 in
Loader Breakout Force	Up to 1,426 lb	1,900 lb
Quick Attach Loader System	L320S	L340A
Loader Lift Capacity (Full Height)	Up to 693 lb	890 lb

Clutch	Wet clutch	Dry clutch (mechanical shuttle)
No. of Speeds	Not Published	12F/12R (mechanical shuttle); optional 3-range hydrostatic
Transmission Type	2-Range Hydrostatic Synchro Shuttle (wet clutch)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	56 in	67.3 in
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	87.4 in	93.5 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	62.4 in	68.2 in
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	97 in	122.5 in

Case IH Farmall 25SC vs Case IH Farmall Compact 35A: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?: The Case IH Farmall Compact 35A leads on engine hp at 35 hp hp, compared to 24.7 hp hp for the Case IH Farmall 25SC.
Which has more PTO horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?: The Case IH Farmall Compact 35A leads on pto hp at 29.7 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?: The Case IH Farmall Compact 35A leads on loader lift at 890 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?: The Case IH Farmall Compact 35A leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	Case IH Farmall Compact 35A
Engine HP (hp)	24.7 hp	▲ 35 hp
PTO HP (hp)	17.2 hp	▲ 29.7 hp
Loader Lift (lb)	693 lb	▲ 890 lb
3-Pt Lift (24 in) (lb)	728 lb	▲ 1,808 lb
Lift Height (in)	72 in	▲ 98 in
Breakout Force (lbf)	1,426 lbf	▲ 1,900 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 8.2 gpm

The headline numbers at a glance.

Case IH Farmall 25SCCase IH Farmall Compact 35A

Engine HPhp

24.7 hp

▲35 hp

PTO HPhp

17.2 hp

▲29.7 hp

Weightlb

n/a

Loader Liftlb

693 lb

▲890 lb

3-Pt Lift (24 in)lb

728 lb

▲1,808 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	Case IHFarmall Compact 35A


PTO Power	17.2 hp	29.7 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged
Fuel System	Indirect injection	Not Published
Displacement	76.9 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	3000 rpm	2600 rpm
Cooling System Type	Water-cooled	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	24.7 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”)

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	4.6 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	1	1
No. of Standard Remote Valves	0	0

PTO Rear	540 rpm	540 rpm
PTO Type	Independent electro-hydraulic engagement; Mid-PTO: standard (2,500 rpm)	Rear independent 540 rpm PTO with electro-hydraulic engagement (standard)
Lift Control Type	Not Published	Mechanical Draft Control (MDC)
Hitch Lift Capacity	992 lb	1,808 lb @ 24 in behind pin
Mid-PTO Availability	Standard	Optional mid-PTO (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	728 lb @ 24 in behind ball ends	1,808 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	6.6 gal	7.4 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	Up to 72 in	98 in
Loader Breakout Force	Up to 1,426 lb	1,900 lb
Quick Attach Loader System	L320S	L340A
Loader Lift Capacity (Full Height)	Up to 693 lb	890 lb

Clutch	Wet clutch	Dry clutch (mechanical shuttle)
No. of Speeds	Not Published	12F/12R (mechanical shuttle); optional 3-range hydrostatic
Transmission Type	2-Range Hydrostatic Synchro Shuttle (wet clutch)	12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical differential lock

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	56 in	67.3 in
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	87.4 in	93.5 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	62.4 in	68.2 in
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	97 in	122.5 in

Case IH Farmall 25SC vs Case IH Farmall Compact 35A: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?

The Case IH Farmall Compact 35A leads on engine hp at 35 hp hp, compared to 24.7 hp hp for the Case IH Farmall 25SC.

Which has more PTO horsepower, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?

The Case IH Farmall Compact 35A leads on pto hp at 29.7 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?

The Case IH Farmall Compact 35A leads on loader lift at 890 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the Case IH Farmall Compact 35A?

The Case IH Farmall Compact 35A leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 728 lb lb for the Case IH Farmall 25SC.
