24 months / 1,500 hours (whichever occurs first) - covers defects in material and workmanship
Not Published
Pump Type
Gear
Not Published
Steering Flow
N/A
Not Published
Implement Flow
6.5 gpm (24.5 Lpm)
4.6 gpm
Total Hydraulic Flow
7.2 gpm
Not Published
Hydraulic System Type
Open Center
Open center
Rear Remote Hydraulic Flow
NOT FOUND
Not Published
Overall Hydraulic Pump Flow
7.2 gpm
Not Published
No. of Optional Remote Valves
1 Pair
1
No. of Standard Remote Valves
1
0
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent electro-hydraulic engagement; Mid-PTO: standard (2,500 rpm)
Lift Control Type
Hydraulic Position Control System
Not Published
Hitch Lift Capacity
700 lb.
992 lb
Mid-PTO Availability
Standard: 2200 rpm
Standard
Category, 3-Point Hitch
Category 1 Limited
Category 1
Hitch Lift Capacity (at 24”)
700 lb
728 lb @ 24 in behind ball ends
R3 Turf - Rear
26X12.00-12
Not Published
R3 Turf - Front
18X8.5-10
Not Published
Tire Size & Options
Front AG. (TURF, INDUSTRIAL) 18X8.5-10; Rear AG. (TURF, INDUSTRIAL) 26X12.00-12
Not Published
R4 Industrial - Rear
26X12.00-12
Not Published
R4 Industrial - Front
18X8.5-10
Not Published
R1 Agricultural - Rear
26X12.00-12
Not Published
R1 Agricultural - Front
18X8.5-10
Not Published
Coolant Capacity
2.0 (1.9) qts (L)
Not Published
Crankcase Capacity
5.2 (4.9) qts (L)
Not Published
Fuel Tank Capacity
6.7 gal.
6.6 gal
Front Axle Fluid Capacity
NOT FOUND
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND
Not Published
Loader Model
FL6
—
Loader Lift Height
71.9 in.
Up to 72 in
Loader Breakout Force
1554 lb.
Up to 1,426 lb
Quick Attach Loader System
Standard Quick Attach Mounting System
L320S
Loader Lift Capacity (Full Height)
608 lb.
Up to 693 lb
Clutch
Clutch-free (Hydrostatic)
Wet clutch
No. of Speeds
2
Not Published
Transmission Type
2-Range HST
2-Range Hydrostatic Synchro Shuttle (wet clutch)
Max Travel Speed (Forward)
11.1 mph (17.8 km/hr.)
Not Published
Max Travel Speed (Reverse)
7.6 mph (12.2 km/hr.)
Not Published
Differential Lock & Limited Slip Options
Std
Mechanical differential lock
Brakes
Wet Multi-disc
Not Published
Steering
Hydrostatic Power Steering
Not Published
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Mechanical Front Drive (MFD)
Drawbar Capacity
7.7 kN / 1730 lb
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Suspension Seat ■
Not Published
Wheelbase
55.1 in.
56 in
Overall Width
46.0 in.
Not Published
Ground Clearance
6.3 in.
Not Published
Height to Top of ROPS
87.6 in.
87.4 in
Height to Top of Cab Model
NOT FOUND — no source lists a cab-model height. The CT1021 is an open-station (two-post folding ROPS) machine; a Field Cab is a dealer-installed option only, and no cab height spec was found in any source.
Not Applicable
Height to Top of ROPS (folded)
NOT FOUND — no source explicitly lists the folded ROPS height. The only height figure available across all sources is Height (ROPS) [upright]: 87.6 in (2225 mm)
62.4 in
Min. Turn Radius without Brakes
100.0 in.
Not Published
Overall Length with 3-Point Hitch
99.3 in.
97 in

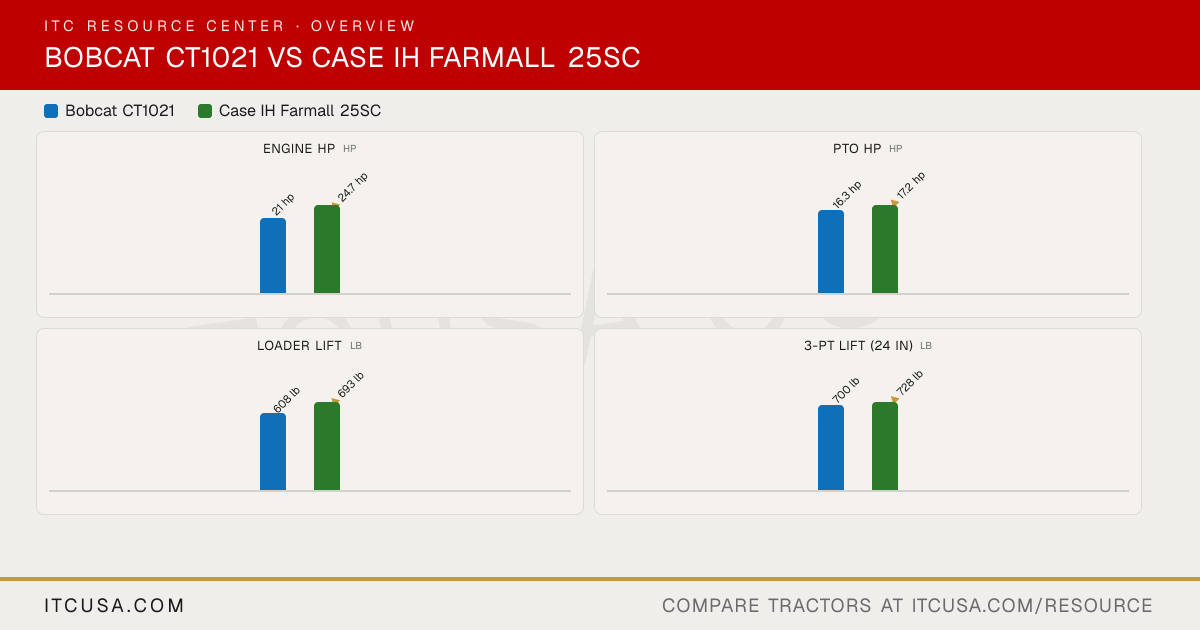

Bobcat CT1021 vs Case IH Farmall 25SC: Quick Answers
Which has more horsepower, the Bobcat CT1021 or the Case IH Farmall 25SC?
The Case IH Farmall 25SC leads on engine hp at 24.7 hp hp, compared to 21 hp hp for the Bobcat CT1021.
Which has more PTO horsepower, the Bobcat CT1021 or the Case IH Farmall 25SC?
The Case IH Farmall 25SC leads on pto hp at 17.2 hp hp, compared to 16.3 hp hp for the Bobcat CT1021.
Which has more loader lift capacity, the Bobcat CT1021 or the Case IH Farmall 25SC?
The Case IH Farmall 25SC leads on loader lift at 693 lb lb, compared to 608 lb lb for the Bobcat CT1021.
Which has more three-point hitch lift capacity, the Bobcat CT1021 or the Case IH Farmall 25SC?
The Case IH Farmall 25SC leads on 3-pt lift (24 in) at 728 lb lb, compared to 700 lb lb for the Bobcat CT1021.
