Case IH Farmall 25SC vs LS Tractor MT125

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor MT125 leads 4 categories to 0 (4 tied). Machine pages: Case IH Farmall 25SC and LS Tractor MT125.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT125
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	17.2 hp
Weight (lb)	1,444 lb	1,444 lb
Loader Lift (lb)	693 lb	▲ 902 lb
3-Pt Lift (24 in) (lb)	728 lb	728 lb
Lift Height (in)	72 in	▲ 72.6 in
Breakout Force (lbf)	1,426 lbf	▲ 1,836 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.7 gpm
Travel Speed (mph)	n/a	8.7 mph

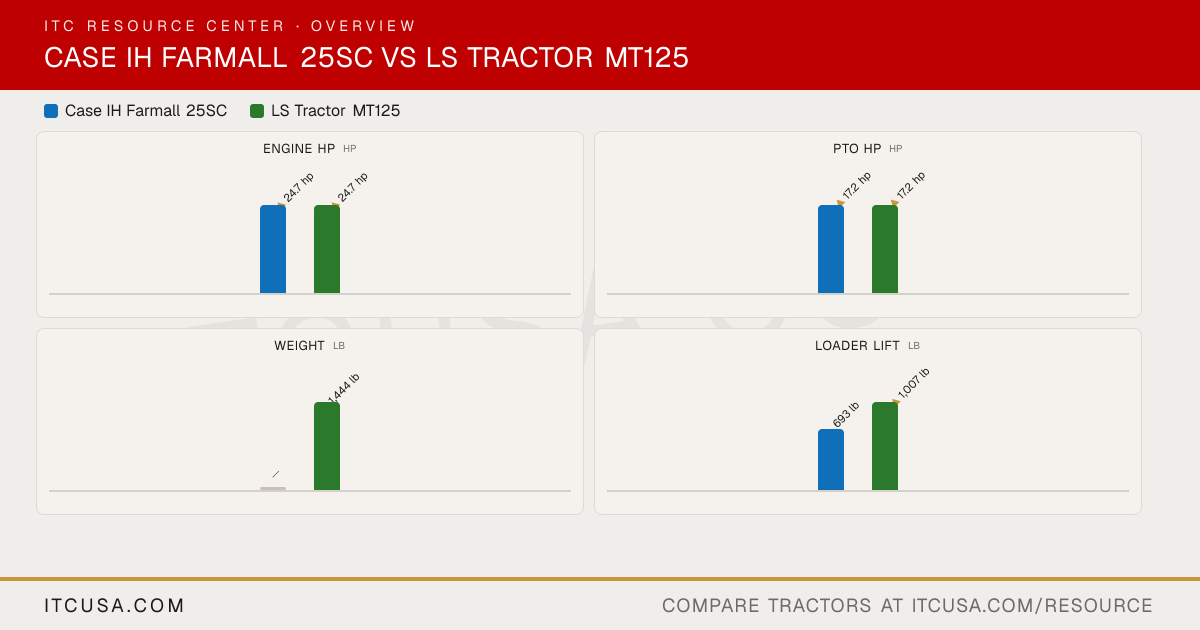

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT125

Engine HPhp

▲24.7 hp

PTO HPhp

▲17.2 hp

Weightlb

▲1,444 lb

Loader Liftlb

693 lb

▲902 lb

3-Pt Lift (24 in)lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT125


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, indirect injection (swirl chamber), water-cooled
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear pump, transmission driven
Implement Flow	4.6 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 set (2 quick couplers, optional)

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent, electro-hydraulic engagement	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	992 lb
Hitch Lift Capacity (at 24”)	728 lb	728 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	Hydrostatic Drive
No. of Speeds	Infinite, 2-range hydrostatic	2 ranges
Max Travel Speed (Forward)	Not Published	8.70 mph
Max Travel Speed (Reverse)	Not Published	5.22 mph
Clutch	Wet clutch	N/A
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable forward and backward via seat lever; reversible seat optional
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal

Overall Width	Not Published	47 in
Wheelbase	56 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	87.4 in	87 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	97 in (bumper to link)

Tractor Weight (Base)	1,444 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	18x8.50-10
R3 Turf - Rear	26x12-12	26x12.0-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12-12	26x12.0-12

Quick Attach Loader System	L320S	Not Published
Loader Model	L320S	LL1102; LL1700; LL1001
Loader Lift Height	72 in	LL1001: 72.6 in (at pivot pin)
Loader Lift Capacity (Full Height)	693 lb	LL1001: 902 lb (at pivot pin, maximum height)
Loader Breakout Force	1,426 lb	LL1001: 1,836 lb (at pivot pin)

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT125: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT125?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT125?: They are effectively tied: both machines are rated at 17.2 hp hp for pto hp.
Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT125?: They are effectively tied: both machines are rated at 1,444 lb lb for weight.
Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT125?: The LS Tractor MT125 leads on loader lift at 902 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT125?: They are effectively tied: both machines are rated at 728 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	LS Tractor MT125
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	17.2 hp
Weight (lb)	1,444 lb	1,444 lb
Loader Lift (lb)	693 lb	▲ 902 lb
3-Pt Lift (24 in) (lb)	728 lb	728 lb
Lift Height (in)	72 in	▲ 72.6 in
Breakout Force (lbf)	1,426 lbf	▲ 1,836 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.7 gpm
Travel Speed (mph)	n/a	8.7 mph

The headline numbers at a glance.

Case IH Farmall 25SCLS Tractor MT125

Engine HPhp

▲24.7 hp

PTO HPhp

▲17.2 hp

Weightlb

▲1,444 lb

Loader Liftlb

693 lb

▲902 lb

3-Pt Lift (24 in)lb

▲728 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	LS TractorMT125


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, indirect injection (swirl chamber), water-cooled
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	17.2 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Indirect injection	In-line injection pump
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Gear pump, transmission driven
Implement Flow	4.6 gpm	4.6 gpm
Steering Flow	Not Published	2.1 gpm
Total Hydraulic Flow	Not Published	6.7 gpm
Overall Hydraulic Pump Flow	Not Published	6.7 gpm
Hydraulic System Type	Open center	Open center system, position control
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	None
No. of Optional Remote Valves	1	1 set (2 quick couplers, optional)

Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	Not Published	0.9 gal
Crankcase Capacity	Not Published	0.8 gal
Transmission / Hydraulic System Capacity	Not Published	3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe)
Front Axle Fluid Capacity	Not Published	0.5 gal

PTO Type	Independent, electro-hydraulic engagement	Independent (electro-hydraulic)
PTO Rear	540 rpm	Standard (540 rpm)
Mid-PTO Availability	Standard, 2,500 rpm	Standard (2,500 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	992 lb
Hitch Lift Capacity (at 24”)	728 lb	728 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	Hydrostatic Drive
No. of Speeds	Infinite, 2-range hydrostatic	2 ranges
Max Travel Speed (Forward)	Not Published	8.70 mph
Max Travel Speed (Reverse)	Not Published	5.22 mph
Clutch	Wet clutch	N/A
Differential Lock & Limited Slip Options	Mechanical differential lock	Mechanical pedal type

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Not Published	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Adjustable forward and backward via seat lever; reversible seat optional
Front Axle Type	Mechanical Front Drive (MFD)	Front wheel mechanical assist (4WD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal

Overall Width	Not Published	47 in
Wheelbase	56 in	56 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	7.87 ft
Height to Top of ROPS	87.4 in	87 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	97 in (bumper to link)

Tractor Weight (Base)	1,444 lb	1,444 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	18x8.50-10
R3 Turf - Rear	26x12-12	26x12.0-12
R4 Industrial - Front	18x8.5-10	18x8.50-10
R4 Industrial - Rear	26x12-12	26x12.0-12

Quick Attach Loader System	L320S	Not Published
Loader Model	L320S	LL1102; LL1700; LL1001
Loader Lift Height	72 in	LL1001: 72.6 in (at pivot pin)
Loader Lift Capacity (Full Height)	693 lb	LL1001: 902 lb (at pivot pin, maximum height)
Loader Breakout Force	1,426 lb	LL1001: 1,836 lb (at pivot pin)

Warranty Length & Coverage	Not Published	6-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 25SC vs LS Tractor MT125: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the LS Tractor MT125?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25SC or the LS Tractor MT125?

They are effectively tied: both machines are rated at 17.2 hp hp for pto hp.

Which is heavier, the Case IH Farmall 25SC or the LS Tractor MT125?

They are effectively tied: both machines are rated at 1,444 lb lb for weight.

Which has more loader lift capacity, the Case IH Farmall 25SC or the LS Tractor MT125?

The LS Tractor MT125 leads on loader lift at 902 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the LS Tractor MT125?

They are effectively tied: both machines are rated at 728 lb lb for 3-pt lift (24 in).
