Case IH Farmall 25SC vs TYM T2025P

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the TYM T2025P leads 6 categories to 1 (1 tied). Machine pages: Case IH Farmall 25SC and TYM T2025P.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 25SC	TYM T2025P
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 18.3 hp
Weight (lb)	1,444 lb	▲ 2,207 lb
Loader Lift (lb)	693 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	▲ 728 lb	560 lb
Lift Height (in)	72 in	▲ 87.7 in
Breakout Force (lbf)	1,426 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.9 gpm
Travel Speed (mph)	n/a	13.6 mph

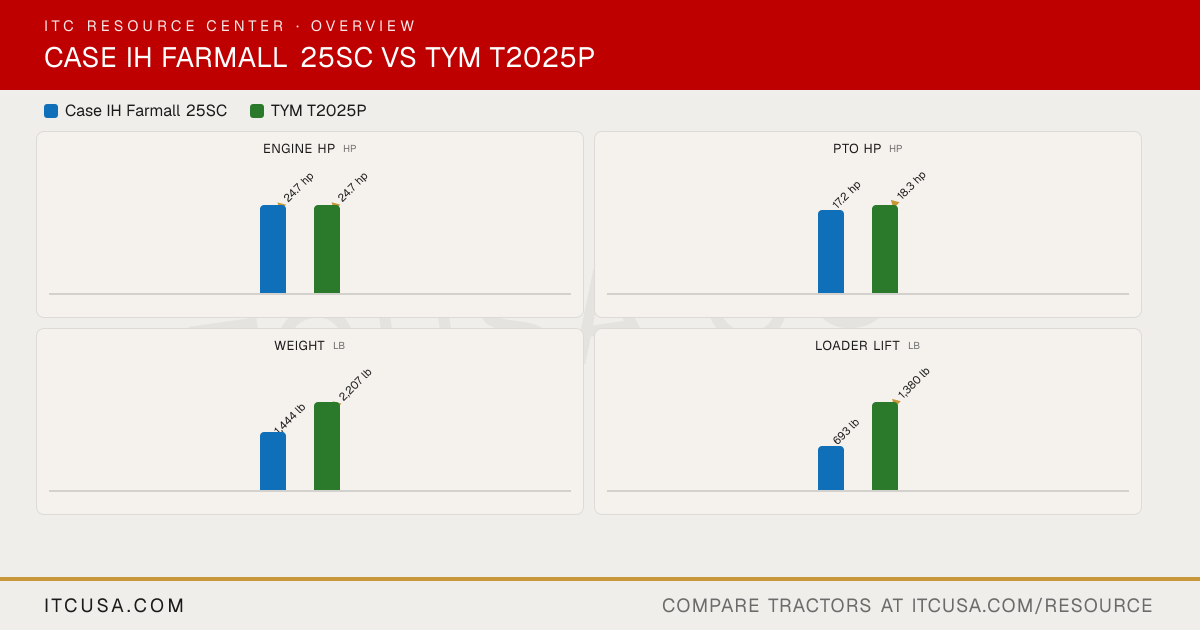

The headline numbers at a glance.

Case IH Farmall 25SCTYM T2025P

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲18.3 hp

Weightlb

1,444 lb

▲2,207 lb

Loader Liftlb

693 lb

▲1,380 lb

3-Pt Lift (24 in)lb

▲728 lb

560 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	TYMT2025P


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F-NXDKTFX
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Single dry
Fuel System	Indirect injection	IDI
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Single gear pump
Implement Flow	4.6 gpm	4.17 gpm
Steering Flow	Not Published	2.77 gpm
Total Hydraulic Flow	Not Published	6.94 gpm
Overall Hydraulic Pump Flow	Not Published	6.94 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	8.4 gal
Coolant Capacity	Not Published	0.95 gal
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	4.49 gal
Front Axle Fluid Capacity	Not Published	1.18 gal

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,550 lb
Hitch Lift Capacity (at 24”)	728 lb	560 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	HST
No. of Speeds	Infinite, 2-range hydrostatic	2
Max Travel Speed (Forward)	Not Published	13.57 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Hydraulic
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Mechanical suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	56.29 in
Wheelbase	56 in	61.02 in
Ground Clearance	Not Published	10.23 in
Min. Turn Radius without Brakes	Not Published	110.23 in
Height to Top of ROPS	87.4 in	85.94 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	105.11 in (with 3-point hitch)

Tractor Weight (Base)	1,444 lb	2,207 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	R3 Turf, R4 Industrial, Hybrid
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	23x8.5-12
R3 Turf - Rear	26x12-12	33x12.5-16.5
R4 Industrial - Front	18x8.5-10	23x8.5-14
R4 Industrial - Rear	26x12-12	14-17.5

Quick Attach Loader System	L320S	L2025P: Quick attach mechanism
Loader Model	L320S	L2025P
Loader Lift Height	72 in	L2025P: 87.7 in
Loader Lift Capacity (Full Height)	693 lb	L2025P: 1,380 lb (at pivot pin)
Loader Breakout Force	1,426 lb	L2025P: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	Not Published	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months

Find a Case IH dealer near you Find a TYM dealer near you

Case IH Farmall 25SC vs TYM T2025P: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the TYM T2025P?: They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 25SC or the TYM T2025P?: The TYM T2025P leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.
Which is heavier, the Case IH Farmall 25SC or the TYM T2025P?: The TYM T2025P leads on weight at 2,207 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.
Which has more loader lift capacity, the Case IH Farmall 25SC or the TYM T2025P?: The TYM T2025P leads on loader lift at 1,380 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.
Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the TYM T2025P?: The Case IH Farmall 25SC leads on 3-pt lift (24 in) at 728 lb lb, compared to 560 lb lb for the TYM T2025P.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 25SC	TYM T2025P
Engine HP (hp)	24.7 hp	24.7 hp
PTO HP (hp)	17.2 hp	▲ 18.3 hp
Weight (lb)	1,444 lb	▲ 2,207 lb
Loader Lift (lb)	693 lb	▲ 1,380 lb
3-Pt Lift (24 in) (lb)	▲ 728 lb	560 lb
Lift Height (in)	72 in	▲ 87.7 in
Breakout Force (lbf)	1,426 lbf	▲ 2,059 lbf
Hydraulic Flow (gpm)	4.6 gpm	▲ 6.9 gpm
Travel Speed (mph)	n/a	13.6 mph

The headline numbers at a glance.

Case IH Farmall 25SCTYM T2025P

Engine HPhp

▲24.7 hp

PTO HPhp

17.2 hp

▲18.3 hp

Weightlb

1,444 lb

▲2,207 lb

Loader Liftlb

693 lb

▲1,380 lb

3-Pt Lift (24 in)lb

▲728 lb

560 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 25SC	TYMT2025P


Engine Manufacturer	Yanmar	Yanmar
Engine Model	Not Published	3TNV80F-NXDKTFX
Engine Type	3-cylinder, Tier 4 B/Final, indirect-injection, water-cooled	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	77.3 in³	77.3 in³
Rated Engine Speed	3000 rpm	3000 rpm
Engine Power (Gross)	24.7 hp	24.7 hp
PTO Power	17.2 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Single dry
Fuel System	Indirect injection	IDI
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Single gear pump
Implement Flow	4.6 gpm	4.17 gpm
Steering Flow	Not Published	2.77 gpm
Total Hydraulic Flow	Not Published	6.94 gpm
Overall Hydraulic Pump Flow	Not Published	6.94 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	None	Not Published
No. of Optional Remote Valves	1	Not Published

Fuel Tank Capacity	6.6 gal	8.4 gal
Coolant Capacity	Not Published	0.95 gal
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	4.49 gal
Front Axle Fluid Capacity	Not Published	1.18 gal

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2,500 rpm	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	992 lb	1,550 lb
Hitch Lift Capacity (at 24”)	728 lb	560 lb
Lift Control Type	Not Published	Position control

Transmission Type	2-range hydrostatic (wet clutch)	HST
No. of Speeds	Infinite, 2-range hydrostatic	2
Max Travel Speed (Forward)	Not Published	13.57 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Wet clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Hydraulic
Brakes	Not Published	Wet disc
Seat Suspension & Adjustability	Not Published	Mechanical suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Four-wheel drive (standard)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	Not Published	56.29 in
Wheelbase	56 in	61.02 in
Ground Clearance	Not Published	10.23 in
Min. Turn Radius without Brakes	Not Published	110.23 in
Height to Top of ROPS	87.4 in	85.94 in
Height to Top of ROPS (folded)	62.4 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Published
Overall Length	97 in	105.11 in (with 3-point hitch)

Tractor Weight (Base)	1,444 lb	2,207 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 turf or R4 industrial	R3 Turf, R4 Industrial, Hybrid
R1 Agricultural - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R3 Turf - Front	18x8.5-10	23x8.5-12
R3 Turf - Rear	26x12-12	33x12.5-16.5
R4 Industrial - Front	18x8.5-10	23x8.5-14
R4 Industrial - Rear	26x12-12	14-17.5

Quick Attach Loader System	L320S	L2025P: Quick attach mechanism
Loader Model	L320S	L2025P
Loader Lift Height	72 in	L2025P: 87.7 in
Loader Lift Capacity (Full Height)	693 lb	L2025P: 1,380 lb (at pivot pin)
Loader Breakout Force	1,426 lb	L2025P: 2,059 lb (at pivot pin, ground level)

Warranty Length & Coverage	Not Published	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months

Find a Case IH dealer near you Find a TYM dealer near you

Case IH Farmall 25SC vs TYM T2025P: Quick Answers

Which has more horsepower, the Case IH Farmall 25SC or the TYM T2025P?

They are effectively tied: both machines are rated at 24.7 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 25SC or the TYM T2025P?

The TYM T2025P leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the Case IH Farmall 25SC.

Which is heavier, the Case IH Farmall 25SC or the TYM T2025P?

The TYM T2025P leads on weight at 2,207 lb lb, compared to 1,444 lb lb for the Case IH Farmall 25SC.

Which has more loader lift capacity, the Case IH Farmall 25SC or the TYM T2025P?

The TYM T2025P leads on loader lift at 1,380 lb lb, compared to 693 lb lb for the Case IH Farmall 25SC.

Which has more three-point hitch lift capacity, the Case IH Farmall 25SC or the TYM T2025P?

The Case IH Farmall 25SC leads on 3-pt lift (24 in) at 728 lb lb, compared to 560 lb lb for the TYM T2025P.
