Across 9 measurable specs, the TYM T2025P leads 7 categories to 2. Machine pages: Bad Boy Tractors 3026 and TYM T2025P .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict Spec Bad Boy Tractors 3026 TYM T2025P Engine HP (hp) 24 hp ▲ 24.7 hpPTO HP (hp) 18 hp ▲ 18.3 hpWeight (lb) 2,107 lb ▲ 2,206.8 lbLoader Lift (lb) 1,314 lb ▲ 1,380 lb3-Pt Lift (24 in) (lb) 974 lb ▲ 1,235 lbLift Height (in) 87.5 in ▲ 87.7 inBreakout Force (lbf) 1,960 lbf ▲ 2,059 lbfHydraulic Flow (gpm) ▲ 7.4 gpm6.9 gpm Travel Speed (mph) ▲ 14.8 mph13.6 mph

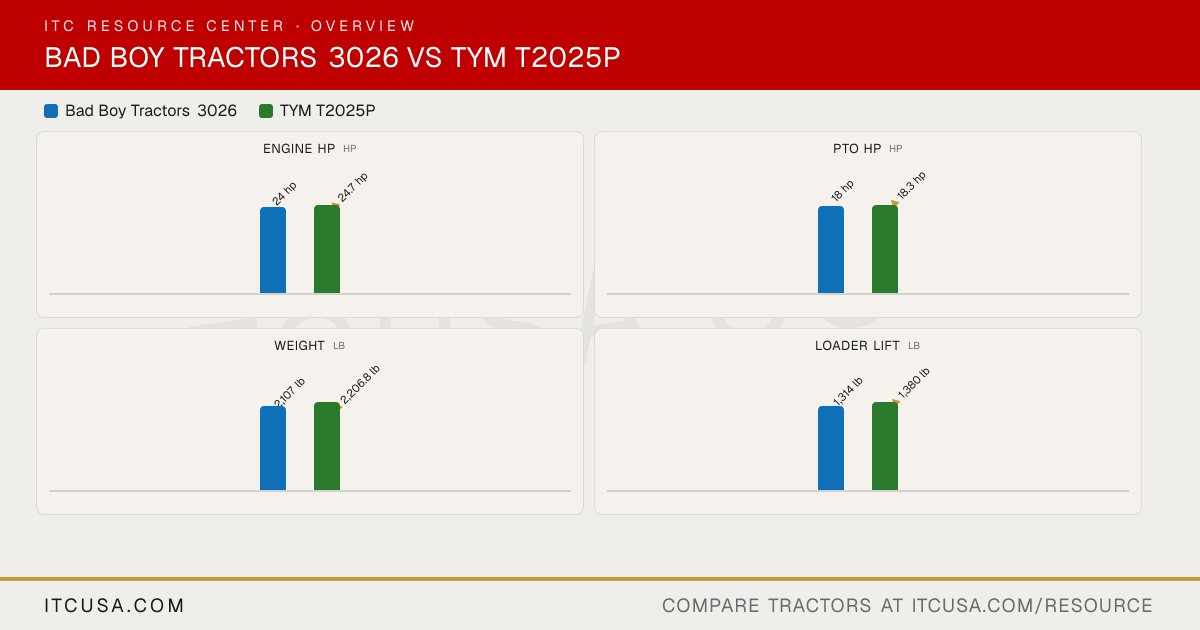

Overview Loader Work PTO Work
The headline numbers at a glance.
Bad Boy Tractors 3026 TYM T2025P
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Bad Boy Tractors 3026 TYM T2025P
▶ EngineEngine Manufacturer TYM Yanmar Engine Model A1100N2 3TNV80F-NXDKTFX Engine Type 3 cylinder, water-cooled diesel, swirl chamber, natural aspiration 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 70.7 in³ 77.3 in³ Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 24 hp 24.7 hp PTO Power 18 hp 18.3 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Not Published Air Cleaner Dry element Single dry Fuel System Indirect injection (swirl chamber) IDI Alternator 50 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Gear type pump with primary and secondary pumps Single gear pump Implement Flow 4.3 gpm 4.17 gpm Steering Flow 3.1 gpm 2.77 gpm Total Hydraulic Flow 7.4 gpm 6.94 gpm Overall Hydraulic Pump Flow 7.7 gpm 6.94 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 Not Published No. of Optional Remote Valves 1 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.08 gal 8.4 gal Coolant Capacity 1.21 gal 3.8 qt Crankcase Capacity 0.79 gal Not Published Transmission / Hydraulic System Capacity 2.90 gal 4.49 gal Front Axle Fluid Capacity 0.79 gal 4.7 qt ▶ PTO & HitchPTO Type Live PTO (6 spline shaft) Independent PTO Rear 540 / 960 rpm 540 rpm Mid-PTO Availability Optional, 2,500 rpm Available (Mid-PTO kit) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 1,433 lb 1,550 lb Hitch Lift Capacity (at 24”) 974 lb 1,235 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST) HST No. of Speeds 3 range (L/M/H) 2 Max Travel Speed (Forward) 14.8 mph 13.57 mph Max Travel Speed (Reverse) 14.8 mph Not Published Clutch Dry, single plate Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock ▶ Chassis, Steering & ControlsFrame Type Steel frame with cast iron axles Not Published Steering Hydrostatic power steering Hydraulic Brakes Wet disc Wet disc Seat Suspension & Adjustability Adjustable seat, flips up and back for rear backhoe operation Adjustable suspension seat w/ armrests Front Axle Type Selectable 4WD Selectable 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 110 in 105.11 in Overall Width 53.9 in 56.29 in Wheelbase 65.7 in 61.02 in Ground Clearance 16.4 in 10.23 in Min. Turn Radius without Brakes Not Published 110.23 in Height to Top of ROPS 91.4 in 85.94 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,107 lb 2,206.8 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5) R3 Turf, R4 Industrial R1 Agricultural - Front 7-16 6PR Not Published R1 Agricultural - Rear 11.2-20 Not Published R3 Turf - Front Not Published 23x8.5-12 R3 Turf - Rear Not Published 33x12.5-16.5 R4 Industrial - Front 25x8.50-14 23x8.5-14 R4 Industrial - Rear 14-17.5 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick attach front loader L2025P: Quick attach mechanism Loader Model BBL300 L2025P Loader Lift Height 87.5 in L2025P: 87.7 in Loader Lift Capacity (Full Height) 1,314 lb L2025P: 1,380 lb Loader Breakout Force 1,960 lbf L2025P: 2,059 lb ▶ WarrantyWarranty Length & Coverage Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Bad Boy Tractors 3026 vs TYM T2025P: Quick Answers
Which has more horsepower, the Bad Boy Tractors 3026 or the TYM T2025P? The TYM T2025P leads on engine hp at 24.7 hp hp, compared to 24 hp hp for the Bad Boy Tractors 3026.
Which has more PTO horsepower, the Bad Boy Tractors 3026 or the TYM T2025P? The TYM T2025P leads on pto hp at 18.3 hp hp, compared to 18 hp hp for the Bad Boy Tractors 3026.
Which is heavier, the Bad Boy Tractors 3026 or the TYM T2025P? The TYM T2025P leads on weight at 2,206.8 lb lb, compared to 2,107 lb lb for the Bad Boy Tractors 3026.
Which has more loader lift capacity, the Bad Boy Tractors 3026 or the TYM T2025P? The TYM T2025P leads on loader lift at 1,380 lb lb, compared to 1,314 lb lb for the Bad Boy Tractors 3026.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the TYM T2025P? The TYM T2025P leads on 3-pt lift (24 in) at 1,235 lb lb, compared to 974 lb lb for the Bad Boy Tractors 3026. More Head-to-Heads
