Case IH Farmall 35C Gear vs Case IH Farmall 40A

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, this matchup is a dead heat: 4 categories to the Case IH Farmall 35C Gear, 4 to the Case IH Farmall 40A, 1 tied. Machine pages: Case IH Farmall 35C Gear and Case IH Farmall 40A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 35C Gear	Case IH Farmall 40A
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 32 hp
Weight (lb)	▲ 3,175 lb	3,067 lb
Loader Lift (lb)	▲ 2,000 lb	1,250 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 105 in	98.4 in
Breakout Force (lbf)	▲ 2,640 lbf	1,913 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.5 gpm
Travel Speed (mph)	14.2 mph	▲ 14.8 mph

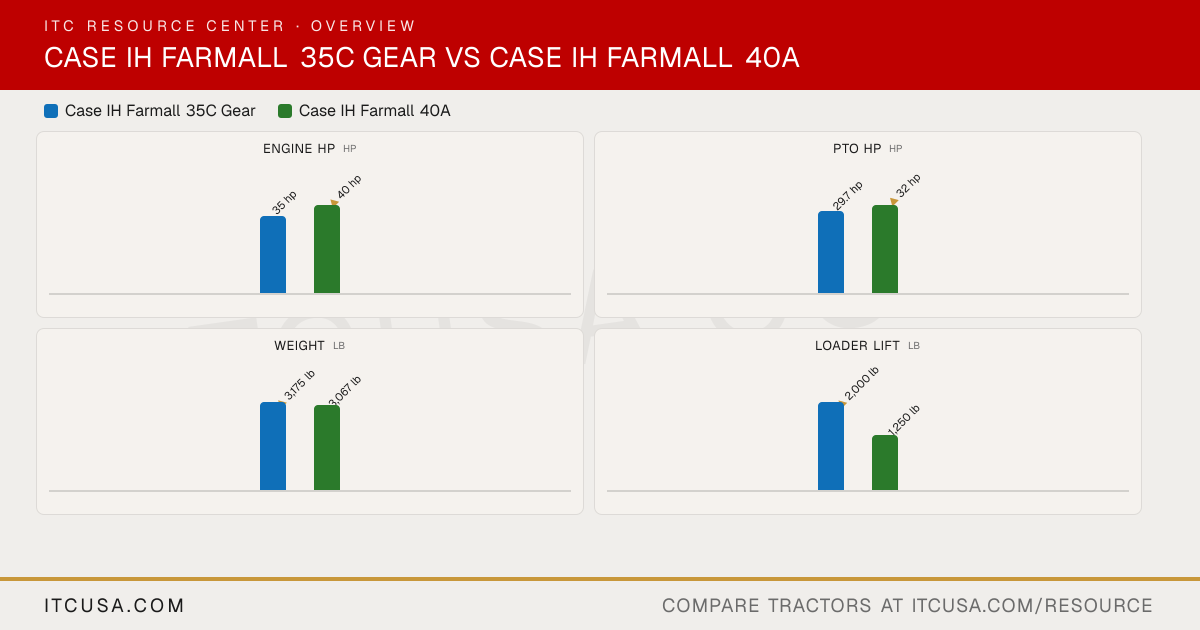

The headline numbers at a glance.

Case IH Farmall 35C GearCase IH Farmall 40A

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

▲32 hp

Weightlb

▲3,175 lb

3,067 lb

Loader Liftlb

▲2,000 lb

1,250 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C Gear	Case IHFarmall 40A


Engine Manufacturer	Not Published	LS Mtron
Engine Model	Not Published	L3C19-T4
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	116 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.7 hp	32 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Pressurized liquid cooling with recirculating bypass
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	High pressure common rail
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.2 gpm	5.3 gpm
Total Hydraulic Flow	Not Published	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	10.5 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Mechanical Draft Control (MDC)

Transmission Type	12 x 12 mechanical shuttle with synchro shift	3-range hydrostatic (optional)
No. of Speeds	12 forward, 12 reverse	infinite, 3 ranges
Max Travel Speed (Forward)	14.2 mph	14.8 mph
Max Travel Speed (Reverse)	Not Published	14.96 mph
Clutch	dry clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet disc, mechanical actuation
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.5 in	145.2 in
Overall Width	66.4 in	66.5 in
Wheelbase	66 in	67.2 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	123 in
Height to Top of ROPS	93.5 in	87.6 in
Height to Top of ROPS (folded)	74.1 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,175 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front	7-14	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	Not Published
Loader Model	L350A	L340A
Loader Lift Height	105 in	98.4 in
Loader Lift Capacity (Full Height)	2,000 lb	1,250 lb
Loader Breakout Force	2,640 lbf	1913 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 35C Gear vs Case IH Farmall 40A: Quick Answers

Which has more horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?: The Case IH Farmall 40A leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall 35C Gear.
Which has more PTO horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?: The Case IH Farmall 40A leads on pto hp at 32 hp hp, compared to 29.7 hp hp for the Case IH Farmall 35C Gear.
Which is heavier, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?: The Case IH Farmall 35C Gear leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A.
Which has more loader lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?: The Case IH Farmall 35C Gear leads on loader lift at 2,000 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.
Which has more three-point hitch lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?: They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 35C Gear	Case IH Farmall 40A
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	29.7 hp	▲ 32 hp
Weight (lb)	▲ 3,175 lb	3,067 lb
Loader Lift (lb)	▲ 2,000 lb	1,250 lb
3-Pt Lift (24 in) (lb)	1,433 lb	1,433 lb
Lift Height (in)	▲ 105 in	98.4 in
Breakout Force (lbf)	▲ 2,640 lbf	1,913 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.5 gpm
Travel Speed (mph)	14.2 mph	▲ 14.8 mph

The headline numbers at a glance.

Case IH Farmall 35C GearCase IH Farmall 40A

Engine HPhp

35 hp

▲40 hp

PTO HPhp

29.7 hp

▲32 hp

Weightlb

▲3,175 lb

3,067 lb

Loader Liftlb

▲2,000 lb

1,250 lb

3-Pt Lift (24 in)lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 35C Gear	Case IHFarmall 40A


Engine Manufacturer	Not Published	LS Mtron
Engine Model	Not Published	L3C19-T4
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	116 in³	116 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.7 hp	32 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Pressurized liquid cooling with recirculating bypass
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	High pressure common rail
Alternator	70 A	70 A, 12 V

Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.2 gpm	5.3 gpm
Total Hydraulic Flow	Not Published	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	10.5 gal	7.4 gal
Coolant Capacity	Not Published	7.5 qt
Crankcase Capacity	Not Published	5.8 qt
Transmission / Hydraulic System Capacity	Not Published	8.5 gal
Front Axle Fluid Capacity	Not Published	6.9 qt

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2,000 rpm
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity	1,808 lb	1,808 lb
Hitch Lift Capacity (at 24”)	1,433 lb	1,433 lb
Lift Control Type	Mechanical draft control (MDC)	Mechanical Draft Control (MDC)

Transmission Type	12 x 12 mechanical shuttle with synchro shift	3-range hydrostatic (optional)
No. of Speeds	12 forward, 12 reverse	infinite, 3 ranges
Max Travel Speed (Forward)	14.2 mph	14.8 mph
Max Travel Speed (Reverse)	Not Published	14.96 mph
Clutch	dry clutch	Dry clutch
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock

Frame Type	Not Published	Not Published
Steering	Power steering	Power steering
Brakes	Wet multi-disc	Wet disc, mechanical actuation
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	122.5 in	145.2 in
Overall Width	66.4 in	66.5 in
Wheelbase	66 in	67.2 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	123 in
Height to Top of ROPS	93.5 in	87.6 in
Height to Top of ROPS (folded)	74.1 in	68.2 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,175 lb	3,067 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural - Front	7-14	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	25x8.50-14	25x8.50-14
R3 Turf - Rear	41x14.00-20	41x14.00-20
R4 Industrial - Front	25x8.50-14	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	Not Published
Loader Model	L350A	L340A
Loader Lift Height	105 in	98.4 in
Loader Lift Capacity (Full Height)	2,000 lb	1,250 lb
Loader Breakout Force	2,640 lbf	1913 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection

Find a Case IH dealer near you

Case IH Farmall 35C Gear vs Case IH Farmall 40A: Quick Answers

Which has more horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?

The Case IH Farmall 40A leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall 35C Gear.

Which has more PTO horsepower, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?

The Case IH Farmall 40A leads on pto hp at 32 hp hp, compared to 29.7 hp hp for the Case IH Farmall 35C Gear.

Which is heavier, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?

The Case IH Farmall 35C Gear leads on weight at 3,175 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A.

Which has more loader lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?

The Case IH Farmall 35C Gear leads on loader lift at 2,000 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall 35C Gear or the Case IH Farmall 40A?

They are effectively tied: both machines are rated at 1,433 lb lb for 3-pt lift (24 in).
