Bad Boy Tractors 4035 Cab vs Case IH Farmall 40A

Across 9 measurable specs, the Bad Boy Tractors 4035 Cab leads 6 categories to 3. Machine pages: Bad Boy Tractors 4035 Cab and Case IH Farmall 40A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

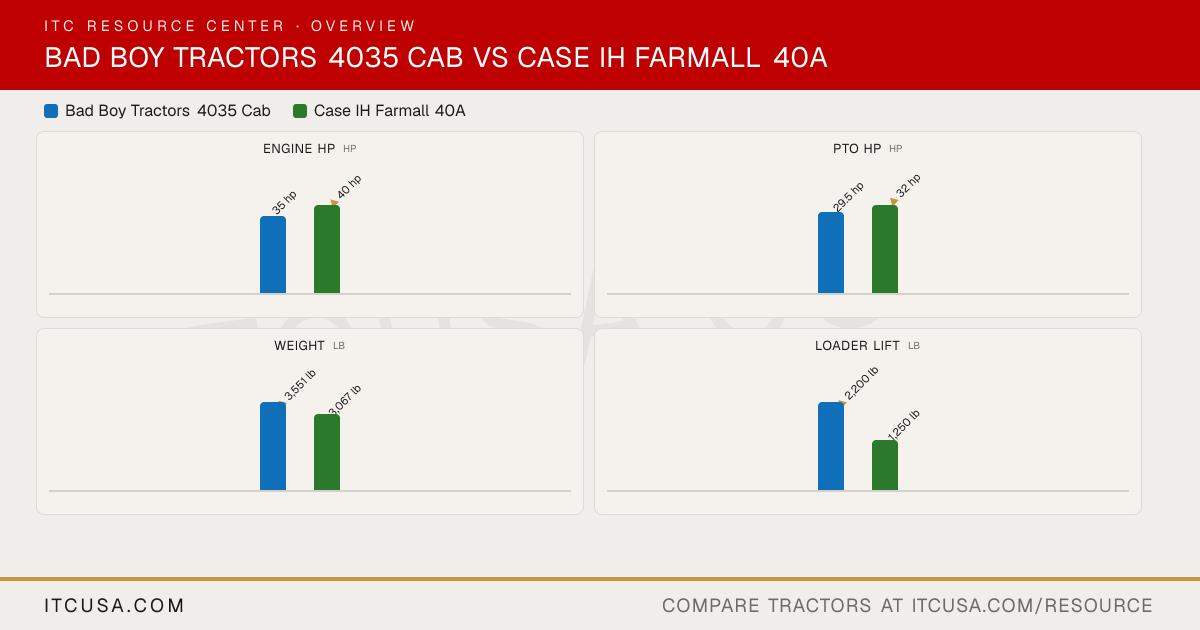

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035 Cab	Case IHFarmall 40A

▶Engine
Engine Manufacturer	TYM	LS Mtron
Engine Model	A1700N4-BUTC_4	Not Published
Engine Type	Vertical, water-cooled 4-cycle diesel	3-cylinder, turbocharged diesel, Tier 4 B/Final
No. of Cylinders	3	3
Displacement	104.5 in³	114.7 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	34.8 hp
Engine Emissions Constraints	Not Published	Tier 4
Cooling System Type	Water-cooled	Not Published
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Not Published
Alternator	50 A, 12 V	85 A, 12 V
▶Hydraulics
Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.4 gpm
Steering Flow	4.4 gpm	Not Published
Total Hydraulic Flow	12.6 gpm	13.3 gpm
Overall Hydraulic Pump Flow	12.6 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 2	3
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	12.6 gal
Coolant Capacity	1.32 gal	Not Published
Crankcase Capacity	1.14 gal	Not Published
Transmission / Hydraulic System Capacity	9.77 gal	Not Published
Front Axle Fluid Capacity	1.69 gal	Not Published
▶PTO & Hitch
PTO Type	Independent	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not available
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,307 lb	Not Published
Hitch Lift Capacity (at 24”)	2,425 lb	1,596 lb
Lift Control Type	Position control	Mechanical Draft Control (MDC)
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	3-range hydrostatic (optional)
No. of Speeds	3 range (HST)	3 ranges
Max Travel Speed (Forward)	18.21 mph	14.8 mph (with R4 tires)
Max Travel Speed (Reverse)	18.21 mph	Not Published
Clutch	None (HST)	n/a (no clutch on hydrostatic)
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical differential lock
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Electro-hydraulic power steering	Not Published
Brakes	Wet, multi-disc	Not Published
Seat Suspension & Adjustability	Heated leather seat (cab)	Adjustable suspension seat
Front Axle Type	Selectable 4WD	Mechanical Front Drive (MFD)
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	55.6 in	66.5 in
Wheelbase	65.7 in	66.2 in
Ground Clearance	13.19 in	Not Published
Min. Turn Radius without Brakes	Not Published	10.5 ft
Height to Top of ROPS	Not Published	96.2 in
Height to Top of ROPS (folded)	Not Published	74.2 in
Height to Top of Cab Model	85.9 in	Not Published
Overall Length	134.88 in	119.4 in
▶Weight
Tractor Weight (Base)	3,551 lb	3,053 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 7-16 / 11.2-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	R1 Agricultural, R3 Turf, or R4 Industrial
R1 Agricultural - Front	7-16	7x14
R1 Agricultural - Rear	11.2-24	11.2x24
R3 Turf - Front	Not Published	25x8.50-14
R3 Turf - Rear	Not Published	41x14.00-20
R4 Industrial - Front	28x8.50-15	25x8.50-14
R4 Industrial - Rear	43x16.00-20	43x16.00-20
▶Loader & Attachments
Quick Attach Loader System	SSQA	Not Published
Loader Model	BBL400	L340A
Loader Lift Height	104 in	98 in
Loader Lift Capacity (Full Height)	2,200 lb (at pivot pin)	890 lb at 31.5 in. forward of pivot pin
Loader Breakout Force	3,660 lb	1,900 lb
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 72 months or 2,000 hours	Basic 2 years; powertrain 4 additional years (6-year total)
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a Case IH dealer near you→

Bad Boy Tractors 4035 Cab vs Case IH Farmall 40A: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 40A?

The Case IH Farmall 40A leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035 Cab.

Which has more PTO horsepower, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 40A?

The Case IH Farmall 40A leads on pto hp at 34.8 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035 Cab.

Which is heavier, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 40A?

The Bad Boy Tractors 4035 Cab leads on weight at 3,551 lb lb, compared to 3,053 lb lb for the Case IH Farmall 40A.

Which has more loader lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 40A?

The Bad Boy Tractors 4035 Cab leads on loader lift at 2,200 lb lb, compared to 890 lb lb for the Case IH Farmall 40A.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 Cab or the Case IH Farmall 40A?

The Bad Boy Tractors 4035 Cab leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,596 lb lb for the Case IH Farmall 40A.
