Case IH Farmall 40A vs Kioti DK40

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Kioti DK40 leads 9 categories to 0. Machine pages: Case IH Farmall 40A and Kioti DK40.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 40A	Kioti DK40
Engine HP (hp)	40 hp	▲ 41 hp
PTO HP (hp)	32 hp	▲ 34 hp
Weight (lb)	3,067 lb	▲ 3,924 lb
Loader Lift (lb)	1,250 lb	▲ 2,761 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 2,493 lb
Lift Height (in)	98.4 in	▲ 111.4 in
Breakout Force (lbf)	1,913 lbf	▲ 3,727 lbf
Hydraulic Flow (gpm)	13.5 gpm	▲ 16.8 gpm
Travel Speed (mph)	14.8 mph	▲ 15.7 mph

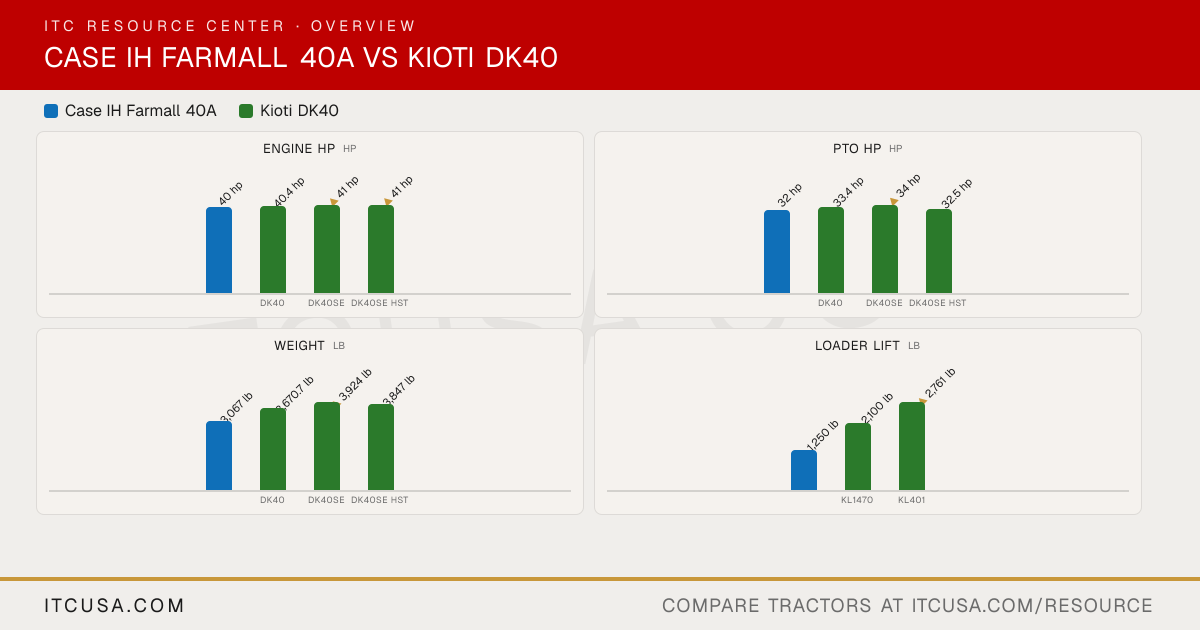

The headline numbers at a glance.

Case IH Farmall 40AKioti DK40

Engine HPhp

40 hp

40.4 hp

▲41 hp

DK40DK40SEDK40SE HST

PTO HPhp

32 hp

33.4 hp

▲34 hp

32.5 hp

DK40DK40SEDK40SE HST

Weightlb

3,067 lb

3,670.7 lb

▲3,924 lb

3,847 lb

DK40DK40SEDK40SE HST

Loader Liftlb

1,250 lb

2,100 lb

▲2,761 lb

KL1470KL401

3-Pt Lift (24 in)lb

1,433 lb

2,270.7 lb

▲2,493 lb

DK40DK40SEDK40SE HST

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40A	KiotiDK40


Engine Manufacturer	LS Mtron	KIOTI
Engine Model	L3C19-T4	DK40: 4A200; DK40SE: 4A200LWM; DK40SE HST: 4A200LWH
Engine Type	3-cylinder, turbocharged diesel, Tier 4 B/Final	Indirect injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders	3	4
Displacement	116 in³	122.0 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	DK40: 40.4 hp; DK40SE: 41 hp; DK40SE HST: 41 hp
PTO Power	32 hp	DK40: 33.4 hp; DK40SE: 34 hp; DK40SE HST: 32.5 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Pressurized liquid cooling with recirculating bypass	Water-cooled
Air Cleaner	Not Published	Not Published
Fuel System	High pressure common rail	Indirect injection
Alternator	70 A, 12 V	50 A, 12 V

Pump Type	Gear	DK40SE: Gear (tandem); DK40SE HST: Gear (tandem)
Implement Flow	8.2 gpm	7.6 gpm
Steering Flow	5.3 gpm	4.5 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed)	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm
Overall Hydraulic Pump Flow	Not Published	DK40: 12.1 gpm (7.6 + 4.5, computed); DK40SE: 16.8 gpm; DK40SE HST: 16.8 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	1
No. of Optional Remote Valves	1	DK40: 1 or 2 (2 or 4 ports, option); DK40SE: 1; DK40SE HST: 1

Fuel Tank Capacity	7.4 gal	DK40: 10.6 gal; DK40SE: 11.9 gal; DK40SE HST: 11.9 gal
Coolant Capacity	7.5 qt	Not Published
Crankcase Capacity	5.8 qt	Not Published
Transmission / Hydraulic System Capacity	8.5 gal	11.6 gal
Front Axle Fluid Capacity	6.9 qt	2.0 gal

PTO Type	Independent, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,000 rpm	Available (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	3,417 lb
Hitch Lift Capacity (at 24”)	1,433 lb	DK40: 2,270.7 lb; DK40SE: 2,493 lb; DK40SE HST: 2,493 lb
Lift Control Type	Mechanical Draft Control (MDC)	Position, draft, mixed control

Transmission Type	3-range hydrostatic (optional)	DK40: Synchronized shuttle; DK40SE: Synchro shuttle; DK40SE HST: Hydrostatic drive
No. of Speeds	infinite, 3 ranges	DK40: 8F/8R (16F/16R with creeper, DK40CR); DK40SE: 12F/12R; DK40SE HST: 3 range HST
Max Travel Speed (Forward)	14.8 mph	DK40: 14.53 mph; DK40SE: 15.7 mph; DK40SE HST: 15.6 mph
Max Travel Speed (Reverse)	14.96 mph	DK40: 13.40 mph; DK40SE: 14.8 mph; DK40SE HST: 10.9 mph
Clutch	Dry clutch	DK40: Dry single stage; DK40SE: Dry single stage; DK40SE HST: None
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock (standard)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc, mechanical actuation	Wet disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,433 lb (max. drawbar load)

Overall Length with 3-Point Hitch	145.2 in	DK40: 139.8 in; DK40SE: 134.2 in; DK40SE HST: 134.2 in
Overall Width	66.5 in	DK40: 59.3 in; DK40SE: 63.9 in; DK40SE HST: 63.9 in
Wheelbase	67.2 in	DK40: 70 in; DK40SE: 74.0 in; DK40SE HST: 74.0 in
Ground Clearance	Not Published	DK40: 10.1 in; DK40SE: 14.7 in; DK40SE HST: 14.7 in
Min. Turn Radius without Brakes	123 in	DK40: 112.7 in (without brake); DK40SE: 114 in (9.5 ft, with brake applied); DK40SE HST: 114 in (9.5 ft, with brake applied)
Height to Top of ROPS	87.6 in	DK40: 97.0 in; DK40SE: 95.0 in; DK40SE HST: 95.0 in
Height to Top of ROPS (folded)	68.2 in	Not Published
Height to Top of Cab Model	Not Published	96.3 in

Tractor Weight (Base)	3,067 lb	DK40: 3,670.7 lb; DK40SE: 3,924 lb; DK40SE HST: 3,847 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 agricultural, R3 turf, or R4 industrial (R4 standard)	R1 Agricultural: 8-16 front, 13.6-24 rear (standard tires)
R1 Agricultural - Front	7x14	8-16
R1 Agricultural - Rear	11.2x24	13.6-24
R3 Turf - Front	25x8.50-14	DK40: 27x8.50-15; DK40SE: 29x12.5-15; DK40SE HST: 29x12.5-15
R3 Turf - Rear	41x14.00-20	DK40: 41x14-20; DK40SE: 21.5L-16.1; DK40SE HST: 21.5L-16.1
R4 Industrial - Front	25x8.50-14	10x16.5
R4 Industrial - Rear	43x16.00-20	14.9x24

Quick Attach Loader System	Not Published	Quick attach (QA) bucket, 72 in
Loader Model	L340A	KL1470 (DK40); KL401 (DK40SE and DK40SE HST)
Loader Lift Height	98.4 in	KL1470: 111.4 in; KL401: 107.8 in
Loader Lift Capacity (Full Height)	1,250 lb	KL1470: 2,100 lb; KL401: 2,761 lb
Loader Breakout Force	1913 lb	KL1470: 3,400 lb; KL401: 3,727 lb

Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection	Not Published

Find a Case IH dealer near you Find a KIOTI dealer near you

Case IH Farmall 40A vs Kioti DK40: Quick Answers

Which has more horsepower, the Case IH Farmall 40A or the Kioti DK40?: The Kioti DK40 leads on engine hp at 41 hp hp, compared to 40 hp hp for the Case IH Farmall 40A.
Which has more PTO horsepower, the Case IH Farmall 40A or the Kioti DK40?: The Kioti DK40 leads on pto hp at 34 hp hp, compared to 32 hp hp for the Case IH Farmall 40A.
Which is heavier, the Case IH Farmall 40A or the Kioti DK40?: The Kioti DK40 leads on weight at 3,924 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A.
Which has more loader lift capacity, the Case IH Farmall 40A or the Kioti DK40?: The Kioti DK40 leads on loader lift at 2,761 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.
Which has more three-point hitch lift capacity, the Case IH Farmall 40A or the Kioti DK40?: The Kioti DK40 leads on 3-pt lift (24 in) at 2,493 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40A.
