Across 7 measurable specs, the TYM 4720 leads 5 categories to 1 (1 tied). Machine pages: Case IH Farmall 40A and TYM 4720.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 40A | TYM 4720 |
|---|
| Engine HP (hp) | 40 hp | 40 hp |
| PTO HP (hp) | 32 hp | n/a |
| Weight (lb) | 3,067 lb | ▲ 3,883 lb |
| Loader Lift (lb) | 1,250 lb | ▲ 2,094 lb |
| 3-Pt Lift (24 in) (lb) | 1,433 lb | ▲ 2,580 lb |
| Lift Height (in) | 98.4 in | ▲ 103 in |
| Breakout Force (lbf) | 1,913 lbf | ▲ 2,755 lbf |
| Hydraulic Flow (gpm) | ▲ 13.5 gpm | 13.2 gpm |
| Travel Speed (mph) | 14.8 mph | n/a |

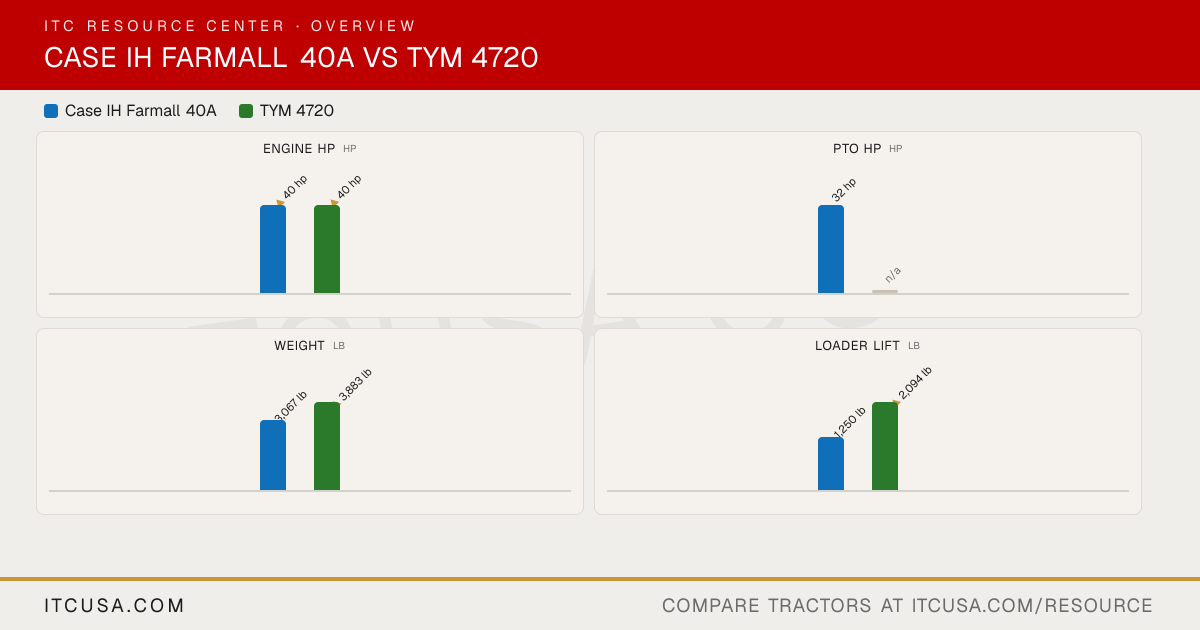

The headline numbers at a glance.
Case IH Farmall 40ATYM 4720
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 40A | TYM4720 |
|---|
|
|---|
| Engine Manufacturer | LS Mtron | Kukje |
|---|
| Engine Model | L3C19-T4 | A2300N2 |
|---|
| Engine Type | 3-cylinder, turbocharged diesel, Tier 4 B/Final | Diesel, liquid-cooled |
|---|
| No. of Cylinders | 3 | 4 |
|---|
| Displacement | 116 in³ | 139 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 40 hp | 40 hp |
|---|
| PTO Power | 32 hp | Not Published |
|---|
| Engine Emissions Constraints | Tier 4 | Not Published |
|---|
| Cooling System Type | Pressurized liquid cooling with recirculating bypass | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | High pressure common rail | Not Published |
|---|
| Alternator | 70 A, 12 V | 45 A, 12 V |
|---|
|
|---|
| Pump Type | Gear | Not Published |
|---|
| Implement Flow | 8.2 gpm | 8.9 gpm |
|---|
| Steering Flow | 5.3 gpm | Not Published |
|---|
| Total Hydraulic Flow | 13.5 gpm (8.2 + 5.3, computed) (8.2 + 4.2, computed) | 13.2 gpm |
|---|
| Overall Hydraulic Pump Flow | Not Published | Not Published |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 0 | 0 |
|---|
| No. of Optional Remote Valves | 1 | Up to 2 |
|---|
|
|---|
| Fuel Tank Capacity | 7.4 gal | 11.1 gal |
|---|
| Coolant Capacity | 7.5 qt | 9.8 qt |
|---|
| Crankcase Capacity | 5.8 qt | 6 qt |
|---|
| Transmission / Hydraulic System Capacity | 8.5 gal | 9.7 gal |
|---|
| Front Axle Fluid Capacity | 6.9 qt | Not Published |
|---|
|
|---|
| PTO Type | Independent, electro-hydraulic engagement | Live (2-stage clutch) |
|---|
| PTO Rear | 540 rpm | 540 / 1000 rpm |
|---|
| Mid-PTO Availability | Optional, 2,000 rpm | Not Published |
|---|
| Category, 3-Point Hitch | Category I | Category I |
|---|
| Hitch Lift Capacity | 1,808 lb | 2,580 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1,433 lb | Not Published |
|---|
| Lift Control Type | Mechanical Draft Control (MDC) | Not Published |
|---|
|
|---|
| Transmission Type | 3-range hydrostatic (optional) | Synchromesh |
|---|
| No. of Speeds | infinite, 3 ranges | 12F/12R |
|---|
| Max Travel Speed (Forward) | 14.8 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 14.96 mph | Not Published |
|---|
| Clutch | Dry clutch | Not Published |
|---|
| Differential Lock & Limited Slip Options | Mechanical differential lock | Not Published |
|---|
|
|---|
| Frame Type | Not Published | Not Published |
|---|
| Steering | Power steering | Hydrostatic power steering |
|---|
| Brakes | Wet disc, mechanical actuation | Wet disc |
|---|
| Seat Suspension & Adjustability | Adjustable suspension seat | Not Published |
|---|
| Front Axle Type | Mechanical Front Drive (MFD) | 4WD (MFWD) |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 145.2 in | 127 in |
|---|
| Overall Width | 66.5 in | 61 in |
|---|
| Wheelbase | 67.2 in | 71 in |
|---|
| Ground Clearance | Not Published | 12.2 in |
|---|
| Min. Turn Radius without Brakes | 123 in | Not Published |
|---|
| Height to Top of ROPS | 87.6 in | 88 in |
|---|
| Height to Top of ROPS (folded) | 68.2 in | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 3,067 lb | 3,883 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R1 agricultural, R3 turf, or R4 industrial (R4 standard) | Agricultural: 8-18 front / 12.4-28 rear; Turf: 29x12.00-15 front / 44x18.00-20 rear; Industrial: 12-16.5 front / 17.5L-24 rear |
|---|
| R1 Agricultural - Front | 7x14 | 8-18 |
|---|
| R1 Agricultural - Rear | 11.2x24 | 12.4-28 |
|---|
| R3 Turf - Front | 25x8.50-14 | 29x12.00-15 |
|---|
| R3 Turf - Rear | 41x14.00-20 | 44x18.00-20 |
|---|
| R4 Industrial - Front | 25x8.50-14 | 12-16.5 |
|---|
| R4 Industrial - Rear | 43x16.00-20 | 17.5L-24 |
|---|
|
|---|
| Quick Attach Loader System | Not Published | Not Published |
|---|
| Loader Model | L340A | BL20 |
|---|
| Loader Lift Height | 98.4 in | BL20: 103 in |
|---|
| Loader Lift Capacity (Full Height) | 1,250 lb | BL20: 2,094 lb |
|---|
| Loader Breakout Force | 1913 lb | BL20: 2,755 lbf (at 19.7 in reach, not pivot pin) (19.7 in forward of pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | 6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection | Not Published |
|---|
Case IH Farmall 40A vs TYM 4720: Quick Answers
- Which has more horsepower, the Case IH Farmall 40A or the TYM 4720?
- They are effectively tied: both machines are rated at 40 hp hp for engine hp.
- Which is heavier, the Case IH Farmall 40A or the TYM 4720?
- The TYM 4720 leads on weight at 3,883 lb lb, compared to 3,067 lb lb for the Case IH Farmall 40A.
- Which has more loader lift capacity, the Case IH Farmall 40A or the TYM 4720?
- The TYM 4720 leads on loader lift at 2,094 lb lb, compared to 1,250 lb lb for the Case IH Farmall 40A.
- Which has more three-point hitch lift capacity, the Case IH Farmall 40A or the TYM 4720?
- The TYM 4720 leads on 3-pt lift (24 in) at 2,580 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40A.
