Case IH Farmall 40C vs Kioti DK4220SEH

Across 9 measurable specs, the Kioti DK4220SEH leads 6 categories to 3. Machine pages: Case IH Farmall 40C and Kioti DK4220SEH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40C	KiotiDK4220SEH

▶Engine
Engine Manufacturer	LS Mtron	KIOTI (Daedong)
Engine Model	L3C19-T4	3H-TH4D
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	39.6 hp
PTO Power	32 hp	29.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Replaceable dry element	Dry element
Fuel System	Common rail direct injection	Not Published
Alternator	70 A	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	9.62 gpm
Steering Flow	5.3 gpm	6.87 gpm
Total Hydraulic Flow	13.5 gpm (8.2 + 5.3, computed)	16.5 gpm
Overall Hydraulic Pump Flow	Not Published	16.5 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	2
No. of Optional Remote Valves	Not Published	Not Published
▶Fluid Capacity
Fuel Tank Capacity	12.4 gal	12.7 gal
Coolant Capacity	Not Published	2.1 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
Front Axle Fluid Capacity	Not Published	1.48 gal
▶PTO & Hitch
PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,998 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,716 lb
Lift Control Type	Mechanical draft control (MDC)	Position
▶Transmission & Drivetrain
Transmission Type	3-range hydrostatic (HST)	Hydrostatic (HST)
No. of Speeds	infinitely variable, 3 ranges	3 ranges (hydrostatic, infinite speeds)
Max Travel Speed (Forward)	14.8 mph	18.45 mph
Max Travel Speed (Reverse)	Not Published	12.92 mph
Clutch	Not Applicable	None (hydrostatic transmission)
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Deluxe cloth seat with adjustable suspension	Deluxe suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	128.1 in	125.5 in
Overall Width	66.4 in	62.8 in
Wheelbase	66 in	71.3 in
Ground Clearance	Not Published	14.5 in
Min. Turn Radius without Brakes	Not Published	102.8 in (with brake applied)
Height to Top of ROPS	Not Published	96.8 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	93.0 in
▶Weight
Tractor Weight (Base)	3,803 lb	3,523 lb (DK4220SEH); 4,043 lb (DK4220SEH CAB)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	Not Published	8-16
R1 Agricultural - Rear	Not Published	13.6-24
R3 Turf - Front	Not Published	29-12.5-15
R3 Turf - Rear	Not Published	21.5L-16.1
R4 Industrial - Front	Not Published	10-16.5
R4 Industrial - Rear	Not Published	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	L350A	KL5520; KL5521 (Cab models)
Loader Lift Height	105 in	KL5520: 107.7 in; KL5521: 107.7 in
Loader Lift Capacity (Full Height)	2,000 lb	KL5520: 2,474 lb; KL5521: 2,474 lb
Loader Breakout Force	2,640 lbf	KL5520: 3,895 lb; KL5521: 3,895 lb
▶Warranty
Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Case IH dealer near you→Find a KIOTI dealer near you→

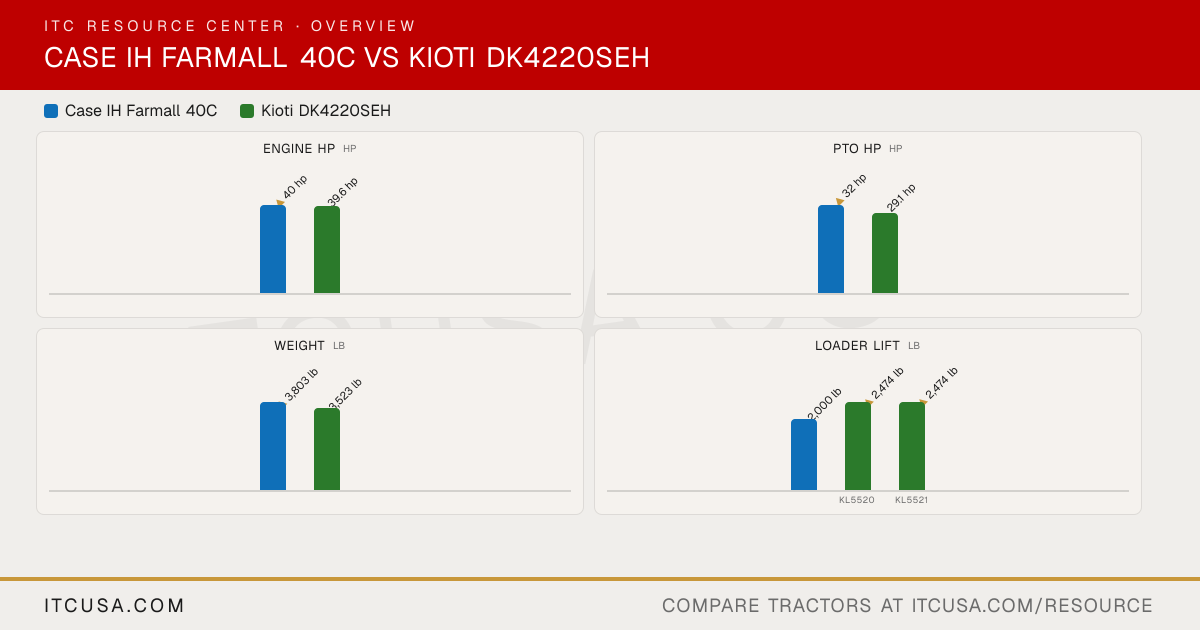

Case IH Farmall 40C vs Kioti DK4220SEH: Quick Answers

Which has more horsepower, the Case IH Farmall 40C or the Kioti DK4220SEH?

The Case IH Farmall 40C leads on engine hp at 40 hp hp, compared to 39.6 hp hp for the Kioti DK4220SEH.

Which has more PTO horsepower, the Case IH Farmall 40C or the Kioti DK4220SEH?

The Case IH Farmall 40C leads on pto hp at 32 hp hp, compared to 29.1 hp hp for the Kioti DK4220SEH.

Which is heavier, the Case IH Farmall 40C or the Kioti DK4220SEH?

The Case IH Farmall 40C leads on weight at 3,803 lb lb, compared to 3,523 lb lb for the Kioti DK4220SEH.

Which has more loader lift capacity, the Case IH Farmall 40C or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on loader lift at 2,474 lb lb, compared to 2,000 lb lb for the Case IH Farmall 40C.

Which has more three-point hitch lift capacity, the Case IH Farmall 40C or the Kioti DK4220SEH?

The Kioti DK4220SEH leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40C.
