Case IH Farmall 40C vs LS Tractor XR4040

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XR4040 leads 6 categories to 1 (1 tied). Machine pages: Case IH Farmall 40C and LS Tractor XR4040.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 40C	LS Tractor XR4040
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	▲ 32.4 hp
Weight (lb)	3,803 lb	▲ 4,330 lb
Loader Lift (lb)	2,000 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 2,469 lb
Lift Height (in)	▲ 105 in	96.1 in
Breakout Force (lbf)	2,640 lbf	▲ 4,354 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.7 gpm
Travel Speed (mph)	14.8 mph	n/a

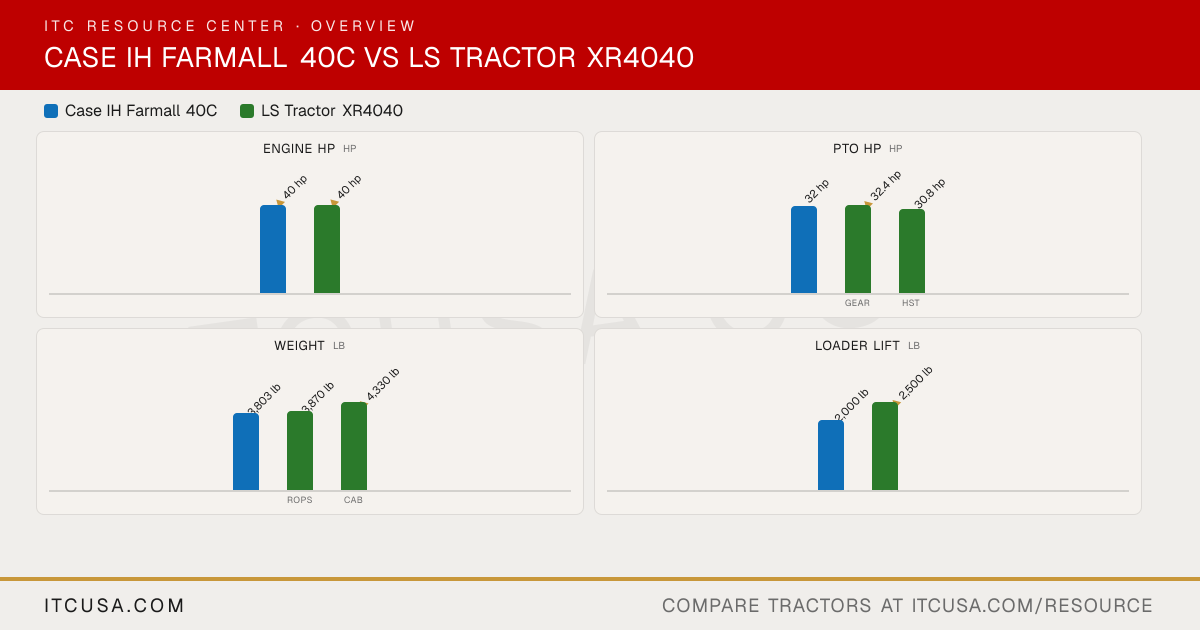

The headline numbers at a glance.

Case IH Farmall 40CLS Tractor XR4040

Engine HPhp

▲40 hp

PTO HPhp

32 hp

▲32.4 hp

30.8 hp

gearHST

Weightlb

3,803 lb

3,870 lb

▲4,330 lb

ROPScab

Loader Liftlb

2,000 lb

▲2,500 lb

3-Pt Lift (24 in)lb

1,433 lb

▲2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40C	LS TractorXR4040


Engine Manufacturer	LS Mtron	Shibaura (ISM)
Engine Model	L3C19-T4	N844L-F
Engine Type	Diesel, 3-cylinder, turbocharged	4-cylinder, indirect injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	116 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	XR4040, XR4040C (gear): 32.4 hp; XR4040H, XR4040HC (HST): 30.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Replaceable dry element	Dry
Fuel System	Common rail direct injection	Indirect injection
Alternator	70 A	85 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	XR4040, XR4040C (gear): 4.2 gpm; XR4040H, XR4040HC (HST): 5.5 gpm
Total Hydraulic Flow	Not Published	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	Not Published	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	2 pairs (4 front outlets, 4 rear outlets)
No. of Optional Remote Valves	Not Published	1 or 3 optional (2 or 6 quick couplers)

Fuel Tank Capacity	12.4 gal	XR4040, XR4040H (ROPS): 10.5 gal; XR4040C, XR4040HC (cab): 12.4 gal
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
Front Axle Fluid Capacity	Not Published	2.1 gal

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,756 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,469 lb
Lift Control Type	Mechanical draft control (MDC)	Position and draft control

Transmission Type	3-range hydrostatic (HST)	XR4040, XR4040C (gear): Synchro shuttle; XR4040H, XR4040HC (HST): HST
No. of Speeds	infinitely variable, 3 ranges	XR4040, XR4040C (gear): F16 x R16; XR4040H, XR4040HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Deluxe cloth seat with adjustable suspension	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	129.4 in
Overall Width	66.4 in	62.4 in
Wheelbase	66 in	69.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.5 ft (with brake applied)
Height to Top of ROPS	Not Published	96.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	91.1 in

Tractor Weight (Base)	3,803 lb	XR4040, XR4040H (ROPS): 3,870 lb; XR4040C, XR4040HC (cab): 4,330 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	9.5-16
R1 Agricultural - Rear	Not Published	13.6-24
R3 Turf - Front	Not Published	28x8.5-15
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	Not Published	12-16.5
R4 Industrial - Rear	Not Published	17.5L-24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	LL4102: quick attach, skid steer compatible
Loader Model	L350A	LL4102
Loader Lift Height	105 in	LL4102: 96.1 in
Loader Lift Capacity (Full Height)	2,000 lb	LL4102: 2,500 lb
Loader Breakout Force	2,640 lbf	LL4102: 4,354 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	5-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 40C vs LS Tractor XR4040: Quick Answers

Which has more horsepower, the Case IH Farmall 40C or the LS Tractor XR4040?: They are effectively tied: both machines are rated at 40 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 40C or the LS Tractor XR4040?: The LS Tractor XR4040 leads on pto hp at 32.4 hp hp, compared to 32 hp hp for the Case IH Farmall 40C.
Which is heavier, the Case IH Farmall 40C or the LS Tractor XR4040?: The LS Tractor XR4040 leads on weight at 4,330 lb lb, compared to 3,803 lb lb for the Case IH Farmall 40C.
Which has more loader lift capacity, the Case IH Farmall 40C or the LS Tractor XR4040?: The LS Tractor XR4040 leads on loader lift at 2,500 lb lb, compared to 2,000 lb lb for the Case IH Farmall 40C.
Which has more three-point hitch lift capacity, the Case IH Farmall 40C or the LS Tractor XR4040?: The LS Tractor XR4040 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40C.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 40C	LS Tractor XR4040
Engine HP (hp)	40 hp	40 hp
PTO HP (hp)	32 hp	▲ 32.4 hp
Weight (lb)	3,803 lb	▲ 4,330 lb
Loader Lift (lb)	2,000 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 2,469 lb
Lift Height (in)	▲ 105 in	96.1 in
Breakout Force (lbf)	2,640 lbf	▲ 4,354 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.7 gpm
Travel Speed (mph)	14.8 mph	n/a

The headline numbers at a glance.

Case IH Farmall 40CLS Tractor XR4040

Engine HPhp

▲40 hp

PTO HPhp

32 hp

▲32.4 hp

30.8 hp

gearHST

Weightlb

3,803 lb

3,870 lb

▲4,330 lb

ROPScab

Loader Liftlb

2,000 lb

▲2,500 lb

3-Pt Lift (24 in)lb

1,433 lb

▲2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 40C	LS TractorXR4040


Engine Manufacturer	LS Mtron	Shibaura (ISM)
Engine Model	L3C19-T4	N844L-F
Engine Type	Diesel, 3-cylinder, turbocharged	4-cylinder, indirect injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	116 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	40 hp	40 hp
PTO Power	32 hp	XR4040, XR4040C (gear): 32.4 hp; XR4040H, XR4040HC (HST): 30.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Water-cooled
Air Cleaner	Replaceable dry element	Dry
Fuel System	Common rail direct injection	Indirect injection
Alternator	70 A	85 A, 12 V

Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	5.3 gpm	XR4040, XR4040C (gear): 4.2 gpm; XR4040H, XR4040HC (HST): 5.5 gpm
Total Hydraulic Flow	Not Published	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	Not Published	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	2 pairs (4 front outlets, 4 rear outlets)
No. of Optional Remote Valves	Not Published	1 or 3 optional (2 or 6 quick couplers)

Fuel Tank Capacity	12.4 gal	XR4040, XR4040H (ROPS): 10.5 gal; XR4040C, XR4040HC (cab): 12.4 gal
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.5 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
Front Axle Fluid Capacity	Not Published	2.1 gal

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,808 lb	2,756 lb
Hitch Lift Capacity (at 24”)	1,433 lb	2,469 lb
Lift Control Type	Mechanical draft control (MDC)	Position and draft control

Transmission Type	3-range hydrostatic (HST)	XR4040, XR4040C (gear): Synchro shuttle; XR4040H, XR4040HC (HST): HST
No. of Speeds	infinitely variable, 3 ranges	XR4040, XR4040C (gear): F16 x R16; XR4040H, XR4040HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Applicable	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Deluxe cloth seat with adjustable suspension	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	129.4 in
Overall Width	66.4 in	62.4 in
Wheelbase	66 in	69.4 in
Ground Clearance	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	9.5 ft (with brake applied)
Height to Top of ROPS	Not Published	96.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	91.1 in

Tractor Weight (Base)	3,803 lb	XR4040, XR4040H (ROPS): 3,870 lb; XR4040C, XR4040HC (cab): 4,330 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	Not Published	9.5-16
R1 Agricultural - Rear	Not Published	13.6-24
R3 Turf - Front	Not Published	28x8.5-15
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	Not Published	12-16.5
R4 Industrial - Rear	Not Published	17.5L-24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L350A)	LL4102: quick attach, skid steer compatible
Loader Model	L350A	LL4102
Loader Lift Height	105 in	LL4102: 96.1 in
Loader Lift Capacity (Full Height)	2,000 lb	LL4102: 2,500 lb
Loader Breakout Force	2,640 lbf	LL4102: 4,354 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	5-year limited warranty

Find a Case IH dealer near you Find a LS Tractor dealer near you

Case IH Farmall 40C vs LS Tractor XR4040: Quick Answers

Which has more horsepower, the Case IH Farmall 40C or the LS Tractor XR4040?

They are effectively tied: both machines are rated at 40 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 40C or the LS Tractor XR4040?

The LS Tractor XR4040 leads on pto hp at 32.4 hp hp, compared to 32 hp hp for the Case IH Farmall 40C.

Which is heavier, the Case IH Farmall 40C or the LS Tractor XR4040?

The LS Tractor XR4040 leads on weight at 4,330 lb lb, compared to 3,803 lb lb for the Case IH Farmall 40C.

Which has more loader lift capacity, the Case IH Farmall 40C or the LS Tractor XR4040?

The LS Tractor XR4040 leads on loader lift at 2,500 lb lb, compared to 2,000 lb lb for the Case IH Farmall 40C.

Which has more three-point hitch lift capacity, the Case IH Farmall 40C or the LS Tractor XR4040?

The LS Tractor XR4040 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 1,433 lb lb for the Case IH Farmall 40C.
