Bad Boy Tractors 4035 vs LS Tractor XR4040

Across 8 measurable specs, the LS Tractor XR4040 leads 7 categories to 1. Machine pages: Bad Boy Tractors 4035 and LS Tractor XR4040.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

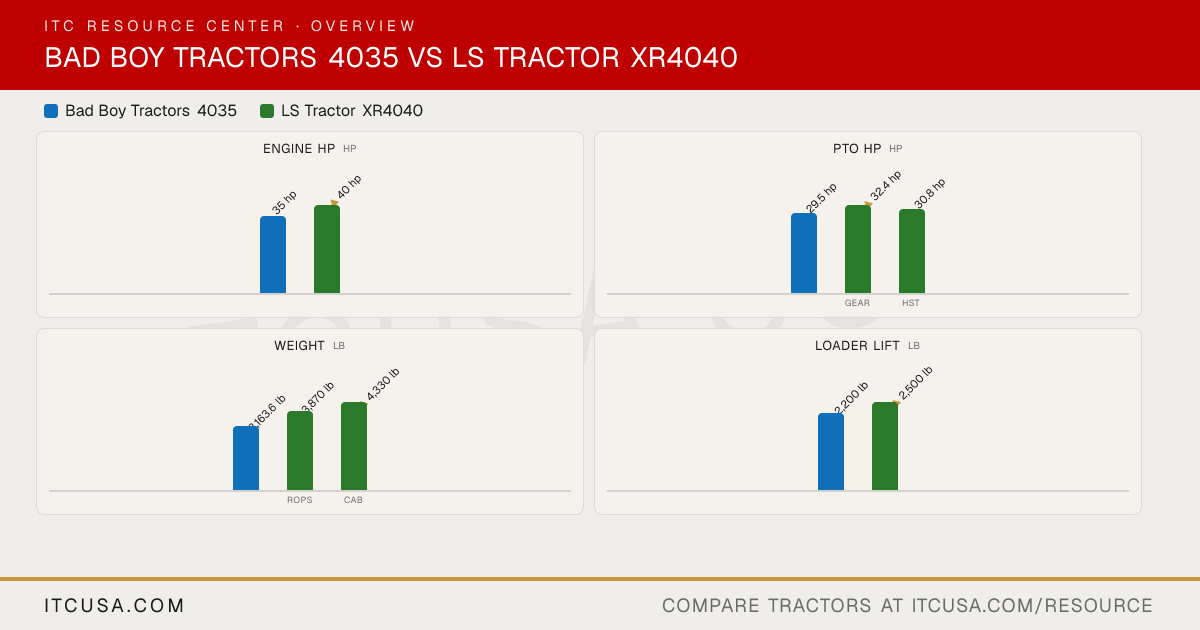

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors4035	LS TractorXR4040

▶Engine
Engine Manufacturer	TYM	Shibaura (ISM)
Engine Model	A1700N4-BUTR_4	N844L-F
Engine Type	Vertical, 4-stroke, water-cooled diesel	4-cylinder, indirect injection, water-cooled diesel
No. of Cylinders	3	4
Displacement	104.7 in³	135.2 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	35 hp	40 hp
PTO Power	29.5 hp	XR4040, XR4040C (gear): 32.4 hp; XR4040H, XR4040HC (HST): 30.8 hp
Engine Emissions Constraints	EPA Final Tier4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Not Published	Dry
Fuel System	Not Published	Indirect injection
Alternator	50 A, 12 V	85 A, 12 V
▶Hydraulics
Pump Type	Not Published	Gear pump, engine driven
Implement Flow	8.2 gpm	8.2 gpm
Steering Flow	4.4 gpm	XR4040, XR4040C (gear): 4.2 gpm; XR4040H, XR4040HC (HST): 5.5 gpm
Total Hydraulic Flow	12.6 gpm	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Overall Hydraulic Pump Flow	12.6 gpm	XR4040, XR4040C (gear): 12.4 gpm; XR4040H, XR4040HC (HST): 13.7 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2 pairs (4 front outlets, 4 rear outlets)
No. of Optional Remote Valves	Up to 2	1 or 3 optional (2 or 6 quick couplers)
▶Fluid Capacity
Fuel Tank Capacity	7.13 gal	XR4040, XR4040H (ROPS): 10.5 gal; XR4040C, XR4040HC (cab): 12.4 gal
Coolant Capacity	1.32 gal	2.0 gal
Crankcase Capacity	1.14 gal	1.5 gal
Transmission / Hydraulic System Capacity	9.77 gal	11.4 gal
Front Axle Fluid Capacity	1.69 gal	2.1 gal
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	3,306.9 lb	2,756 lb
Hitch Lift Capacity (at 24”)	2,425 lb	2,469 lb
Lift Control Type	Position control	Position and draft control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST), 3-range	XR4040, XR4040C (gear): Synchro shuttle; XR4040H, XR4040HC (HST): HST
No. of Speeds	3 range (HST)	XR4040, XR4040C (gear): F16 x R16; XR4040H, XR4040HC (HST): 3 ranges (HST)
Max Travel Speed (Forward)	19.08 mph	Not Published
Max Travel Speed (Reverse)	19.08 mph	Not Published
Clutch	None (HST)	Mechanical: dry single clutch; HST: not applicable
Differential Lock & Limited Slip Options	Rear differential lock	Mechanical differential lock (pedal)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet, multi-disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	134.88 in	129.4 in
Overall Width	56.7 in	62.4 in
Wheelbase	65.7 in	69.4 in
Ground Clearance	15 in	Not Published
Min. Turn Radius without Brakes	Not Published	9.5 ft (with brake applied)
Height to Top of ROPS	96.85 in	96.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	85.9 in	91.1 in
▶Weight
Tractor Weight (Base)	3,163.6 lb	XR4040, XR4040H (ROPS): 3,870 lb; XR4040C, XR4040HC (cab): 4,330 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 ag 8.0-16 / 12.4-24 (standard); R4 industrial 28x8.50-15 / 43x16.00-20	Ag, industrial or turf tires at no additional cost
R1 Agricultural - Front	8.0-16	9.5-16
R1 Agricultural - Rear	12.4-24	13.6-24
R3 Turf - Front	Not Published	28x8.5-15
R3 Turf - Rear	Not Published	41x14-20
R4 Industrial - Front	28x8.50-15	12-16.5
R4 Industrial - Rear	43x16.00-20	17.5L-24
▶Loader & Attachments
Quick Attach Loader System	SSQA	LL4102: quick attach, skid steer compatible
Loader Model	BBL400	LL4102
Loader Lift Height	104 in	LL4102: 96.1 in
Loader Lift Capacity (Full Height)	2,200 lb	LL4102: 2,500 lb
Loader Breakout Force	3,660 lb	LL4102: 4,354 lb
▶Warranty
Warranty Length & Coverage	Engine and powertrain 72 months or 2,000 hours; other tractor parts 24 months or 1,000 hours	5-year limited warranty
▶ITC Company Accessories
Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00 Branson / TYM 15 Series Fuel Tank Cover $250.00	None tagged yet

Find a Bad Boy dealer near you→Find a LS Tractor dealer near you→

Bad Boy Tractors 4035 vs LS Tractor XR4040: Quick Answers

Which has more horsepower, the Bad Boy Tractors 4035 or the LS Tractor XR4040?

The LS Tractor XR4040 leads on engine hp at 40 hp hp, compared to 35 hp hp for the Bad Boy Tractors 4035.

Which has more PTO horsepower, the Bad Boy Tractors 4035 or the LS Tractor XR4040?

The LS Tractor XR4040 leads on pto hp at 32.4 hp hp, compared to 29.5 hp hp for the Bad Boy Tractors 4035.

Which is heavier, the Bad Boy Tractors 4035 or the LS Tractor XR4040?

The LS Tractor XR4040 leads on weight at 4,330 lb lb, compared to 3,163.6 lb lb for the Bad Boy Tractors 4035.

Which has more loader lift capacity, the Bad Boy Tractors 4035 or the LS Tractor XR4040?

The LS Tractor XR4040 leads on loader lift at 2,500 lb lb, compared to 2,200 lb lb for the Bad Boy Tractors 4035.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 4035 or the LS Tractor XR4040?

The LS Tractor XR4040 leads on 3-pt lift (24 in) at 2,469 lb lb, compared to 2,425 lb lb for the Bad Boy Tractors 4035.
