Case IH Farmall 45C vs Kioti DK4520

Across 9 measurable specs, the Case IH Farmall 45C leads 5 categories to 4. Machine pages: Case IH Farmall 45C and Kioti DK4520.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

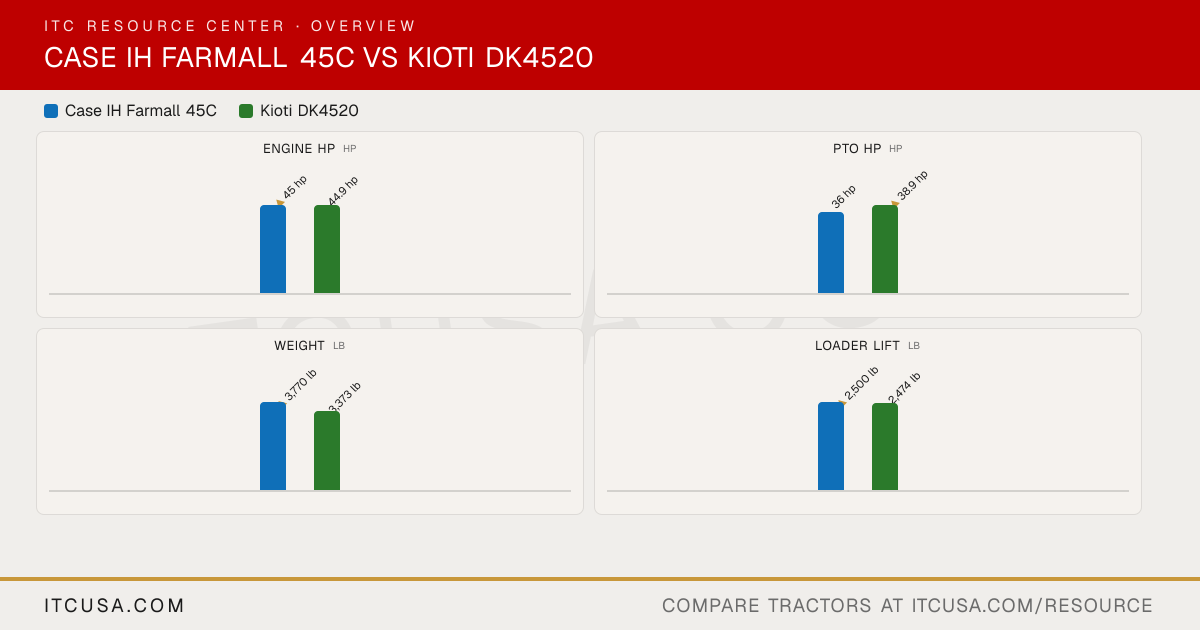

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 45C	KiotiDK4520

▶Engine
Engine Manufacturer	LS Mtron	KIOTI (Daedong)
Engine Model	L3C19-T	3HT-TM4B
Engine Type	Diesel, 3-cylinder, turbocharged	3-cylinder, liquid-cooled diesel
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	44.9 hp
PTO Power	36 hp	38.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Not Published
Alternator	70 A	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	9.62 gpm
Steering Flow	5.3 gpm	4.94 gpm
Total Hydraulic Flow	Not Published	14.56 gpm
Overall Hydraulic Pump Flow	Not Published	14.56 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	0 (2 optional)
No. of Optional Remote Valves	2	2
▶Fluid Capacity
Fuel Tank Capacity	10.5 gal	11.9 gal
Coolant Capacity	Not Published	0.89 gal
Crankcase Capacity	Not Published	1.95 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal
Front Axle Fluid Capacity	Not Published	1.48 gal
▶PTO & Hitch
PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	No mid PTO (N/A)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2,756 lb	2,998 lb
Hitch Lift Capacity (at 24”)	2,469 lb	2,716 lb
Lift Control Type	Mechanical draft control (MDC)	Position
▶Transmission & Drivetrain
Transmission Type	3-range hydrostatic (HST)	Synchronized shuttle
No. of Speeds	infinitely variable, 3 ranges	8F/8R
Max Travel Speed (Forward)	17.9 mph	16.71 mph
Max Travel Speed (Reverse)	Not Published	16.28 mph
Clutch	Not Applicable	Dry single stage
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Rear differential lock (standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering
Brakes	Wet multi-disc	Wet multi-disc
Seat Suspension & Adjustability	Adjustable suspension seat	Deluxe suspension seat
Front Axle Type	Mechanical Front Drive (MFD)	Mechanical 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	128.1 in	124.3 in
Overall Width	69.1 in	62.8 in
Wheelbase	73.2 in	71.3 in
Ground Clearance	Not Published	14.5 in
Min. Turn Radius without Brakes	Not Published	102.8 in (with brake applied)
Height to Top of ROPS	97.1 in	96.8 in
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	Not Published
▶Weight
Tractor Weight (Base)	3,770 lb	3,373 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	28x8.50-15	29-12.5-15
R3 Turf - Rear	41x14.00-20	21.5L-16.1
R4 Industrial - Front	12-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Quick attach (QA) bucket, 66 in or 72 in
Loader Model	L360A	KL5520
Loader Lift Height	112 in	KL5520: 107.7 in
Loader Lift Capacity (Full Height)	2,500 lb	KL5520: 2,474 lb
Loader Breakout Force	3,114 lbf	KL5520: 3,895 lb
▶Warranty
Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Non-commercial: 24 months, unlimited hours, parts and labor, 0% deductible; non-commercial powertrain (engine and driveline): 72 months, unlimited hours
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Kioti DK10/20 & CK10/20 with 6 bolt Grill Guard Brush Screen Insert $250.00

Find a Case IH dealer near you→Find a KIOTI dealer near you→

Case IH Farmall 45C vs Kioti DK4520: Quick Answers

Which has more horsepower, the Case IH Farmall 45C or the Kioti DK4520?

The Case IH Farmall 45C leads on engine hp at 45 hp hp, compared to 44.9 hp hp for the Kioti DK4520.

Which has more PTO horsepower, the Case IH Farmall 45C or the Kioti DK4520?

The Kioti DK4520 leads on pto hp at 38.9 hp hp, compared to 36 hp hp for the Case IH Farmall 45C.

Which is heavier, the Case IH Farmall 45C or the Kioti DK4520?

The Case IH Farmall 45C leads on weight at 3,770 lb lb, compared to 3,373 lb lb for the Kioti DK4520.

Which has more loader lift capacity, the Case IH Farmall 45C or the Kioti DK4520?

The Case IH Farmall 45C leads on loader lift at 2,500 lb lb, compared to 2,474 lb lb for the Kioti DK4520.

Which has more three-point hitch lift capacity, the Case IH Farmall 45C or the Kioti DK4520?

The Kioti DK4520 leads on 3-pt lift (24 in) at 2,716 lb lb, compared to 2,469 lb lb for the Case IH Farmall 45C.
