Case IH Farmall 45C Gear vs Kioti NX4510CH

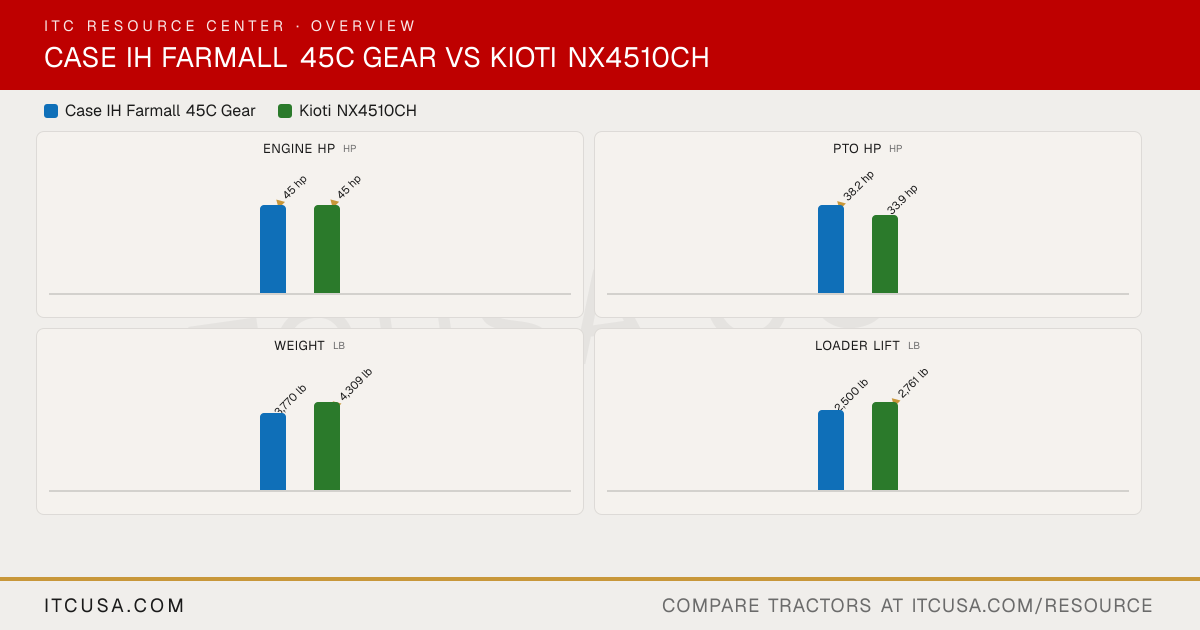

Across 9 measurable specs, the Kioti NX4510CH leads 5 categories to 3 (1 tied). Machine pages: Case IH Farmall 45C Gear and Kioti NX4510CH.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 45C Gear	KiotiNX4510CH

▶Engine
Engine Manufacturer	LS Mtron	KIOTI (Daedong)
Engine Model	L3C19-T	3F183T
Engine Type	Diesel, 3-cylinder, turbocharged	KIOTI 3 Cylinder, In-Line Vertical, Water-Cooled 4-Cycle Turbo Diesel, CRDI
No. of Cylinders	3	3
Displacement	116 in³	111.4 in³
Rated Engine Speed	2600 rpm	2600 rpm
Engine Power (Gross)	45 hp	45 hp
PTO Power	38.2 hp	33.9 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Replaceable dry element	Dry type element
Fuel System	Common rail direct injection	Common Rail Direct Injection (CRDI)
Alternator	70 A	Not Published
▶Hydraulics
Pump Type	Not Published	Gear
Implement Flow	8.2 gpm	9.6 gpm
Steering Flow	4.2 gpm	8.2 gpm
Total Hydraulic Flow	Not Published	17.9 gpm
Overall Hydraulic Pump Flow	Not Published	17.9 gpm
Hydraulic System Type	Open center	Open Center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	1	1
No. of Optional Remote Valves	2	1
▶Fluid Capacity
Fuel Tank Capacity	10.5 gal	14.8 gal
Coolant Capacity	Not Published	2.0 gal
Crankcase Capacity	Not Published	1.58 gal
Transmission / Hydraulic System Capacity	Not Published	11.89 gal
Front Axle Fluid Capacity	Not Published	1.8 gal
▶PTO & Hitch
PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2000 rpm	Optional (2,000 rpm)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity	2,756 lb	3,538 lb
Hitch Lift Capacity (at 24”)	2,469 lb	3,177 lb
Lift Control Type	Mechanical draft control (MDC)	Position with Draft Control
▶Transmission & Drivetrain
Transmission Type	16 x 16 mechanical shuttle with synchro shift	Hydrostatic
No. of Speeds	16 forward, 16 reverse	3 Range
Max Travel Speed (Forward)	16.9 mph	16.52 mph
Max Travel Speed (Reverse)	Not Published	16.52 mph
Clutch	dry clutch	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential Lock: Rear (Standard)
▶Chassis, Steering & Controls
Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic Power Steering
Brakes	Wet multi-disc	Wet Multi Disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable Seat
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	1,655 lb (max. drawbar vertical load)
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	128.1 in	139.6 in
Overall Width	69.1 in	65.6 in
Wheelbase	73.2 in	75.6 in
Ground Clearance	Not Published	13.8 in
Min. Turn Radius without Brakes	Not Published	9.8 ft
Height to Top of ROPS	97.1 in	Not Published
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	94.1 in
▶Weight
Tractor Weight (Base)	3,770 lb	4,309 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	9.5-16	8-16
R1 Agricultural - Rear	13.6-24	13.6-24
R3 Turf - Front	28x8.50-15	29-12.5-15
R3 Turf - Rear	41x14.00-20	21.5L-16.1
R4 Industrial - Front	12-16.5	10-16.5
R4 Industrial - Rear	17.5L-24	14.9-24
▶Loader & Attachments
Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Built-in parking stand; quick attach/detach; single-lever joystick control with float; bucket level indicator
Loader Model	L360A	KL6010
Loader Lift Height	112 in	KL6010: 108.3 in (to pivot pin)
Loader Lift Capacity (Full Height)	2,500 lb	KL6010: 2,761 lb (at pivot pin, max height)
Loader Breakout Force	3,114 lbf	KL6010: 3,727 lb (at pivot pin)
▶Warranty
Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	Non-commercial tractor: 24 months, unlimited hours, parts & labor; non-commercial powertrain (engine and driveline): 72 months, unlimited hours, parts & labor
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kioti NS/NX Brush Screen Insert $265.00 Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection

Find a Case IH dealer near you→Find a KIOTI dealer near you→

Case IH Farmall 45C Gear vs Kioti NX4510CH: Quick Answers

Which has more horsepower, the Case IH Farmall 45C Gear or the Kioti NX4510CH?

They are effectively tied: both machines are rated at 45 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 45C Gear or the Kioti NX4510CH?

The Case IH Farmall 45C Gear leads on pto hp at 38.2 hp hp, compared to 33.9 hp hp for the Kioti NX4510CH.

Which is heavier, the Case IH Farmall 45C Gear or the Kioti NX4510CH?

The Kioti NX4510CH leads on weight at 4,309 lb lb, compared to 3,770 lb lb for the Case IH Farmall 45C Gear.

Which has more loader lift capacity, the Case IH Farmall 45C Gear or the Kioti NX4510CH?

The Kioti NX4510CH leads on loader lift at 2,761 lb lb, compared to 2,500 lb lb for the Case IH Farmall 45C Gear.

Which has more three-point hitch lift capacity, the Case IH Farmall 45C Gear or the Kioti NX4510CH?

The Kioti NX4510CH leads on 3-pt lift (24 in) at 3,177 lb lb, compared to 2,469 lb lb for the Case IH Farmall 45C Gear.
