Case IH Farmall 50A vs Case IH Farmall 55C Gear
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

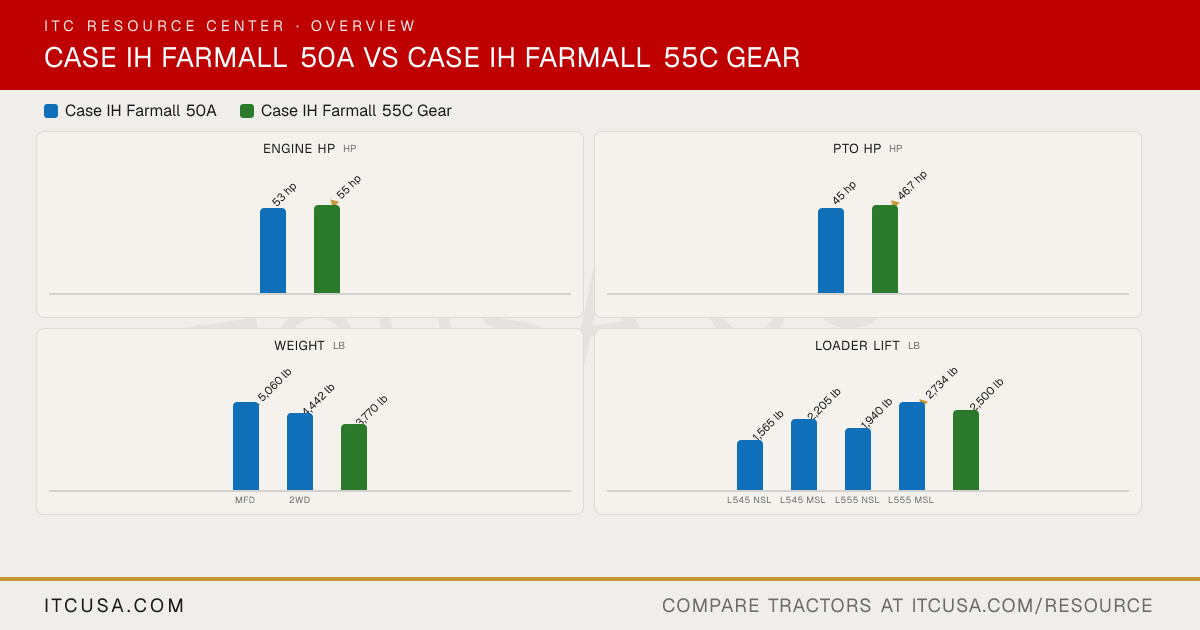

Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Case IH Farmall 50A, 4 to the Case IH Farmall 55C Gear. Machine pages: Case IH Farmall 50A and Case IH Farmall 55C Gear.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Case IH Farmall 50A | Case IH Farmall 55C Gear |
|---|---|---|
| Engine HP (hp) | 53 hp | ▲ 55 hp |
| PTO HP (hp) | 45 hp | ▲ 46.7 hp |
| Weight (lb) | ▲ 5,060 lb | 3,770 lb |
| Loader Lift (lb) | ▲ 2,734 lb | 1,830 lb |
| 3-Pt Lift (24 in) (lb) | 2,701 lb | ▲ 2,756 lb |
| Lift Height (in) | 106 in | ▲ 112 in |
| Breakout Force (lbf) | ▲ 3,527 lbf | 3,114 lbf |
| Hydraulic Flow (gpm) | ▲ 17.4 gpm | 12.4 gpm |
| Travel Speed (mph) | n/a | 16.9 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall 50A | Case IHFarmall 55C Gear |
|---|
| Engine Manufacturer | FPT | LS Mtron |
|---|---|---|
| Engine Model | R 753 IE4 | L3C19-T |
| Engine Type | 3-cylinder, FPT turbocharged & aftercooled | Diesel, 3-cylinder, turbocharged |
| No. of Cylinders | 3 | 3 |
| Displacement | 135.9 in³ | 115.9 in³ |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Engine Power (Gross) | 53 hp | 55 hp |
| PTO Power | 45 hp | 46.7 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4 |
| Cooling System Type | Liquid-cooled | Liquid-cooled |
| Air Cleaner | Dry | Replaceable dry element |
| Fuel System | Electronic high pressure common rail | Not Published |
| Alternator | 75 A | 70 A |
Case IH Farmall 50A vs Case IH Farmall 55C Gear: Quick Answers
- Which has more horsepower, the Case IH Farmall 50A or the Case IH Farmall 55C Gear?
- The Case IH Farmall 55C Gear leads on engine hp at 55 hp hp, compared to 53 hp hp for the Case IH Farmall 50A.
- Which has more PTO horsepower, the Case IH Farmall 50A or the Case IH Farmall 55C Gear?
- The Case IH Farmall 55C Gear leads on pto hp at 46.7 hp hp, compared to 45 hp hp for the Case IH Farmall 50A.
- Which is heavier, the Case IH Farmall 50A or the Case IH Farmall 55C Gear?
- The Case IH Farmall 50A leads on weight at 5,060 lb lb, compared to 3,770 lb lb for the Case IH Farmall 55C Gear.
- Which has more loader lift capacity, the Case IH Farmall 50A or the Case IH Farmall 55C Gear?
- The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 1,830 lb lb for the Case IH Farmall 55C Gear.
- Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the Case IH Farmall 55C Gear?
- The Case IH Farmall 55C Gear leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,701 lb lb for the Case IH Farmall 50A.
