Case IH Farmall 50A vs Kubota L5060

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall 50A leads 4 categories to 3. Machine pages: Case IH Farmall 50A and Kubota L5060.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 50A	Kubota L5060
Engine HP (hp)	▲ 53 hp	52 hp
PTO HP (hp)	▲ 45 hp	44 hp
Loader Lift (lb)	▲ 2,734 lb	2,361 lb
3-Pt Lift (24 in) (lb)	2,701 lb	▲ 2,976 lb
Lift Height (in)	106 in	▲ 112.7 in
Breakout Force (lbf)	▲ 3,527 lbf	3,171 lbf
Hydraulic Flow (gpm)	11.9 gpm	▲ 14.7 gpm
Travel Speed (mph)	n/a	16.5 mph

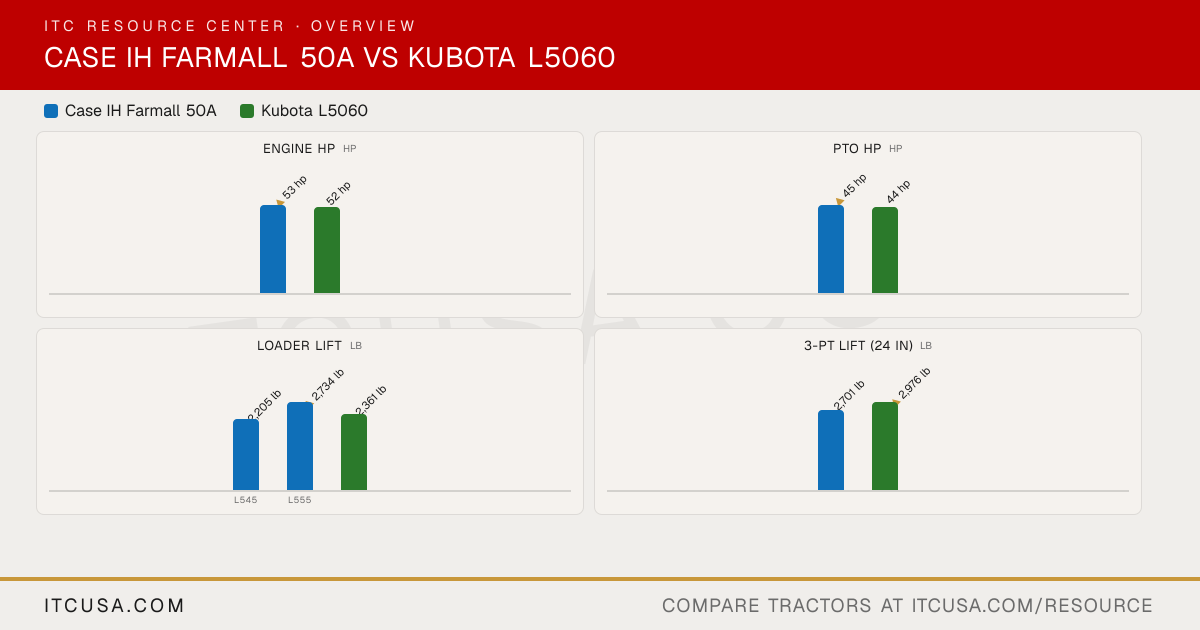

The headline numbers at a glance.

Case IH Farmall 50AKubota L5060

Engine HPhp

▲53 hp

52 hp

PTO HPhp

▲45 hp

44 hp

Weightlb

n/a

Loader Liftlb

2,205 lb

▲2,734 lb

2,361 lb

L545L555

3-Pt Lift (24 in)lb

2,701 lb

▲2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	KubotaL5060


PTO Power	45 hp	44 hp
Alternator	Not Published	45 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	Diesel, turbocharged & aftercooled (intercooled)	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Not Published	Electronic Common Rail System (CRS)
Displacement	134.3 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	FPT Industrial	Kubota
Engine Power (Gross)	53 hp	52 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Tandem pump - gear type
Steering Flow	Not Published	4.9 gpm
Implement Flow	11.9 gpm	9.8 gpm
Total Hydraulic Flow	Not Published	14.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	14.7 gpm
No. of Optional Remote Valves	2	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	1	Not Published

PTO Rear	540 / 540E	540 rpm @ 2550 engine rpm
PTO Type	Not Published	Live independent (hydraulic clutch)
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2,701 lb	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Not Published	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	14.9-26; 13.6-28
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	17.2 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	L545: 106 in; L555: 105 in	112.7 in
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	3171 lb (14107 N)
Quick Attach Loader System	Compatible with L545 and L555 loaders	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	L545: 2,205 lb; L555: 2,734 lb	2361 lb

Clutch	Dry clutch	Dry type single stage
No. of Speeds	8 forward / 8 reverse	12Fx8R
Transmission Type	8x8 mechanical shuttle	Glide Shift
Max Travel Speed (Forward)	Not Published	16.5 mph
Max Travel Speed (Reverse)	Not Published	15.8 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited slip (MFD)	Rear differential lock, standard

Brakes	Not Published	Wet disc type, mechanically activated
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	96.5 in (2WD); 97.6 in (MFD)	75.4 in
Overall Width	Not Published	67.3 in
Ground Clearance	Not Published	15.4 in
Height to Top of ROPS	75.9 in	98.0 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	129.5 in (2WD); 134.0 in (MFD)	135.0 in

Case IH Farmall 50A vs Kubota L5060: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the Kubota L5060?: The Case IH Farmall 50A leads on engine hp at 53 hp hp, compared to 52 hp hp for the Kubota L5060.
Which has more PTO horsepower, the Case IH Farmall 50A or the Kubota L5060?: The Case IH Farmall 50A leads on pto hp at 45 hp hp, compared to 44 hp hp for the Kubota L5060.
Which has more loader lift capacity, the Case IH Farmall 50A or the Kubota L5060?: The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 2,361 lb lb for the Kubota L5060.
Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the Kubota L5060?: The Kubota L5060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,701 lb lb for the Case IH Farmall 50A.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 50A	Kubota L5060
Engine HP (hp)	▲ 53 hp	52 hp
PTO HP (hp)	▲ 45 hp	44 hp
Loader Lift (lb)	▲ 2,734 lb	2,361 lb
3-Pt Lift (24 in) (lb)	2,701 lb	▲ 2,976 lb
Lift Height (in)	106 in	▲ 112.7 in
Breakout Force (lbf)	▲ 3,527 lbf	3,171 lbf
Hydraulic Flow (gpm)	11.9 gpm	▲ 14.7 gpm
Travel Speed (mph)	n/a	16.5 mph

The headline numbers at a glance.

Case IH Farmall 50AKubota L5060

Engine HPhp

▲53 hp

52 hp

PTO HPhp

▲45 hp

44 hp

Weightlb

n/a

Loader Liftlb

2,205 lb

▲2,734 lb

2,361 lb

L545L555

3-Pt Lift (24 in)lb

2,701 lb

▲2,976 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	KubotaL5060


PTO Power	45 hp	44 hp
Alternator	Not Published	45 A, 12 V
Air Cleaner	Not Published	Dry paper, dual element
Engine Type	Diesel, turbocharged & aftercooled (intercooled)	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged
Fuel System	Not Published	Electronic Common Rail System (CRS)
Displacement	134.3 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2700 rpm
Cooling System Type	Not Published	Liquid-cooled
Engine Manufacturer	FPT Industrial	Kubota
Engine Power (Gross)	53 hp	52 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	Tandem pump - gear type
Steering Flow	Not Published	4.9 gpm
Implement Flow	11.9 gpm	9.8 gpm
Total Hydraulic Flow	Not Published	14.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	14.7 gpm
No. of Optional Remote Valves	2	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	1	Not Published

PTO Rear	540 / 540E	540 rpm @ 2550 engine rpm
PTO Type	Not Published	Live independent (hydraulic clutch)
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Position control
Hitch Lift Capacity	Not Published	3,858 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	SAE Category 1 & 2
Hitch Lift Capacity (at 24”)	2,701 lb	2,976 lb

R3 Turf - Rear	Not Published	44X18-20
R3 Turf - Front	Not Published	29X12.50-15
Tire Size & Options	Not Published	Standard R1; Option 1 R4; Option 2 R3; LSW option (R3)
R4 Industrial - Rear	Not Published	4.6 gal-24
R4 Industrial - Front	Not Published	10-16.5
R1 Agricultural - Rear	Not Published	14.9-26; 13.6-28
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	8.7 qt
Crankcase Capacity	Not Published	9.9 qt
Fuel Tank Capacity	17.2 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	11.9 gal

Loader Lift Height	L545: 106 in; L555: 105 in	112.7 in
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	3171 lb (14107 N)
Quick Attach Loader System	Compatible with L545 and L555 loaders	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	L545: 2,205 lb; L555: 2,734 lb	2361 lb

Clutch	Dry clutch	Dry type single stage
No. of Speeds	8 forward / 8 reverse	12Fx8R
Transmission Type	8x8 mechanical shuttle	Glide Shift
Max Travel Speed (Forward)	Not Published	16.5 mph
Max Travel Speed (Reverse)	Not Published	15.8 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited slip (MFD)	Rear differential lock, standard

Brakes	Not Published	Wet disc type, mechanically activated
Steering	Not Published	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	Not Published	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	96.5 in (2WD); 97.6 in (MFD)	75.4 in
Overall Width	Not Published	67.3 in
Ground Clearance	Not Published	15.4 in
Height to Top of ROPS	75.9 in	98.0 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	9.2 ft (2.8 m)
Overall Length with 3-Point Hitch	129.5 in (2WD); 134.0 in (MFD)	135.0 in

Case IH Farmall 50A vs Kubota L5060: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the Kubota L5060?

The Case IH Farmall 50A leads on engine hp at 53 hp hp, compared to 52 hp hp for the Kubota L5060.

Which has more PTO horsepower, the Case IH Farmall 50A or the Kubota L5060?

The Case IH Farmall 50A leads on pto hp at 45 hp hp, compared to 44 hp hp for the Kubota L5060.

Which has more loader lift capacity, the Case IH Farmall 50A or the Kubota L5060?

The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 2,361 lb lb for the Kubota L5060.

Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the Kubota L5060?

The Kubota L5060 leads on 3-pt lift (24 in) at 2,976 lb lb, compared to 2,701 lb lb for the Case IH Farmall 50A.
