Case IH Farmall 50A vs New Holland Boomer 50

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall 50A leads 4 categories to 3. Machine pages: Case IH Farmall 50A and New Holland Boomer 50.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 50A	New Holland Boomer 50
Engine HP (hp)	▲ 53 hp	52.8 hp
PTO HP (hp)	▲ 45 hp	40 hp
Loader Lift (lb)	▲ 2,734 lb	2,371 lb
3-Pt Lift (24 in) (lb)	▲ 2,701 lb	2,469 lb
Lift Height (in)	106 in	▲ 109 in
Breakout Force (lbf)	3,527 lbf	▲ 4,081 lbf
Hydraulic Flow (gpm)	11.9 gpm	▲ 14.8 gpm
Travel Speed (mph)	—	16.8 mph

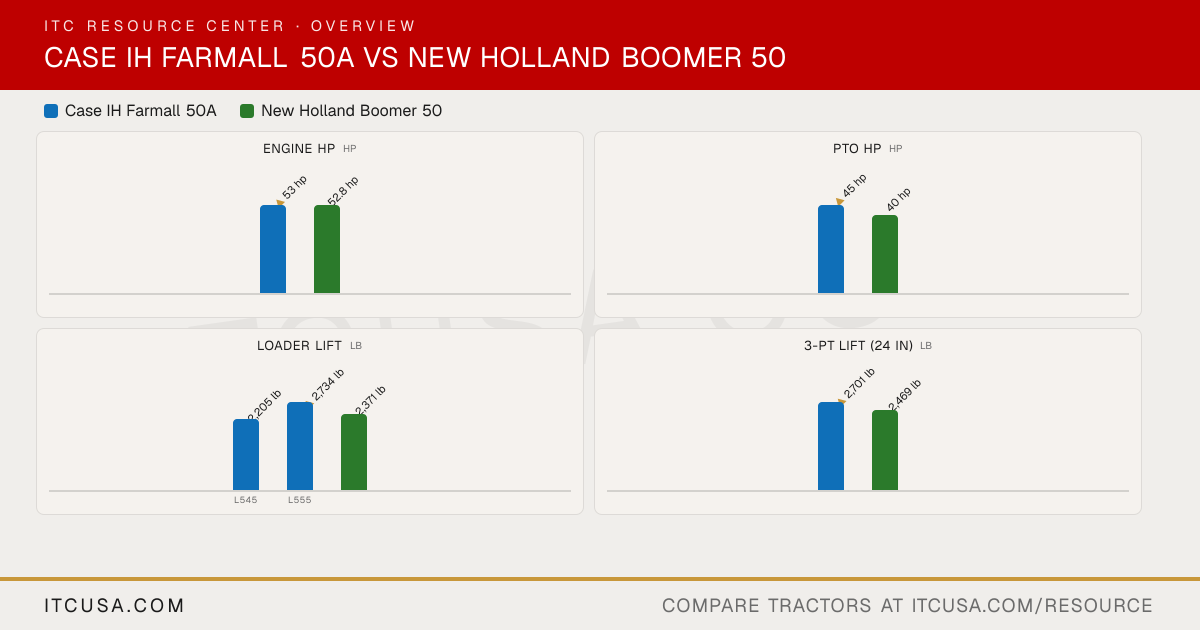

The headline numbers at a glance.

Case IH Farmall 50ANew Holland Boomer 50

Engine HPhp

▲53 hp

52.8 hp

PTO HPhp

▲45 hp

40 hp

Weightlb

—

Loader Liftlb

2,205 lb

▲2,734 lb

2,371 lb

L545L555

3-Pt Lift (24 in)lb

▲2,701 lb

2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	New HollandBoomer 50


PTO Power	45 hp	40 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged & aftercooled (intercooled)	Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System	Not Published	High pressure common rail (ECU controlled)
Displacement	134.3 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid w/ recirculating bypass
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	53 hp	52.8 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year limited powertrain, 2-year full coverage

Pump Type	Not Published	Gear
Steering Flow	Not Published	HST: 6.3 gpm; Gear: 4.2 gpm
Implement Flow	11.9 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	1	1

PTO Rear	540 / 540E	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Position control
Hitch Lift Capacity	Not Published	2,756 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	Category I
Hitch Lift Capacity (at 24”)	2,701 lb	2,469 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	28X8.50-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5LX24
R4 Industrial - Front	Not Published	12X16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	2.3 gal
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	17.2 gal	11.0 gal
Front Axle Fluid Capacity	Not Published	2.2 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal

Loader Lift Height	L545: 106 in; L555: 105 in	109 in
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	4,081 lb
Quick Attach Loader System	Compatible with L545 and L555 loaders	260TLA: New Holland Quick Mount; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	L545: 2,205 lb; L555: 2,734 lb	2,371 lb

Clutch	Dry clutch	HST: Not Applicable; Gear: Dry disc
No. of Speeds	8 forward / 8 reverse	HST: 3-range; Gear: 16F/16R
Transmission Type	8x8 mechanical shuttle	HST: 3-range hydrostatic; Gear: 16x16
Max Travel Speed (Forward)	Not Published	HST: 15.63 mph; Gear: 16.8 mph
Max Travel Speed (Reverse)	Not Published	HST: 11.37 mph; Gear: 15.3 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited slip (MFD)	Differential lock

Brakes	Not Published	Wet disc
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD (FWD)
Drawbar Capacity	Not Published	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	96.5 in (2WD); 97.6 in (MFD)	73 in
Overall Width	Not Published	63 in
Ground Clearance	Not Published	15 in
Height to Top of ROPS	75.9 in	96 in
Height to Top of Cab Model	Not Applicable	91 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	129.5 in (2WD); 134.0 in (MFD)	142 in

Case IH Farmall 50A vs New Holland Boomer 50: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the New Holland Boomer 50?: The Case IH Farmall 50A leads on engine hp at 53 hp hp, compared to 52.8 hp hp for the New Holland Boomer 50.
Which has more PTO horsepower, the Case IH Farmall 50A or the New Holland Boomer 50?: The Case IH Farmall 50A leads on pto hp at 45 hp hp, compared to 40 hp hp for the New Holland Boomer 50.
Which has more loader lift capacity, the Case IH Farmall 50A or the New Holland Boomer 50?: The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 2,371 lb lb for the New Holland Boomer 50.
Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the New Holland Boomer 50?: The Case IH Farmall 50A leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,469 lb lb for the New Holland Boomer 50.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 50A	New Holland Boomer 50
Engine HP (hp)	▲ 53 hp	52.8 hp
PTO HP (hp)	▲ 45 hp	40 hp
Loader Lift (lb)	▲ 2,734 lb	2,371 lb
3-Pt Lift (24 in) (lb)	▲ 2,701 lb	2,469 lb
Lift Height (in)	106 in	▲ 109 in
Breakout Force (lbf)	3,527 lbf	▲ 4,081 lbf
Hydraulic Flow (gpm)	11.9 gpm	▲ 14.8 gpm
Travel Speed (mph)	—	16.8 mph

The headline numbers at a glance.

Case IH Farmall 50ANew Holland Boomer 50

Engine HPhp

▲53 hp

52.8 hp

PTO HPhp

▲45 hp

40 hp

Weightlb

—

Loader Liftlb

2,205 lb

▲2,734 lb

2,371 lb

L545L555

3-Pt Lift (24 in)lb

▲2,701 lb

2,469 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 50A	New HollandBoomer 50


PTO Power	45 hp	40 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, turbocharged & aftercooled (intercooled)	Water-cooled, 4-stroke common rail turbocharged diesel
Fuel System	Not Published	High pressure common rail (ECU controlled)
Displacement	134.3 in³	0.1 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Pressurized liquid w/ recirculating bypass
Engine Manufacturer	FPT Industrial	LS Mtron
Engine Power (Gross)	53 hp	52.8 hp @ 600 rpm
Engine Emissions Constraints	Tier 4	Tier 4B Final

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Not Published	6-year limited powertrain, 2-year full coverage

Pump Type	Not Published	Gear
Steering Flow	Not Published	HST: 6.3 gpm; Gear: 4.2 gpm
Implement Flow	11.9 gpm	8.5 gpm
Total Hydraulic Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	HST: 14.8 gpm; Gear: 12.7 gpm
No. of Optional Remote Valves	2	1
No. of Standard Remote Valves	1	1

PTO Rear	540 / 540E	540 rpm
PTO Type	Not Published	Independent, electro-hydraulic engagement
Lift Control Type	Mechanical Draft Control (MDC) top link sensing	Position control
Hitch Lift Capacity	Not Published	2,756 lb
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category 1/2	Category I
Hitch Lift Capacity (at 24”)	2,701 lb	2,469 lb

R3 Turf - Rear	Not Published	41X14.00-20
R3 Turf - Front	Not Published	28X8.50-15
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	17.5LX24
R4 Industrial - Front	Not Published	12X16.5
R1 Agricultural - Rear	Not Published	13.6-24
R1 Agricultural - Front	Not Published	9.5-16

Coolant Capacity	Not Published	2.3 gal
Crankcase Capacity	Not Published	5.8 qt
Fuel Tank Capacity	17.2 gal	11.0 gal
Front Axle Fluid Capacity	Not Published	2.2 gal
Transmission / Hydraulic System Capacity	Not Published	11.4 gal

Loader Lift Height	L545: 106 in; L555: 105 in	109 in
Loader Breakout Force	L545: 3,131 lb; L555: 3,527 lb	4,081 lb
Quick Attach Loader System	Compatible with L545 and L555 loaders	260TLA: New Holland Quick Mount; optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	L545: 2,205 lb; L555: 2,734 lb	2,371 lb

Clutch	Dry clutch	HST: Not Applicable; Gear: Dry disc
No. of Speeds	8 forward / 8 reverse	HST: 3-range; Gear: 16F/16R
Transmission Type	8x8 mechanical shuttle	HST: 3-range hydrostatic; Gear: 16x16
Max Travel Speed (Forward)	Not Published	HST: 15.63 mph; Gear: 16.8 mph
Max Travel Speed (Reverse)	Not Published	HST: 11.37 mph; Gear: 15.3 mph
Differential Lock & Limited Slip Options	Mechanical differential lock; limited slip (MFD)	Differential lock

Brakes	Not Published	Wet disc
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	2WD or MFD with limited slip	4WD (FWD)
Drawbar Capacity	Not Published	Short: 2,317 lb; Regular: 1,598 lb; Extend: 1,091 lb
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	96.5 in (2WD); 97.6 in (MFD)	73 in
Overall Width	Not Published	63 in
Ground Clearance	Not Published	15 in
Height to Top of ROPS	75.9 in	96 in
Height to Top of Cab Model	Not Applicable	91 in
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	129.5 in (2WD); 134.0 in (MFD)	142 in

Case IH Farmall 50A vs New Holland Boomer 50: Quick Answers

Which has more horsepower, the Case IH Farmall 50A or the New Holland Boomer 50?

The Case IH Farmall 50A leads on engine hp at 53 hp hp, compared to 52.8 hp hp for the New Holland Boomer 50.

Which has more PTO horsepower, the Case IH Farmall 50A or the New Holland Boomer 50?

The Case IH Farmall 50A leads on pto hp at 45 hp hp, compared to 40 hp hp for the New Holland Boomer 50.

Which has more loader lift capacity, the Case IH Farmall 50A or the New Holland Boomer 50?

The Case IH Farmall 50A leads on loader lift at 2,734 lb lb, compared to 2,371 lb lb for the New Holland Boomer 50.

Which has more three-point hitch lift capacity, the Case IH Farmall 50A or the New Holland Boomer 50?

The Case IH Farmall 50A leads on 3-pt lift (24 in) at 2,701 lb lb, compared to 2,469 lb lb for the New Holland Boomer 50.
