Case IH Farmall 55C Gear Cab vs Mahindra 5155 Shuttle

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 9 measurable specs, the Mahindra 5155 Shuttle leads 8 categories to 0 (1 tied). Machine pages: Case IH Farmall 55C Gear Cab and Mahindra 5155 Shuttle.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall 55C Gear Cab	Mahindra 5155 Shuttle
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	46.7 hp	▲ 47 hp
Weight (lb)	4,453 lb	▲ 5,390 lb
Loader Lift (lb)	2,500 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	2,469 lb	▲ 3,748 lb
Lift Height (in)	112 in	▲ 122 in
Breakout Force (lbf)	3,114 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.3 gpm
Travel Speed (mph)	16.9 mph	▲ 17.9 mph

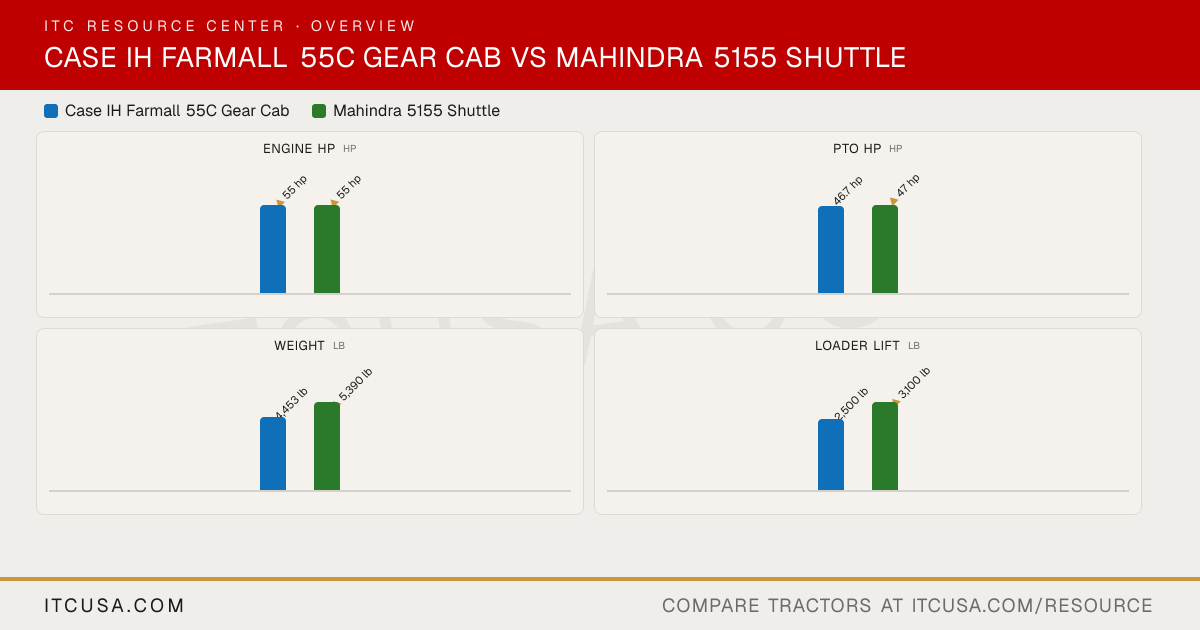

The headline numbers at a glance.

Case IH Farmall 55C Gear CabMahindra 5155 Shuttle

Engine HPhp

▲55 hp

PTO HPhp

46.7 hp

▲47 hp

Weightlb

4,453 lb

▲5,390 lb

Loader Liftlb

2,500 lb

▲3,100 lb

3-Pt Lift (24 in)lb

2,469 lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55C Gear Cab	Mahindra5155 Shuttle


Engine Manufacturer	LS Mtron	Mahindra
Engine Model	L3C19-T	Not Published
Engine Type	Diesel, 3-cylinder, turbocharged	Four-stroke, turbocharged, direct injection, water cooled diesel
No. of Cylinders	3	4
Displacement	116 in³	166.2 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	46.7 hp	47 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Direct injection
Alternator	70 A	55 A

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.71 gpm
Steering Flow	4.2 gpm	4.62 gpm
Total Hydraulic Flow	Not Published	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	1
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	12.4 gal	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category 1	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,469 lb	3748 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	16 x 16 mechanical shuttle with synchro shift	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
No. of Speeds	16 forward, 16 reverse	12F / 12R
Max Travel Speed (Forward)	16.9 mph	17.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	dry clutch	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering with tilt steering wheel
Brakes	Wet multi-disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	136.6 in
Overall Width	69.1 in	74.8 in
Wheelbase	73.2 in	77.9 in
Ground Clearance	Not Published	16.4 in
Min. Turn Radius without Brakes	Not Published	10.8 ft
Height to Top of ROPS	97.1 in	Not Published
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	Not Published

Tractor Weight (Base)	4,453 lb	5390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	9.5-16	9.5 x 20
R1 Agricultural - Rear	13.6-24	14.9 x 28
R3 Turf - Front	28x8.50-15	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	12-16.5	10.5/80 x 18
R4 Industrial - Rear	17.5L-24	16.9 x 24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Skid-steer style quick-attach coupler
Loader Model	L360A	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	112 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	2,500 lb	5155-4L: 3,100 lb
Loader Breakout Force	3,114 lbf	5155-4L: 5,200 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	5-year limited powertrain warranty

Find a Case IH dealer near you Find a Mahindra dealer near you

Case IH Farmall 55C Gear Cab vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 46.7 hp hp for the Case IH Farmall 55C Gear Cab.
Which is heavier, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 4,453 lb lb for the Case IH Farmall 55C Gear Cab.
Which has more loader lift capacity, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,500 lb lb for the Case IH Farmall 55C Gear Cab.
Which has more three-point hitch lift capacity, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?: The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,469 lb lb for the Case IH Farmall 55C Gear Cab.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall 55C Gear Cab	Mahindra 5155 Shuttle
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	46.7 hp	▲ 47 hp
Weight (lb)	4,453 lb	▲ 5,390 lb
Loader Lift (lb)	2,500 lb	▲ 3,100 lb
3-Pt Lift (24 in) (lb)	2,469 lb	▲ 3,748 lb
Lift Height (in)	112 in	▲ 122 in
Breakout Force (lbf)	3,114 lbf	▲ 5,200 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 13.3 gpm
Travel Speed (mph)	16.9 mph	▲ 17.9 mph

The headline numbers at a glance.

Case IH Farmall 55C Gear CabMahindra 5155 Shuttle

Engine HPhp

▲55 hp

PTO HPhp

46.7 hp

▲47 hp

Weightlb

4,453 lb

▲5,390 lb

Loader Liftlb

2,500 lb

▲3,100 lb

3-Pt Lift (24 in)lb

2,469 lb

▲3,748 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall 55C Gear Cab	Mahindra5155 Shuttle


Engine Manufacturer	LS Mtron	Mahindra
Engine Model	L3C19-T	Not Published
Engine Type	Diesel, 3-cylinder, turbocharged	Four-stroke, turbocharged, direct injection, water cooled diesel
No. of Cylinders	3	4
Displacement	116 in³	166.2 in³
Rated Engine Speed	2600 rpm	2300 rpm
Engine Power (Gross)	55 hp	55 hp
PTO Power	46.7 hp	47 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Water-cooled
Air Cleaner	Replaceable dry element	Not Published
Fuel System	Common rail direct injection	Direct injection
Alternator	70 A	55 A

Pump Type	Not Published	Not Published
Implement Flow	8.2 gpm	8.71 gpm
Steering Flow	4.2 gpm	4.62 gpm
Total Hydraulic Flow	Not Published	13.3 gpm
Overall Hydraulic Pump Flow	Not Published	13.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	2	1
No. of Optional Remote Valves	2	1

Fuel Tank Capacity	12.4 gal	17.1 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent rear PTO, electro-hydraulic engagement	Independent
PTO Rear	540 rpm	540 rpm @ 2300 engine rpm; 540E rpm @ 1725 engine rpm
Mid-PTO Availability	Optional, 2000 rpm	Not Published
Category, 3-Point Hitch	Category 1	CAT I & II with telescopic stabilizers & flex links
Hitch Lift Capacity	2,756 lb	Not Published
Hitch Lift Capacity (at 24”)	2,469 lb	3748 lb
Lift Control Type	Mechanical draft control (MDC)	Position control

Transmission Type	16 x 16 mechanical shuttle with synchro shift	Full synchromesh with forward/reverse synchro shuttle & constant mesh range
No. of Speeds	16 forward, 16 reverse	12F / 12R
Max Travel Speed (Forward)	16.9 mph	17.9 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	dry clutch	Dual dry with cerametallic lining
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published

Frame Type	Not Published	Not Published
Steering	Power steering	Hydrostatic power steering with tilt steering wheel
Brakes	Wet multi-disc	Fully-enclosed, 7-in diameter, dry disc
Seat Suspension & Adjustability	Adjustable suspension seat	Adjustable seat with contoured cushions, armrests and a soft-coil suspension
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	128.1 in	136.6 in
Overall Width	69.1 in	74.8 in
Wheelbase	73.2 in	77.9 in
Ground Clearance	Not Published	16.4 in
Min. Turn Radius without Brakes	Not Published	10.8 ft
Height to Top of ROPS	97.1 in	Not Published
Height to Top of ROPS (folded)	78.6 in	Not Published
Height to Top of Cab Model	93.3 in	Not Published

Tractor Weight (Base)	4,453 lb	5390 lb
Weight with ROPS and Loader	Not Published	6,690 lb
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural or R4 Industrial
R1 Agricultural - Front	9.5-16	9.5 x 20
R1 Agricultural - Rear	13.6-24	14.9 x 28
R3 Turf - Front	28x8.50-15	Not Published
R3 Turf - Rear	41x14.00-20	Not Published
R4 Industrial - Front	12-16.5	10.5/80 x 18
R4 Industrial - Rear	17.5L-24	16.9 x 24

Quick Attach Loader System	Quick-Attach faceplate; quick-connect loader mounting (L360A)	Skid-steer style quick-attach coupler
Loader Model	L360A	5155-4L (front loader); 65B (rear backhoe)
Loader Lift Height	112 in	5155-4L: 122 in
Loader Lift Capacity (Full Height)	2,500 lb	5155-4L: 3,100 lb
Loader Breakout Force	3,114 lbf	5155-4L: 5,200 lb

Warranty Length & Coverage	6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain	5-year limited powertrain warranty

Find a Case IH dealer near you Find a Mahindra dealer near you

Case IH Farmall 55C Gear Cab vs Mahindra 5155 Shuttle: Quick Answers

Which has more horsepower, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on pto hp at 47 hp hp, compared to 46.7 hp hp for the Case IH Farmall 55C Gear Cab.

Which is heavier, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on weight at 5,390 lb lb, compared to 4,453 lb lb for the Case IH Farmall 55C Gear Cab.

Which has more loader lift capacity, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on loader lift at 3,100 lb lb, compared to 2,500 lb lb for the Case IH Farmall 55C Gear Cab.

Which has more three-point hitch lift capacity, the Case IH Farmall 55C Gear Cab or the Mahindra 5155 Shuttle?

The Mahindra 5155 Shuttle leads on 3-pt lift (24 in) at 3,748 lb lb, compared to 2,469 lb lb for the Case IH Farmall 55C Gear Cab.
