Case IH Farmall Compact 25A vs Case IH Farmall Compact 35C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall Compact 35C leads 7 categories to 0. Machine pages: Case IH Farmall Compact 25A and Case IH Farmall Compact 35C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 25A	Case IH Farmall Compact 35C
Engine HP (hp)	24.6 hp	▲ 35 hp
PTO HP (hp)	19.2 hp	▲ 28 hp
Loader Lift (lb)	1,214 lb	▲ 1,540 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,808 lb
Lift Height (in)	94.3 in	▲ 105 in
Breakout Force (lbf)	1,926 lbf	▲ 2,640 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 8.2 gpm

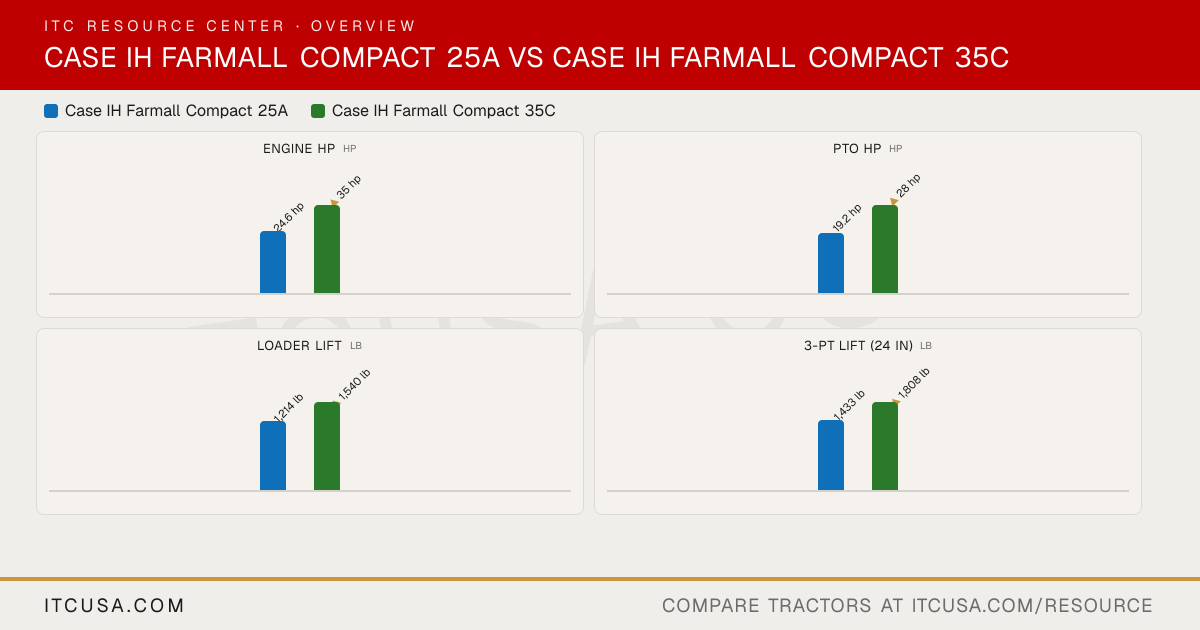

The headline numbers at a glance.

Case IH Farmall Compact 25ACase IH Farmall Compact 35C

Engine HPhp

24.6 hp

▲35 hp

PTO HPhp

19.2 hp

▲28 hp

Weightlb

—

Loader Liftlb

1,214 lb

▲1,540 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,808 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 25A	Case IHFarmall Compact 35C


PTO Power	19.2 hp	28 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, naturally aspirated
Fuel System	Not Published	Common Rail Direct Injection
Displacement	79.3 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	24.6 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	7.9 gpm	Not Published
Total Hydraulic Flow	Not Published	8.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	0 (standard) / 1 (optional) (DIA)	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent rear PTO (electro-hydraulic engagement)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	1,433 lb @ 24 in behind pin	Not Published
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Available, 2,000 rpm
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind pin	1,808 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.4 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	94.3 in	105 in
Loader Breakout Force	1,926 lb	2,640 lb
Quick Attach Loader System	L330	Not Published
Loader Lift Capacity (Full Height)	1,214 lb	1,540 lb

Clutch	Dry clutch	Not Published
No. of Speeds	12F/12R (mechanical shuttle); Hydrostatic (optional)	12x12 (mechanical shuttle) / 3-range (hydrostatic)
Transmission Type	12x12 Mechanical shuttle with synchro shift (dry clutch) (standard); Hydrostatic (optional)	Mechanical shuttle or hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.9 in	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	88.2 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	117.2 in	Not Published

Case IH Farmall Compact 25A vs Case IH Farmall Compact 35C: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?: The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.
Which has more PTO horsepower, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?: The Case IH Farmall Compact 35C leads on pto hp at 28 hp hp, compared to 19.2 hp hp for the Case IH Farmall Compact 25A.
Which has more loader lift capacity, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?: The Case IH Farmall Compact 35C leads on loader lift at 1,540 lb lb, compared to 1,214 lb lb for the Case IH Farmall Compact 25A.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?: The Case IH Farmall Compact 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 25A.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall Compact 25A	Case IH Farmall Compact 35C
Engine HP (hp)	24.6 hp	▲ 35 hp
PTO HP (hp)	19.2 hp	▲ 28 hp
Loader Lift (lb)	1,214 lb	▲ 1,540 lb
3-Pt Lift (24 in) (lb)	1,433 lb	▲ 1,808 lb
Lift Height (in)	94.3 in	▲ 105 in
Breakout Force (lbf)	1,926 lbf	▲ 2,640 lbf
Hydraulic Flow (gpm)	7.9 gpm	▲ 8.2 gpm

The headline numbers at a glance.

Case IH Farmall Compact 25ACase IH Farmall Compact 35C

Engine HPhp

24.6 hp

▲35 hp

PTO HPhp

19.2 hp

▲28 hp

Weightlb

—

Loader Liftlb

1,214 lb

▲1,540 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,808 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 25A	Case IHFarmall Compact 35C


PTO Power	19.2 hp	28 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, naturally aspirated
Fuel System	Not Published	Common Rail Direct Injection
Displacement	79.3 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	2500 rpm	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	24.6 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	Not Published

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	7.9 gpm	Not Published
Total Hydraulic Flow	Not Published	8.2 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	0 (standard) / 1 (optional) (DIA)	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	1	Not Published
No. of Standard Remote Valves	0	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent rear PTO (electro-hydraulic engagement)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	1,433 lb @ 24 in behind pin	Not Published
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Available, 2,000 rpm
Category, 3-Point Hitch	Category 1	Not Published
Hitch Lift Capacity (at 24”)	1,433 lb @ 24 in behind pin	1,808 lb @ 24 in behind pin

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	7.4 gal	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	94.3 in	105 in
Loader Breakout Force	1,926 lb	2,640 lb
Quick Attach Loader System	L330	Not Published
Loader Lift Capacity (Full Height)	1,214 lb	1,540 lb

Clutch	Dry clutch	Not Published
No. of Speeds	12F/12R (mechanical shuttle); Hydrostatic (optional)	12x12 (mechanical shuttle) / 3-range (hydrostatic)
Transmission Type	12x12 Mechanical shuttle with synchro shift (dry clutch) (standard); Hydrostatic (optional)	Mechanical shuttle or hydrostatic
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	65.9 in	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	88.2 in	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	117.2 in	Not Published

Case IH Farmall Compact 25A vs Case IH Farmall Compact 35C: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?

The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 24.6 hp hp for the Case IH Farmall Compact 25A.

Which has more PTO horsepower, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?

The Case IH Farmall Compact 35C leads on pto hp at 28 hp hp, compared to 19.2 hp hp for the Case IH Farmall Compact 25A.

Which has more loader lift capacity, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?

The Case IH Farmall Compact 35C leads on loader lift at 1,540 lb lb, compared to 1,214 lb lb for the Case IH Farmall Compact 25A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 25A or the Case IH Farmall Compact 35C?

The Case IH Farmall Compact 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 25A.
