Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Case IH Farmall Compact 35A, 3 to the LS Tractor MT335H, 1 tied. Machine pages: Case IH Farmall Compact 35A and LS Tractor MT335H .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

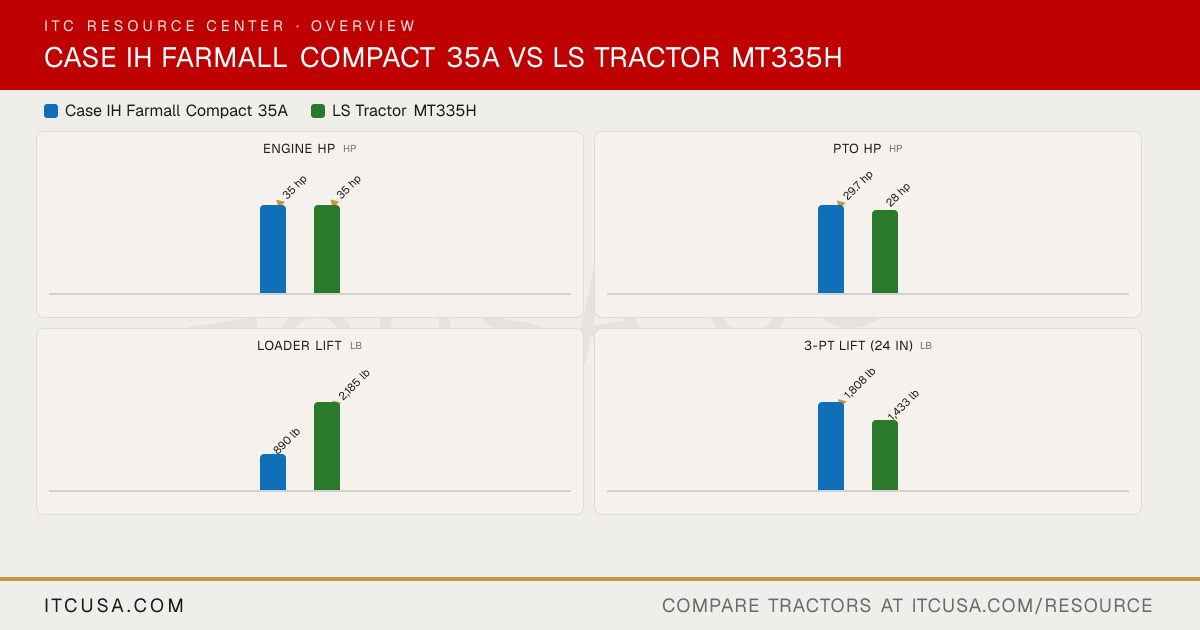

Category Verdict Spec Case IH Farmall Compact 35A LS Tractor MT335H Engine HP (hp) 35 hp 35 hp PTO HP (hp) ▲ 29.7 hp28 hp Loader Lift (lb) 890 lb ▲ 2,185 lb3-Pt Lift (24 in) (lb) ▲ 1,808 lb1,433 lb Lift Height (in) ▲ 98 in94.4 in Breakout Force (lbf) 1,900 lbf ▲ 3,612 lbfHydraulic Flow (gpm) 8.2 gpm ▲ 13.3 gpm
Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 35A LS Tractor MT335H
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 35A LS Tractor MT335H
▶ EnginePTO Power 29.7 hp 28 hp Alternator Not Published 70 A, 12 V Air Cleaner Not Published Dry Engine Type Diesel, turbocharged 4-stroke, vertical, water cooling, CRDI Fuel System Not Published Delphi, CRDI Displacement 115.9 in³ 114.7 in³ No. of Cylinders 3 3 Rated Engine Speed 2600 rpm 2600 rpm Cooling System Type Not Published Water-cooled Engine Manufacturer Not Published LS Mtron Engine Power (Gross) 35 hp 35 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Applicable ▶ WarrantyWarranty Length & Coverage 6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”) 6-year limited powertrain warranty; 2-year bumper-to-bumper warranty ▶ HydraulicsPump Type Not Published Gear pump, engine drive Steering Flow Not Published 5.5 gpm Implement Flow 8.2 gpm 7.8 gpm Total Hydraulic Flow Not Published 13.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 13.3 gpm No. of Optional Remote Valves 1 Not Published No. of Standard Remote Valves 0 2 Pair ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Rear independent 540 rpm PTO with electro-hydraulic engagement (standard) Independent PTO with wet disk clutch Lift Control Type Mechanical Draft Control (MDC) Position & Draft Hitch Lift Capacity 1,808 lb @ 24 in behind pin 1,808 lbs Mid-PTO Availability Optional mid-PTO (2,000 rpm) Option (2,000 rpm) Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity (at 24”) 1,808 lb @ 24 in behind pin 1,433 lbs ▶ Tire OptionsR3 Turf - Rear Not Published 41X14-20 R3 Turf - Front Not Published 25X8.5-14 Tire Size & Options Not Published R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear Not Published 43X16-20 R4 Industrial - Front Not Published 25X8.5-14 R1 Agricultural - Rear Not Published 11.2-24 R1 Agricultural - Front Not Published 7.0-14 ▶ Fluid CapacityCoolant Capacity Not Published 1.9 gal Crankcase Capacity Not Published 1.5 gal Fuel Tank Capacity 7.4 gal 10.6 gal Front Axle Fluid Capacity Not Published 1.7 gal Transmission / Hydraulic System Capacity Not Published 7.9 gal ▶ Loader & AttachmentsLoader Lift Height 98 in 94.4 in Loader Breakout Force 1,900 lb 3,612 lbs Quick Attach Loader System L340A LL3116: Standard Skid Steer Coupler (skid-steer compatible quick-attach) Loader Lift Capacity (Full Height) 890 lb 2,185 lbs ▶ Transmission & DrivetrainClutch Dry clutch (mechanical shuttle) Not Applicable No. of Speeds 12F/12R (mechanical shuttle); optional 3-range hydrostatic 2 Pedal with 3 Range - HST Transmission Type 12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic Hydrostatic Drive Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Mechanical differential lock Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Not Published Wet, Multi-disc Steering Not Published Hydrostatic Power Steering Frame Type Not Published Not Published Front Axle Type Mechanical Front Drive (MFD) Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 67.3 in 69.1 in Overall Width Not Published 59.3 in Ground Clearance Not Published Not Published Height to Top of ROPS 93.5 in 94.0 in Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) 68.2 in Not Published Min. Turn Radius without Brakes Not Published Not Published Overall Length with 3-Point Hitch 122.5 in 136.1 in
Case IH Farmall Compact 35A vs LS Tractor MT335H: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 35A or the LS Tractor MT335H? They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 35A or the LS Tractor MT335H? The Case IH Farmall Compact 35A leads on pto hp at 29.7 hp hp, compared to 28 hp hp for the LS Tractor MT335H.
Which has more loader lift capacity, the Case IH Farmall Compact 35A or the LS Tractor MT335H? The LS Tractor MT335H leads on loader lift at 2,185 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 35A.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35A or the LS Tractor MT335H? The Case IH Farmall Compact 35A leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the LS Tractor MT335H. More Head-to-Heads
