Case IH Farmall Compact 35A vs New Holland Workmaster 35
Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.
Across 7 measurable specs, this matchup is a dead heat: 3 categories to the Case IH Farmall Compact 35A, 3 to the New Holland Workmaster 35, 1 tied. Machine pages: Case IH Farmall Compact 35A and New Holland Workmaster 35.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

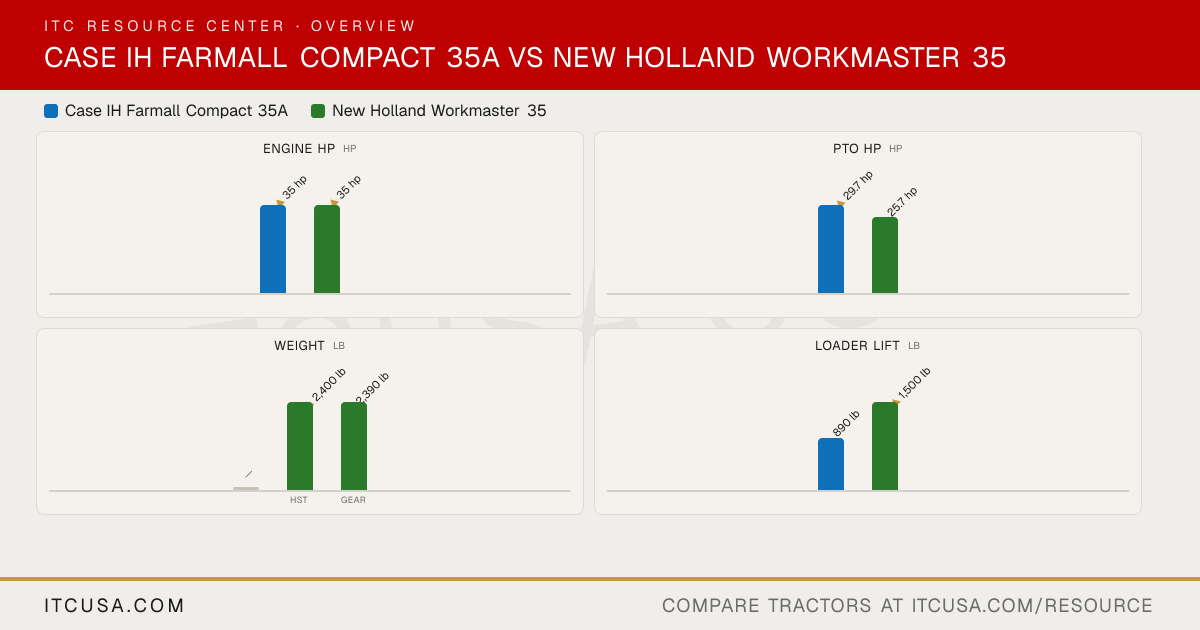

Category Verdict
| Spec | Case IH Farmall Compact 35A | New Holland Workmaster 35 |
|---|---|---|
| Engine HP (hp) | 35 hp | 35 hp |
| PTO HP (hp) | ▲ 29.7 hp | 25.7 hp |
| Weight (lb) | — | 2,400 lb |
| Loader Lift (lb) | 890 lb | ▲ 1,500 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 1,808 lb | 1,433 lb |
| Lift Height (in) | ▲ 98 in | 91.5 in |
| Breakout Force (lbf) | 1,900 lbf | ▲ 2,700 lbf |
| Hydraulic Flow (gpm) | 8.2 gpm | ▲ 13 gpm |
| Travel Speed (mph) | — | 15 mph |
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Case IHFarmall Compact 35A | New HollandWorkmaster 35 |
|---|
| PTO Power | 29.7 hp | 25.7 hp |
|---|---|---|
| Alternator | Not Published | 70 A, 12 V |
| Air Cleaner | Not Published | Dual element dry air cleaner |
| Engine Type | Diesel, turbocharged | Turbocharged diesel |
| Fuel System | Not Published | High pressure common rail (ECU controlled timing) |
| Displacement | 115.9 in³ | 0.1 in³ |
| No. of Cylinders | 3 | 3 |
| Rated Engine Speed | 2600 rpm | 2600 rpm |
| Cooling System Type | Not Published | Pressurized liquid with recirculating bypass |
| Engine Manufacturer | Not Published | LS Mtron |
| Engine Power (Gross) | 35 hp | 35 hp |
| Engine Emissions Constraints | Tier 4 | Tier 4B Final |
Case IH Farmall Compact 35A vs New Holland Workmaster 35: Quick Answers
- Which has more horsepower, the Case IH Farmall Compact 35A or the New Holland Workmaster 35?
- They are effectively tied: both machines are rated at 35 hp hp for engine hp.
- Which has more PTO horsepower, the Case IH Farmall Compact 35A or the New Holland Workmaster 35?
- The Case IH Farmall Compact 35A leads on pto hp at 29.7 hp hp, compared to 25.7 hp hp for the New Holland Workmaster 35.
- Which has more loader lift capacity, the Case IH Farmall Compact 35A or the New Holland Workmaster 35?
- The New Holland Workmaster 35 leads on loader lift at 1,500 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 35A.
- Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35A or the New Holland Workmaster 35?
- The Case IH Farmall Compact 35A leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the New Holland Workmaster 35.
