Case IH Farmall Compact 35A vs TYM 3515

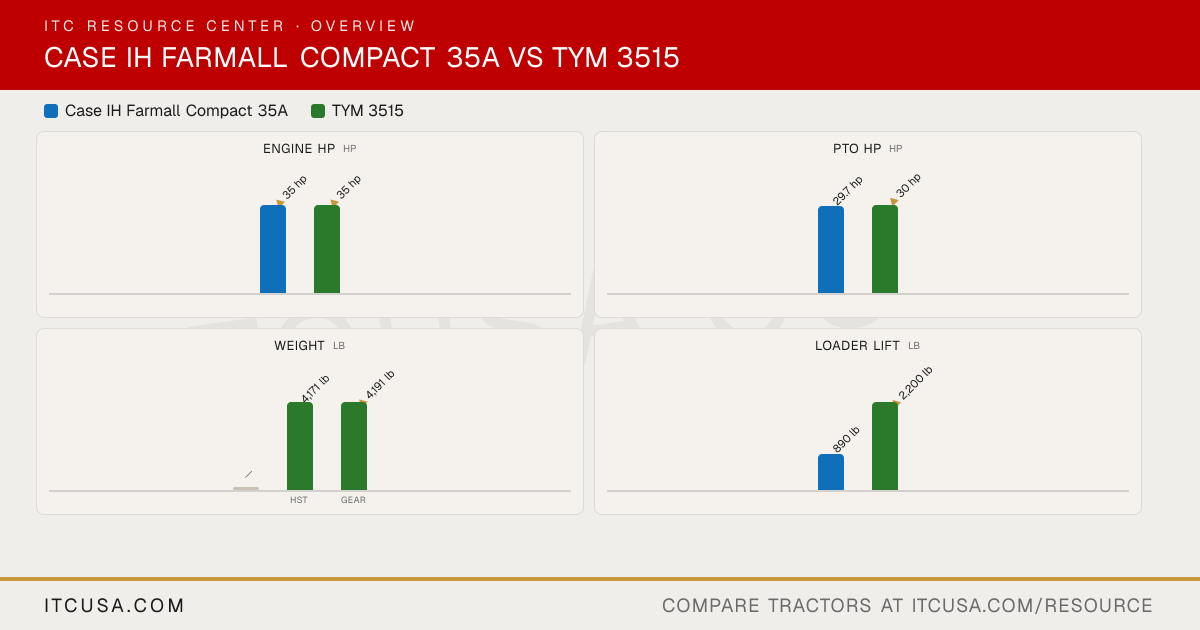

Across 7 measurable specs, the TYM 3515 leads 6 categories to 0 (1 tied). Machine pages: Case IH Farmall Compact 35A and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 35A	TYM3515

▶Engine
PTO Power	29.7 hp	30 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry Element
Engine Type	Diesel, turbocharged	3-cylinder, naturally aspirated diesel
Fuel System	Not Published	IDI
Displacement	115.9 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4
▶Weight
Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Published	Not Applicable
▶Warranty
Warranty Length & Coverage	6-year extended warranty: 2 years bumper-to-bumper + 4 years powertrain (Compact Farmall A “Series II”)	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
▶Hydraulics
Pump Type	Not Published	Single Gear Pump
Steering Flow	Not Published	8.0 gpm
Implement Flow	8.2 gpm	4.3 gpm
Total Hydraulic Flow	Not Published	12.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	12.3 gpm
No. of Optional Remote Valves	1	Up to 4
No. of Standard Remote Valves	0	0
▶PTO & Hitch
PTO Rear	540 rpm	560 rpm
PTO Type	Rear independent 540 rpm PTO with electro-hydraulic engagement (standard)	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Position control
Hitch Lift Capacity	1,808 lb @ 24 in behind pin	3,306 lb
Mid-PTO Availability	Optional mid-PTO (2,000 rpm)	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,808 lb @ 24 in behind pin	2,425 lb
▶Tire Options
R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	Not Published	43x16.00-20
R4 Industrial - Front	Not Published	28x8.50-15
R1 Agricultural - Rear	Not Published	12.4-24
R1 Agricultural - Front	Not Published	8.0-16
▶Fluid Capacity
Coolant Capacity	Not Published	5.28 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	7.4 gal	7.1 gal
Front Axle Fluid Capacity	Not Published	1.7 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 9.8 gal; Gear: 8.9 gal
▶Loader & Attachments
Loader Lift Height	98 in	104.9 in
Loader Breakout Force	1,900 lb	3,422 lb
Quick Attach Loader System	L340A	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	890 lb	2,200 lb
▶Transmission & Drivetrain
Clutch	Dry clutch (mechanical shuttle)	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	12F/12R (mechanical shuttle); optional 3-range hydrostatic	HST: 3-Range; Gear: F12 x R12
Transmission Type	12x12 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Differential lock
▶Chassis, Steering & Controls
Brakes	Not Published	Wet, Multi-disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat
▶Dimensions & Maneuverability
Wheelbase	67.3 in	65.7 in
Overall Width	Not Published	56.3 in
Ground Clearance	Not Published	14.4 in
Height to Top of ROPS	93.5 in	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	68.2 in	Not Published
Min. Turn Radius without Brakes	Not Published	102 in
Overall Length with 3-Point Hitch	122.5 in	120.9 in
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Case IH Farmall Compact 35A vs TYM 3515: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 35A or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 35A or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 29.7 hp hp for the Case IH Farmall Compact 35A.

Which has more loader lift capacity, the Case IH Farmall Compact 35A or the TYM 3515?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 35A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35A or the TYM 3515?

The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall Compact 35A.
