Case IH Farmall Compact 35C vs Case IH Farmall Compact 40A

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Case IH Farmall Compact 35C leads 4 categories to 2 (1 tied). Machine pages: Case IH Farmall Compact 35C and Case IH Farmall Compact 40A.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 35C	Case IH Farmall Compact 40A
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 34 hp
Loader Lift (lb)	▲ 1,540 lb	890 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	98 in
Breakout Force (lbf)	▲ 2,640 lbf	1,900 lbf
Hydraulic Flow (gpm)	8.2 gpm	8.2 gpm

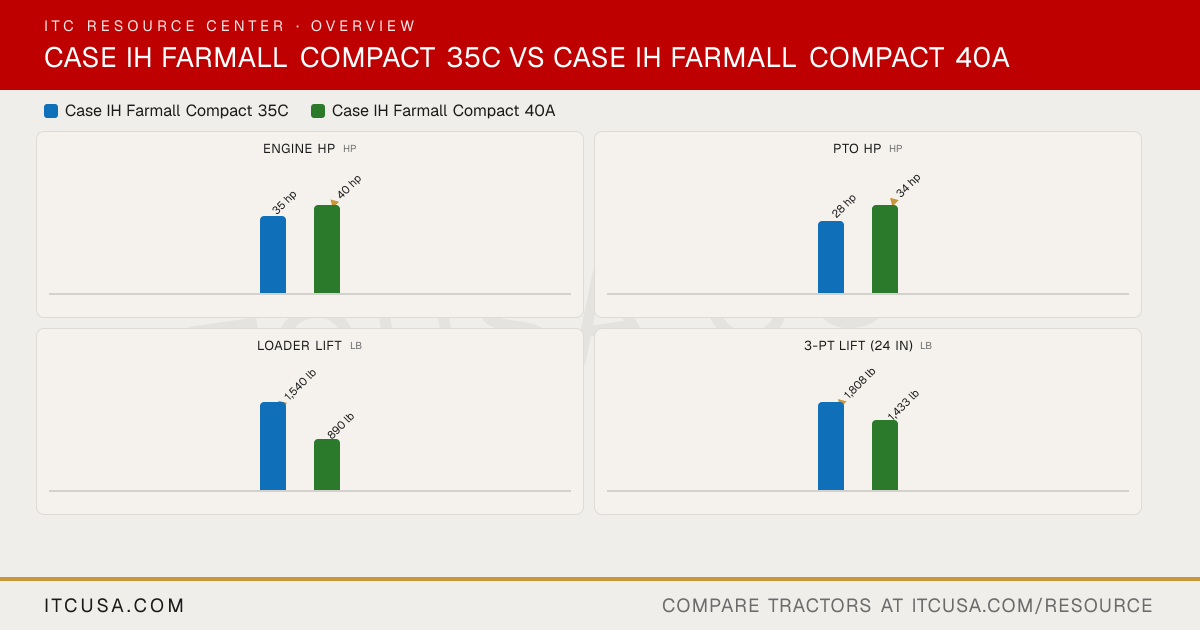

The headline numbers at a glance.

Case IH Farmall Compact 35CCase IH Farmall Compact 40A

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲34 hp

Weightlb

—

Loader Liftlb

▲1,540 lb

890 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 35C	Case IHFarmall Compact 40A


PTO Power	28 hp	34 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged
Fuel System	Common Rail Direct Injection	Common Rail Direct Injection
Displacement	115.9 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	35 hp	40 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Not Published	2 years bumper-to-bumper + 4 years powertrain (6 years total)

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	Not Published	8.2 gpm
Total Hydraulic Flow	8.2 gpm	Not Published
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent rear PTO (electro-hydraulic engagement)	Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Available, 2,000 rpm	Optional mid-mount PTO; 2,000 rpm
Category, 3-Point Hitch	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,808 lb @ 24 in behind pin	1,433 lb @ 24 in behind ball ends

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	105 in	Up to 98 in
Loader Breakout Force	2,640 lb	Up to 1,900 lb
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	1,540 lb	Up to 890 lb

Clutch	Not Published	Not Published
No. of Speeds	12x12 (mechanical shuttle) / 3-range (hydrostatic)	12F/12R (mechanical); infinite ground speeds (HST)
Transmission Type	Mechanical shuttle or hydrostatic	12x12 mechanical shuttle with synchro shift (standard); 3-range hydrostatic (HST) (optional)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	Not Published	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	Not Published

Case IH Farmall Compact 35C vs Case IH Farmall Compact 40A: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?: The Case IH Farmall Compact 40A leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall Compact 35C.
Which has more PTO horsepower, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?: The Case IH Farmall Compact 40A leads on pto hp at 34 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
Which has more loader lift capacity, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?: The Case IH Farmall Compact 35C leads on loader lift at 1,540 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 40A.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?: The Case IH Farmall Compact 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 40A.

More Head-to-Heads

Category Verdict

Spec	Case IH Farmall Compact 35C	Case IH Farmall Compact 40A
Engine HP (hp)	35 hp	▲ 40 hp
PTO HP (hp)	28 hp	▲ 34 hp
Loader Lift (lb)	▲ 1,540 lb	890 lb
3-Pt Lift (24 in) (lb)	▲ 1,808 lb	1,433 lb
Lift Height (in)	▲ 105 in	98 in
Breakout Force (lbf)	▲ 2,640 lbf	1,900 lbf
Hydraulic Flow (gpm)	8.2 gpm	8.2 gpm

The headline numbers at a glance.

Case IH Farmall Compact 35CCase IH Farmall Compact 40A

Engine HPhp

35 hp

▲40 hp

PTO HPhp

28 hp

▲34 hp

Weightlb

—

Loader Liftlb

▲1,540 lb

890 lb

3-Pt Lift (24 in)lb

▲1,808 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 35C	Case IHFarmall Compact 40A


PTO Power	28 hp	34 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Not Published
Engine Type	Diesel, naturally aspirated	Diesel, turbocharged
Fuel System	Common Rail Direct Injection	Common Rail Direct Injection
Displacement	115.9 in³	115.9 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	Not Published
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	Not Published
Engine Power (Gross)	35 hp	40 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Not Published	2 years bumper-to-bumper + 4 years powertrain (6 years total)

Pump Type	Not Published	Not Published
Steering Flow	Not Published	Not Published
Implement Flow	Not Published	8.2 gpm
Total Hydraulic Flow	8.2 gpm	Not Published
Hydraulic System Type	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Independent rear PTO (electro-hydraulic engagement)	Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)
Lift Control Type	Not Published	Not Published
Hitch Lift Capacity	Not Published	Not Published
Mid-PTO Availability	Available, 2,000 rpm	Optional mid-mount PTO; 2,000 rpm
Category, 3-Point Hitch	Not Published	Not Published
Hitch Lift Capacity (at 24”)	1,808 lb @ 24 in behind pin	1,433 lb @ 24 in behind ball ends

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	Not Published	Not Published
R1 Agricultural - Front	Not Published	Not Published

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	Not Published	Not Published
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	105 in	Up to 98 in
Loader Breakout Force	2,640 lb	Up to 1,900 lb
Quick Attach Loader System	Not Published	Not Published
Loader Lift Capacity (Full Height)	1,540 lb	Up to 890 lb

Clutch	Not Published	Not Published
No. of Speeds	12x12 (mechanical shuttle) / 3-range (hydrostatic)	12F/12R (mechanical); infinite ground speeds (HST)
Transmission Type	Mechanical shuttle or hydrostatic	12x12 mechanical shuttle with synchro shift (standard); 3-range hydrostatic (HST) (optional)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Not Published
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	Not Published	Not Published
Overall Width	Not Published	Not Published
Ground Clearance	Not Published	Not Published
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	Not Published	Not Published

Case IH Farmall Compact 35C vs Case IH Farmall Compact 40A: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?

The Case IH Farmall Compact 40A leads on engine hp at 40 hp hp, compared to 35 hp hp for the Case IH Farmall Compact 35C.

Which has more PTO horsepower, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?

The Case IH Farmall Compact 40A leads on pto hp at 34 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.

Which has more loader lift capacity, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?

The Case IH Farmall Compact 35C leads on loader lift at 1,540 lb lb, compared to 890 lb lb for the Case IH Farmall Compact 40A.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the Case IH Farmall Compact 40A?

The Case IH Farmall Compact 35C leads on 3-pt lift (24 in) at 1,808 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 40A.
