Across 6 measurable specs, this matchup is a dead heat: 3 categories to the Case IH Farmall Compact 35C, 3 to the Kubota LX3520DTN. Machine pages: Case IH Farmall Compact 35C and Kubota LX3520DTN .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

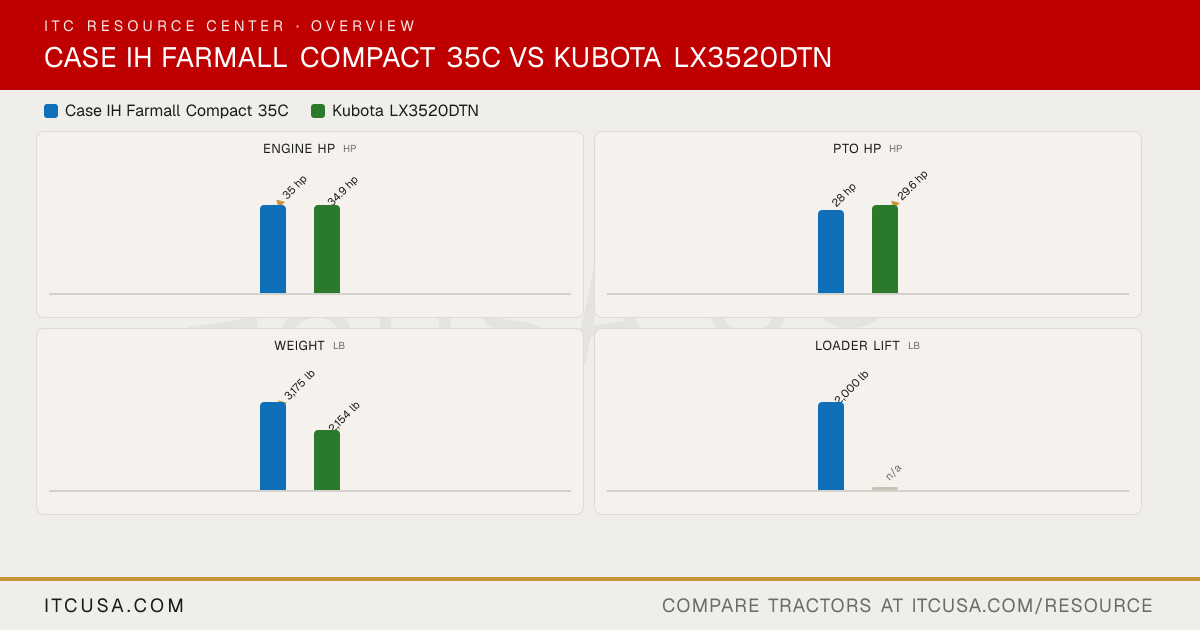

Category Verdict Spec Case IH Farmall Compact 35C Kubota LX3520DTN Engine HP (hp) ▲ 35 hp34.9 hp PTO HP (hp) 28 hp ▲ 29.6 hpWeight (lb) ▲ 3,175 lb2,154 lb Loader Lift (lb) 2,000 lb n/a 3-Pt Lift (24 in) (lb) 1,433 lb ▲ 1,819 lbLift Height (in) 105 in n/a Breakout Force (lbf) 2,640 lbf n/a Hydraulic Flow (gpm) 8.2 gpm ▲ 9.1 gpmTravel Speed (mph) ▲ 14.8 mph14.7 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 35C Kubota LX3520DTN
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 35C Kubota LX3520DTN
▶ EngineEngine Manufacturer Not Published Kubota Engine Model Not Published V1505-CR-TE5-D40R6 Engine Type Diesel, 3-cylinder, turbocharged Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger No. of Cylinders 3 4 Displacement 116 in³ 91.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 35 hp 34.9 hp PTO Power 28 hp 29.6 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Not Published Pressurized radiator Air Cleaner Replaceable dry element 6 in paper filter (with dual element) Fuel System Common rail direct injection Direct injection Alternator 70 A Not Published ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 8.2 gpm 5.2 gpm Steering Flow 5.3 gpm Not Published Total Hydraulic Flow Not Published 9.1 gpm Overall Hydraulic Pump Flow Not Published 9.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 0 No. of Optional Remote Valves 2 Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 10.5 gal 8.5 gal Coolant Capacity Not Published 4.5 qt Crankcase Capacity Not Published 5.0 qt Transmission / Hydraulic System Capacity Not Published 5.5 gal Front Axle Fluid Capacity Not Published 4.8 qt ▶ PTO & HitchPTO Type Independent rear PTO, electro-hydraulic engagement Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity 1,808 lb 2348 lb Hitch Lift Capacity (at 24”) 1,433 lb 1819 lb Lift Control Type Mechanical draft control (MDC) Position control valve ▶ Transmission & DrivetrainTransmission Type 3-range hydrostatic (HST) Gear No. of Speeds infinitely variable, 3 ranges 12 forward, 12 reverse Max Travel Speed (Forward) 14.8 mph 14.7 mph Max Travel Speed (Reverse) Not Published 14.6 mph Clutch Not Applicable Dry type single stage Differential Lock & Limited Slip Options Mechanical rear differential lock Standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet multi-disc Multi-plate wet disk Seat Suspension & Adjustability Adjustable suspension seat Not Published Front Axle Type Mechanical Front Drive (MFD) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 122.5 in 98.2 in (without 3-point hitch) Overall Width 66.4 in 39.4 in Wheelbase 66 in 61.0 in Ground Clearance Not Published 12.8 in Min. Turn Radius without Brakes Not Published 7.5 ft (with brake applied) Height to Top of ROPS 93.5 in 84.0 in Height to Top of ROPS (folded) 74.1 in 56.7 in Height to Top of Cab Model Not Published 85.6 in ▶ WeightTractor Weight (Base) 3,175 lb 2154 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural R1 Agricultural - Front 7-14 6-14 R1 Agricultural - Rear 11.2-24 8.3-24 R3 Turf - Front 25x8.50-14 Not Published R3 Turf - Rear 41x14.00-20 Not Published R4 Industrial - Front 25x8.50-14 Not Published R4 Industrial - Rear 43x16.00-20 Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick-Attach faceplate; quick-connect loader mounting (L350A) Not Published Loader Model L350A Not Published Loader Lift Height 105 in Not Published Loader Lift Capacity (Full Height) 2,000 lb Not Published Loader Breakout Force 2,640 lbf Not Published ▶ WarrantyWarranty Length & Coverage 6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Case IH Farmall Compact 35C vs Kubota LX3520DTN: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 35C or the Kubota LX3520DTN? The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 34.9 hp hp for the Kubota LX3520DTN.
Which has more PTO horsepower, the Case IH Farmall Compact 35C or the Kubota LX3520DTN? The Kubota LX3520DTN leads on pto hp at 29.6 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
Which is heavier, the Case IH Farmall Compact 35C or the Kubota LX3520DTN? The Case IH Farmall Compact 35C leads on weight at 3,175 lb lb, compared to 2,154 lb lb for the Kubota LX3520DTN.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the Kubota LX3520DTN? The Kubota LX3520DTN leads on 3-pt lift (24 in) at 1,819 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 35C. More Head-to-Heads
