Across 8 measurable specs, this matchup is a dead heat: 4 categories to the Case IH Farmall Compact 35C, 4 to the Kubota LX3520HSDC. Machine pages: Case IH Farmall Compact 35C and Kubota LX3520HSDC .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

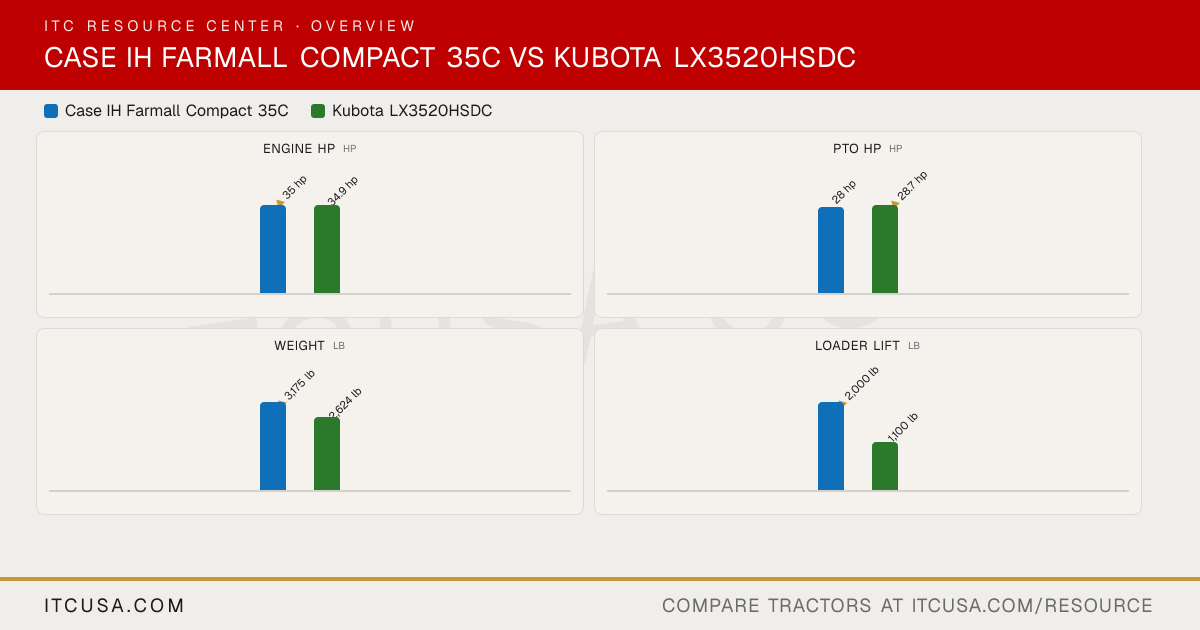

Category Verdict Spec Case IH Farmall Compact 35C Kubota LX3520HSDC Engine HP (hp) ▲ 35 hp34.9 hp PTO HP (hp) 28 hp ▲ 28.7 hpWeight (lb) ▲ 3,175 lb2,624 lb Loader Lift (lb) ▲ 2,000 lb1,100 lb 3-Pt Lift (24 in) (lb) 1,433 lb ▲ 1,962 lbLift Height (in) ▲ 105 in87.6 in Breakout Force (lbf) 2,640 lbf n/a Hydraulic Flow (gpm) 8.2 gpm ▲ 9.5 gpmTravel Speed (mph) 14.8 mph ▲ 17 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 35C Kubota LX3520HSDC
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 35C Kubota LX3520HSDC
▶ EngineEngine Manufacturer Not Published Kubota Engine Model Not Published V1505-CR-TE5-D40Q4 Engine Type Diesel, 3-cylinder, turbocharged Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger No. of Cylinders 3 4 Displacement 116 in³ 91.4 in³ Rated Engine Speed 2600 rpm 2700 rpm Engine Power (Gross) 35 hp 34.9 hp PTO Power 28 hp 28.7 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Not Published Pressurized radiator Air Cleaner Replaceable dry element 6 in paper filter (with dual element) Fuel System Common rail direct injection Direct injection Alternator 70 A Not Published ▶ HydraulicsPump Type Not Published Dual pump Implement Flow 8.2 gpm 5.4 gpm Steering Flow 5.3 gpm 4.1 gpm Total Hydraulic Flow Not Published 9.5 gpm Overall Hydraulic Pump Flow Not Published 9.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 0 No. of Optional Remote Valves 2 Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 10.5 gal 8.5 gal Coolant Capacity Not Published 5.7 qt Crankcase Capacity Not Published 5.0 qt Transmission / Hydraulic System Capacity Not Published 5.5 gal Front Axle Fluid Capacity Not Published 4.8 qt ▶ PTO & HitchPTO Type Independent rear PTO, electro-hydraulic engagement Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2000 rpm 2460 rpm Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity 1,808 lb 2535 lb Hitch Lift Capacity (at 24”) 1,433 lb 1962 lb Lift Control Type Mechanical draft control (MDC) Position control valve ▶ Transmission & DrivetrainTransmission Type 3-range hydrostatic (HST) HST (3 ranges) No. of Speeds infinitely variable, 3 ranges HST (3 range) Max Travel Speed (Forward) 14.8 mph 17.0 mph Max Travel Speed (Reverse) Not Published 13.0 mph Clutch Not Applicable Not Published Differential Lock & Limited Slip Options Mechanical rear differential lock Standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet multi-disc Multi-plate wet disk Seat Suspension & Adjustability Adjustable suspension seat Deluxe suspension seat (high back, designed to absorb shock) Front Axle Type Mechanical Front Drive (MFD) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1100 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 122.5 in 116.1 in Overall Width 66.4 in 53.7 in Wheelbase 66 in 66.7 in Ground Clearance Not Published 8.9 in Min. Turn Radius without Brakes Not Published 7.5 ft (with brake applied) Height to Top of ROPS 93.5 in Not Published Height to Top of ROPS (folded) 74.1 in Not Published Height to Top of Cab Model Not Published 85.6 in ▶ WeightTractor Weight (Base) 3,175 lb 2624 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial, R14 R1 Agricultural - Front 7-14 180/85D12 R1 Agricultural - Rear 11.2-24 320/85D16 R3 Turf - Front 25x8.50-14 24x8.5-14 R3 Turf - Rear 41x14.00-20 13.6-16 R4 Industrial - Front 25x8.50-14 23x8.5-12 or 25x8.5-14 R4 Industrial - Rear 43x16.00-20 14-17.5 or 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick-Attach faceplate; quick-connect loader mounting (L350A) Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT)) Loader Model L350A LA545 Loader Lift Height 105 in 87.6 in Loader Lift Capacity (Full Height) 2,000 lb 1100 lb Loader Breakout Force 2,640 lbf Not Published ▶ WarrantyWarranty Length & Coverage 6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Case IH Farmall Compact 35C vs Kubota LX3520HSDC: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 35C or the Kubota LX3520HSDC? The Case IH Farmall Compact 35C leads on engine hp at 35 hp hp, compared to 34.9 hp hp for the Kubota LX3520HSDC.
Which has more PTO horsepower, the Case IH Farmall Compact 35C or the Kubota LX3520HSDC? The Kubota LX3520HSDC leads on pto hp at 28.7 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
Which is heavier, the Case IH Farmall Compact 35C or the Kubota LX3520HSDC? The Case IH Farmall Compact 35C leads on weight at 3,175 lb lb, compared to 2,624 lb lb for the Kubota LX3520HSDC.
Which has more loader lift capacity, the Case IH Farmall Compact 35C or the Kubota LX3520HSDC? The Case IH Farmall Compact 35C leads on loader lift at 2,000 lb lb, compared to 1,100 lb lb for the Kubota LX3520HSDC.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the Kubota LX3520HSDC? The Kubota LX3520HSDC leads on 3-pt lift (24 in) at 1,962 lb lb, compared to 1,433 lb lb for the Case IH Farmall Compact 35C. More Head-to-Heads
