Which has more horsepower, the Case IH Farmall Compact 35C or the TYM 3515?

They are effectively tied: both machines are rated at 35 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 35C or the TYM 3515?

The TYM 3515 leads on pto hp at 30 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.

Which has more loader lift capacity, the Case IH Farmall Compact 35C or the TYM 3515?

The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 1,540 lb lb for the Case IH Farmall Compact 35C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the TYM 3515?

The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall Compact 35C.

Case IH Farmall Compact 35C vs TYM 3515

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM 3515 leads 5 categories to 1 (1 tied). Machine pages: Case IH Farmall Compact 35C and TYM 3515.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 35C	TYM 3515
Engine HP (hp)	35 hp	35 hp
PTO HP (hp)	28 hp	▲ 30 hp
Weight (lb)	—	4,191 lb
Loader Lift (lb)	1,540 lb	▲ 2,200 lb
3-Pt Lift (24 in) (lb)	1,808 lb	▲ 2,425 lb
Lift Height (in)	▲ 105 in	104.9 in
Breakout Force (lbf)	2,640 lbf	▲ 3,422 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 12.3 gpm
Travel Speed (mph)	—	18.8 mph

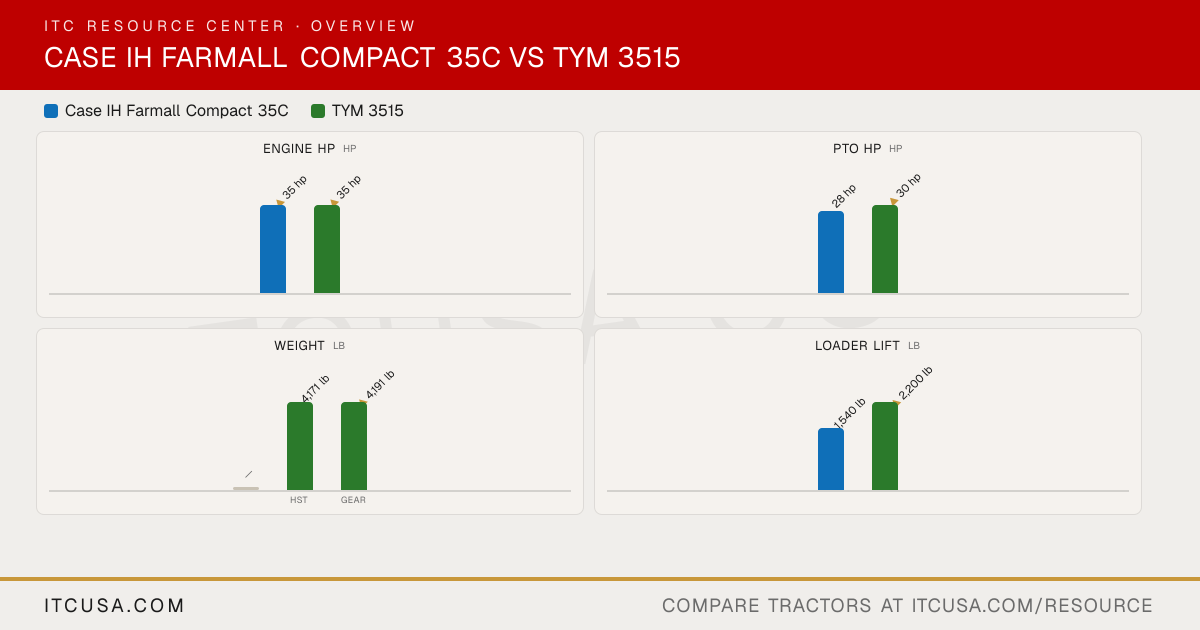

The headline numbers at a glance.

Case IH Farmall Compact 35CTYM 3515

Engine HPhp

▲35 hp

PTO HPhp

28 hp

▲30 hp

Weightlb

—

4,171 lb

▲4,191 lb

HSTGear

Loader Liftlb

1,540 lb

▲2,200 lb

3-Pt Lift (24 in)lb

1,808 lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 35C	TYM3515


PTO Power	28 hp	30 hp
Alternator	Not Published	50 A, 12 V
Air Cleaner	Not Published	Dry Element
Engine Type	Diesel, naturally aspirated	3-cylinder, naturally aspirated diesel
Fuel System	Common Rail Direct Injection	IDI
Displacement	115.9 in³	104.6 in³
No. of Cylinders	3	3
Rated Engine Speed	Not Published	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	TYM
Engine Power (Gross)	35 hp	35 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	Not Published	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Single Gear Pump
Steering Flow	Not Published	8.0 gpm
Implement Flow	Not Published	4.3 gpm
Total Hydraulic Flow	8.2 gpm	12.3 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	12.3 gpm
No. of Optional Remote Valves	Not Published	Up to 4
No. of Standard Remote Valves	Not Published	0

PTO Rear	540 rpm	560 rpm
PTO Type	Independent rear PTO (electro-hydraulic engagement)	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	Not Published	3,306 lb
Mid-PTO Availability	Available, 2,000 rpm	Not Published
Category, 3-Point Hitch	Not Published	Category I
Hitch Lift Capacity (at 24”)	1,808 lb @ 24 in behind pin	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	Not Published	R1 Agricultural, R4 Industrial
R4 Industrial - Rear	Not Published	43x16.00-20
R4 Industrial - Front	Not Published	28x8.50-15
R1 Agricultural - Rear	Not Published	12.4-24
R1 Agricultural - Front	Not Published	8.0-16

Coolant Capacity	Not Published	5.28 qt
Crankcase Capacity	Not Published	4.5 qt
Fuel Tank Capacity	Not Published	7.1 gal
Front Axle Fluid Capacity	Not Published	1.7 qt
Transmission / Hydraulic System Capacity	Not Published	HST: 9.8 gal; Gear: 8.9 gal

Loader Lift Height	105 in	104.9 in
Loader Breakout Force	2,640 lb	3,422 lb
Quick Attach Loader System	Not Published	BL150: Quick attach assembly (lever-lock)
Loader Lift Capacity (Full Height)	1,540 lb	2,200 lb

Clutch	Not Published	HST: Not Applicable; Gear: Dry Single Plate
No. of Speeds	12x12 (mechanical shuttle) / 3-range (hydrostatic)	HST: 3-Range; Gear: F12 x R12
Transmission Type	Mechanical shuttle or hydrostatic	HST: HST; Gear: Synchromesh
Max Travel Speed (Forward)	Not Published	HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock

Brakes	Not Published	Wet, Multi-disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Comfortable suspension seat

Wheelbase	Not Published	65.7 in
Overall Width	Not Published	56.3 in
Ground Clearance	Not Published	14.4 in
Height to Top of ROPS	Not Published	97.3 in
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	102 in
Overall Length with 3-Point Hitch	Not Published	120.9 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00

Case IH Farmall Compact 35C vs TYM 3515: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 35C or the TYM 3515?: They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 35C or the TYM 3515?: The TYM 3515 leads on pto hp at 30 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
Which has more loader lift capacity, the Case IH Farmall Compact 35C or the TYM 3515?: The TYM 3515 leads on loader lift at 2,200 lb lb, compared to 1,540 lb lb for the Case IH Farmall Compact 35C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the TYM 3515?: The TYM 3515 leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall Compact 35C.
