Across 7 measurable specs, the TYM 3515C leads 5 categories to 1 (1 tied). Machine pages: Case IH Farmall Compact 35C and TYM 3515C .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

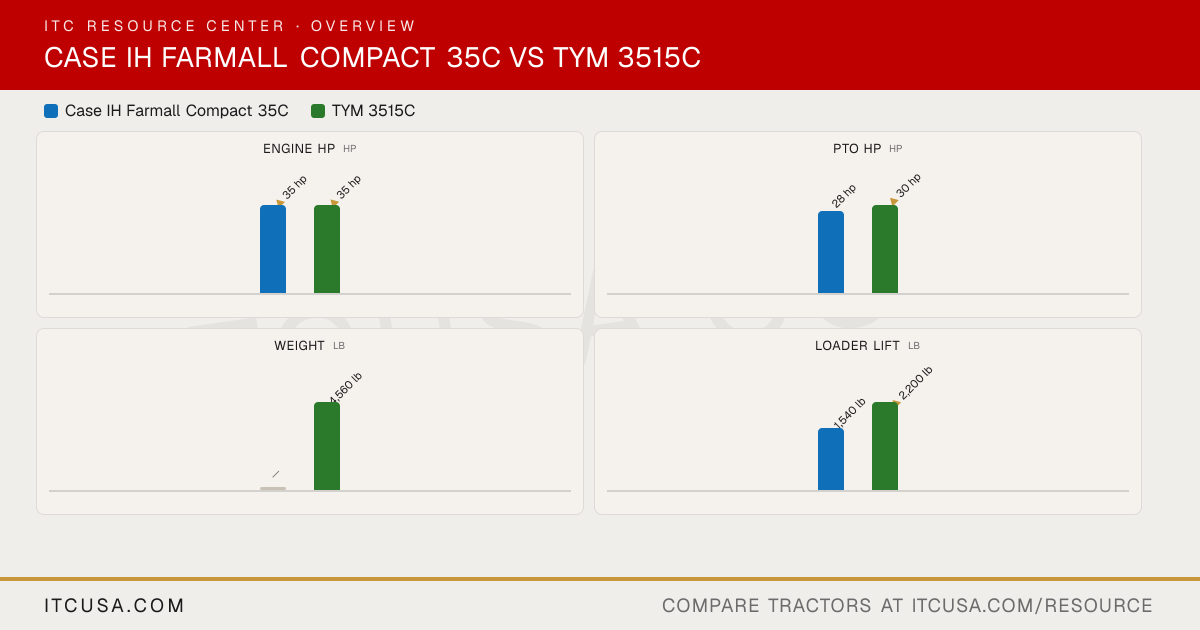

Category Verdict Spec Case IH Farmall Compact 35C TYM 3515C Engine HP (hp) 35 hp 35 hp PTO HP (hp) 28 hp ▲ 30 hpWeight (lb) — 4,560 lb Loader Lift (lb) 1,540 lb ▲ 2,200 lb3-Pt Lift (24 in) (lb) 1,808 lb ▲ 2,425 lbLift Height (in) ▲ 105 in104.9 in Breakout Force (lbf) 2,640 lbf ▲ 3,422 lbfHydraulic Flow (gpm) 8.2 gpm ▲ 11.9 gpmTravel Speed (mph) — 18 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
Case IH Farmall Compact 35C TYM 3515C
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec Case IH Farmall Compact 35C TYM 3515C
▶ EnginePTO Power 28 hp 30 hp Alternator Not Published 70 A, 12 V Air Cleaner Not Published Dry element Engine Type Diesel, naturally aspirated 3-cylinder, naturally aspirated diesel Fuel System Common Rail Direct Injection IDI Displacement 115.9 in³ 104.6 in³ No. of Cylinders 3 3 Rated Engine Speed Not Published 2600 rpm Cooling System Type Not Published Not Published Engine Manufacturer Not Published TYM Engine Power (Gross) 35 hp 35 hp Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Applicable Weight with Cab and Loader Not Applicable 4,560 lb ▶ WarrantyWarranty Length & Coverage Not Published Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Not Published Dual gear pump Steering Flow Not Published 4.2 gpm Implement Flow Not Published 7.7 gpm Total Hydraulic Flow 8.2 gpm 11.9 gpm Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published 11.9 gpm No. of Optional Remote Valves Not Published Not Published No. of Standard Remote Valves Not Published 0 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent rear PTO (electro-hydraulic engagement) Independent Lift Control Type Not Published Position control Hitch Lift Capacity Not Published 3,306 lb Mid-PTO Availability Available, 2,000 rpm Not Published Category, 3-Point Hitch Not Published Category I Hitch Lift Capacity (at 24”) 1,808 lb @ 24 in behind pin 2,425 lb ▶ Tire OptionsR3 Turf - Rear Not Published 41x14.00, 4PR R3 Turf - Front Not Published 27x8.5-15, 6PR Tire Size & Options Not Published R1 Agricultural, R3 Turf, R4 Industrial R4 Industrial - Rear Not Published 380/70-19.5, 6PR; 15-19.5 R4 Industrial - Front Not Published 25x8.5-14, 6PR; 28x8.5-14 R1 Agricultural - Rear Not Published 11.2-24 R1 Agricultural - Front Not Published 7.0-16 ▶ Fluid CapacityCoolant Capacity Not Published 5.3 qt Crankcase Capacity Not Published 4.5 qt Fuel Tank Capacity Not Published 7.1 gal Front Axle Fluid Capacity Not Published 6.8 qt Transmission / Hydraulic System Capacity Not Published 9.8 gal ▶ Loader & AttachmentsLoader Lift Height 105 in 104.9 in Loader Breakout Force 2,640 lb 3,422 lb Quick Attach Loader System Not Published BL150C: Quick attachment assembly Loader Lift Capacity (Full Height) 1,540 lb 2,200 lb ▶ Transmission & DrivetrainClutch Not Published Not Applicable No. of Speeds 12x12 (mechanical shuttle) / 3-range (hydrostatic) 3-Range Transmission Type Mechanical shuttle or hydrostatic HST Max Travel Speed (Forward) Not Published 18 mph Max Travel Speed (Reverse) Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsBrakes Not Published Wet, multi disc Steering Not Published Hydrostatic Frame Type Not Published Not Published Front Axle Type Not Published Not Published Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Comfortable suspension seat ▶ Dimensions & ManeuverabilityWheelbase Not Published 65.7 in Overall Width Not Published 55.6 in Ground Clearance Not Published 14.4 in Height to Top of ROPS Not Published Not Applicable Height to Top of Cab Model Not Applicable 97.3 in Height to Top of ROPS (folded) Not Published Not Applicable Min. Turn Radius without Brakes Not Published L: 124.8 in; R: 121.3 in Overall Length with 3-Point Hitch Not Published 120.9 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
Case IH Farmall Compact 35C vs TYM 3515C: Quick Answers
Which has more horsepower, the Case IH Farmall Compact 35C or the TYM 3515C? They are effectively tied: both machines are rated at 35 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 35C or the TYM 3515C? The TYM 3515C leads on pto hp at 30 hp hp, compared to 28 hp hp for the Case IH Farmall Compact 35C.
Which has more loader lift capacity, the Case IH Farmall Compact 35C or the TYM 3515C? The TYM 3515C leads on loader lift at 2,200 lb lb, compared to 1,540 lb lb for the Case IH Farmall Compact 35C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 35C or the TYM 3515C? The TYM 3515C leads on 3-pt lift (24 in) at 2,425 lb lb, compared to 1,808 lb lb for the Case IH Farmall Compact 35C. More Head-to-Heads
