Case IH Farmall Compact 45C vs Yanmar YM347

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Yanmar YM347 leads 4 categories to 3. Machine pages: Case IH Farmall Compact 45C and Yanmar YM347.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 45C	Yanmar YM347
Engine HP (hp)	45 hp	▲ 46 hp
PTO HP (hp)	▲ 38.2 hp	35.5 hp
Weight (lb)	—	5,129 lb
Loader Lift (lb)	1,830 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	▲ 2,756 lb	2,750 lb
Lift Height (in)	112 in	▲ 113 in
Breakout Force (lbf)	▲ 3,114 lbf	3,047 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 14.6 gpm
Travel Speed (mph)	—	17.7 mph

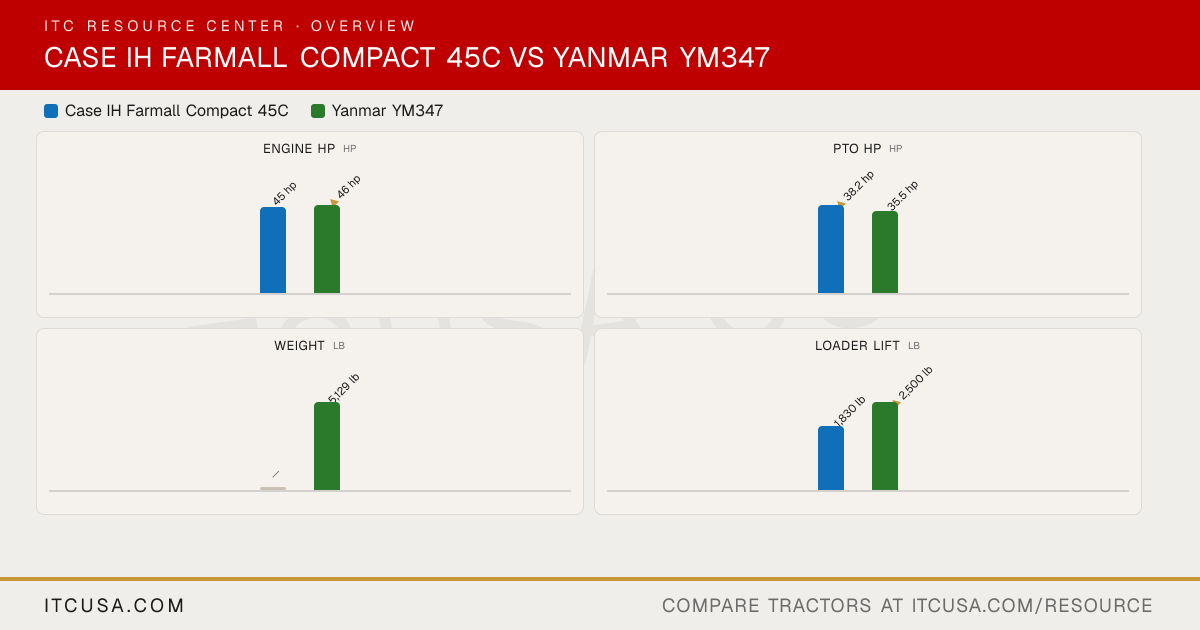

The headline numbers at a glance.

Case IH Farmall Compact 45CYanmar YM347

Engine HPhp

45 hp

▲46 hp

PTO HPhp

▲38.2 hp

35.5 hp

Weightlb

—

5,129 lb

Loader Liftlb

1,830 lb

▲2,500 lb

3-Pt Lift (24 in)lb

▲2,756 lb

2,750 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 45C	YanmarYM347


PTO Power	38.2 hp	35.5 hp
Alternator	Not Published	Not Published
Air Cleaner	Not Published	Dual air cleaner element
Engine Type	Diesel, naturally aspirated	4-cylinder, liquid-cooled diesel
Fuel System	Not Published	Not Published
Displacement	115.9 in³	133.6 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	Not Published
Cooling System Type	Not Published	Liquid cooled
Engine Manufacturer	Not Published	YANMAR
Engine Power (Gross)	45 hp	46 hp
Engine Emissions Constraints	Tier 4	Not Published

Weight with ROPS and Loader	Not Published	5,129 lb
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Not Published	10-year limited powertrain warranty or 3,000 hours (whichever comes first)

Pump Type	Not Published	Not Published
Steering Flow	Not Published	5.3 gpm
Implement Flow	8.2 gpm	9.3 gpm
Total Hydraulic Flow	Not Published	14.6 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	14.6 gpm
No. of Optional Remote Valves	Non-cab: 2	2
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	1

PTO Rear	540 rpm	540/540E rpm
PTO Type	Not Published	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Not Published
Hitch Lift Capacity	2,756 lb @ 24 in behind pin	3,190 lb
Mid-PTO Availability	Optional mid-PTO, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category 1	Category I & II
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	2,750 lb

R3 Turf - Rear	Not Published	44 x 18 - 20.0
R3 Turf - Front	Not Published	27.0 - 10.5
Tire Size & Options	Not Published	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	Not Published	4.6 gal - 24.0
R4 Industrial - Front	Not Published	10.0 - 16.5
R1 Agricultural - Rear	Not Published	14.9 - 24.0
R1 Agricultural - Front	Not Published	8.0 - 16.0

Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Fuel Tank Capacity	12.4 gal (Cab); 10.5 gal (Non-cab)	13.2 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	Not Published

Loader Lift Height	112 in	113 in
Loader Breakout Force	3,114 lb	3,047 lb
Quick Attach Loader System	L360A	YL605: Skid steer quick attach
Loader Lift Capacity (Full Height)	1,830 lb	2,500 lb (pivot pin)

Clutch	Dry clutch	Dry single
No. of Speeds	16F/16R (mechanical shuttle); optional 3-range hydrostatic	8F/8R
Transmission Type	16x16 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic	Synchronized shuttle shift
Max Travel Speed (Forward)	Not Published	17.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Brakes	Not Published	Not Published
Steering	Not Published	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFD	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Suspension seat

Wheelbase	73.2 in	74.8 in
Overall Width	Not Published	70.9 in (with R4 tires)
Ground Clearance	Not Published	15.5 in
Height to Top of ROPS	97.1 in	98 in (with R4 tires)
Height to Top of Cab Model	93.3 in	Not Applicable
Height to Top of ROPS (folded)	78.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	11.5 ft (3.5 m)
Overall Length with 3-Point Hitch	128.1 in	133.6 in (with 3PH and R4 tires)

Case IH Farmall Compact 45C vs Yanmar YM347: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 45C or the Yanmar YM347?: The Yanmar YM347 leads on engine hp at 46 hp hp, compared to 45 hp hp for the Case IH Farmall Compact 45C.
Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Yanmar YM347?: The Case IH Farmall Compact 45C leads on pto hp at 38.2 hp hp, compared to 35.5 hp hp for the Yanmar YM347.
Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Yanmar YM347?: The Yanmar YM347 leads on loader lift at 2,500 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 45C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Yanmar YM347?: The Case IH Farmall Compact 45C leads on 3-pt lift (24 in) at 2,756 lb lb, compared to 2,750 lb lb for the Yanmar YM347.
