Which has more horsepower, the Case IH Farmall Compact 45C or the Yanmar YT347C?

The Yanmar YT347C leads on engine hp at 46 hp hp, compared to 45 hp hp for the Case IH Farmall Compact 45C.

Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Yanmar YT347C?

The Yanmar YT347C leads on pto hp at 39.5 hp hp, compared to 38.2 hp hp for the Case IH Farmall Compact 45C.

Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Yanmar YT347C?

The Yanmar YT347C leads on loader lift at 2,500 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 45C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Yanmar YT347C?

They are effectively tied: both machines are rated at 2,756 lb lb for 3-pt lift (24 in).

Case IH Farmall Compact 45C vs Yanmar YT347C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Yanmar YT347C leads 6 categories to 0 (1 tied). Machine pages: Case IH Farmall Compact 45C and Yanmar YT347C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 45C	Yanmar YT347C
Engine HP (hp)	45 hp	▲ 46 hp
PTO HP (hp)	38.2 hp	▲ 39.5 hp
Weight (lb)	—	5,380 lb
Loader Lift (lb)	1,830 lb	▲ 2,500 lb
3-Pt Lift (24 in) (lb)	2,756 lb	2,756 lb
Lift Height (in)	112 in	▲ 113 in
Breakout Force (lbf)	3,114 lbf	▲ 3,969 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 15.8 gpm
Travel Speed (mph)	—	18 mph

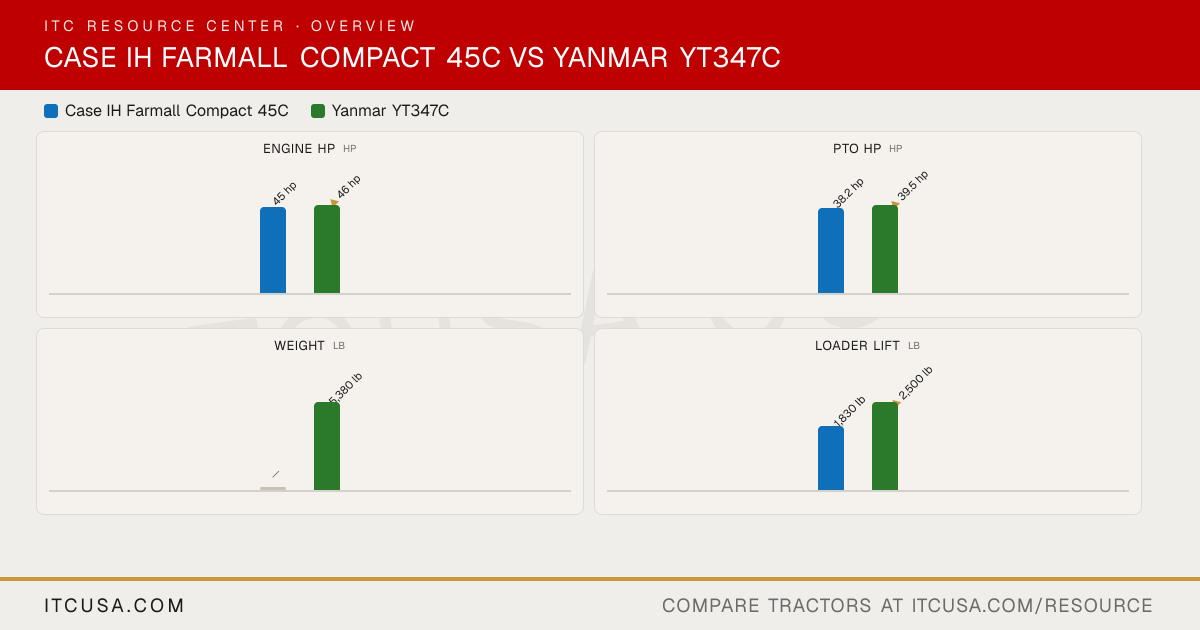

The headline numbers at a glance.

Case IH Farmall Compact 45CYanmar YT347C

Engine HPhp

45 hp

▲46 hp

PTO HPhp

38.2 hp

▲39.5 hp

Weightlb

—

5,380 lb

Loader Liftlb

1,830 lb

▲2,500 lb

3-Pt Lift (24 in)lb

▲2,756 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 45C	YanmarYT347C


PTO Power	38.2 hp	39.5 hp
Alternator	Not Published	55 A, 12 V
Air Cleaner	Not Published	Dual stage cyclonic (resin 5.5")
Engine Type	Diesel, naturally aspirated	4-cylinder, naturally aspirated diesel
Fuel System	Not Published	Common rail direct injection
Displacement	115.9 in³	133.6 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2800 rpm
Cooling System Type	Not Published	Liquid cooled
Engine Manufacturer	Not Published	YANMAR
Engine Power (Gross)	45 hp	46 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	5,380 lb

Warranty Length & Coverage	Not Published	Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty

Pump Type	Not Published	Not Published
Steering Flow	Not Published	5.7 gpm
Implement Flow	8.2 gpm	10.1 gpm
Total Hydraulic Flow	Not Published	15.8 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	15.8 gpm
No. of Optional Remote Valves	Non-cab: 2	1
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	2

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent (electro-hydraulic)
Lift Control Type	Mechanical Draft Control (MDC)	Position control
Hitch Lift Capacity	2,756 lb @ 24 in behind pin	3,307 lb
Mid-PTO Availability	Optional mid-PTO, 2,000 rpm	Not Published
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	2,756 lb

R3 Turf - Rear	Not Published	44 x 18 - 20.0
R3 Turf - Front	Not Published	27.0 - 10.5
Tire Size & Options	Not Published	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	Not Published	4.6 gal - 24.0
R4 Industrial - Front	Not Published	10.0 - 16.5
R1 Agricultural - Rear	Not Published	14.9 - 24.0
R1 Agricultural - Front	Not Published	8.0 - 16.0

Coolant Capacity	Not Published	6.2 qt
Crankcase Capacity	Not Published	7.0 qt
Fuel Tank Capacity	12.4 gal (Cab); 10.5 gal (Non-cab)	12.7 gal
Front Axle Fluid Capacity	Not Published	2.4 gal
Transmission / Hydraulic System Capacity	Not Published	7.7 gal

Loader Lift Height	112 in	113 in
Loader Breakout Force	3,114 lb	3,969 lb
Quick Attach Loader System	L360A	YL610: Skid-steer-style loader quick attachment system
Loader Lift Capacity (Full Height)	1,830 lb	2,500 lb

Clutch	Dry clutch	Clutch-less shifting (i-HMT)
No. of Speeds	16F/16R (mechanical shuttle); optional 3-range hydrostatic	3 ranges (variable speed)
Transmission Type	16x16 mechanical shuttle with synchro shift (dry clutch) (standard); optional 3-range hydrostatic	I-HMT (Integrated Hydro Mechanical Transmission)
Max Travel Speed (Forward)	Not Published	18 mph
Max Travel Speed (Reverse)	Not Published	18 mph
Differential Lock & Limited Slip Options	Mechanical differential lock	Rear differential lock (foot pedal engagement)

Brakes	Not Published	Mechanical wet disc
Steering	Not Published	Fully hydraulic power steering
Frame Type	Not Published	Not Published
Front Axle Type	MFD	Selectable 2WD/4WD engagement
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	73.2 in	75.9 in
Overall Width	Not Published	70.6 in
Ground Clearance	Not Published	12.8 in
Height to Top of ROPS	97.1 in	Not Applicable
Height to Top of Cab Model	93.3 in	89.5 in
Height to Top of ROPS (folded)	78.6 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Overall Length with 3-Point Hitch	128.1 in	130.9 in

Case IH Farmall Compact 45C vs Yanmar YT347C: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 45C or the Yanmar YT347C?: The Yanmar YT347C leads on engine hp at 46 hp hp, compared to 45 hp hp for the Case IH Farmall Compact 45C.
Which has more PTO horsepower, the Case IH Farmall Compact 45C or the Yanmar YT347C?: The Yanmar YT347C leads on pto hp at 39.5 hp hp, compared to 38.2 hp hp for the Case IH Farmall Compact 45C.
Which has more loader lift capacity, the Case IH Farmall Compact 45C or the Yanmar YT347C?: The Yanmar YT347C leads on loader lift at 2,500 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 45C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 45C or the Yanmar YT347C?: They are effectively tied: both machines are rated at 2,756 lb lb for 3-pt lift (24 in).
