Which has more horsepower, the Case IH Farmall Compact 55C or the TYM T574C?

They are effectively tied: both machines are rated at 55 hp hp for engine hp.

Which has more PTO horsepower, the Case IH Farmall Compact 55C or the TYM T574C?

The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 44.7 hp hp for the TYM T574C.

Which has more loader lift capacity, the Case IH Farmall Compact 55C or the TYM T574C?

The TYM T574C leads on loader lift at 2,790 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.

Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the TYM T574C?

The TYM T574C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,756 lb lb for the Case IH Farmall Compact 55C.

Case IH Farmall Compact 55C vs TYM T574C

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the TYM T574C leads 4 categories to 2 (1 tied). Machine pages: Case IH Farmall Compact 55C and TYM T574C.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Case IH Farmall Compact 55C	TYM T574C
Engine HP (hp)	55 hp	55 hp
PTO HP (hp)	▲ 46.7 hp	44.7 hp
Weight (lb)	—	5,353 lb
Loader Lift (lb)	1,830 lb	▲ 2,790 lb
3-Pt Lift (24 in) (lb)	2,756 lb	▲ 3,050.6 lb
Lift Height (in)	▲ 112 in	109.4 in
Breakout Force (lbf)	3,114 lbf	▲ 5,316 lbf
Hydraulic Flow (gpm)	8.2 gpm	▲ 11.9 gpm
Travel Speed (mph)	—	18.6 mph

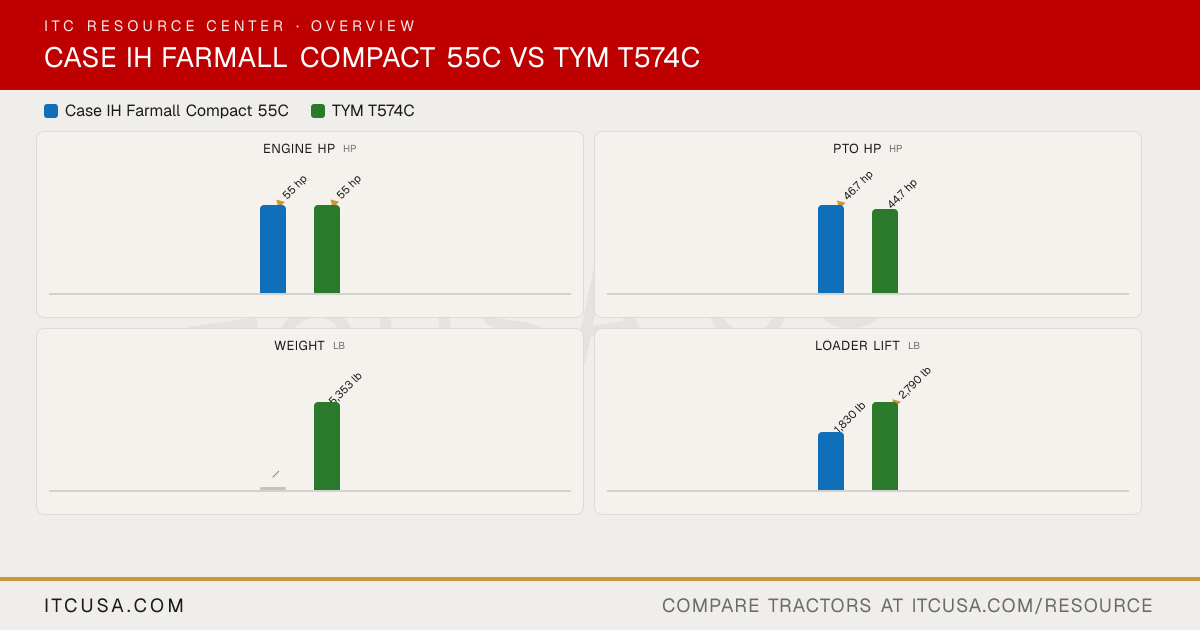

The headline numbers at a glance.

Case IH Farmall Compact 55CTYM T574C

Engine HPhp

▲55 hp

PTO HPhp

▲46.7 hp

44.7 hp

Weightlb

—

5,353 lb

Loader Liftlb

1,830 lb

▲2,790 lb

3-Pt Lift (24 in)lb

2,756 lb

▲3,050.6 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Case IHFarmall Compact 55C	TYMT574C


PTO Power	46.7 hp	44.7 hp
Alternator	Not Published	70 A, 12 V
Air Cleaner	Not Published	Single dry
Engine Type	Diesel, turbocharged	4-cylinder, turbocharged diesel
Fuel System	Common Rail Direct Injection	IDI
Displacement	115.9 in³	139.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Not Published	Not Published
Engine Manufacturer	Not Published	TYM
Engine Power (Gross)	55 hp	55 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Applicable
Weight with Cab and Loader	Not Published	5,353 lb

Warranty Length & Coverage	Not Published	Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.

Pump Type	Not Published	Dual gear pump
Steering Flow	Not Published	4.3 gpm
Implement Flow	8.2 gpm	7.7 gpm
Total Hydraulic Flow	Not Published	11.9 gpm
Hydraulic System Type	Open center	Not Published
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	Not Published	11.9 gpm
No. of Optional Remote Valves	Cab: Not offered; Non-cab: 2	Not Published
No. of Standard Remote Valves	Cab: 2; Non-cab: 1	2

PTO Rear	540 rpm	540 rpm
PTO Type	Rear: Independent, electro-hydraulic engagement	Independent
Lift Control Type	Mechanical Draft Control (MDC)	Position/Draft
Hitch Lift Capacity	Not Published	3,822 lb
Mid-PTO Availability	Optional @ 2,000 rpm	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	2,756 lb @ 24 in behind pin	3,050.6 lb

R3 Turf - Rear	Not Published	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R3 Turf - Front	Not Published	Multi-Trac CS 27x10.50-15 NHS TL 4PR
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	Xtra Grip 17.5Lx24 NHS TL 6PR
R4 Industrial - Front	Not Published	Trac Chief 12-16.5 NHS TL 6PR
R1 Agricultural - Rear	Not Published	Farm Specialist 13.6-26 NHS TL 6PR
R1 Agricultural - Front	Not Published	Farm Specialist 9.5-16 NHS TL 6PR

Coolant Capacity	Not Published	6.9 qt
Crankcase Capacity	Not Published	6.8 qt
Fuel Tank Capacity	12.4 gal / 10.5 gal	17.0 gal
Front Axle Fluid Capacity	Not Published	10.5 qt
Transmission / Hydraulic System Capacity	Not Published	9.2 gal

Loader Lift Height	112 in	109.4 in
Loader Breakout Force	3,114 lb	5,316 lb
Quick Attach Loader System	Compatible with L360A loader (quick-attach)	TX57: Quick attachment (Skid/Euro type)
Loader Lift Capacity (Full Height)	1,830 lb	2,790 lb

Clutch	Dry clutch (mechanical shuttle)	Dry single plate
No. of Speeds	16F/16R (Mechanical); Hydrostatic: 3 ranges	F8 x R8
Transmission Type	16x16 mechanical shuttle w/ synchro shift (dry clutch); optional 3-range hydrostatic	Synchro-shuttle
Max Travel Speed (Forward)	Not Published	18.6 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Mechanical differential lock	Not Published

Brakes	Not Published	Wet disc
Steering	Not Published	Hydrostatic
Frame Type	Not Published	Not Published
Front Axle Type	Mechanical Front Drive (MFD)	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Adjustable suspension seat	Not Published

Wheelbase	73.2 in	76.2 in
Overall Width	Not Published	63.8 in
Ground Clearance	Not Published	13.8 in
Height to Top of ROPS	97.1 in	Not Applicable
Height to Top of Cab Model	93.3 in	98 in
Height to Top of ROPS (folded)	78.6 in	Not Applicable
Min. Turn Radius without Brakes	Not Published	131.5 in
Overall Length with 3-Point Hitch	128.1 in	141.3 in

Accessories that fit	None tagged yet	TYM T494 / T574 Extended Brush Screen Insert $299.99 A must have when working with brush. TYM T494 / T574 Hydraulic Valve Cover $299.99 TYM T494 / T574 Rubber Hose Protector $47.99 TYM T494 / T574 HD Protection Package $1250.00 TYM T494 / T574 Fuel Tank Cover $214.99 TYM T494 / T574 Skid Plate only $714.99

Case IH Farmall Compact 55C vs TYM T574C: Quick Answers

Which has more horsepower, the Case IH Farmall Compact 55C or the TYM T574C?: They are effectively tied: both machines are rated at 55 hp hp for engine hp.
Which has more PTO horsepower, the Case IH Farmall Compact 55C or the TYM T574C?: The Case IH Farmall Compact 55C leads on pto hp at 46.7 hp hp, compared to 44.7 hp hp for the TYM T574C.
Which has more loader lift capacity, the Case IH Farmall Compact 55C or the TYM T574C?: The TYM T574C leads on loader lift at 2,790 lb lb, compared to 1,830 lb lb for the Case IH Farmall Compact 55C.
Which has more three-point hitch lift capacity, the Case IH Farmall Compact 55C or the TYM T574C?: The TYM T574C leads on 3-pt lift (24 in) at 3,050.6 lb lb, compared to 2,756 lb lb for the Case IH Farmall Compact 55C.
