Across 7 measurable specs, the John Deere 3025D leads 7 categories to 0. Machine pages: John Deere 1023E and John Deere 3025D.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 1023E | John Deere 3025D |
|---|
| Engine HP (hp) | 21.5 hp | ▲ 24.4 hp |
| PTO HP (hp) | 16.2 hp | ▲ 20.7 hp |
| Weight (lb) | 1,446 lb | — |
| Loader Lift (lb) | 570 lb | ▲ 1,186 lb |
| 3-Pt Lift (24 in) (lb) | 758 lb | ▲ 2,081.2 lb |
| Lift Height (in) | 71.2 in | ▲ 84 in |
| Breakout Force (lbf) | — | 1,704 lbf |
| Hydraulic Flow (gpm) | 6.3 gpm | ▲ 8.9 gpm |
| Travel Speed (mph) | 9.1 mph | ▲ 11.1 mph |

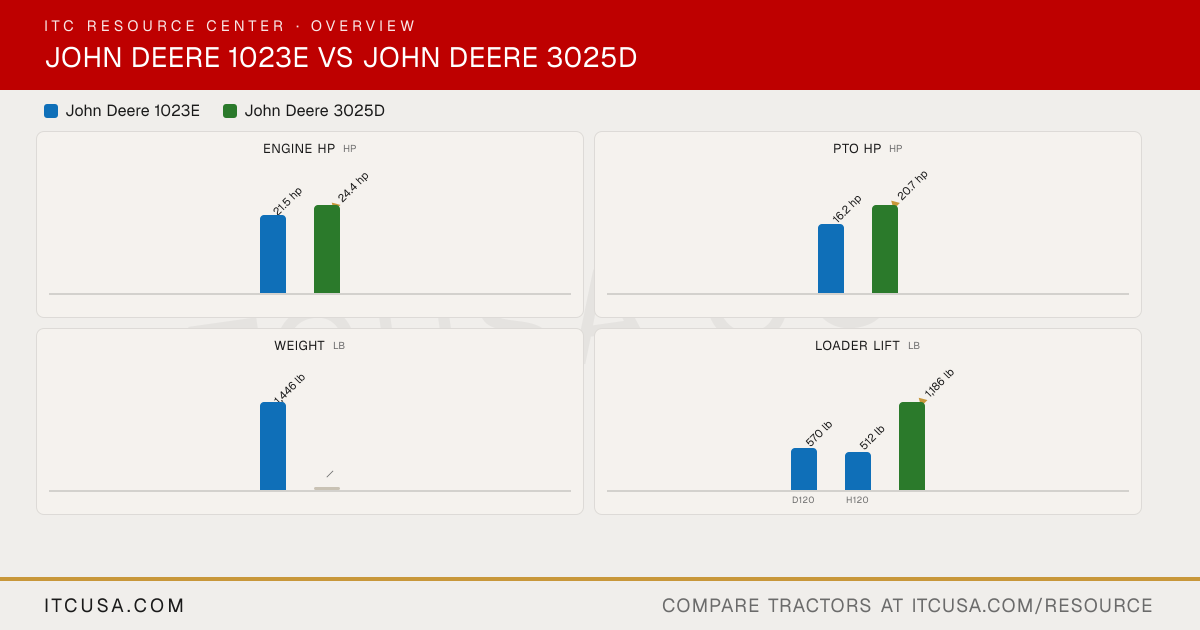

The headline numbers at a glance.
John Deere 1023EJohn Deere 3025D
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere1023E | John Deere3025D |
|---|
|
|---|
| PTO Power | 16.2 hp | 20.7 hp |
|---|
| Alternator | 40 A | 55 A, 12 V |
|---|
| Air Cleaner | Dual element | Dual element |
|---|
| Engine Type | Diesel | Diesel, water-cooled |
|---|
| Fuel System | Indirect injection | Direct injection |
|---|
| Displacement | 60.6 in³ | 100.1 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 3200 rpm | 2400 rpm |
|---|
| Cooling System Type | Water pump | Liquid |
|---|
| Engine Manufacturer | Yanmar | Yanmar |
|---|
| Engine Power (Gross) | 21.5 hp @ 200 rpm | 24.4 hp @ 400 rpm |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
|
|---|
| Tractor Weight (Base) | Open station: 1446 lb | — |
|---|
| Weight with ROPS and Loader | 1446 lb | Not Published |
|---|
| Weight with Cab and Loader | — | Not Applicable |
|---|
|
|---|
| Warranty Length & Coverage | 6-year powertrain warranty (as stated in 2016 review; current terms may vary) | 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) |
|---|
|
|---|
| Pump Type | Single gear | Single gear |
|---|
| Steering Flow | 3.5 gpm | 3.6 gpm |
|---|
| Implement Flow | 3.5 gpm | 4.8 gpm |
|---|
| Total Hydraulic Flow | 6.3 gpm 23.8 lpm | 8.9 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| System Operating Pressure | 2000 PSI | — |
|---|
| Rear Remote Hydraulic Flow | 3.5 gpm (13.3 lpm) implement circuit | Not Published |
|---|
| Overall Hydraulic Pump Flow | 6.3 gpm total (2.8 gpm steering + 3.5 gpm implement) | 8.9 gpm |
|---|
| No. of Optional Remote Valves | 1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs) | Up to two (optional) |
|---|
| No. of Standard Remote Valves | — | Not Published |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm (6-spline) |
|---|
| PTO Type | independent | Not Published |
|---|
| Lift Control Type | Position control (rockshaft lever) | Position control |
|---|
| Hitch Lift Capacity | 1,433 lbs 1,433 lb | Not Published |
|---|
| Mid-PTO Availability | 2100 rpm | Not Applicable |
|---|
| Category, 3-Point Hitch | Limited Category 1 | Category 1 |
|---|
| Hitch Lift Capacity (at 24”) | 758 lb | 2,081.2 lb @ 24 in behind link arms |
|---|
|
|---|
| R3 Turf - Rear | 26x12-12 | 41X14-20 |
|---|
| R3 Turf - Front | 18x8.50-10 | 27X8.50-15 |
|---|
| R4 Industrial - Rear | 26x12-12 | 15.00-19.5 |
|---|
| R4 Industrial - Front | 18x8.5-10 | 25X8.50-14 |
|---|
| R1 Agricultural - Rear | 26x12-12 | 11.2-24 |
|---|
| R1 Agricultural - Front | 18x8.5-10 | 7-14 |
|---|
| Tire Size & Options | — | R1 Bar, R3 Turf, R4 Industrial |
|---|
|
|---|
| Coolant Capacity | 0.98 gal | Not Published |
|---|
| Crankcase Capacity | 0.71 gal | 1.1 gal |
|---|
| Fuel Tank Capacity | 5.6 gal | 10.0 gal |
|---|
| Front Axle Fluid Capacity | 0.74 gal | 1.0 gal |
|---|
| Transmission / Hydraulic System Capacity | 3.3 gal | 9.2 gal |
|---|
|
|---|
| Loader Lift Height | 71.2 in (D120 and H120 loaders) | 84.0 in |
|---|
| Quick Attach Loader System | Quik-Park Loader System | Quick-change attachment carrier |
|---|
| Loader Lift Capacity (Full Height) | D120: 570 lb; H120: 512 lb (at full height, 71.2 in) | 1,186 lb |
|---|
| Loader Breakout Force | — | 1,704 lb |
|---|
|
|---|
| Clutch | Wet disk | Not Published |
|---|
| No. of Speeds | Infinite (hydrostatic, 2-range) | 8F/8R |
|---|
| Transmission Type | Hydrostatic - two range | 8F/8R synchromesh shuttle shift gear transmission |
|---|
| Max Travel Speed (Forward) | 9.1 mph | 11.1 mph |
|---|
| Max Travel Speed (Reverse) | 9.1 mph | 11.6 mph |
|---|
| Differential Lock & Limited Slip Options | Differential lock Yes; Limited slip differential No | Not Published |
|---|
|
|---|
| Brakes | Wet disc (left-hand pedal) | Not Published |
|---|
| Steering | Power | Not Published |
|---|
| Frame Type | Open center frame with two-post foldable ROPS | Not Published |
|---|
| Front Axle Type | MFWD (Mechanical Front-Wheel Drive) 4WD | MFWD (4WD) |
|---|
| Front Axle Rating | 1349 lb | Not Published |
|---|
| Seat Suspension & Adjustability | Spring suspension seat, adjusts fore/aft | Not Published |
|---|
| Drawbar Capacity | — | Not Published |
|---|
|
|---|
| Wheelbase | 57.1 in. | 62.6 in |
|---|
| Overall Width | 47.2 in with R3 tires; 47.3 in with R4 tires | 57.3 in |
|---|
| Ground Clearance | 7.7 in. | 13.0 in |
|---|
| Height to Top of ROPS | 78.6 in | Not Published |
|---|
| Min. Turn Radius without Brakes | 2.51 m 8.2 ft | Not Published |
|---|
| Overall Length with 3-Point Hitch | 87.6 in | 111.2 in |
|---|
| Height to Top of Cab Model | — | Not Applicable |
|---|
| Height to Top of ROPS (folded) | — | Not Published |
|---|
John Deere 1023E vs John Deere 3025D: Quick Answers
- Which has more horsepower, the John Deere 1023E or the John Deere 3025D?
- The John Deere 3025D leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the John Deere 1023E.
- Which has more PTO horsepower, the John Deere 1023E or the John Deere 3025D?
- The John Deere 3025D leads on pto hp at 20.7 hp hp, compared to 16.2 hp hp for the John Deere 1023E.
- Which has more loader lift capacity, the John Deere 1023E or the John Deere 3025D?
- The John Deere 3025D leads on loader lift at 1,186 lb lb, compared to 570 lb lb for the John Deere 1023E.
- Which has more three-point hitch lift capacity, the John Deere 1023E or the John Deere 3025D?
- The John Deere 3025D leads on 3-pt lift (24 in) at 2,081.2 lb lb, compared to 758 lb lb for the John Deere 1023E.
