Across 8 measurable specs, the John Deere 1023E leads 4 categories to 3 (1 tied). Machine pages: Bad Boy Tractors 1022 and John Deere 1023E.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | Bad Boy Tractors 1022 | John Deere 1023E |
|---|
| Engine HP (hp) | 21.5 hp | 21.5 hp |
| PTO HP (hp) | 15.4 hp | ▲ 16.2 hp |
| Weight (lb) | 1,433 lb | ▲ 1,446 lb |
| Loader Lift (lb) | ▲ 992 lb | 570 lb |
| 3-Pt Lift (24 in) (lb) | 679 lb | ▲ 758 lb |
| Lift Height (in) | ▲ 72.7 in | 71.2 in |
| Breakout Force (lbf) | 1,531 lbf | — |
| Hydraulic Flow (gpm) | ▲ 7 gpm | 6.3 gpm |
| Travel Speed (mph) | 7.8 mph | ▲ 9.1 mph |

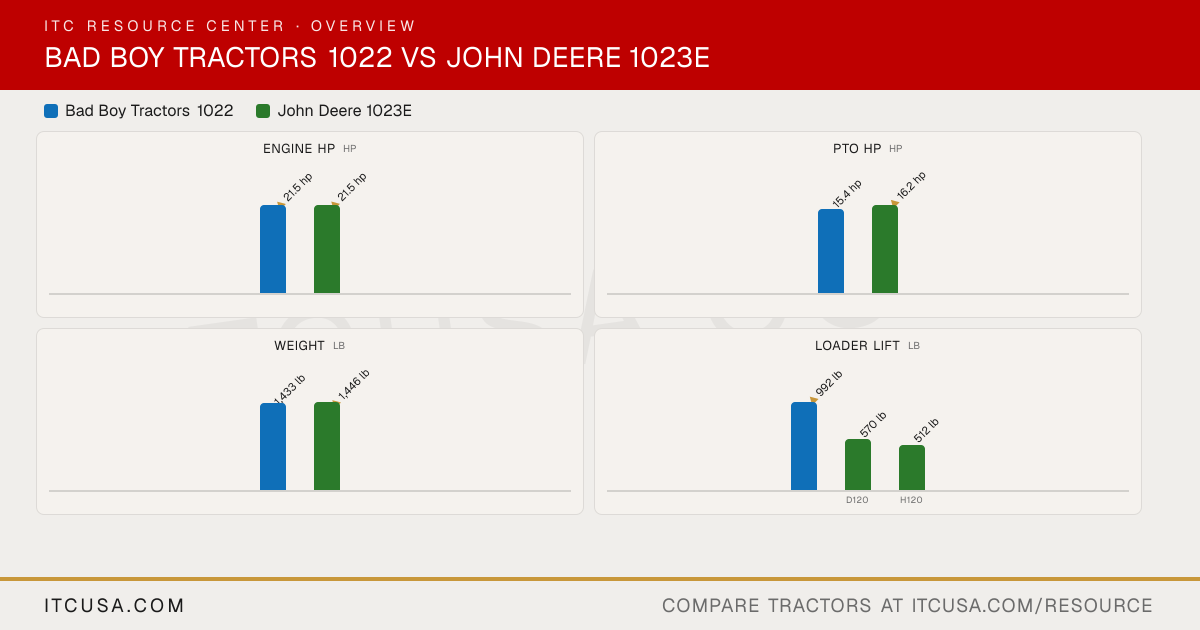

The headline numbers at a glance.
Bad Boy Tractors 1022John Deere 1023E
ITCUSA.COMITCUSA.COMITCUSA.COM
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | Bad Boy Tractors1022 | John Deere1023E |
|---|
|
|---|
| PTO Power | 15.4 hp | 16.2 hp |
|---|
| Alternator | 40 A, 12 V | 40 A |
|---|
| Air Cleaner | Single Dry | Dual element |
|---|
| Engine Type | Natural Aspiration | Diesel |
|---|
| Fuel System | Diesel | Indirect injection |
|---|
| Displacement | 60.6 (993) | 60.6 in³ |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Rated Engine Speed | 3,200 | 3200 rpm |
|---|
| Cooling System Type | Water cooled | Water pump |
|---|
| Engine Manufacturer | Yanmar | Yanmar |
|---|
| Engine Power (Gross) | 21.5 hp | 21.5 hp @ 200 rpm |
|---|
| Engine Emissions Constraints | Tier 4 | Tier 4 |
|---|
|
|---|
| Tractor Weight (Base) | 1,433 (650) | Open station: 1446 lb |
|---|
| Weight with ROPS and Loader | 1,433 lb | 1446 lb |
|---|
| Weight with Cab and Loader | Not Published | — |
|---|
|
|---|
| Warranty Length & Coverage | 7-year powertrain warranty | 6-year powertrain warranty (as stated in 2016 review; current terms may vary) |
|---|
|
|---|
| Pump Type | Single Gear Pump with Flow Divider | Single gear |
|---|
| Steering Flow | 2.11 gpm | 3.5 gpm |
|---|
| Implement Flow | 4.17 (15.8) | 3.5 gpm |
|---|
| Total Hydraulic Flow | 6.97 (26.4) | 6.3 gpm 23.8 lpm |
|---|
| Hydraulic System Type | Not Published | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | 3.5 gpm (13.3 lpm) implement circuit |
|---|
| Overall Hydraulic Pump Flow | 6.97 gpm (max total flow) | 6.3 gpm total (2.8 gpm steering + 3.5 gpm implement) |
|---|
| No. of Optional Remote Valves | Up to 1 | 1 additional (optional 3rd SCV kit; standard is 2 mid-SCVs) |
|---|
| No. of Standard Remote Valves | Not Published | — |
|---|
| System Operating Pressure | — | 2000 PSI |
|---|
|
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| PTO Type | Independent | independent |
|---|
| Lift Control Type | Position | Position control (rockshaft lever) |
|---|
| Hitch Lift Capacity | 1,100 lb | 1,433 lbs 1,433 lb |
|---|
| Mid-PTO Availability | Optional (2,500 rpm) | 2100 rpm |
|---|
| Category, 3-Point Hitch | Category I (N) | Limited Category 1 |
|---|
| Hitch Lift Capacity (at 24”) | 679 lb | 758 lb |
|---|
|
|---|
| R3 Turf - Rear | TURF R 16X12.00-12 | 26x12-12 |
|---|
| R3 Turf - Front | TURF F 16X7.50-8 | 18x8.50-10 |
|---|
| Tire Size & Options | R1 (BAR) / R3 (TURF) / R4 (IND) | — |
|---|
| R4 Industrial - Rear | 26X12-12 | 26x12-12 |
|---|
| R4 Industrial - Front | 18X8.50-10 | 18x8.5-10 |
|---|
| R1 Agricultural - Rear | BAR R 24X12.00-12 | 26x12-12 |
|---|
| R1 Agricultural - Front | BAR F 16X7.50-9 | 18x8.5-10 |
|---|
|
|---|
| Coolant Capacity | 0.9 gal | 0.98 gal |
|---|
| Crankcase Capacity | 0.48 gal | 0.71 gal |
|---|
| Fuel Tank Capacity | 6.6 gal | 5.6 gal |
|---|
| Front Axle Fluid Capacity | 2.6 qt | 0.74 gal |
|---|
| Transmission / Hydraulic System Capacity | 3.6 gal | 3.3 gal |
|---|
|
|---|
| Loader Lift Height | 72.7 in (under level bucket); 78.5 in (pivot pin) | 71.2 in (D120 and H120 loaders) |
|---|
| Loader Breakout Force | 1,531 lb (at pivot pin, ground level) | — |
|---|
| Quick Attach Loader System | SSQA | Quik-Park Loader System |
|---|
| Loader Lift Capacity (Full Height) | 992 lb (at pivot pin) | D120: 570 lb; H120: 512 lb (at full height, 71.2 in) |
|---|
|
|---|
| Clutch | Dry single plate | Wet disk |
|---|
| No. of Speeds | 2 Range | Infinite (hydrostatic, 2-range) |
|---|
| Transmission Type | Hydrostatic transmission (HST) | Hydrostatic - two range |
|---|
| Max Travel Speed (Forward) | 7.8 mph | 9.1 mph |
|---|
| Max Travel Speed (Reverse) | Not Published | 9.1 mph |
|---|
| Differential Lock & Limited Slip Options | Mechanical rear differential lock | Differential lock Yes; Limited slip differential No |
|---|
|
|---|
| Brakes | Wet disc | Wet disc (left-hand pedal) |
|---|
| Steering | Hydrostatic | Power |
|---|
| Frame Type | Sub-compact tractor, 4WD | Open center frame with two-post foldable ROPS |
|---|
| Front Axle Type | Center pin front axle | MFWD (Mechanical Front-Wheel Drive) 4WD |
|---|
| Drawbar Capacity | Not Published | — |
|---|
| Front Axle Rating | Not Published | 1349 lb |
|---|
| Seat Suspension & Adjustability | Standard adjustable seat | Spring suspension seat, adjusts fore/aft |
|---|
|
|---|
| Wheelbase | 53.1 (1,350) | 57.1 in. |
|---|
| Overall Width | 44.5 (1,130) | 47.2 in with R3 tires; 47.3 in with R4 tires |
|---|
| Overall Length | 94.2 (2,394) | — |
|---|
| Ground Clearance | 8.3 in. | 7.7 in. |
|---|
| Height to Top of ROPS | 86.6 (2,200) | 78.6 in |
|---|
| Height to Top of Cab Model | Not Published | — |
|---|
| Height to Top of ROPS (folded) | Not Published | — |
|---|
| Min. Turn Radius without Brakes | 86.6 (2,200) | 2.51 m 8.2 ft |
|---|
| Overall Length with 3-Point Hitch | 94.2 in | 87.6 in |
|---|
Bad Boy Tractors 1022 vs John Deere 1023E: Quick Answers
- Which has more horsepower, the Bad Boy Tractors 1022 or the John Deere 1023E?
- They are effectively tied: both machines are rated at 21.5 hp hp for engine hp.
- Which has more PTO horsepower, the Bad Boy Tractors 1022 or the John Deere 1023E?
- The John Deere 1023E leads on pto hp at 16.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
- Which is heavier, the Bad Boy Tractors 1022 or the John Deere 1023E?
- The John Deere 1023E leads on weight at 1,446 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
- Which has more loader lift capacity, the Bad Boy Tractors 1022 or the John Deere 1023E?
- The Bad Boy Tractors 1022 leads on loader lift at 992 lb lb, compared to 570 lb lb for the John Deere 1023E.
- Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the John Deere 1023E?
- The John Deere 1023E leads on 3-pt lift (24 in) at 758 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
