John Deere 1M 25 vs Kubota BX2360

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 1M 25 leads 7 categories to 1. Machine pages: John Deere 1M 25 and Kubota BX2360.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 1M 25	Kubota BX2360
Engine HP (hp)	▲ 23.2 hp	23 hp
PTO HP (hp)	▲ 17.8 hp	17.7 hp
Weight (lb)	▲ 1,602 lb	1,290 lb
Loader Lift (lb)	704 lb	▲ 750 lb
3-Pt Lift (24 in) (lb)	▲ 758 lb	680 lb
Lift Height (in)	▲ 72 in	71.3 in
Breakout Force (lbf)	n/a	992 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	6.2 gpm
Travel Speed (mph)	▲ 9.1 mph	8.1 mph

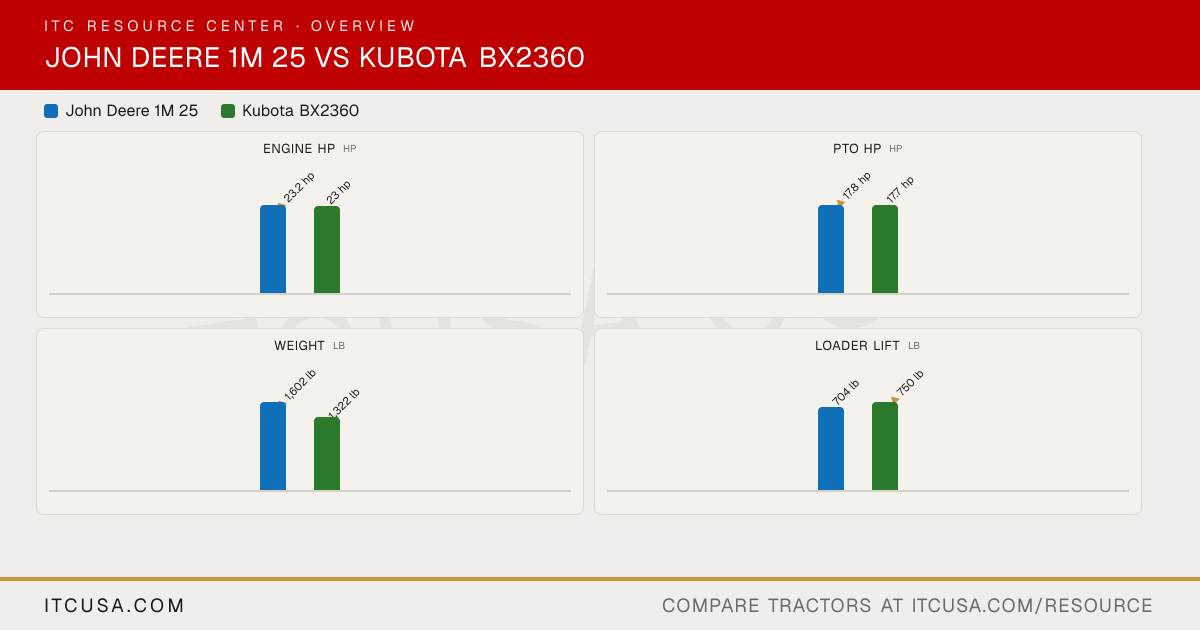

The headline numbers at a glance.

John Deere 1M 25Kubota BX2360

Engine HPhp

▲23.2 hp

23 hp

PTO HPhp

▲17.8 hp

17.7 hp

Weightlb

▲1,602 lb

1,290 lb

Loader Liftlb

704 lb

▲750 lb

3-Pt Lift (24 in)lb

▲758 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1M 25	KubotaBX2360


Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNV80F-NCJT	D902
Engine Type	Diesel	Liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	77 in³	54.8 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	23.2 hp	23 hp
PTO Power	17.8 hp	17.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A, 12 V

Pump Type	Gear	Not Published
Implement Flow	3.5 gpm	Not Published
Steering Flow	3.5 gpm	Not Published
Total Hydraulic Flow	7 gpm	6.2 gpm
Overall Hydraulic Pump Flow	7 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.57 gal	6.6 gal
Coolant Capacity	Not Published	2.8 qt
Crankcase Capacity	Not Published	3.3 qt
Transmission / Hydraulic System Capacity	Not Published	3.06 gal
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live independent, wet hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Standard mid-PTO, 2500 rpm
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	Not Published	1,210 lb
Hitch Lift Capacity (at 24”)	758 lb	680 lb
Lift Control Type	Position control	Directional control with auto-return lever

Transmission Type	Hydrostatic - 2 range	Hydrostatic transmission with High-Low gear shift, 2-range
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	2-range
Max Travel Speed (Forward)	9.1 mph	8.1 mph
Max Travel Speed (Reverse)	9.1 mph	6.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock (pedal operated)

Frame Type	Foldable ROPS, standard equipment	Roll Over Protective Structure (ROPS)
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc, left-hand pedal	Wet disc
Seat Suspension & Adjustability	Suspension seat, high back, adjustable settings; tilt steering	Not Published
Front Axle Type	Four-wheel drive	Selectable 2WD and 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	44.5 in (with turf tires)
Wheelbase	57.1 in	55.1 in
Ground Clearance	Not Published	8.7 in (front axle)
Min. Turn Radius without Brakes	Not Published	7.5 ft
Height to Top of ROPS	Not Published	70.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	Not Published	95.5 in (with 3-point hitch)

Tractor Weight (Base)	1,602 lb open station; 2,019 lb cab (shipping weight)	1,290 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R3 Hybrid, or R4	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12-12
R3 Turf - Front	18x8.50-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	Tool-free attach and park	Not Published
Loader Model	120R	LA243
Loader Lift Height	120R: 72 in	LA243: 71.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	120R (NSL): 704 lb (at pivot, full height)	LA243: 750 lb (pivot pin, max. height)
Loader Breakout Force	Not Published	LA243: 992 lbf

Warranty Length & Coverage	Powertrain 6 years or 2,000 hours, standard at no cost, covers residential and commercial use	Not Published

Find a John Deere dealer near you Find a Kubota dealer near you

John Deere 1M 25 vs Kubota BX2360: Quick Answers

Which has more horsepower, the John Deere 1M 25 or the Kubota BX2360?: The John Deere 1M 25 leads on engine hp at 23.2 hp hp, compared to 23 hp hp for the Kubota BX2360.
Which has more PTO horsepower, the John Deere 1M 25 or the Kubota BX2360?: The John Deere 1M 25 leads on pto hp at 17.8 hp hp, compared to 17.7 hp hp for the Kubota BX2360.
Which is heavier, the John Deere 1M 25 or the Kubota BX2360?: The John Deere 1M 25 leads on weight at 1,602 lb lb, compared to 1,290 lb lb for the Kubota BX2360.
Which has more loader lift capacity, the John Deere 1M 25 or the Kubota BX2360?: The Kubota BX2360 leads on loader lift at 750 lb lb, compared to 704 lb lb for the John Deere 1M 25.
Which has more three-point hitch lift capacity, the John Deere 1M 25 or the Kubota BX2360?: The John Deere 1M 25 leads on 3-pt lift (24 in) at 758 lb lb, compared to 680 lb lb for the Kubota BX2360.

More Head-to-Heads

Category Verdict

Spec	John Deere 1M 25	Kubota BX2360
Engine HP (hp)	▲ 23.2 hp	23 hp
PTO HP (hp)	▲ 17.8 hp	17.7 hp
Weight (lb)	▲ 1,602 lb	1,290 lb
Loader Lift (lb)	704 lb	▲ 750 lb
3-Pt Lift (24 in) (lb)	▲ 758 lb	680 lb
Lift Height (in)	▲ 72 in	71.3 in
Breakout Force (lbf)	n/a	992 lbf
Hydraulic Flow (gpm)	▲ 7 gpm	6.2 gpm
Travel Speed (mph)	▲ 9.1 mph	8.1 mph

The headline numbers at a glance.

John Deere 1M 25Kubota BX2360

Engine HPhp

▲23.2 hp

23 hp

PTO HPhp

▲17.8 hp

17.7 hp

Weightlb

▲1,602 lb

1,290 lb

Loader Liftlb

704 lb

▲750 lb

3-Pt Lift (24 in)lb

▲758 lb

680 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere1M 25	KubotaBX2360


Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNV80F-NCJT	D902
Engine Type	Diesel	Liquid-cooled, 3-cylinder diesel
No. of Cylinders	3	3
Displacement	77 in³	54.8 in³
Rated Engine Speed	3200 rpm	3200 rpm
Engine Power (Gross)	23.2 hp	23 hp
PTO Power	17.8 hp	17.7 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Liquid-cooled	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection
Alternator	Not Published	40 A, 12 V

Pump Type	Gear	Not Published
Implement Flow	3.5 gpm	Not Published
Steering Flow	3.5 gpm	Not Published
Total Hydraulic Flow	7 gpm	6.2 gpm
Overall Hydraulic Pump Flow	7 gpm	6.2 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Not Published

Fuel Tank Capacity	5.57 gal	6.6 gal
Coolant Capacity	Not Published	2.8 qt
Crankcase Capacity	Not Published	3.3 qt
Transmission / Hydraulic System Capacity	Not Published	3.06 gal
Front Axle Fluid Capacity	Not Published	Not Published

PTO Type	Independent	Live independent, wet hydraulic clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Standard, 2100 rpm	Standard mid-PTO, 2500 rpm
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	Not Published	1,210 lb
Hitch Lift Capacity (at 24”)	758 lb	680 lb
Lift Control Type	Position control	Directional control with auto-return lever

Transmission Type	Hydrostatic - 2 range	Hydrostatic transmission with High-Low gear shift, 2-range
No. of Speeds	Infinite (hydrostatic), 2 ranges forward and reverse	2-range
Max Travel Speed (Forward)	9.1 mph	8.1 mph
Max Travel Speed (Reverse)	9.1 mph	6.2 mph
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock (pedal operated)

Frame Type	Foldable ROPS, standard equipment	Roll Over Protective Structure (ROPS)
Steering	Power steering	Hydrostatic power steering
Brakes	Wet disc, left-hand pedal	Wet disc
Seat Suspension & Adjustability	Suspension seat, high back, adjustable settings; tilt steering	Not Published
Front Axle Type	Four-wheel drive	Selectable 2WD and 4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Width	47.22 in (R3 tires); 47.32 in (R4 tires)	44.5 in (with turf tires)
Wheelbase	57.1 in	55.1 in
Ground Clearance	Not Published	8.7 in (front axle)
Min. Turn Radius without Brakes	Not Published	7.5 ft
Height to Top of ROPS	Not Published	70.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	Not Published	95.5 in (with 3-point hitch)

Tractor Weight (Base)	1,602 lb open station; 2,019 lb cab (shipping weight)	1,290 lb (with ROPS)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R3 Turf, R3 Hybrid, or R4	Turf, bar (ag) or industrial: 18x8.5-10 front, 26x12-12 rear
R1 Agricultural - Front	Not Published	18x8.5-10
R1 Agricultural - Rear	Not Published	26x12-12
R3 Turf - Front	18x8.50-10	18x8.5-10
R3 Turf - Rear	26x12-12	26x12-12
R4 Industrial - Front	18x8.5-10	18x8.5-10
R4 Industrial - Rear	26x12-12	26x12-12

Quick Attach Loader System	Tool-free attach and park	Not Published
Loader Model	120R	LA243
Loader Lift Height	120R: 72 in	LA243: 71.3 in (at pivot pin)
Loader Lift Capacity (Full Height)	120R (NSL): 704 lb (at pivot, full height)	LA243: 750 lb (pivot pin, max. height)
Loader Breakout Force	Not Published	LA243: 992 lbf

Warranty Length & Coverage	Powertrain 6 years or 2,000 hours, standard at no cost, covers residential and commercial use	Not Published

Find a John Deere dealer near you Find a Kubota dealer near you

John Deere 1M 25 vs Kubota BX2360: Quick Answers

Which has more horsepower, the John Deere 1M 25 or the Kubota BX2360?

The John Deere 1M 25 leads on engine hp at 23.2 hp hp, compared to 23 hp hp for the Kubota BX2360.

Which has more PTO horsepower, the John Deere 1M 25 or the Kubota BX2360?

The John Deere 1M 25 leads on pto hp at 17.8 hp hp, compared to 17.7 hp hp for the Kubota BX2360.

Which is heavier, the John Deere 1M 25 or the Kubota BX2360?

The John Deere 1M 25 leads on weight at 1,602 lb lb, compared to 1,290 lb lb for the Kubota BX2360.

Which has more loader lift capacity, the John Deere 1M 25 or the Kubota BX2360?

The Kubota BX2360 leads on loader lift at 750 lb lb, compared to 704 lb lb for the John Deere 1M 25.

Which has more three-point hitch lift capacity, the John Deere 1M 25 or the Kubota BX2360?

The John Deere 1M 25 leads on 3-pt lift (24 in) at 758 lb lb, compared to 680 lb lb for the Kubota BX2360.
