Bad Boy Tractors 3026 vs John Deere 1M 25

Across 8 measurable specs, the Bad Boy Tractors 3026 leads 8 categories to 0. Machine pages: Bad Boy Tractors 3026 and John Deere 1M 25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

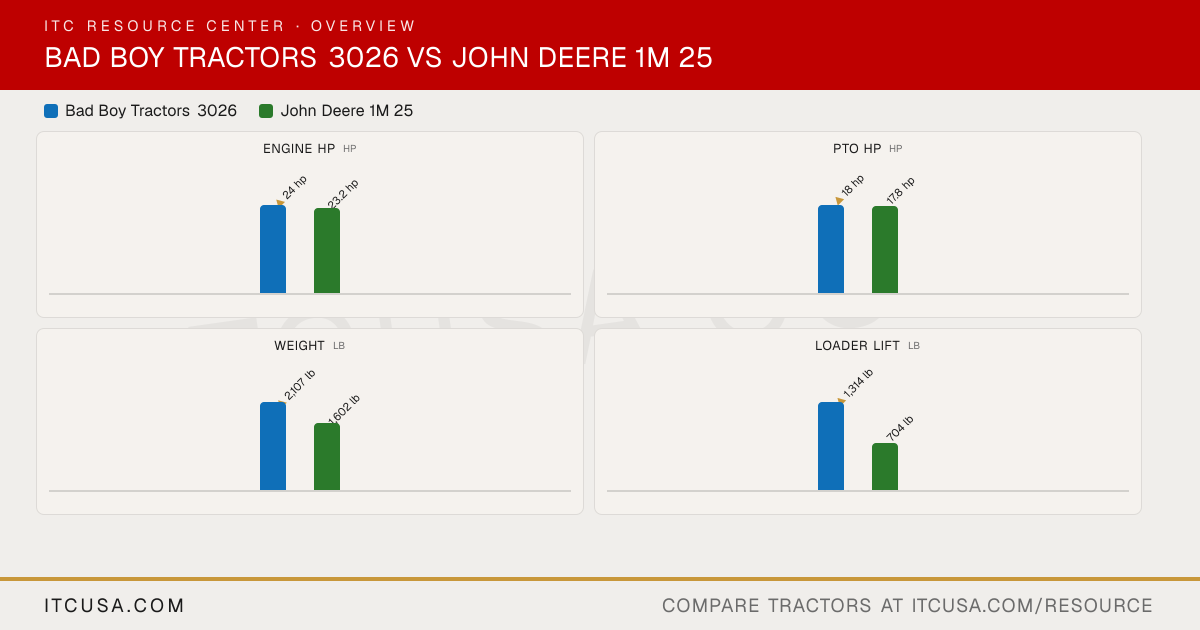

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors3026	John Deere1M 25

▶Engine
Engine Manufacturer	TYM	Yanmar
Engine Model	A1100N2	3TNV80F
Engine Type	3 cylinder, water-cooled diesel, swirl chamber, natural aspiration	Diesel
No. of Cylinders	3	3
Displacement	70.7 in³	77.2 in³
Rated Engine Speed	2600 rpm	Not Published
Engine Power (Gross)	24 hp	23.2 hp
PTO Power	18 hp	17.8 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Dry element	Not Published
Fuel System	Indirect injection (swirl chamber)	Not Published
Alternator	50 A, 12 V	Not Published
▶Hydraulics
Pump Type	Gear type pump with primary and secondary pumps	Not Published
Implement Flow	4.3 gpm	3.5 gpm
Steering Flow	3.1 gpm	3.5 gpm
Total Hydraulic Flow	7.4 gpm	7 gpm
Overall Hydraulic Pump Flow	7.7 gpm	7 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.08 gal	5.75 gal
Coolant Capacity	1.21 gal	Not Published
Crankcase Capacity	0.79 gal	Not Published
Transmission / Hydraulic System Capacity	2.90 gal	Not Published
Front Axle Fluid Capacity	0.79 gal	Not Published
▶PTO & Hitch
PTO Type	Live PTO (6 spline shaft)	Not Published
PTO Rear	540 / 960 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	2100 rpm
Category, 3-Point Hitch	Category 1	Limited Category 1
Hitch Lift Capacity	1,433 lb	Not Published
Hitch Lift Capacity (at 24”)	974 lb	758 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	Hydrostatic
No. of Speeds	3 range (L/M/H)	Infinite, forward and reverse
Max Travel Speed (Forward)	14.8 mph	Not Published
Max Travel Speed (Reverse)	14.8 mph	Not Published
Clutch	Dry, single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Not Published
▶Chassis, Steering & Controls
Frame Type	Steel frame with cast iron axles	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Adjustable seat, flips up and back for rear backhoe operation	Not Published
Front Axle Type	Selectable 4WD	Four-wheel drive
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	110 in	Not Published
Overall Width	53.9 in	47.3 in
Wheelbase	65.7 in	57.1 in
Ground Clearance	16.4 in	Not Published
Min. Turn Radius without Brakes	Not Published	Not Published
Height to Top of ROPS	91.4 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
▶Weight
Tractor Weight (Base)	2,107 lb	1602 lb (ROPS, open station)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	2019 lb
▶Tire Options
Tire Size & Options	R1 Agricultural (11.2-20 rear standard), R4 Industrial (25x8.50-14 / 14-17.5)	Not Published
R1 Agricultural - Front	7-16 6PR	Not Published
R1 Agricultural - Rear	11.2-20	Not Published
R3 Turf - Front	Not Published	18x8.50-10
R3 Turf - Rear	Not Published	26x12-12
R4 Industrial - Front	25x8.50-14	18x8.5-10
R4 Industrial - Rear	14-17.5	26x12-12
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	120R Loader
Loader Model	BBL300	120R
Loader Lift Height	87.5 in	72 in
Loader Lift Capacity (Full Height)	1,314 lb	704 lb (at pivot pin, full height)
Loader Breakout Force	1,960 lbf	1823 lbf (at pivot pin)
▶Warranty
Warranty Length & Coverage	Engine and powertrain: 72 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published
▶ITC Company Accessories
Accessories that fit	Branson TYM 2510 / 2610 and select 2400 series Brush Screen Insert $249.99	None tagged yet

Find a Bad Boy dealer near you→Find a John Deere dealer near you→

Bad Boy Tractors 3026 vs John Deere 1M 25: Quick Answers

Which has more horsepower, the Bad Boy Tractors 3026 or the John Deere 1M 25?

The Bad Boy Tractors 3026 leads on engine hp at 24 hp hp, compared to 23.2 hp hp for the John Deere 1M 25.

Which has more PTO horsepower, the Bad Boy Tractors 3026 or the John Deere 1M 25?

The Bad Boy Tractors 3026 leads on pto hp at 18 hp hp, compared to 17.8 hp hp for the John Deere 1M 25.

Which is heavier, the Bad Boy Tractors 3026 or the John Deere 1M 25?

The Bad Boy Tractors 3026 leads on weight at 2,107 lb lb, compared to 1,602 lb lb for the John Deere 1M 25.

Which has more loader lift capacity, the Bad Boy Tractors 3026 or the John Deere 1M 25?

The Bad Boy Tractors 3026 leads on loader lift at 1,314 lb lb, compared to 704 lb lb for the John Deere 1M 25.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 3026 or the John Deere 1M 25?

The Bad Boy Tractors 3026 leads on 3-pt lift (24 in) at 974 lb lb, compared to 758 lb lb for the John Deere 1M 25.
