Across 8 measurable specs, the John Deere 1M 25 leads 7 categories to 1. Machine pages: John Deere 1M 25 and Kubota BX25D.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 1M 25 | Kubota BX25D |
|---|
| Engine HP (hp) | ▲ 23.2 hp | 23 hp |
| PTO HP (hp) | ▲ 17.8 hp | 17.5 hp |
| Weight (lb) | ▲ 1,602 lb | 1,587 lb |
| Loader Lift (lb) | 704 lb | ▲ 745 lb |
| 3-Pt Lift (24 in) (lb) | ▲ 758 lb | 670 lb |
| Lift Height (in) | ▲ 72 in | 71.3 in |
| Breakout Force (lbf) | ▲ 1,823 lbf | 992 lbf |
| Hydraulic Flow (gpm) | ▲ 7 gpm | 6.2 gpm |
| Travel Speed (mph) | 9.1 mph | n/a |

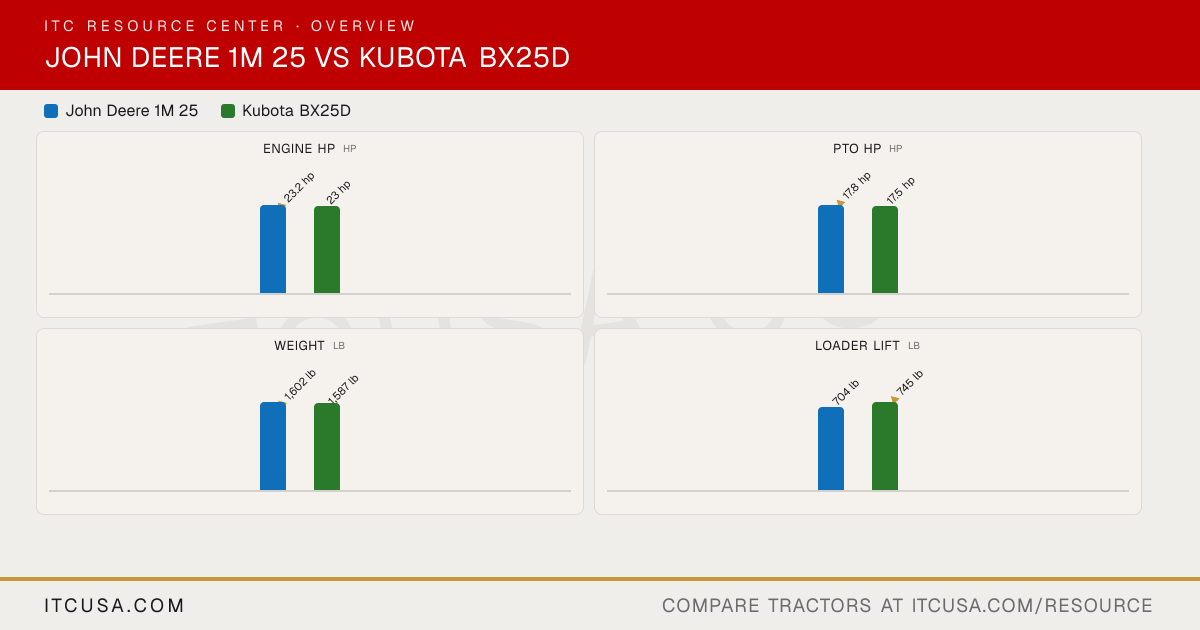

The headline numbers at a glance.
John Deere 1M 25Kubota BX25D
ITCUSA.COMITCUSA.COMITCUSA.COM
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere1M 25 | KubotaBX25D |
|---|
|
|---|
| Engine Manufacturer | Yanmar | Kubota |
|---|
| Engine Model | 3TNV80F-NCJT | D902 |
|---|
| Engine Type | Diesel | Diesel, 3-cylinder, liquid-cooled inline |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 77.3 in³ | 54.8 in³ |
|---|
| Rated Engine Speed | 3200 rpm | 3200 rpm |
|---|
| Engine Power (Gross) | 23.2 hp | 23 hp |
|---|
| PTO Power | 17.8 hp | 17.5 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Liquid-cooled |
|---|
| Air Cleaner | Not Published | Not Published |
|---|
| Fuel System | Not Published | Not Published |
|---|
| Alternator | Not Published | Not Published |
|---|
|
|---|
| Pump Type | Gear | Not Published |
|---|
| Implement Flow | 3.5 gpm | 6.2 gpm |
|---|
| Steering Flow | 3.5 gpm | Not Published |
|---|
| Total Hydraulic Flow | 7 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 7 gpm | 6.2 gpm |
|---|
| Hydraulic System Type | Open center | Open center |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | Not Published | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | Not Published |
|---|
|
|---|
| Fuel Tank Capacity | 5.57 gal | 6.6 gal |
|---|
| Coolant Capacity | Not Published | 2.8 qt |
|---|
| Crankcase Capacity | Not Published | 3.3 qt |
|---|
| Transmission / Hydraulic System Capacity | Not Published | Not Published |
|---|
| Front Axle Fluid Capacity | Not Published | Not Published |
|---|
|
|---|
| PTO Type | Independent | Independent (rear); independent (mid) |
|---|
| PTO Rear | 540 rpm | 540 rpm |
|---|
| Mid-PTO Availability | Standard, 2100 rpm | Mid-PTO, 2500 rpm |
|---|
| Category, 3-Point Hitch | Limited Category I | Category I (optional) |
|---|
| Hitch Lift Capacity | Not Published | 992 lb |
|---|
| Hitch Lift Capacity (at 24”) | 758 lb | 670 lb |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | Hydrostatic - 2 range | Not Published |
|---|
| No. of Speeds | Infinite (hydrostatic), 2 ranges forward and reverse | Not Published |
|---|
| Max Travel Speed (Forward) | 9.1 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 9.1 mph | Not Published |
|---|
| Clutch | Not Published | Not Published |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Foldable ROPS, standard equipment | Two-post folding ROPS (canopy optional) |
|---|
| Steering | Power steering | Hydrostatic type power steering |
|---|
| Brakes | Wet disc, left-hand pedal | Wet disc |
|---|
| Seat Suspension & Adjustability | Deluxe suspension seat with high back and adjustable settings; tilt steering | Not Published |
|---|
| Front Axle Type | Four-wheel drive | Not Published |
|---|
| Front Axle Rating | Not Published | Not Published |
|---|
| Drawbar Capacity | Not Published | 551 lb |
|---|
|
|---|
| Overall Length with 3-Point Hitch | Not Published | 95.5 in (tractor alone) |
|---|
| Overall Width | 47.22 in (R3 tires); 47.32 in (R4 tires) | 44.5 in |
|---|
| Wheelbase | 57.1 in | 55.1 in |
|---|
| Ground Clearance | Not Published | 8.7 in (front axle) |
|---|
| Min. Turn Radius without Brakes | Not Published | Not Published |
|---|
| Height to Top of ROPS | Not Published | 87.2 in |
|---|
| Height to Top of ROPS (folded) | Not Published | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | Approx. 1,602 lb open station; 2,019 lb cab (shipping weight) | 1587 lb (tractor only) |
|---|
| Weight with ROPS and Loader | Not Published | 2475 lb |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R3 Turf, R3 Hybrid, or R4 Industrial | 18x8.5-10 front, 26x12-12 rear (Turf/Bar/Industrial) |
|---|
| R1 Agricultural - Front | Not Published | Not Published |
|---|
| R1 Agricultural - Rear | Not Published | Not Published |
|---|
| R3 Turf - Front | 18x8.50-10 | Not Published |
|---|
| R3 Turf - Rear | 26x12-12 | Not Published |
|---|
| R4 Industrial - Front | 18x8.5-10 | 18x8.5-10 |
|---|
| R4 Industrial - Rear | 26x12-12 | 26x12-12 |
|---|
|
|---|
| Quick Attach Loader System | Quik-Park | LA240A quick attach loader |
|---|
| Loader Model | 120R | LA240A; LA240A AU-SG (spill guard) |
|---|
| Loader Lift Height | 120R: 72 in | LA240A: 71.3 in (at pin) |
|---|
| Loader Lift Capacity (Full Height) | 120R (NSL): 704 lb | LA240A: 745 lb (at pin) |
|---|
| Loader Breakout Force | 1823 lbf (at pivot pin) | LA240A: 992 lb (at 19.7 in) (19.7 in forward of pivot pin) |
|---|
|
|---|
| Warranty Length & Coverage | 6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use | Not Published |
|---|
John Deere 1M 25 vs Kubota BX25D: Quick Answers
- Which has more horsepower, the John Deere 1M 25 or the Kubota BX25D?
- The John Deere 1M 25 leads on engine hp at 23.2 hp hp, compared to 23 hp hp for the Kubota BX25D.
- Which has more PTO horsepower, the John Deere 1M 25 or the Kubota BX25D?
- The John Deere 1M 25 leads on pto hp at 17.8 hp hp, compared to 17.5 hp hp for the Kubota BX25D.
- Which is heavier, the John Deere 1M 25 or the Kubota BX25D?
- The John Deere 1M 25 leads on weight at 1,602 lb lb, compared to 1,587 lb lb for the Kubota BX25D.
- Which has more loader lift capacity, the John Deere 1M 25 or the Kubota BX25D?
- The Kubota BX25D leads on loader lift at 745 lb lb, compared to 704 lb lb for the John Deere 1M 25.
- Which has more three-point hitch lift capacity, the John Deere 1M 25 or the Kubota BX25D?
- The John Deere 1M 25 leads on 3-pt lift (24 in) at 758 lb lb, compared to 670 lb lb for the Kubota BX25D.
