Across 9 measurable specs, the TYM T25 leads 7 categories to 2. Machine pages: John Deere 2025R and TYM T25 .
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

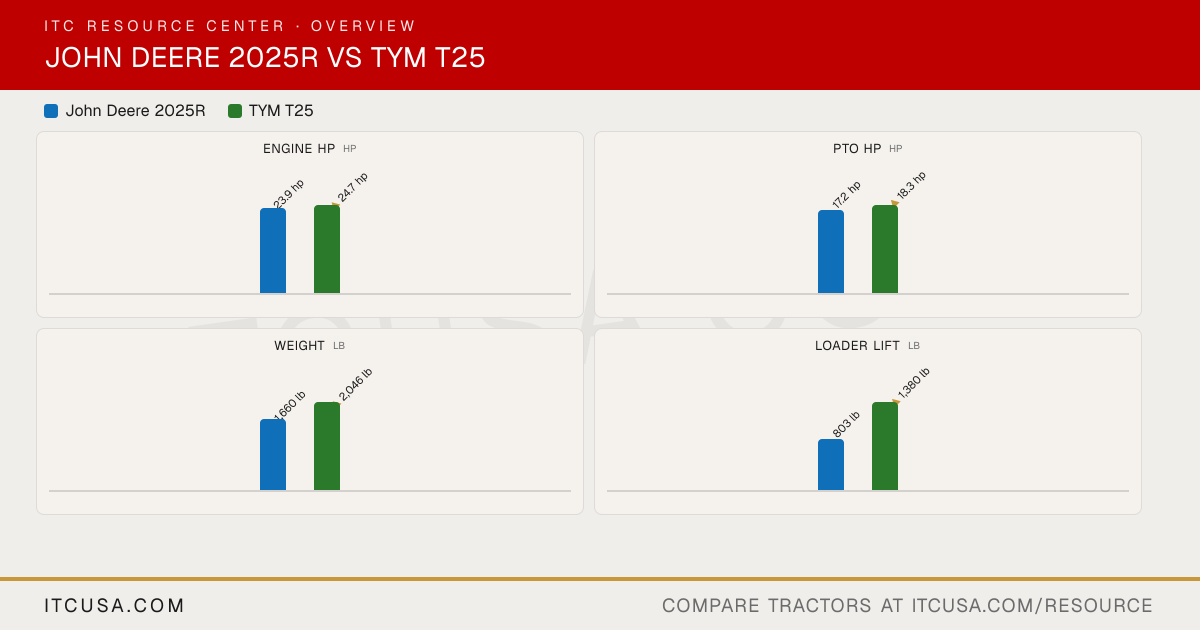

Category Verdict Spec John Deere 2025R TYM T25 Engine HP (hp) 23.9 hp ▲ 24.7 hpPTO HP (hp) 17.2 hp ▲ 18.3 hpWeight (lb) 1,660 lb ▲ 2,046 lbLoader Lift (lb) 803 lb ▲ 1,380 lb3-Pt Lift (24 in) (lb) 915 lb ▲ 1,230 lbLift Height (in) 78.9 in ▲ 87.2 inBreakout Force (lbf) ▲ 2,508 lbf2,059 lbf Hydraulic Flow (gpm) ▲ 7 gpm6.9 gpm Travel Speed (mph) 12.3 mph ▲ 13.7 mph
Overview Loader Work PTO Work
The headline numbers at a glance.
John Deere 2025R TYM T25
ITCUSA.COM ITCUSA.COM ITCUSA.COM
Share ↗ Share Copy link ↓ Image 𝕏 f ✉ Save to my research Full Spec Sheet Every published spec, side by side, including the details the graphs above don't chart.
Spec John Deere 2025R TYM T25
▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV80F-NCJT 3TNV80F Engine Type Diesel 3-cylinder, naturally aspirated diesel No. of Cylinders Not Published 3 Displacement 77 in³ 77.3 in³ Rated Engine Speed 3200 rpm 3000 rpm Engine Power (Gross) 23.9 hp 24.7 hp PTO Power 17.2 hp 18.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Water-cooled Air Cleaner Dual element Single dry Fuel System Indirect injection IDI Alternator 40 A, 12 V 40 A, 12 V ▶ HydraulicsPump Type Not Published Single gear pump Implement Flow 3.5 gpm 4.2 gpm Steering Flow 3.5 gpm 2.8 gpm Total Hydraulic Flow 7 gpm 6.9 gpm Overall Hydraulic Pump Flow 7 gpm 6.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 3.5 gpm implement circuit; 7.0 gpm combined pump output Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.6 gal Coolant Capacity 0.84 gal 3.8 qt Crankcase Capacity 0.84 gal 2.9 qt Transmission / Hydraulic System Capacity 3.5 gal 4.5 gal Front Axle Fluid Capacity 0.89 gal 4.7 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability 2000 rpm Available (Mid-PTO kit) Category, 3-Point Hitch Limited Category I Category I Hitch Lift Capacity 1,433 lb 1,551 lb Hitch Lift Capacity (at 24”) 915 lb 1,230 lb Lift Control Type Position Control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic HST No. of Speeds Two range (Hi and Lo) Infinite 2-Range Max Travel Speed (Forward) 12.3 mph 13.7 mph Max Travel Speed (Reverse) Not Published Not Published Clutch wet disc Not Published Differential Lock & Limited Slip Options Differential lock: Yes; Limited slip differential: No Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power Hydrostatic Brakes Wet Disc Wet disc Seat Suspension & Adjustability Fore/aft adjustable; seat flips forward for weather protection; no mechanical suspension listed Adjustable suspension seat w/ armrests Front Axle Type Four-wheel drive Selectable 4WD Front Axle Rating 1,940 lb Not Published Drawbar Capacity 562 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 109.2 in 102.8 in Overall Width 37 in (min); 51 in (max) 50 in Wheelbase 63 in 61 in Ground Clearance 12.5 in 10.2 in Min. Turn Radius without Brakes Not Published 111.8 in Height to Top of ROPS 89 in 91.3 in Height to Top of ROPS (folded) 66.8 in Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 1,660 lb 2,046 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 6-12 4PR R1 Agricultural - Rear Not Published 9.5-20 6PR R3 Turf - Front 23x8.50-12 or R3 Radial: 220/55-R12 Turf Master 23x8.50-12 NHS TL 4PR R3 Turf - Rear 12-16.5 or R3 Radial: 280/70 R16 Multi-Trac CS 33x12.50-16.5 NHS TL 4PR R4 Industrial - Front 23x8.50-12 Trac Chief 23x8.50-14 NHS TL 4PR R4 Industrial - Rear 31x12.00-16.5 Not Published ▶ Loader & AttachmentsQuick Attach Loader System H130 Loader (Quik-Park); 120R Loader (NSL standard, MSL optional, Quik-Park) TL25: Quick attach mechanism Loader Model H130 or 120R TL25 Loader Lift Height H130: 78.9 in; 120R: 72 in (at pivot pin) TL25: 87.2 in Loader Lift Capacity (Full Height) 120R (NSL): 803 lb (at pivot pin, full height) TL25: 1,380 lb Loader Breakout Force H130: 2,508 lbf (at pivot pin); 120R: Not Published TL25: 2,059 lb ▶ WarrantyWarranty Length & Coverage 2-year bumper-to-bumper (comprehensive) + 6-year/2,000-hour powertrain warranty Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
John Deere 2025R vs TYM T25: Quick Answers
Which has more horsepower, the John Deere 2025R or the TYM T25? The TYM T25 leads on engine hp at 24.7 hp hp, compared to 23.9 hp hp for the John Deere 2025R.
Which has more PTO horsepower, the John Deere 2025R or the TYM T25? The TYM T25 leads on pto hp at 18.3 hp hp, compared to 17.2 hp hp for the John Deere 2025R.
Which is heavier, the John Deere 2025R or the TYM T25? The TYM T25 leads on weight at 2,046 lb lb, compared to 1,660 lb lb for the John Deere 2025R.
Which has more loader lift capacity, the John Deere 2025R or the TYM T25? The TYM T25 leads on loader lift at 1,380 lb lb, compared to 803 lb lb for the John Deere 2025R.
Which has more three-point hitch lift capacity, the John Deere 2025R or the TYM T25? The TYM T25 leads on 3-pt lift (24 in) at 1,230 lb lb, compared to 915 lb lb for the John Deere 2025R. More Head-to-Heads
