Bad Boy Tractors 1022 vs TYM T25

Across 9 measurable specs, the TYM T25 leads 9 categories to 0. Machine pages: Bad Boy Tractors 1022 and TYM T25.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

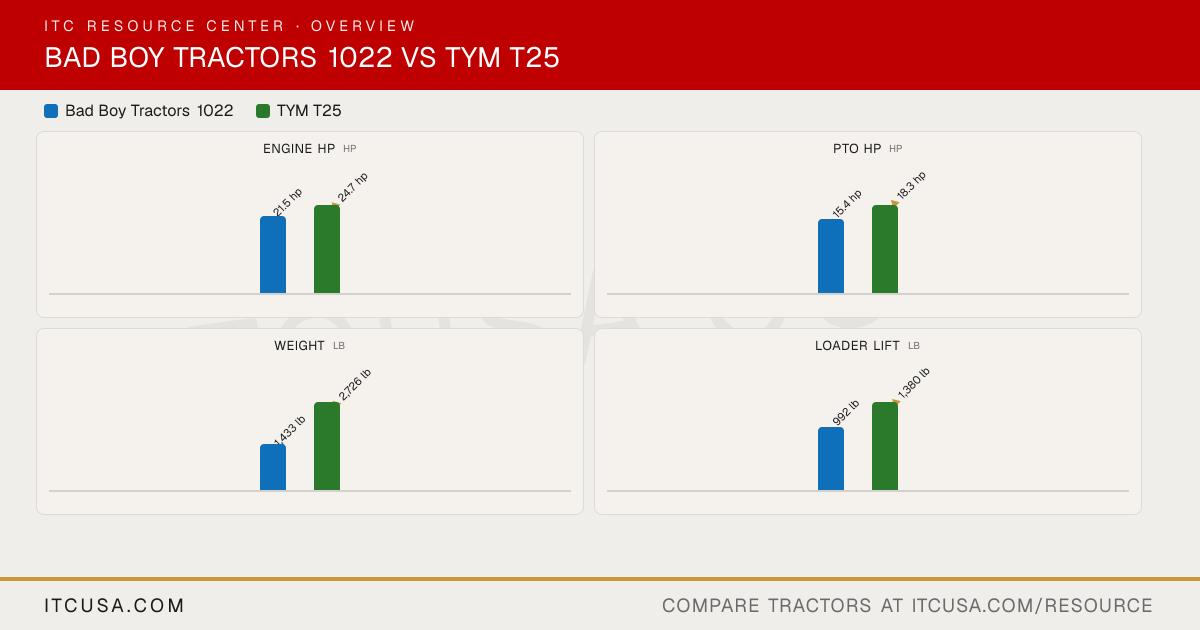

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	TYMT25

▶Engine
Engine Manufacturer	Yanmar	Yanmar
Engine Model	3TNM74F	3TNV80F
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	60.6 in³	77.3 in³
Rated Engine Speed	3200 rpm	3000 rpm
Engine Power (Gross)	21.5 hp	24.7 hp
PTO Power	15.4 hp	18.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Single dry
Fuel System	Indirect injection	IDI
Alternator	40 A, 12 V	40 A, 12 V
▶Hydraulics
Pump Type	Single gear pump with flow divider	Single gear pump
Implement Flow	4.17 gpm	4.2 gpm
Steering Flow	2.11 gpm	2.8 gpm
Total Hydraulic Flow	6.3 gpm	6.9 gpm
Overall Hydraulic Pump Flow	6.97 gpm	6.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	1
No. of Optional Remote Valves	1	Not Published
▶Fluid Capacity
Fuel Tank Capacity	6.6 gal	6.6 gal
Coolant Capacity	3.7 qt	3.8 qt
Crankcase Capacity	2.1 qt	2.9 qt
Transmission / Hydraulic System Capacity	3.6 gal	4.5 gal
Front Axle Fluid Capacity	2.6 qt	4.7 qt
▶PTO & Hitch
PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Available (Mid-PTO kit)
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,551 lb
Hitch Lift Capacity (at 24”)	679 lb	1,230 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	Hydrostatic (HST)	HST
No. of Speeds	2 range	Infinite 2-Range
Max Travel Speed (Forward)	7.8 mph	13.7 mph
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	Not Published
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Differential lock
▶Chassis, Steering & Controls
Frame Type	Sub-compact tractor	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Wet disc	Wet disc
Seat Suspension & Adjustability	Not Published	Heavy duty mechanical suspension seat, manually adjustable for weight
Front Axle Type	Selectable 4WD	4WD
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
▶Dimensions & Maneuverability
Overall Width	44.5 in	50 in
Wheelbase	53.1 in	61 in
Ground Clearance	8.3 in	10.2 in
Min. Turn Radius without Brakes	86.6 in	111.8 in
Height to Top of ROPS	86.6 in	91.3 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published
Overall Length	94.2 in (with 3-point hitch)	102.8 in (with 3-point hitch)
▶Weight
Tractor Weight (Base)	1,433 lb	2,046 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	16x7.50-9	6-12 4PR
R1 Agricultural - Rear	24x12.00-12	9.5-20 6PR
R3 Turf - Front	16x7.50-8	Turf Master 23x8.50-12 NHS TL 4PR
R3 Turf - Rear	26x12.00-12	Multi-Trac CS 33x12.50-16.5 NHS TL 4PR
R4 Industrial - Front	18x8.5-10	Trac Chief 23x8.50-14 NHS TL 4PR
R4 Industrial - Rear	26x12-12	36X12.5-15
▶Loader & Attachments
Quick Attach Loader System	Quick attach front loader	TL25: Quick attach mechanism
Loader Model	BBL100	TL25
Loader Lift Height	78.5 in (at pivot pin)	TL25: 87.2 in
Loader Lift Capacity (Full Height)	617 lb (at pivot pin)	TL25: 1,380 lb (at pivot pin)
Loader Breakout Force	1,253 lbf	TL25: 2,059 lb (at pivot pin, ground level)
▶Warranty
Warranty Length & Coverage	Basic 24 months or 1,000 hours; powertrain 84 months or 2,000 hours; loader and backhoe 24 months from shipment, 12 months from sale, or 500 hours	Basic 2 years or 2,000 hours; powertrain 3,000 hours maximum, parts and labor; loaders and backhoes 12 months
▶ITC Company Accessories
Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T264 / T25 Tractor Step $145.00 Rural King RK25 Hydraulic Valve Cover $124.99 TYM T25 Rural King RK25 Brush Guard Insert $249.99

Find a Bad Boy dealer near you→Find a TYM dealer near you→

Bad Boy Tractors 1022 vs TYM T25: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the TYM T25?

The TYM T25 leads on engine hp at 24.7 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the TYM T25?

The TYM T25 leads on pto hp at 18.3 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the TYM T25?

The TYM T25 leads on weight at 2,046 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the TYM T25?

The TYM T25 leads on loader lift at 1,380 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the TYM T25?

The TYM T25 leads on 3-pt lift (24 in) at 1,230 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
