Across 8 measurable specs, the Mahindra Max 28XL leads 6 categories to 2. Machine pages: John Deere 2520 and Mahindra Max 28XL.
Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.
Category Verdict
| Spec | John Deere 2520 | Mahindra Max 28XL |
|---|
| Engine HP (hp) | 26.5 hp | ▲ 28 hp |
| PTO HP (hp) | 20.5 hp | ▲ 23.5 hp |
| Weight (lb) | ▲ 1,865 lb | 1,863 lb |
| Loader Lift (lb) | 800 lb | ▲ 1,402 lb |
| 3-Pt Lift (24 in) (lb) | 1,150 lb | ▲ 2,205 lb |
| Lift Height (in) | 78.5 in | ▲ 82.7 in |
| Breakout Force (lbf) | 2,239 lbf | ▲ 2,690 lbf |
| Hydraulic Flow (gpm) | ▲ 10.5 gpm | 4.6 gpm |
| Travel Speed (mph) | 13 mph | n/a |

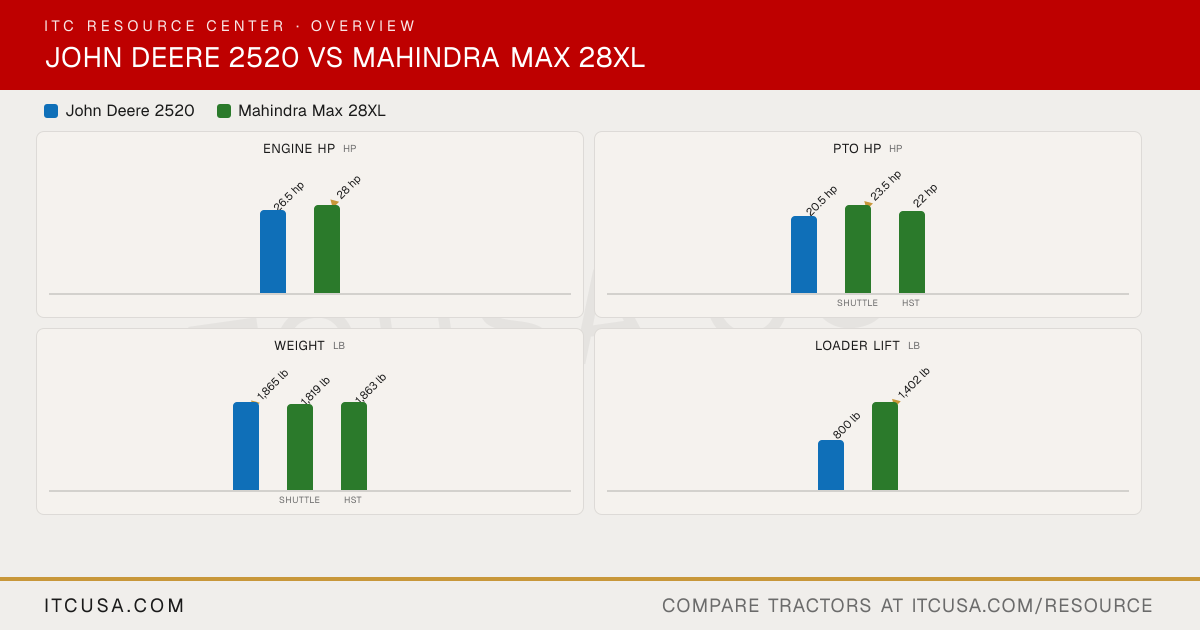

The headline numbers at a glance.
John Deere 2520Mahindra Max 28XL
ITCUSA.COMITCUSA.COMITCUSA.COM
Weightlb
▲1,865 lb
1,819 lb
1,863 lb
ShuttleHST
Share↓ Image𝕏f✉ Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
| Spec | John Deere2520 | MahindraMax 28XL |
|---|
|
|---|
| Engine Manufacturer | Yanmar | Mitsubishi |
|---|
| Engine Model | 3TNV82A-BMJK | S3L2 |
|---|
| Engine Type | 3-cylinder liquid-cooled diesel | Four stroke, indirect injection water-cooled, diesel |
|---|
| No. of Cylinders | 3 | 3 |
|---|
| Displacement | 81.2 in³ | 80.4 in³ |
|---|
| Rated Engine Speed | 2600 rpm | 2600 rpm |
|---|
| Engine Power (Gross) | 26.5 hp | 28 hp |
|---|
| PTO Power | 20.5 hp | Shuttle: 23.5 hp; HST: 22 hp |
|---|
| Engine Emissions Constraints | Not Published | Not Published |
|---|
| Cooling System Type | Liquid-cooled | Not Published |
|---|
| Air Cleaner | Dry type, two stage | Not Published |
|---|
| Fuel System | Not Published | Direct injection |
|---|
| Alternator | 20 A | 50 A, 12 V |
|---|
|
|---|
| Pump Type | Not Published | Not Published |
|---|
| Implement Flow | 5.0 gpm | 4.6 gpm |
|---|
| Steering Flow | 5.5 gpm | 2.7 gpm |
|---|
| Total Hydraulic Flow | 10.5 gpm | Not Published |
|---|
| Overall Hydraulic Pump Flow | 10.5 gpm | Not Published |
|---|
| Hydraulic System Type | Not Published | Open center, full live hydraulic with position control |
|---|
| Rear Remote Hydraulic Flow | Not Published | Not Published |
|---|
| No. of Standard Remote Valves | 2 | Not Published |
|---|
| No. of Optional Remote Valves | Not Published | 1 spool optional |
|---|
|
|---|
| Fuel Tank Capacity | 7.1 gal | 6.1 gal |
|---|
| Coolant Capacity | 4.1 qt | Not Published |
|---|
| Crankcase Capacity | 3.0 qt | Not Published |
|---|
| Transmission / Hydraulic System Capacity | 3.9 gal | Not Published |
|---|
| Front Axle Fluid Capacity | 3.6 qt | Not Published |
|---|
|
|---|
| PTO Type | Independent | Trans |
|---|
| PTO Rear | 540 rpm (rear PTO standard) | 540 rpm @ 2376 rpm |
|---|
| Mid-PTO Availability | Standard | Optional, 2000 rpm @ 2526 rpm |
|---|
| Category, 3-Point Hitch | Category 1 | Category 1, with check chains |
|---|
| Hitch Lift Capacity | 1433 lb | 2205 lb |
|---|
| Hitch Lift Capacity (at 24”) | 1150 lb | Not Published |
|---|
| Lift Control Type | Position control | Position control |
|---|
|
|---|
| Transmission Type | 2-range hydrostatic | Constant mesh on gear shift and synchro mesh on F/R shuttle |
|---|
| No. of Speeds | Infinite forward and reverse, 2 ranges | Infinite |
|---|
| Max Travel Speed (Forward) | 13.0 mph | Not Published |
|---|
| Max Travel Speed (Reverse) | 13.0 mph | Not Published |
|---|
| Clutch | Not Published | Single plate, dry |
|---|
| Differential Lock & Limited Slip Options | Not Published | Not Published |
|---|
|
|---|
| Frame Type | Folding ROPS standard | Not Published |
|---|
| Steering | Power steering | Hydrostatic Power |
|---|
| Brakes | Wet disk | Wet disc |
|---|
| Seat Suspension & Adjustability | Not Published | Not Published |
|---|
| Front Axle Type | Mechanical front wheel drive (MFWD), standard, all ranges, engages on the go | Not Published |
|---|
| Front Axle Rating | 1940 lb | Not Published |
|---|
| Drawbar Capacity | Not Published | Not Published |
|---|
|
|---|
| Overall Length with 3-Point Hitch | 108.9 in | 109.3 in |
|---|
| Overall Width | 51.0 in (minimum, standard tires) | 54.3 in |
|---|
| Wheelbase | 65.2 in | Not Published |
|---|
| Ground Clearance | 13 in (front axle); 11 in (rear axle drawbar) | Not Published |
|---|
| Min. Turn Radius without Brakes | 8.2 ft | 6.6 ft |
|---|
| Height to Top of ROPS | 90 in | Not Published |
|---|
| Height to Top of ROPS (folded) | 68.9 in | Not Published |
|---|
| Height to Top of Cab Model | Not Published | Not Published |
|---|
|
|---|
| Tractor Weight (Base) | 1865 lb | Shuttle: 1819 lb; HST: 1863 lb |
|---|
| Weight with ROPS and Loader | Not Published | Not Published |
|---|
| Weight with Cab and Loader | Not Published | Not Published |
|---|
|
|---|
| Tire Size & Options | R3 turf standard (24x8.5-14 front, 36x14.00-15 rear); R4 industrial optional (23x8.5-12 front, 14-17.5 rear) | Not Published |
|---|
| R1 Agricultural - Front | Not Published | 7x12 |
|---|
| R1 Agricultural - Rear | Not Published | 9.5x16 |
|---|
| R3 Turf - Front | 24x8.5-14 | 23x8.5-12 |
|---|
| R3 Turf - Rear | 36x14.00-15 | 33x12.5-16.5 |
|---|
| R4 Industrial - Front | 23x8.5-12 | 23x8.5-12 |
|---|
| R4 Industrial - Rear | 14-17.5 | 12x16.5 |
|---|
|
|---|
| Quick Attach Loader System | Quik-Park loader mounting; 200CX attaches and detaches in under 3 minutes with no tools | Skid-steer style loader couplers |
|---|
| Loader Model | 200CX | ML205 (named by both Mahindra spec sheets; a US listing calls the same loader the ML202) |
|---|
| Loader Lift Height | 200CX: 78.5 in | ML205: 82.7 in |
|---|
| Loader Lift Capacity (Full Height) | 200CX: 800 lb (at full height, measured at pivot) | ML205: 1402 lb |
|---|
| Loader Breakout Force | 200CX: 2239 lbf (at pin) | ML205: 2690 lb |
|---|
|
|---|
| Warranty Length & Coverage | 3-year / 2,000-hour limited warranty (as sold new) | Not Published |
|---|
John Deere 2520 vs Mahindra Max 28XL: Quick Answers
- Which has more horsepower, the John Deere 2520 or the Mahindra Max 28XL?
- The Mahindra Max 28XL leads on engine hp at 28 hp hp, compared to 26.5 hp hp for the John Deere 2520.
- Which has more PTO horsepower, the John Deere 2520 or the Mahindra Max 28XL?
- The Mahindra Max 28XL leads on pto hp at 23.5 hp hp, compared to 20.5 hp hp for the John Deere 2520.
- Which is heavier, the John Deere 2520 or the Mahindra Max 28XL?
- The John Deere 2520 leads on weight at 1,865 lb lb, compared to 1,863 lb lb for the Mahindra Max 28XL.
- Which has more loader lift capacity, the John Deere 2520 or the Mahindra Max 28XL?
- The Mahindra Max 28XL leads on loader lift at 1,402 lb lb, compared to 800 lb lb for the John Deere 2520.
- Which has more three-point hitch lift capacity, the John Deere 2520 or the Mahindra Max 28XL?
- The Mahindra Max 28XL leads on 3-pt lift (24 in) at 2,205 lb lb, compared to 1,150 lb lb for the John Deere 2520.
