Which has more horsepower, the John Deere 3025E or the John Deere 3032E?

The John Deere 3032E leads on engine hp at 31.1 hp hp, compared to 24.4 hp hp for the John Deere 3025E.

Which has more PTO horsepower, the John Deere 3025E or the John Deere 3032E?

The John Deere 3032E leads on pto hp at 25 hp hp, compared to 17.4 hp hp for the John Deere 3025E.

Which has more loader lift capacity, the John Deere 3025E or the John Deere 3032E?

They are effectively tied: both machines are rated at 1,186 lb lb for loader lift.

Which has more three-point hitch lift capacity, the John Deere 3025E or the John Deere 3032E?

They are effectively tied: both machines are rated at 1,356 lb lb for 3-pt lift (24 in).

John Deere 3025E vs John Deere 3032E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the John Deere 3032E leads 3 categories to 0 (4 tied). Machine pages: John Deere 3025E and John Deere 3032E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025E	John Deere 3032E
Engine HP (hp)	24.4 hp	▲ 31.1 hp
PTO HP (hp)	17.4 hp	▲ 25 hp
Loader Lift (lb)	1,186 lb	1,186 lb
3-Pt Lift (24 in) (lb)	1,356 lb	1,356 lb
Lift Height (in)	84 in	84 in
Breakout Force (lbf)	1,704 lbf	1,704 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 10.3 gpm

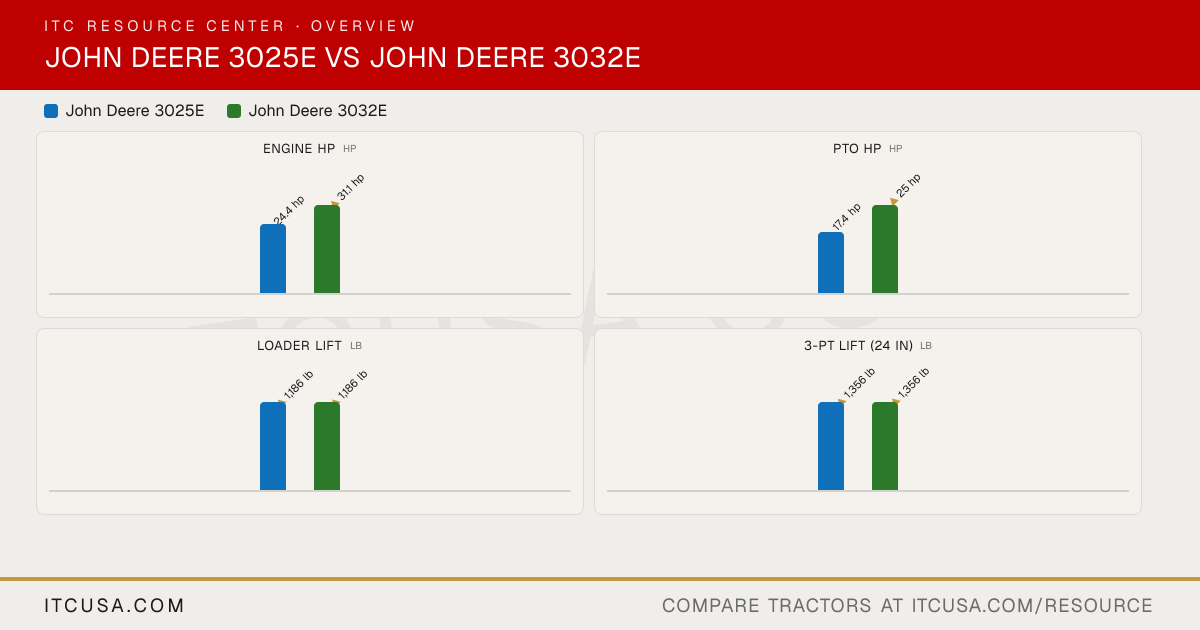

The headline numbers at a glance.

John Deere 3025EJohn Deere 3032E

Engine HPhp

24.4 hp

▲31.1 hp

PTO HPhp

17.4 hp

▲25 hp

Weightlb

—

Loader Liftlb

▲1,186 lb

3-Pt Lift (24 in)lb

▲1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	John Deere3032E


PTO Power	17.4 hp	25 hp
Alternator	55 A, 12 V	55 A, 12 V
Air Cleaner	Dry, dual element	Dry, dual element
Engine Type	Diesel, naturally aspirated, direct injection	Diesel, naturally aspirated
Fuel System	Direct injection	High pressure common rail direct injection
Displacement	100.2 in³	100.2 in³
No. of Cylinders	3	3
Rated Engine Speed	2400 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Water pump
Engine Manufacturer	Yanmar	Yanmar
Engine Power (Gross)	24.4 hp @ 400 rpm	31.1 hp @ 500 rpm
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	Not Applicable

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Dual gear	Dual gear
Steering Flow	4.0 gpm	4.4 gpm
Implement Flow	5.3 gpm	5.9 gpm
Total Hydraulic Flow	9.3 gpm	10.3 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	9.3 gpm	10.3 gpm
No. of Optional Remote Valves	Up to 2 (optional)	Up to 2 (optional)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	540 rpm	540 rpm
PTO Type	Not Published	Independent
Lift Control Type	Not Published	Position control
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	Not Published
Mid-PTO Availability	Not Published	Not Applicable
Category, 3-Point Hitch	Category 1	Category 1
Hitch Lift Capacity (at 24”)	1,356 lb @ 24 in behind link arms	1,356 lb @ 24 in behind center link

R3 Turf - Rear	41X14-20	41X14-20
R3 Turf - Front	27X8.50-15	27X8.50-15
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	15.00-19.5 or 43X16-20	15.00-19.5 or 43X16-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25X8.50-14 or 27X8.50-15
R1 Agricultural - Rear	11.2-24	11.2-24
R1 Agricultural - Front	7-14	7-14

Coolant Capacity	1.24 gal	1.3 gal
Crankcase Capacity	1.06 gal	4.7 qt (with filter)
Fuel Tank Capacity	7.5 U.S. gal	7.5 gal
Front Axle Fluid Capacity	3.4 qt	1 gal
Transmission / Hydraulic System Capacity	5.5 gal	5.5 gal

Loader Lift Height	84 in	84.0 in
Loader Breakout Force	1,704 lb	1,704 lb
Quick Attach Loader System	Quick-change attachment carrier	Quick-change attachment carrier
Loader Lift Capacity (Full Height)	1,186 lb	1,186 lb

Clutch	Not Applicable	Not Applicable
No. of Speeds	Not Published	Infinite (2-range HST)
Transmission Type	Hydrostatic transmission (HST)	Hydrostatic (2-range)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Not Published

Brakes	Wet disc	Wet disc
Steering	Hydrostatic	Power steering
Frame Type	Open operator station (OOS)	Not Published
Front Axle Type	4WD (MFWD)	4WD (MFWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	62.8 in	62.8 in
Overall Width	Not Published	Not Published
Ground Clearance	9.4 in	9.4 in
Height to Top of ROPS	Not Published	Not Published
Height to Top of Cab Model	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	Not Published	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	9.4 ft (2.9 m)
Overall Length with 3-Point Hitch	Not Published	Not Published

John Deere 3025E vs John Deere 3032E: Quick Answers

Which has more horsepower, the John Deere 3025E or the John Deere 3032E?: The John Deere 3032E leads on engine hp at 31.1 hp hp, compared to 24.4 hp hp for the John Deere 3025E.
Which has more PTO horsepower, the John Deere 3025E or the John Deere 3032E?: The John Deere 3032E leads on pto hp at 25 hp hp, compared to 17.4 hp hp for the John Deere 3025E.
Which has more loader lift capacity, the John Deere 3025E or the John Deere 3032E?: They are effectively tied: both machines are rated at 1,186 lb lb for loader lift.
Which has more three-point hitch lift capacity, the John Deere 3025E or the John Deere 3032E?: They are effectively tied: both machines are rated at 1,356 lb lb for 3-pt lift (24 in).
