John Deere 3025E vs LS Tractor XG3025

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XG3025 leads 7 categories to 0 (1 tied). Machine pages: John Deere 3025E and LS Tractor XG3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025E	LS Tractor XG3025
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.4 hp	▲ 19.2 hp
Weight (lb)	2,266 lb	▲ 2,469 lb
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,433 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 12.5 gpm

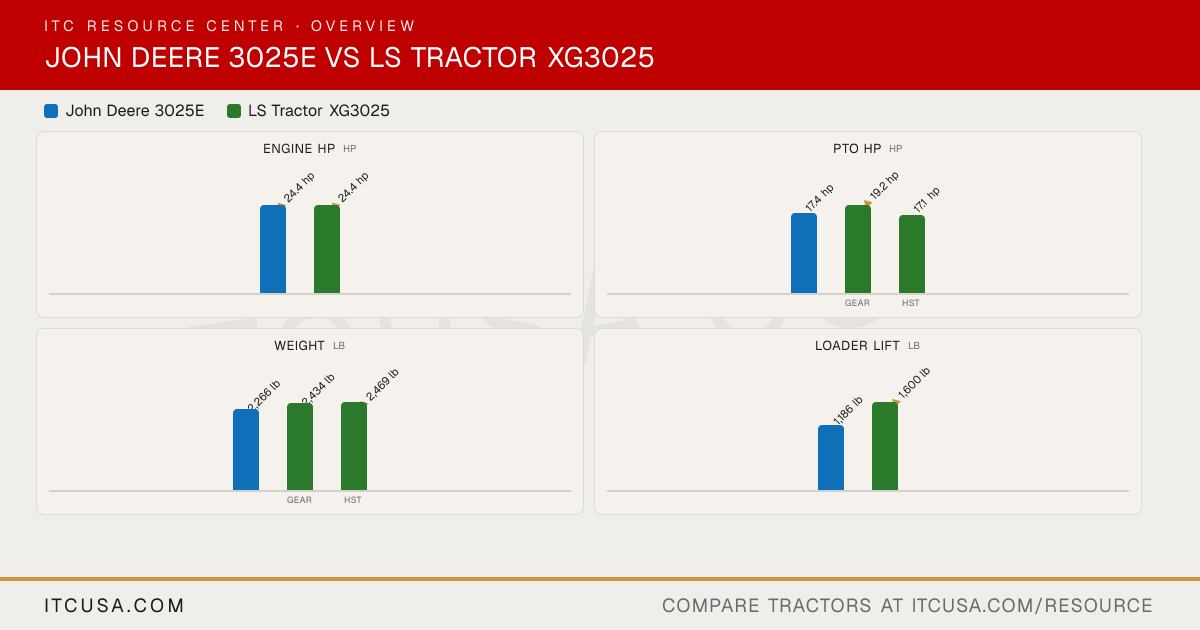

The headline numbers at a glance.

John Deere 3025ELS Tractor XG3025

Engine HPhp

▲24.4 hp

PTO HPhp

17.4 hp

▲19.2 hp

17.1 hp

gearHST

Weightlb

2,266 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

1,356 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	LS TractorXG3025


Engine Manufacturer	Yanmar	Mitsubishi (MHI)
Engine Model	3TNV88F-EPJT2	S3L2
Engine Type	Diesel, naturally aspirated, direct injection	Indirect injection, swirl chamber diesel
No. of Cylinders	3	3
Displacement	95.7 in³	80.4 in³
Rated Engine Speed	2400 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.4 hp	XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Water-cooled
Air Cleaner	Dry type with safety element	Dry
Fuel System	Direct injection	Indirect injection
Alternator	55 A, 12 V	50 A, 12 V

Pump Type	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston	Gear pump, engine driven
Implement Flow	5.3 gpm	7.9 gpm
Steering Flow	4.0 gpm	4.6 gpm
Total Hydraulic Flow	9.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	9.3 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard
No. of Optional Remote Valves	Up to 2 (optional)	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	7.5 gal	7.4 gal
Coolant Capacity	1.3 gal	1.3 gal
Crankcase Capacity	4.5 qt	1.1 gal
Transmission / Hydraulic System Capacity	5.5 gal	8.5 gal
Front Axle Fluid Capacity	1.0 gal	1.7 gal

PTO Type	Not Published	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,808 lb
Hitch Lift Capacity (at 24”)	1356 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic transmission (HST)	XG3025 (gear): Synchro shuttle; XG3025H (HST): HST
No. of Speeds	Not Published	XG3025 (gear): F12 x R12; XG3025H (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	XG3025 (gear): dry single clutch; XG3025H (HST): not applicable
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock (pedal)

Frame Type	Open operator station (OOS)	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (MFWD)	Not Published
Front Axle Rating	1760 lb	Not Published
Drawbar Capacity	880 lb	Not Published

Overall Length with 3-Point Hitch	115.9 in	118 in
Overall Width	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)	54 in
Wheelbase	62.8 in	66 in
Ground Clearance	12.7 in (R4 tires)	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	10.5 ft
Height to Top of ROPS	95.3 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2266 lb	XG3025 (gear): 2,434 lb; XG3025H (HST): 2,469 lb
Weight with ROPS and Loader	2972 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Ag, industrial or turf tires
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	25x8.5-14
R3 Turf - Rear	41X14-20	41x14-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25x8.5-14
R4 Industrial - Rear	15.00-19.5 or 43X16-20	43x16-20

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	LL3110
Loader Lift Height	84 in	LL3110: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	LL3110: 1,600 lb
Loader Breakout Force	1,704 lb	LL3110: 2,637 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you Find a LS Tractor dealer near you

John Deere 3025E vs LS Tractor XG3025: Quick Answers

Which has more horsepower, the John Deere 3025E or the LS Tractor XG3025?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3025E or the LS Tractor XG3025?: The LS Tractor XG3025 leads on pto hp at 19.2 hp hp, compared to 17.4 hp hp for the John Deere 3025E.
Which is heavier, the John Deere 3025E or the LS Tractor XG3025?: The LS Tractor XG3025 leads on weight at 2,469 lb lb, compared to 2,266 lb lb for the John Deere 3025E.
Which has more loader lift capacity, the John Deere 3025E or the LS Tractor XG3025?: The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025E.
Which has more three-point hitch lift capacity, the John Deere 3025E or the LS Tractor XG3025?: The LS Tractor XG3025 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3025E	LS Tractor XG3025
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.4 hp	▲ 19.2 hp
Weight (lb)	2,266 lb	▲ 2,469 lb
Loader Lift (lb)	1,186 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	1,356 lb	▲ 1,433 lb
Lift Height (in)	84 in	▲ 94.3 in
Breakout Force (lbf)	1,704 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 12.5 gpm

The headline numbers at a glance.

John Deere 3025ELS Tractor XG3025

Engine HPhp

▲24.4 hp

PTO HPhp

17.4 hp

▲19.2 hp

17.1 hp

gearHST

Weightlb

2,266 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

1,186 lb

▲1,600 lb

3-Pt Lift (24 in)lb

1,356 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	LS TractorXG3025


Engine Manufacturer	Yanmar	Mitsubishi (MHI)
Engine Model	3TNV88F-EPJT2	S3L2
Engine Type	Diesel, naturally aspirated, direct injection	Indirect injection, swirl chamber diesel
No. of Cylinders	3	3
Displacement	95.7 in³	80.4 in³
Rated Engine Speed	2400 rpm	2500 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.4 hp	XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Water-cooled
Air Cleaner	Dry type with safety element	Dry
Fuel System	Direct injection	Indirect injection
Alternator	55 A, 12 V	50 A, 12 V

Pump Type	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston	Gear pump, engine driven
Implement Flow	5.3 gpm	7.9 gpm
Steering Flow	4.0 gpm	4.6 gpm
Total Hydraulic Flow	9.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	9.3 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard
No. of Optional Remote Valves	Up to 2 (optional)	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	7.5 gal	7.4 gal
Coolant Capacity	1.3 gal	1.3 gal
Crankcase Capacity	4.5 qt	1.1 gal
Transmission / Hydraulic System Capacity	5.5 gal	8.5 gal
Front Axle Fluid Capacity	1.0 gal	1.7 gal

PTO Type	Not Published	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,808 lb
Hitch Lift Capacity (at 24”)	1356 lb	1,433 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic transmission (HST)	XG3025 (gear): Synchro shuttle; XG3025H (HST): HST
No. of Speeds	Not Published	XG3025 (gear): F12 x R12; XG3025H (HST): 3 ranges (HST)
Max Travel Speed (Forward)	Not Published	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	XG3025 (gear): dry single clutch; XG3025H (HST): not applicable
Differential Lock & Limited Slip Options	Not Published	Mechanical differential lock (pedal)

Frame Type	Open operator station (OOS)	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (MFWD)	Not Published
Front Axle Rating	1760 lb	Not Published
Drawbar Capacity	880 lb	Not Published

Overall Length with 3-Point Hitch	115.9 in	118 in
Overall Width	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)	54 in
Wheelbase	62.8 in	66 in
Ground Clearance	12.7 in (R4 tires)	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	10.5 ft
Height to Top of ROPS	95.3 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2266 lb	XG3025 (gear): 2,434 lb; XG3025H (HST): 2,469 lb
Weight with ROPS and Loader	2972 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	Ag, industrial or turf tires
R1 Agricultural - Front	7-14	7-14
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	25x8.5-14
R3 Turf - Rear	41X14-20	41x14-20
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	25x8.5-14
R4 Industrial - Rear	15.00-19.5 or 43X16-20	43x16-20

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	LL3110
Loader Lift Height	84 in	LL3110: 94.3 in
Loader Lift Capacity (Full Height)	1,186 lb	LL3110: 1,600 lb
Loader Breakout Force	1,704 lb	LL3110: 2,637 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Not Published

Find a John Deere dealer near you Find a LS Tractor dealer near you

John Deere 3025E vs LS Tractor XG3025: Quick Answers

Which has more horsepower, the John Deere 3025E or the LS Tractor XG3025?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3025E or the LS Tractor XG3025?

The LS Tractor XG3025 leads on pto hp at 19.2 hp hp, compared to 17.4 hp hp for the John Deere 3025E.

Which is heavier, the John Deere 3025E or the LS Tractor XG3025?

The LS Tractor XG3025 leads on weight at 2,469 lb lb, compared to 2,266 lb lb for the John Deere 3025E.

Which has more loader lift capacity, the John Deere 3025E or the LS Tractor XG3025?

The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 1,186 lb lb for the John Deere 3025E.

Which has more three-point hitch lift capacity, the John Deere 3025E or the LS Tractor XG3025?

The LS Tractor XG3025 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 1,356 lb lb for the John Deere 3025E.
