Bad Boy Tractors 1022 vs LS Tractor XG3025

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the LS Tractor XG3025 leads 8 categories to 0. Machine pages: Bad Boy Tractors 1022 and LS Tractor XG3025.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	Bad Boy Tractors 1022	LS Tractor XG3025
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 19.2 hp
Weight (lb)	1,433 lb	▲ 2,469 lb
Loader Lift (lb)	617 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,433 lb
Lift Height (in)	78.5 in	▲ 94.3 in
Breakout Force (lbf)	1,253 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	7.8 mph	n/a

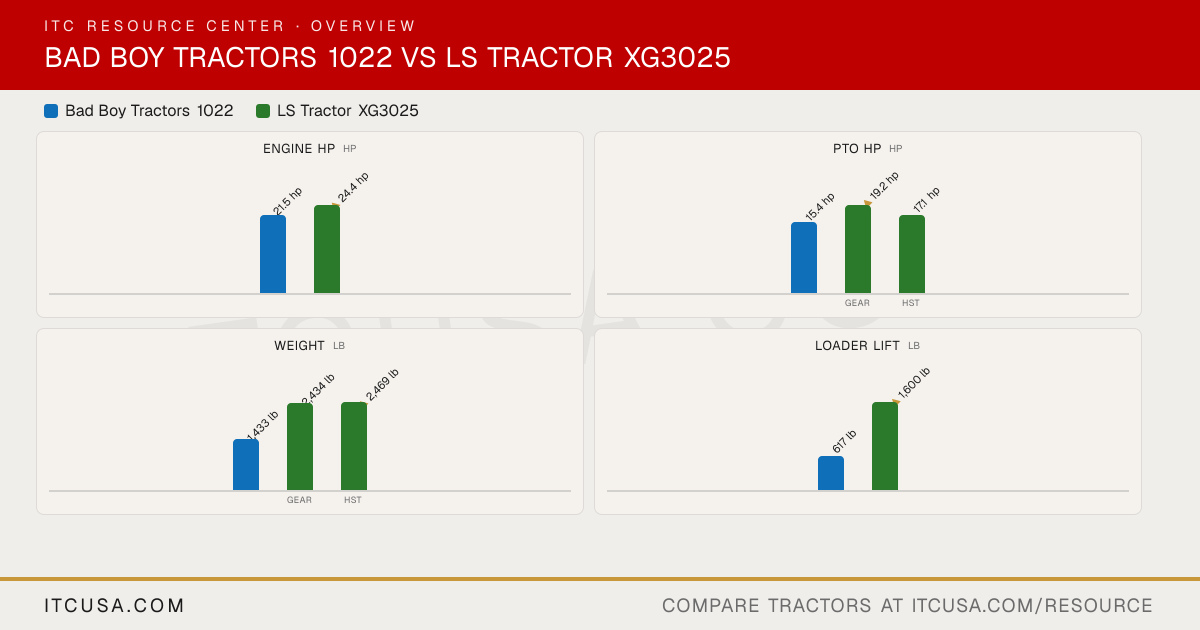

The headline numbers at a glance.

Bad Boy Tractors 1022LS Tractor XG3025

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲19.2 hp

17.1 hp

gearHST

Weightlb

1,433 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

617 lb

▲1,600 lb

3-Pt Lift (24 in)lb

679 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	LS TractorXG3025


Engine Manufacturer	Yanmar	Mitsubishi (MHI)
Engine Model	3TNM74F	S3L2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Indirect injection, swirl chamber diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Dry
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Gear pump, engine driven
Implement Flow	4.17 gpm	7.9 gpm
Steering Flow	2.11 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	6.97 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	3.7 qt	1.3 gal
Crankcase Capacity	2.1 qt	1.1 gal
Transmission / Hydraulic System Capacity	3.6 gal	8.5 gal
Front Axle Fluid Capacity	2.6 qt	1.7 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,808 lb
Hitch Lift Capacity (at 24”)	679 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	XG3025 (gear): Synchro shuttle; XG3025H (HST): HST
No. of Speeds	2 range	XG3025 (gear): F12 x R12; XG3025H (HST): 3 ranges (HST)
Max Travel Speed (Forward)	7.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	XG3025 (gear): dry single clutch; XG3025H (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	118 in
Overall Width	44.5 in	54 in
Wheelbase	53.1 in	66 in
Ground Clearance	8.3 in	Not Published
Min. Turn Radius without Brakes	86.6 in	10.5 ft
Height to Top of ROPS	86.6 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	XG3025 (gear): 2,434 lb; XG3025H (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Ag, industrial or turf tires
R1 Agricultural - Front	16x7.50-9	7-14
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12.00-12	41x14-20
R4 Industrial - Front	18x8.5-10	25x8.5-14
R4 Industrial - Rear	26x12.00-12	43x16-20

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	LL3110
Loader Lift Height	78.5 in	LL3110: 94.3 in
Loader Lift Capacity (Full Height)	617 lb	LL3110: 1,600 lb
Loader Breakout Force	1,253 lbf	LL3110: 2,637 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a LS Tractor dealer near you

Bad Boy Tractors 1022 vs LS Tractor XG3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the LS Tractor XG3025?: The LS Tractor XG3025 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.
Which has more PTO horsepower, the Bad Boy Tractors 1022 or the LS Tractor XG3025?: The LS Tractor XG3025 leads on pto hp at 19.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.
Which is heavier, the Bad Boy Tractors 1022 or the LS Tractor XG3025?: The LS Tractor XG3025 leads on weight at 2,469 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.
Which has more loader lift capacity, the Bad Boy Tractors 1022 or the LS Tractor XG3025?: The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.
Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the LS Tractor XG3025?: The LS Tractor XG3025 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.

More Head-to-Heads

Category Verdict

Spec	Bad Boy Tractors 1022	LS Tractor XG3025
Engine HP (hp)	21.5 hp	▲ 24.4 hp
PTO HP (hp)	15.4 hp	▲ 19.2 hp
Weight (lb)	1,433 lb	▲ 2,469 lb
Loader Lift (lb)	617 lb	▲ 1,600 lb
3-Pt Lift (24 in) (lb)	679 lb	▲ 1,433 lb
Lift Height (in)	78.5 in	▲ 94.3 in
Breakout Force (lbf)	1,253 lbf	▲ 2,637 lbf
Hydraulic Flow (gpm)	6.3 gpm	▲ 12.5 gpm
Travel Speed (mph)	7.8 mph	n/a

The headline numbers at a glance.

Bad Boy Tractors 1022LS Tractor XG3025

Engine HPhp

21.5 hp

▲24.4 hp

PTO HPhp

15.4 hp

▲19.2 hp

17.1 hp

gearHST

Weightlb

1,433 lb

2,434 lb

▲2,469 lb

gearHST

Loader Liftlb

617 lb

▲1,600 lb

3-Pt Lift (24 in)lb

679 lb

▲1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors1022	LS TractorXG3025


Engine Manufacturer	Yanmar	Mitsubishi (MHI)
Engine Model	3TNM74F	S3L2
Engine Type	3 cylinder, water-cooled diesel, natural aspiration	Indirect injection, swirl chamber diesel
No. of Cylinders	3	3
Displacement	60.6 in³	80.4 in³
Rated Engine Speed	3200 rpm	2500 rpm
Engine Power (Gross)	21.5 hp	24.4 hp
PTO Power	15.4 hp	XG3025 (gear): 19.2 hp; XG3025H (HST): 17.1 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water-cooled	Water-cooled
Air Cleaner	Single dry element	Dry
Fuel System	Indirect injection	Indirect injection
Alternator	40 A, 12 V	50 A, 12 V

Pump Type	Single gear pump with flow divider	Gear pump, engine driven
Implement Flow	4.17 gpm	7.9 gpm
Steering Flow	2.11 gpm	4.6 gpm
Total Hydraulic Flow	6.3 gpm	12.5 gpm
Overall Hydraulic Pump Flow	6.97 gpm	12.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	None standard
No. of Optional Remote Valves	1	1 or 2 optional (double-acting, 2 or 4 quick couplers)

Fuel Tank Capacity	6.6 gal	7.4 gal
Coolant Capacity	3.7 qt	1.3 gal
Crankcase Capacity	2.1 qt	1.1 gal
Transmission / Hydraulic System Capacity	3.6 gal	8.5 gal
Front Axle Fluid Capacity	2.6 qt	1.7 gal

PTO Type	Independent	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional, 2,500 rpm	Optional
Category, 3-Point Hitch	Category I (limited)	Category I
Hitch Lift Capacity	1,100 lb	1,808 lb
Hitch Lift Capacity (at 24”)	679 lb	1,433 lb
Lift Control Type	Position control	Position control

Transmission Type	Hydrostatic (HST)	XG3025 (gear): Synchro shuttle; XG3025H (HST): HST
No. of Speeds	2 range	XG3025 (gear): F12 x R12; XG3025H (HST): 3 ranges (HST)
Max Travel Speed (Forward)	7.8 mph	Not Published
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Dry single plate	XG3025 (gear): dry single clutch; XG3025H (HST): not applicable
Differential Lock & Limited Slip Options	Mechanical rear differential lock	Mechanical differential lock (pedal)

Frame Type	Sub-compact tractor, 4WD	Not Published
Steering	Hydrostatic power steering	Hydrostatic power steering
Brakes	Wet disc	Wet, multi-disc
Seat Suspension & Adjustability	Standard adjustable seat	Not Published
Front Axle Type	Selectable 4WD	Not Published
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	94.2 in	118 in
Overall Width	44.5 in	54 in
Wheelbase	53.1 in	66 in
Ground Clearance	8.3 in	Not Published
Min. Turn Radius without Brakes	86.6 in	10.5 ft
Height to Top of ROPS	86.6 in	88 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	1,433 lb	XG3025 (gear): 2,434 lb; XG3025H (HST): 2,469 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R3 Turf, R4 Industrial	Ag, industrial or turf tires
R1 Agricultural - Front	16x7.50-9	7-14
R1 Agricultural - Rear	24x12.00-12	11.2-24
R3 Turf - Front	18x8.5-10	25x8.5-14
R3 Turf - Rear	26x12.00-12	41x14-20
R4 Industrial - Front	18x8.5-10	25x8.5-14
R4 Industrial - Rear	26x12.00-12	43x16-20

Quick Attach Loader System	Quick attach front loader	Not Published
Loader Model	BBL100	LL3110
Loader Lift Height	78.5 in	LL3110: 94.3 in
Loader Lift Capacity (Full Height)	617 lb	LL3110: 1,600 lb
Loader Breakout Force	1,253 lbf	LL3110: 2,637 lb

Warranty Length & Coverage	Engine and powertrain: 84 months or 2,000 hours; other tractor parts: 24 months or 1,000 hours; loader and backhoe: 24 months from shipment, 12 months from sale, or 500 hours	Not Published

Find a Bad Boy dealer near you Find a LS Tractor dealer near you

Bad Boy Tractors 1022 vs LS Tractor XG3025: Quick Answers

Which has more horsepower, the Bad Boy Tractors 1022 or the LS Tractor XG3025?

The LS Tractor XG3025 leads on engine hp at 24.4 hp hp, compared to 21.5 hp hp for the Bad Boy Tractors 1022.

Which has more PTO horsepower, the Bad Boy Tractors 1022 or the LS Tractor XG3025?

The LS Tractor XG3025 leads on pto hp at 19.2 hp hp, compared to 15.4 hp hp for the Bad Boy Tractors 1022.

Which is heavier, the Bad Boy Tractors 1022 or the LS Tractor XG3025?

The LS Tractor XG3025 leads on weight at 2,469 lb lb, compared to 1,433 lb lb for the Bad Boy Tractors 1022.

Which has more loader lift capacity, the Bad Boy Tractors 1022 or the LS Tractor XG3025?

The LS Tractor XG3025 leads on loader lift at 1,600 lb lb, compared to 617 lb lb for the Bad Boy Tractors 1022.

Which has more three-point hitch lift capacity, the Bad Boy Tractors 1022 or the LS Tractor XG3025?

The LS Tractor XG3025 leads on 3-pt lift (24 in) at 1,433 lb lb, compared to 679 lb lb for the Bad Boy Tractors 1022.
