John Deere 3025E vs New Holland Boomer 24

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 8 measurable specs, the John Deere 3025E leads 5 categories to 2 (1 tied). Machine pages: John Deere 3025E and New Holland Boomer 24.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3025E	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.4 hp	▲ 18.5 hp
Weight (lb)	▲ 2,266 lb	1,832 lb
Loader Lift (lb)	▲ 1,186 lb	1,034 lb
3-Pt Lift (24 in) (lb)	▲ 1,356 lb	1,058 lb
Lift Height (in)	▲ 84 in	80.7 in
Breakout Force (lbf)	▲ 1,704 lbf	1,672 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 9.6 gpm
Travel Speed (mph)	n/a	11.3 mph

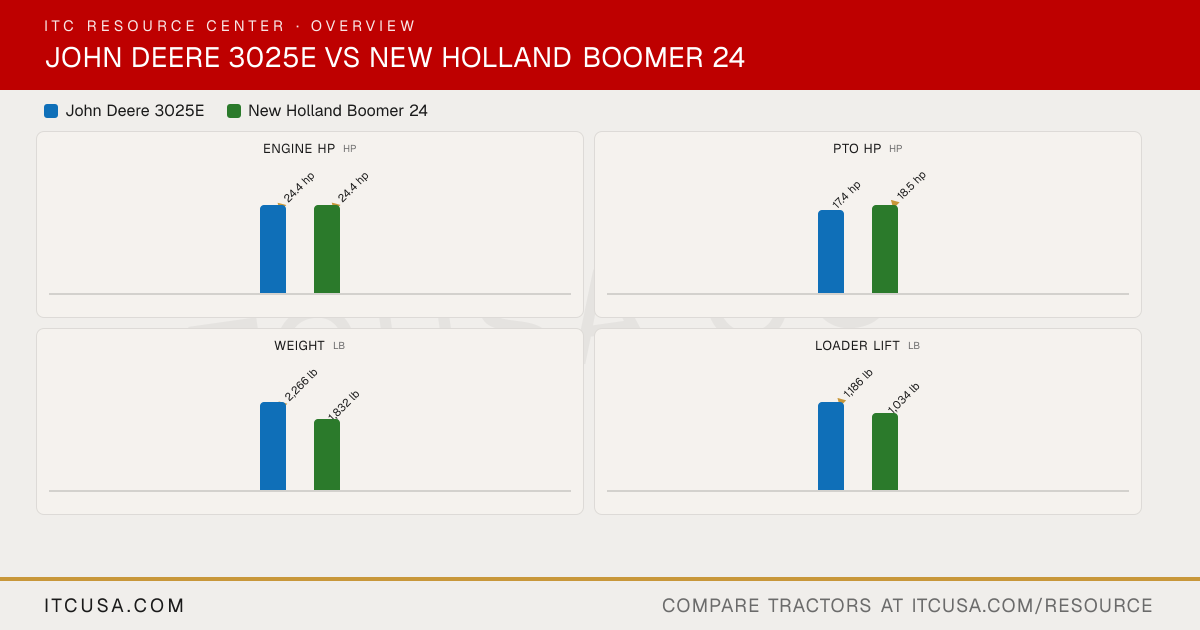

The headline numbers at a glance.

John Deere 3025ENew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.4 hp

▲18.5 hp

Weightlb

▲2,266 lb

1,832 lb

Loader Liftlb

▲1,186 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,356 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	New HollandBoomer 24


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV88F-EPJT2	S3L2
Engine Type	Diesel, naturally aspirated, direct injection	3-cylinder diesel
No. of Cylinders	3	3
Displacement	95.7 in³	80.4 in³
Rated Engine Speed	2400 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.4 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Liquid-cooled
Air Cleaner	Dry type with safety element	Single replaceable dry element
Fuel System	Direct injection	Not Published
Alternator	55 A, 12 V	50 A

Pump Type	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston	Not Published
Implement Flow	5.3 gpm	6.7 gpm
Steering Flow	4.0 gpm	2.9 gpm
Total Hydraulic Flow	9.3 gpm	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	9.3 gpm	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2 (optional)	1 (DIA, optional)

Fuel Tank Capacity	7.5 gal	6.6 gal
Coolant Capacity	1.3 gal	Not Published
Crankcase Capacity	4.5 qt	Not Published
Transmission / Hydraulic System Capacity	5.5 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	Not Published

PTO Type	Not Published	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,433 lb
Hitch Lift Capacity (at 24”)	1356 lb	1,058 lb
Lift Control Type	Not Published	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic transmission (HST)	2-range hydrostatic (HST), dual pedal
No. of Speeds	Not Published	HST, 2 ranges
Max Travel Speed (Forward)	Not Published	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock (foot pedal)

Frame Type	Open operator station (OOS)	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet disc	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (MFWD)	Four-wheel drive (standard)
Front Axle Rating	1760 lb	Not Published
Drawbar Capacity	880 lb	Not Published

Overall Length with 3-Point Hitch	115.9 in	103.6 in
Overall Width	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)	49.1 in
Wheelbase	62.8 in	59 in
Ground Clearance	12.7 in (R4 tires)	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	Not Published
Height to Top of ROPS	95.3 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2266 lb	1,832 lb
Weight with ROPS and Loader	2972 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.50-15	23x8.50-12
R3 Turf - Rear	41X14-20	33x12-16.5
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	23x8.50-12
R4 Industrial - Rear	15.00-19.5 or 43X16-20	12-16.5

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	235TL
Loader Lift Height	84 in	235TL: 80.7 in
Loader Lift Capacity (Full Height)	1,186 lb	235TL: 1,034 lb
Loader Breakout Force	1,704 lb	235TL: 1,672 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain)

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 3025E vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the John Deere 3025E or the New Holland Boomer 24?: They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.
Which has more PTO horsepower, the John Deere 3025E or the New Holland Boomer 24?: The New Holland Boomer 24 leads on pto hp at 18.5 hp hp, compared to 17.4 hp hp for the John Deere 3025E.
Which is heavier, the John Deere 3025E or the New Holland Boomer 24?: The John Deere 3025E leads on weight at 2,266 lb lb, compared to 1,832 lb lb for the New Holland Boomer 24.
Which has more loader lift capacity, the John Deere 3025E or the New Holland Boomer 24?: The John Deere 3025E leads on loader lift at 1,186 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.
Which has more three-point hitch lift capacity, the John Deere 3025E or the New Holland Boomer 24?: The John Deere 3025E leads on 3-pt lift (24 in) at 1,356 lb lb, compared to 1,058 lb lb for the New Holland Boomer 24.

More Head-to-Heads

Category Verdict

Spec	John Deere 3025E	New Holland Boomer 24
Engine HP (hp)	24.4 hp	24.4 hp
PTO HP (hp)	17.4 hp	▲ 18.5 hp
Weight (lb)	▲ 2,266 lb	1,832 lb
Loader Lift (lb)	▲ 1,186 lb	1,034 lb
3-Pt Lift (24 in) (lb)	▲ 1,356 lb	1,058 lb
Lift Height (in)	▲ 84 in	80.7 in
Breakout Force (lbf)	▲ 1,704 lbf	1,672 lbf
Hydraulic Flow (gpm)	9.3 gpm	▲ 9.6 gpm
Travel Speed (mph)	n/a	11.3 mph

The headline numbers at a glance.

John Deere 3025ENew Holland Boomer 24

Engine HPhp

▲24.4 hp

PTO HPhp

17.4 hp

▲18.5 hp

Weightlb

▲2,266 lb

1,832 lb

Loader Liftlb

▲1,186 lb

1,034 lb

3-Pt Lift (24 in)lb

▲1,356 lb

1,058 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3025E	New HollandBoomer 24


Engine Manufacturer	Yanmar	Mitsubishi
Engine Model	3TNV88F-EPJT2	S3L2
Engine Type	Diesel, naturally aspirated, direct injection	3-cylinder diesel
No. of Cylinders	3	3
Displacement	95.7 in³	80.4 in³
Rated Engine Speed	2400 rpm	2700 rpm
Engine Power (Gross)	24.4 hp	24.4 hp
PTO Power	17.4 hp	18.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Liquid-cooled
Air Cleaner	Dry type with safety element	Single replaceable dry element
Fuel System	Direct injection	Not Published
Alternator	55 A, 12 V	50 A

Pump Type	Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston	Not Published
Implement Flow	5.3 gpm	6.7 gpm
Steering Flow	4.0 gpm	2.9 gpm
Total Hydraulic Flow	9.3 gpm	9.6 gpm (6.7 + 2.9, computed)
Overall Hydraulic Pump Flow	9.3 gpm	9.6 gpm (6.7 + 2.9, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 2 (optional)	1 (DIA, optional)

Fuel Tank Capacity	7.5 gal	6.6 gal
Coolant Capacity	1.3 gal	Not Published
Crankcase Capacity	4.5 qt	Not Published
Transmission / Hydraulic System Capacity	5.5 gal	Not Published
Front Axle Fluid Capacity	1.0 gal	Not Published

PTO Type	Not Published	Independent, electro-hydraulic engagement
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Standard, 2000 rpm
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1,356 lb @ 24 in behind link arms	1,433 lb
Hitch Lift Capacity (at 24”)	1356 lb	1,058 lb
Lift Control Type	Not Published	Chain-type stabilizers, fixed link ends

Transmission Type	Hydrostatic transmission (HST)	2-range hydrostatic (HST), dual pedal
No. of Speeds	Not Published	HST, 2 ranges
Max Travel Speed (Forward)	Not Published	11.3 mph (HST, R4 tires)
Max Travel Speed (Reverse)	Not Published	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock (foot pedal)

Frame Type	Open operator station (OOS)	Not Published
Steering	Hydrostatic	Hydrostatic power steering
Brakes	Wet disc	Mechanical wet multi-disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	4WD (MFWD)	Four-wheel drive (standard)
Front Axle Rating	1760 lb	Not Published
Drawbar Capacity	880 lb	Not Published

Overall Length with 3-Point Hitch	115.9 in	103.6 in
Overall Width	56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)	49.1 in
Wheelbase	62.8 in	59 in
Ground Clearance	12.7 in (R4 tires)	Not Published
Min. Turn Radius without Brakes	9.4 ft (2.9 m)	Not Published
Height to Top of ROPS	95.3 in	85.5 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2266 lb	1,832 lb
Weight with ROPS and Loader	2972 lb	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R3 turf tread or R4 industrial tread
R1 Agricultural - Front	7-14	Not Published
R1 Agricultural - Rear	11.2-24	Not Published
R3 Turf - Front	27X8.50-15	23x8.50-12
R3 Turf - Rear	41X14-20	33x12-16.5
R4 Industrial - Front	25X8.50-14 or 27X8.50-15	23x8.50-12
R4 Industrial - Rear	15.00-19.5 or 43X16-20	12-16.5

Quick Attach Loader System	Quick-change attachment carrier	Not Published
Loader Model	D160	235TL
Loader Lift Height	84 in	235TL: 80.7 in
Loader Lift Capacity (Full Height)	1,186 lb	235TL: 1,034 lb
Loader Breakout Force	1,704 lb	235TL: 1,672 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Boomer Guard 5 Limited Warranty: 5 years (2 years bumper-to-bumper plus 3 years powertrain)

Find a John Deere dealer near you Find a New Holland dealer near you

John Deere 3025E vs New Holland Boomer 24: Quick Answers

Which has more horsepower, the John Deere 3025E or the New Holland Boomer 24?

They are effectively tied: both machines are rated at 24.4 hp hp for engine hp.

Which has more PTO horsepower, the John Deere 3025E or the New Holland Boomer 24?

The New Holland Boomer 24 leads on pto hp at 18.5 hp hp, compared to 17.4 hp hp for the John Deere 3025E.

Which is heavier, the John Deere 3025E or the New Holland Boomer 24?

The John Deere 3025E leads on weight at 2,266 lb lb, compared to 1,832 lb lb for the New Holland Boomer 24.

Which has more loader lift capacity, the John Deere 3025E or the New Holland Boomer 24?

The John Deere 3025E leads on loader lift at 1,186 lb lb, compared to 1,034 lb lb for the New Holland Boomer 24.

Which has more three-point hitch lift capacity, the John Deere 3025E or the New Holland Boomer 24?

The John Deere 3025E leads on 3-pt lift (24 in) at 1,356 lb lb, compared to 1,058 lb lb for the New Holland Boomer 24.
