John Deere 3033R vs Kubota L3302DT

Across 8 measurable specs, the John Deere 3033R leads 5 categories to 3. Machine pages: John Deere 3033R and Kubota L3302DT.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

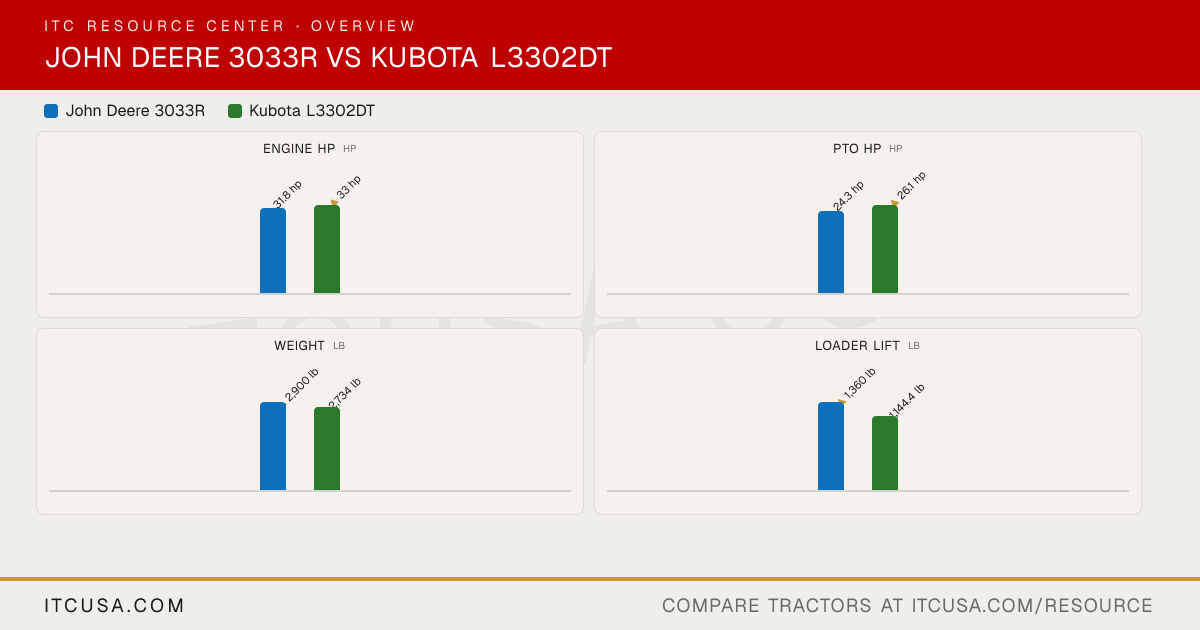

Category Verdict

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3033R	KubotaL3302DT

▶Engine
Engine Manufacturer	Yanmar	Kubota
Engine Model	3TNV88C-MJT	D1803-CR-E5
Engine Type	Diesel, turbocharged	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	97.6 in³	111.4 in³
Rated Engine Speed	2600 rpm	2700 rpm
Engine Power (Gross)	31.8 hp	33 hp
PTO Power	24.3 hp	26.1 hp
Engine Emissions Constraints	Tier 4	Not Published
Cooling System Type	Water pump	Water-cooled
Air Cleaner	Dry type with safety element	Dry type, single element
Fuel System	High pressure common rail direct injection (HPCR)	Direct injection
Alternator	75 A, 12 V	45 A, 12 V
▶Hydraulics
Pump Type	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston	Not Published
Implement Flow	8.6 gpm	6.3 gpm
Steering Flow	5.9 gpm	3.8 gpm
Total Hydraulic Flow	14.4 gpm	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	14.4 gpm	10.1 gpm (6.3 + 3.8, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 6 rear remotes	Not Published
▶Fluid Capacity
Fuel Tank Capacity	Open station: 13.5 gal; Cab: 11.8 gal	11.1 gal
Coolant Capacity	1.4 gal	6.3 qt
Crankcase Capacity	1.1 gal	7.1 qt
Transmission / Hydraulic System Capacity	6.8 gal	7.5 gal
Front Axle Fluid Capacity	1.3 gal	4.8 qt
▶PTO & Hitch
PTO Type	Independent	Transmission driven with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Optional (2100 rpm)	Not Published
Category, 3-Point Hitch	Limited Category 1	SAE Category I
Hitch Lift Capacity	2530 lb at hitch ball	1998 lb
Hitch Lift Capacity (at 24”)	2,194 lb at 24 in behind link arms	1435 lb
Lift Control Type	Position control	Position control
▶Transmission & Drivetrain
Transmission Type	three-range, infinitely variable	Gear shift with synchronized shuttle
No. of Speeds	infinite in 3 ranges	8 forward, 8 reverse
Max Travel Speed (Forward)	18.50 mph	13.2 mph
Max Travel Speed (Reverse)	18.50 mph	13.2 mph
Clutch	Not Applicable	Dry type single stage
Differential Lock & Limited Slip Options	Differential lock: Yes	Rear differential lock, pedal operated
▶Chassis, Steering & Controls
Frame Type	Foldable ROPS; cab or open station configurations available	Not Published
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Multi-plate wet disk	Mechanical, wet disc type
Seat Suspension & Adjustability	Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Mechanical front wheel drive (MFWD)	Cast-iron front axle
Front Axle Rating	3196 lb	Not Published
Drawbar Capacity	899 lbf	730 lb
▶Dimensions & Maneuverability
Overall Length with 3-Point Hitch	120.2 in	108.5 in (without 3-point hitch)
Overall Width	69.1 in	55.1 in
Wheelbase	68.0 in	63.4 in
Ground Clearance	12.2 in	13.4 in
Min. Turn Radius without Brakes	8.8 ft (2.68 m, MFWD off)	8.2 ft (with brake applied)
Height to Top of ROPS	93.3 in	91.7 in
Height to Top of ROPS (folded)	72.0 in	Not Published
Height to Top of Cab Model	85.0 in	Not Published
▶Weight
Tractor Weight (Base)	2900 lb	2734 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published
▶Tire Options
Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7-14	7.2-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15	25X8.50-14
R3 Turf - Rear	41X14-20	13.6-16
R4 Industrial - Front	25X8.5-14 or 27X8.5-15	27X8.50-15
R4 Industrial - Rear	15-19.5 or 43X16-20	15-19.5
▶Loader & Attachments
Quick Attach Loader System	Quik-Park mounting system	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	H160	LA526
Loader Lift Height	90 in	94.8 in
Loader Lift Capacity (Full Height)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot	1144.4 lb
Loader Breakout Force	2,855 lb at pivot; 2,032 lb @ 19.7 in	Not Published
▶Warranty
Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
▶ITC Company Accessories
Accessories that fit	None tagged yet	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00

Find a John Deere dealer near you→Find a Kubota dealer near you→

John Deere 3033R vs Kubota L3302DT: Quick Answers

Which has more horsepower, the John Deere 3033R or the Kubota L3302DT?

The Kubota L3302DT leads on engine hp at 33 hp hp, compared to 31.8 hp hp for the John Deere 3033R.

Which has more PTO horsepower, the John Deere 3033R or the Kubota L3302DT?

The Kubota L3302DT leads on pto hp at 26.1 hp hp, compared to 24.3 hp hp for the John Deere 3033R.

Which is heavier, the John Deere 3033R or the Kubota L3302DT?

The John Deere 3033R leads on weight at 2,900 lb lb, compared to 2,734 lb lb for the Kubota L3302DT.

Which has more loader lift capacity, the John Deere 3033R or the Kubota L3302DT?

The John Deere 3033R leads on loader lift at 1,360 lb lb, compared to 1,144.4 lb lb for the Kubota L3302DT.

Which has more three-point hitch lift capacity, the John Deere 3033R or the Kubota L3302DT?

The John Deere 3033R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,435 lb lb for the Kubota L3302DT.
