John Deere 3039R vs Massey Ferguson 1740E

Every published spec for both machines, side by side. The verdict below is computed straight from the spec sheets, not opinion.

Across 7 measurable specs, the Massey Ferguson 1740E leads 4 categories to 3. Machine pages: John Deere 3039R and Massey Ferguson 1740E.

Want a third or fourth machine in the mix? Open this matchup in the comparison tool and add up to two more.

Category Verdict

Spec	John Deere 3039R	Massey Ferguson 1740E
Engine HP (hp)	38.2 hp	▲ 38.5 hp
PTO HP (hp)	31.1 hp	▲ 32.7 hp
Weight (lb)	2,900 lb	n/a
Loader Lift (lb)	1,360 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,194 lb	1,598 lb
Lift Height (in)	90 in	▲ 94.3 in
Breakout Force (lbf)	▲ 2,855 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 14.4 gpm	10.4 gpm
Travel Speed (mph)	18.5 mph	n/a

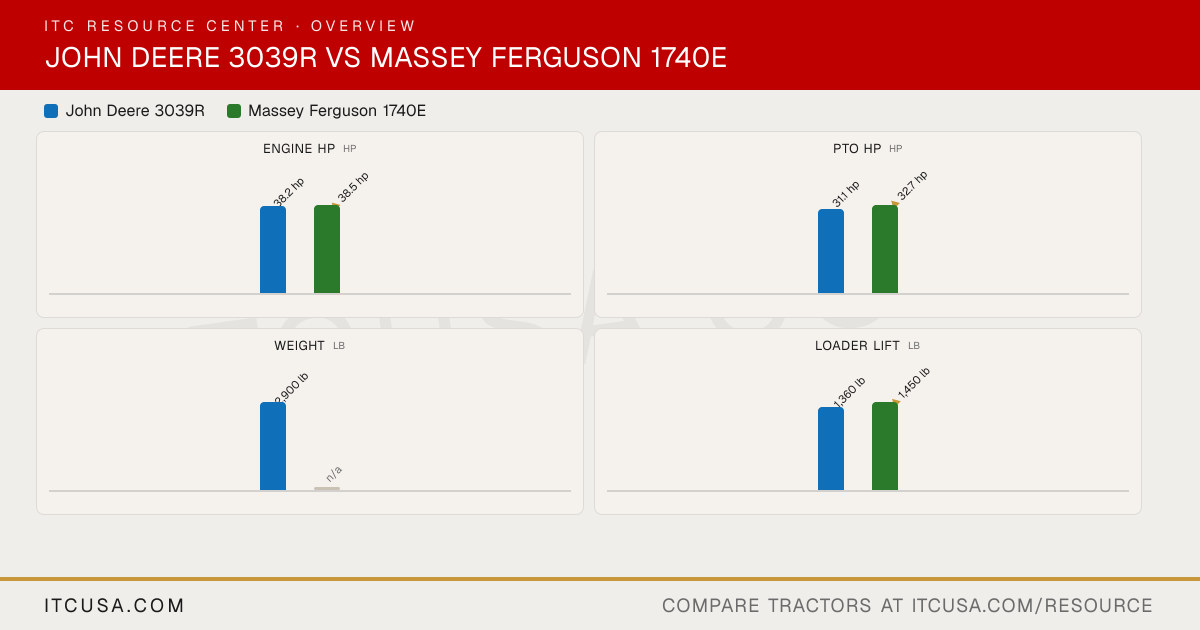

The headline numbers at a glance.

John Deere 3039RMassey Ferguson 1740E

Engine HPhp

38.2 hp

▲38.5 hp

PTO HPhp

31.1 hp

▲32.7 hp

Weightlb

2,900 lb

n/a

Loader Liftlb

1,360 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲2,194 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3039R	Massey Ferguson1740E


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV86CT-MJT	Not Published
Engine Type	Diesel, turbocharged	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	97.6 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	38.2 hp	38.5 hp
PTO Power	31.1 hp	32.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Liquid-cooled
Air Cleaner	Dry type with safety element	Dry
Fuel System	High pressure common rail direct injection (HPCR)	Not Published
Alternator	75 A, 12 V	Not Published

Pump Type	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston	Dual engine-driven gear pumps
Implement Flow	8.6 gpm	7.5 gpm
Steering Flow	5.9 gpm	Not Published
Total Hydraulic Flow	14.4 gpm	10.4 gpm
Overall Hydraulic Pump Flow	14.4 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Up to 2
No. of Optional Remote Valves	Up to 6 rear remotes	2

Fuel Tank Capacity	Open station (OOS): 13.5 gal; Cab: 11.8 gal	10.6 gal
Coolant Capacity	Open station (OOS): 1.4 gal; Cab: 1.9 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	6.8 gal	Not Published
Front Axle Fluid Capacity	1.3 gal	Not Published

PTO Type	Independent	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Optional (eHydro only): 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	2530 lb at hitch ball	2,205 lb
Hitch Lift Capacity (at 24”)	2,194 lb at 24 in behind link arms	1,598 lb
Lift Control Type	Position control	Position control

Transmission Type	3-range hydrostatic (eHydro)	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Infinite / 3 range	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	18.50 mph	Not Published
Max Travel Speed (Reverse)	18.50 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock (traction assist); limited slip differential	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Scissor-link suspension seat	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD)	Not Published
Front Axle Rating	3196 lb	Not Published
Drawbar Capacity	899 lbf	Not Published

Overall Length with 3-Point Hitch	120.2 in	121.1 in
Overall Width	69.1 in	56.1-59.4 in
Wheelbase	68.0 in	65.9 in
Ground Clearance	12.2 in	Not Published
Min. Turn Radius without Brakes	8.8 ft (2.68 m, MFWD off)	Not Published
Height to Top of ROPS	93.3 in	93.9-94.5 in
Height to Top of ROPS (folded)	72.0 in	Not Published
Height to Top of Cab Model	85.0 in	Not Published

Tractor Weight (Base)	2900 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	7-14	7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15 or 25/10.5LLX15	Not Published
R3 Turf - Rear	41X14-20 or 41X18LL-16.1	Not Published
R4 Industrial - Front	25X8.5-14 or 27X8.5-15	27x8.50-15
R4 Industrial - Rear	15-19.5 or 43X16-20	15-19.5

Quick Attach Loader System	Quik-Park mounting system	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	H160	FLx2407
Loader Lift Height	90 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot	FLx2407: 1,450 lb
Loader Breakout Force	2,855 lb at pivot; 2,032 lb @ 19.7 in	FLx2407: 2,288 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3039R vs Massey Ferguson 1740E: Quick Answers

Which has more horsepower, the John Deere 3039R or the Massey Ferguson 1740E?: The Massey Ferguson 1740E leads on engine hp at 38.5 hp hp, compared to 38.2 hp hp for the John Deere 3039R.
Which has more PTO horsepower, the John Deere 3039R or the Massey Ferguson 1740E?: The Massey Ferguson 1740E leads on pto hp at 32.7 hp hp, compared to 31.1 hp hp for the John Deere 3039R.
Which has more loader lift capacity, the John Deere 3039R or the Massey Ferguson 1740E?: The Massey Ferguson 1740E leads on loader lift at 1,450 lb lb, compared to 1,360 lb lb for the John Deere 3039R.
Which has more three-point hitch lift capacity, the John Deere 3039R or the Massey Ferguson 1740E?: The John Deere 3039R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1740E.

More Head-to-Heads

Category Verdict

Spec	John Deere 3039R	Massey Ferguson 1740E
Engine HP (hp)	38.2 hp	▲ 38.5 hp
PTO HP (hp)	31.1 hp	▲ 32.7 hp
Weight (lb)	2,900 lb	n/a
Loader Lift (lb)	1,360 lb	▲ 1,450 lb
3-Pt Lift (24 in) (lb)	▲ 2,194 lb	1,598 lb
Lift Height (in)	90 in	▲ 94.3 in
Breakout Force (lbf)	▲ 2,855 lbf	2,288 lbf
Hydraulic Flow (gpm)	▲ 14.4 gpm	10.4 gpm
Travel Speed (mph)	18.5 mph	n/a

The headline numbers at a glance.

John Deere 3039RMassey Ferguson 1740E

Engine HPhp

38.2 hp

▲38.5 hp

PTO HPhp

31.1 hp

▲32.7 hp

Weightlb

2,900 lb

n/a

Loader Liftlb

1,360 lb

▲1,450 lb

3-Pt Lift (24 in)lb

▲2,194 lb

1,598 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	John Deere3039R	Massey Ferguson1740E


Engine Manufacturer	Yanmar	Shibaura
Engine Model	3TNV86CT-MJT	Not Published
Engine Type	Diesel, turbocharged	3-cylinder turbocharged diesel, liquid-cooled
No. of Cylinders	3	3
Displacement	97.6 in³	91.3 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	38.2 hp	38.5 hp
PTO Power	31.1 hp	32.7 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Water pump	Liquid-cooled
Air Cleaner	Dry type with safety element	Dry
Fuel System	High pressure common rail direct injection (HPCR)	Not Published
Alternator	75 A, 12 V	Not Published

Pump Type	Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston	Dual engine-driven gear pumps
Implement Flow	8.6 gpm	7.5 gpm
Steering Flow	5.9 gpm	Not Published
Total Hydraulic Flow	14.4 gpm	10.4 gpm
Overall Hydraulic Pump Flow	14.4 gpm	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Up to 2
No. of Optional Remote Valves	Up to 6 rear remotes	2

Fuel Tank Capacity	Open station (OOS): 13.5 gal; Cab: 11.8 gal	10.6 gal
Coolant Capacity	Open station (OOS): 1.4 gal; Cab: 1.9 gal	Not Published
Crankcase Capacity	1.1 gal	Not Published
Transmission / Hydraulic System Capacity	6.8 gal	Not Published
Front Axle Fluid Capacity	1.3 gal	Not Published

PTO Type	Independent	8x8 Synchro Shuttle: independent; HST: transmission driven
PTO Rear	540 rpm	540 rpm (1-3/8 in 6-spline)
Mid-PTO Availability	Optional (eHydro only): 2100 rpm	Not Published
Category, 3-Point Hitch	Limited Category I	Category I
Hitch Lift Capacity	2530 lb at hitch ball	2,205 lb
Hitch Lift Capacity (at 24”)	2,194 lb at 24 in behind link arms	1,598 lb
Lift Control Type	Position control	Position control

Transmission Type	3-range hydrostatic (eHydro)	8 x 8 synchro shuttle or 3-range hydrostatic
No. of Speeds	Infinite / 3 range	8x8 Synchro Shuttle: 8F / 8R; HST: 3-range infinite
Max Travel Speed (Forward)	18.50 mph	Not Published
Max Travel Speed (Reverse)	18.50 mph	Not Published
Clutch	Not Published	Not Published
Differential Lock & Limited Slip Options	Differential lock (traction assist); limited slip differential	Mechanical rear differential lock

Frame Type	Not Published	Not Published
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disk	Wet disc
Seat Suspension & Adjustability	Scissor-link suspension seat	Not Published
Front Axle Type	Mechanical front wheel drive (MFWD)	Not Published
Front Axle Rating	3196 lb	Not Published
Drawbar Capacity	899 lbf	Not Published

Overall Length with 3-Point Hitch	120.2 in	121.1 in
Overall Width	69.1 in	56.1-59.4 in
Wheelbase	68.0 in	65.9 in
Ground Clearance	12.2 in	Not Published
Min. Turn Radius without Brakes	8.8 ft (2.68 m, MFWD off)	Not Published
Height to Top of ROPS	93.3 in	93.9-94.5 in
Height to Top of ROPS (folded)	72.0 in	Not Published
Height to Top of Cab Model	85.0 in	Not Published

Tractor Weight (Base)	2900 lb	Not Published
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Bar, R3 Turf, R4 Industrial	R1 Agricultural, R4 Industrial
R1 Agricultural - Front	7-14	7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	27X8.50-15 or 25/10.5LLX15	Not Published
R3 Turf - Rear	41X14-20 or 41X18LL-16.1	Not Published
R4 Industrial - Front	25X8.5-14 or 27X8.5-15	27x8.50-15
R4 Industrial - Rear	15-19.5 or 43X16-20	15-19.5

Quick Attach Loader System	Quik-Park mounting system	FLx2407: pin-on (skid steer quick attach optional)
Loader Model	H160	FLx2407
Loader Lift Height	90 in	FLx2407: 94.3 in
Loader Lift Capacity (Full Height)	1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot	FLx2407: 1,450 lb
Loader Breakout Force	2,855 lb at pivot; 2,032 lb @ 19.7 in	FLx2407: 2,288 lb

Warranty Length & Coverage	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)	5-year powertrain warranty

Find a John Deere dealer near you Find a dealer near you

John Deere 3039R vs Massey Ferguson 1740E: Quick Answers

Which has more horsepower, the John Deere 3039R or the Massey Ferguson 1740E?

The Massey Ferguson 1740E leads on engine hp at 38.5 hp hp, compared to 38.2 hp hp for the John Deere 3039R.

Which has more PTO horsepower, the John Deere 3039R or the Massey Ferguson 1740E?

The Massey Ferguson 1740E leads on pto hp at 32.7 hp hp, compared to 31.1 hp hp for the John Deere 3039R.

Which has more loader lift capacity, the John Deere 3039R or the Massey Ferguson 1740E?

The Massey Ferguson 1740E leads on loader lift at 1,450 lb lb, compared to 1,360 lb lb for the John Deere 3039R.

Which has more three-point hitch lift capacity, the John Deere 3039R or the Massey Ferguson 1740E?

The John Deere 3039R leads on 3-pt lift (24 in) at 2,194 lb lb, compared to 1,598 lb lb for the Massey Ferguson 1740E.
